Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#94289) — 336 parça

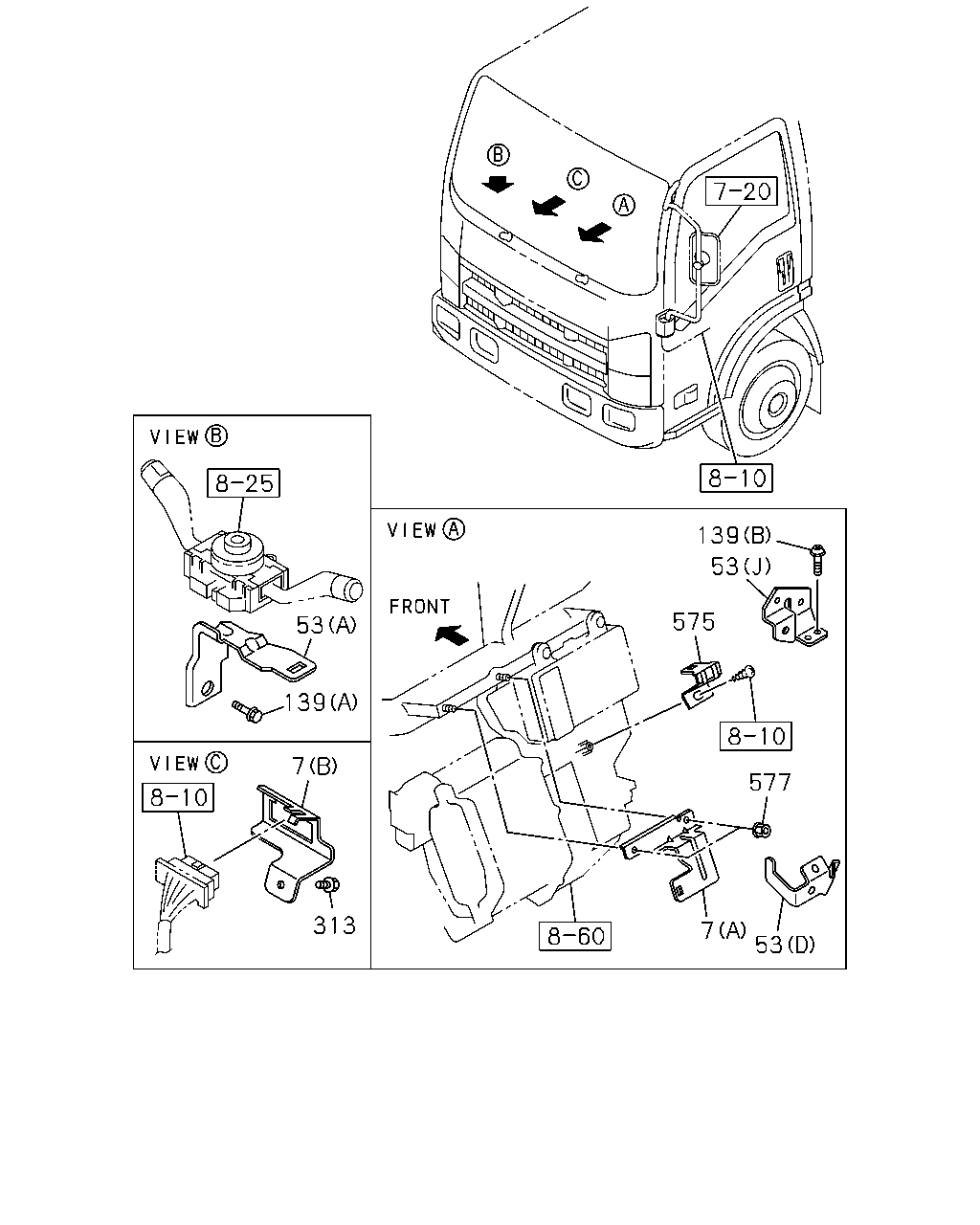

139 53 575 577 53 7 53 139 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98029-762-4	01	1	1207-	●	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCS ENG(RJS) (A)	8-98029-762-4	01	1	1207-			●
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	1207-1209	●	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1207-	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1207-	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1210-	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1210-	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98130-669-1	01	1	1210-	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (J)	8-98084-590-0	01	1	1210-	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1210-				●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (K)	8-98083-225-1	01	1	1210-	●
53	02.483 BRACKET; HARNESS (K)	8-98083-225-1	01	1	1210-				●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1207-1209	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1210-	●	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1207-1209	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1210-1212	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1210-1212		●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1210-1212				●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-		●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-				●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1207-1209	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1210-	●	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1207-1209	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1210-	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1207-1209	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1207-1209	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-	●	●	●	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-	●	●
577	02.559 NUT; FUSE BOX 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-			●

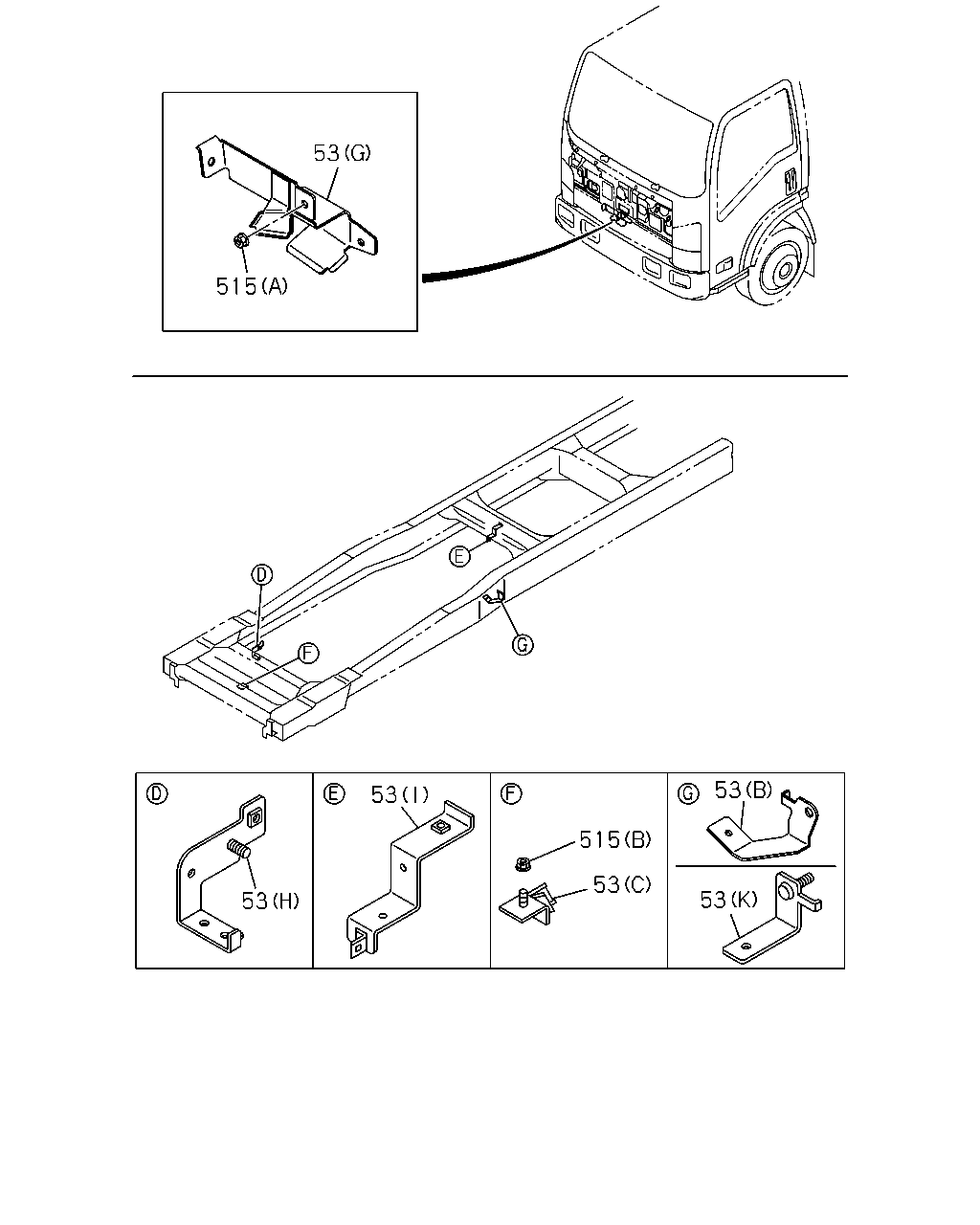

53 515 53 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1207-	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1207-	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1210-	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1210-	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98130-669-1	01	1	1210-	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (J)	8-98084-590-0	01	1	1210-	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1210-				●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (K)	8-98083-225-1	01	1	1210-	●
53	02.483 BRACKET; HARNESS (K)	8-98083-225-1	01	1	1210-				●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1210-	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1210-	●
515	02.559 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1210-			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1210-		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1207-1209	●	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1210-	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1207-1209	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1210-	●	●	●	●

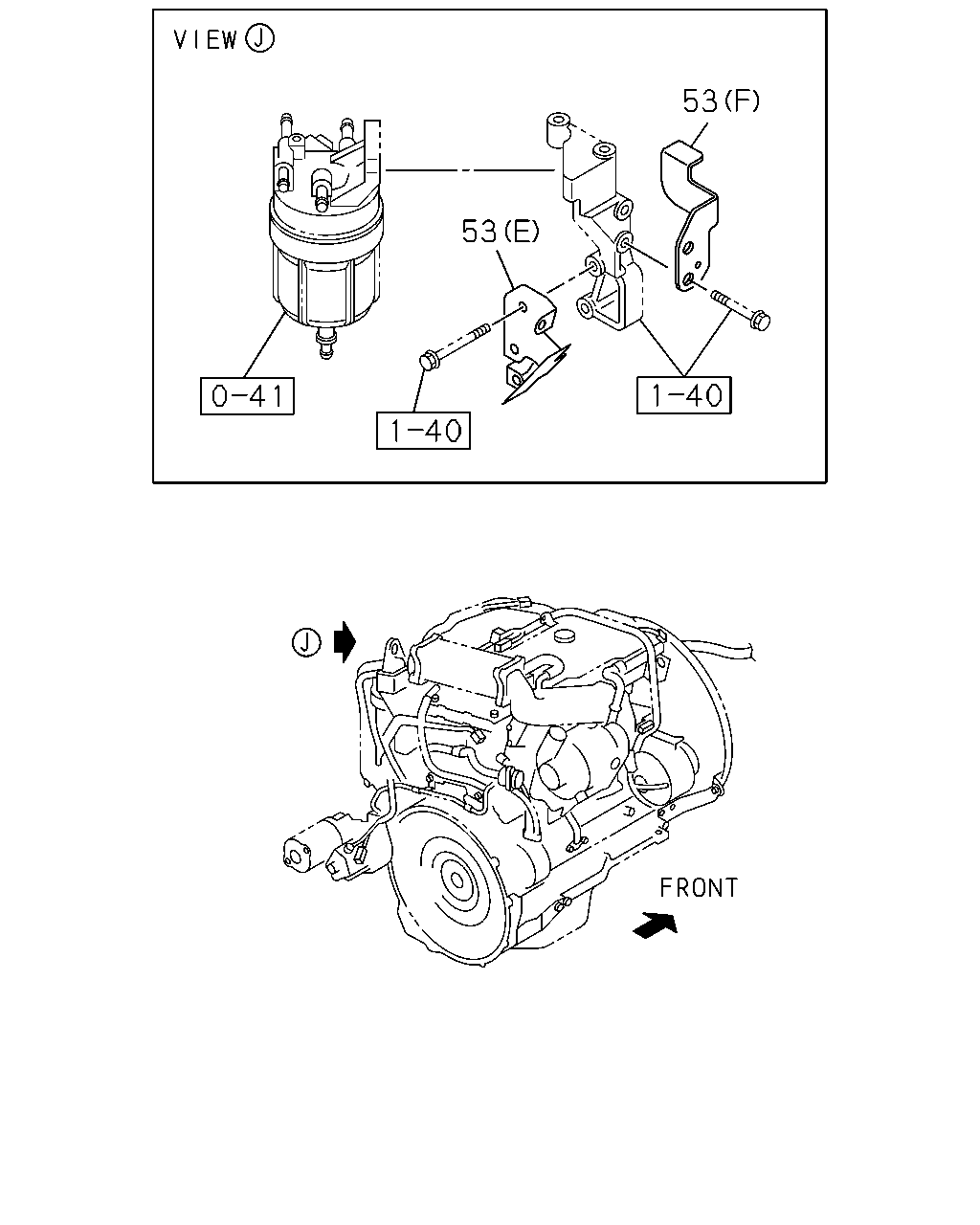

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1207-	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1207-	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	1210-	●	●	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1210-	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1210-	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98130-669-1	01	1	1210-	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1207-1209	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (J)	8-98084-590-0	01	1	1210-	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1210-		●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1210-				●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (K)	8-98083-225-1	01	1	1210-	●
53	02.483 BRACKET; HARNESS (K)	8-98083-225-1	01	1	1210-				●

22 14 22 22 102 22 488 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	03	1	1207-	●	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (E)	8-97101-436-0	01	1	1207-	●	●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) 03.483 (E)	8-97101-436-0	01	1	1207-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1207-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	1207-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1207-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (C) L=40.6	8-97229-357-0	01	1	1207-1209	●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	01	1	1207-1209		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (C) L=40.6	8-97229-357-0	01	1	1210-	●		●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	01	1	1210-		●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1210-	●			●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1210-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) L=250	5-09707-030-1	01	1	1207-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	01	1	1207-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 08.852 (C) L=350	8-94152-256-1	02	1	1207-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 08.852 (C) L=350	8-94152-256-1	02	1	1207-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=14-20	8-97061-603-0	02	1	1207-1505	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=14-20	8-97061-603-0	02	1	1207-1505			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1210-1311	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1210-1311	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (H) L=119.5	1-09707-197-0	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (I) L=100	5-09707-036-1	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1210-	●			●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 L=140	5-09707-031-1	08	1	1207-	●	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1207-1209	●	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1210-	●	●	●	●

48 22 22 483 48 16 48 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (E)	8-97101-436-0	01	1	1207-	●	●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) 03.483 (E)	8-97101-436-0	01	1	1207-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1207-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	1207-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1207-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (C) L=40.6	8-97229-357-0	01	1	1207-1209	●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	01	1	1207-1209		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (C) L=40.6	8-97229-357-0	01	1	1210-	●		●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	01	1	1210-		●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1210-	●			●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1210-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) L=250	5-09707-030-1	01	1	1207-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	01	1	1207-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 08.852 (C) L=350	8-94152-256-1	02	1	1207-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 08.852 (C) L=350	8-94152-256-1	02	1	1207-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=14-20	8-97061-603-0	02	1	1207-1505	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=14-20	8-97061-603-0	02	1	1207-1505			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1210-1311	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1210-1311	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (H) L=119.5	1-09707-197-0	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (I) L=100	5-09707-036-1	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1210-	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1207-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1207-			●
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	02	1	1207-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1207-1209	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1207-1209			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1207-1209		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1210-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1210-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1210-		●
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1207-1209	●		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1210-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1210-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1210-1510	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1210-1510				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-				●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1210-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1210-				●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1207-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1207-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1207-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	1207-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=12	8-97329-630-0	01	1	1207-	●	●	●

16 16 483 483 483 483 16 16 16 16 513 504 22 48 16 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (E)	8-97101-436-0	01	1	1207-	●	●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) 03.483 (E)	8-97101-436-0	01	1	1207-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1207-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	1207-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1207-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (C) L=40.6	8-97229-357-0	01	1	1207-1209	●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	01	1	1207-1209		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (C) L=40.6	8-97229-357-0	01	1	1210-	●		●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	01	1	1210-		●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1207-1209	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1210-	●	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1210-	●			●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1210-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) L=250	5-09707-030-1	01	1	1207-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	01	1	1207-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 08.852 (C) L=350	8-94152-256-1	02	1	1207-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 08.852 (C) L=350	8-94152-256-1	02	1	1207-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=14-20	8-97061-603-0	02	1	1207-1505	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=14-20	8-97061-603-0	02	1	1207-1505			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1210-1311	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1210-1311	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (H) L=119.5	1-09707-197-0	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (I) L=100	5-09707-036-1	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1210-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1210-	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1207-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1207-			●
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	02	1	1207-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1207-1209	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1207-1209			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1207-1209		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1210-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1210-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1210-		●
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1207-1209	●		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1210-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1210-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1210-1510	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1210-1510				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-				●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1210-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1210-				●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1207-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1207-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1207-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	1207-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=12	8-97329-630-0	01	1	1207-	●	●	●
504	02.559 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU)	8-98208-886-0	01	1	1210-	●			●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	1207-1209	●	●	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	1210-1309	●	●	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1207-1209	●	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 130X80	8-97304-373-0	01	1	1210-	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1210-		●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1210-				●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	1207-1209	●	●	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	1210-	●	●	●	●

516 313 481 38 516 150 139 480 480 304 529 139 386 377 386 377 24 515 577 219 294 515 524 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1207-	●	●
24	02.559 NUT; HARNESS 4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1207-			●
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1207-1209	●	●	●
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1210-1409	●	●	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1210-	●			●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1207-1209	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1210-	●	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1207-1209	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1210-1212	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1210-1212		●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1210-1212				●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-		●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-				●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8X12 FLANGE	0-28050-812-0	01	1	1207-	●	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-1209	●	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-1402	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-1402		●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	1207-	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1207-1209	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1210-	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1207-1209	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1210-	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1207-1209	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1210-	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1207-1209	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1210-	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1207-1209	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1210-	●	●	●	●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1207-1209	●	●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1210-	●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1210-		●	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1207-1209	●	●	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1210-	●	●	●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1210-	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1210-	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1210-	●
515	02.559 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1210-			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1210-		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1207-1209	●	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1210-	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1207-1209	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1210-	●	●	●	●
516	02.559 BOLT; HARNESS 09.650 (A) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1207-1209	●	●	●
516	02.559 BOLT; HARNESS 09.650 (A) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1210-	●	●	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1210-	●			●
524	02.559 NUT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1207-1209	●	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1210-	●	●	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1207-1209	●	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1210-	●	●	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1210-	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1207-1209	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1207-1209	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-	●	●	●	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-	●	●
577	02.559 NUT; FUSE BOX 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-			●

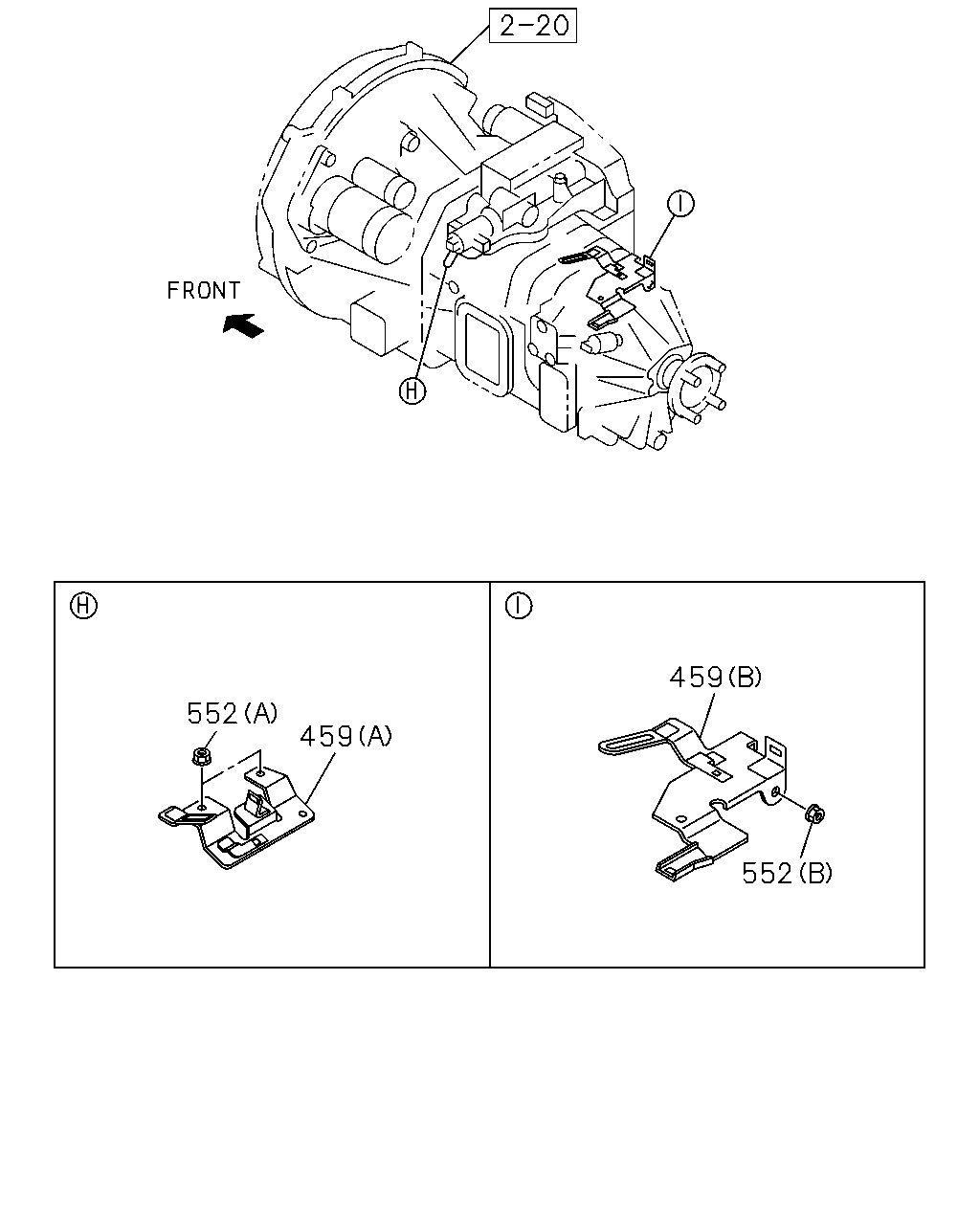

459 552 459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1207-1209	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1210-	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98196-974-0	01	1	1207-1209	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98196-974-0	01	1	1210-	●	●	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1207-1209	●	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1210-	●	●	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1210-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
