Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#94288) — 272 parça

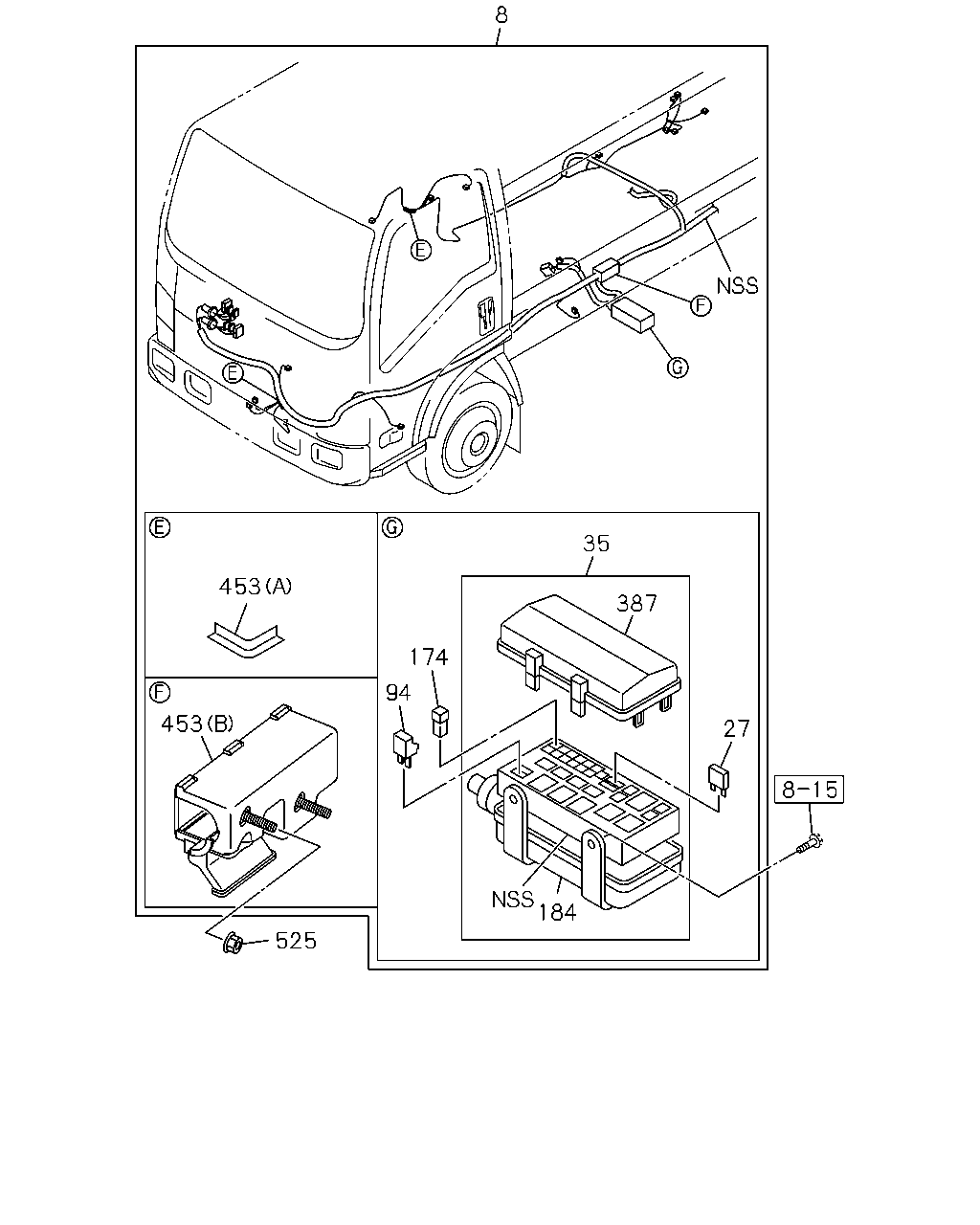

184 27 387 35 174 94 525 453 453 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF)	8-98211-690-2	01	1	1207-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF)	8-98293-980-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98211-689-1	01	1	1207-1409		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98293-979-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98211-688-1	01	1	1207-1209			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98211-688-1	01	1	1210-1409			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98293-978-0	01	1	1410-			●
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,4 WHEEL ANTI LOCK BRA KE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98212-204-1	01	1	1210-1409			●
8	02.480 HARNESS; FRAME,FRT	8-98212-204-1	01	1	1210-1409				●
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,4 WHEEL ANTI LOCK BRA KE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98293-965-0	01	1	1410-			●
8	02.480 HARNESS; FRAME,FRT	8-98293-965-0	01	1	1410-				●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1207-1209	●	●	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1210-	●	●	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1207-1209	●	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1210-	●	●	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	1207-1209	●	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	1210-	●	●	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1207-1209	●	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1207-1209	●	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1210-	●	●	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1207-1209	●	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1210-	●	●	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1207-1209	●	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1210-	●	●	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1210-	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1207-1209	●	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1210-	●	●	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1207-1209	●	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1210-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	1207-1209	●	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGAPORE EQUIPMENT(2G0) FRAME STRAIGHT TYPE<7KJ> (A)	8-94417-716-0	02	1	1210-	●	●	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) SINGAPORE EQUIPMENT(2G0) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94417-716-0	02	1	1210-	●		●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1207-1209	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1210-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1207-1209	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1210-	●	●	●	●
453	02.483 PROTECTOR; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,4 WHEEL ANTI LOCK BRA KE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A)	8-94417-716-0	01	1	1210-			●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	01	1	1210-				●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-1209	●	●	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-	●	●	●	●

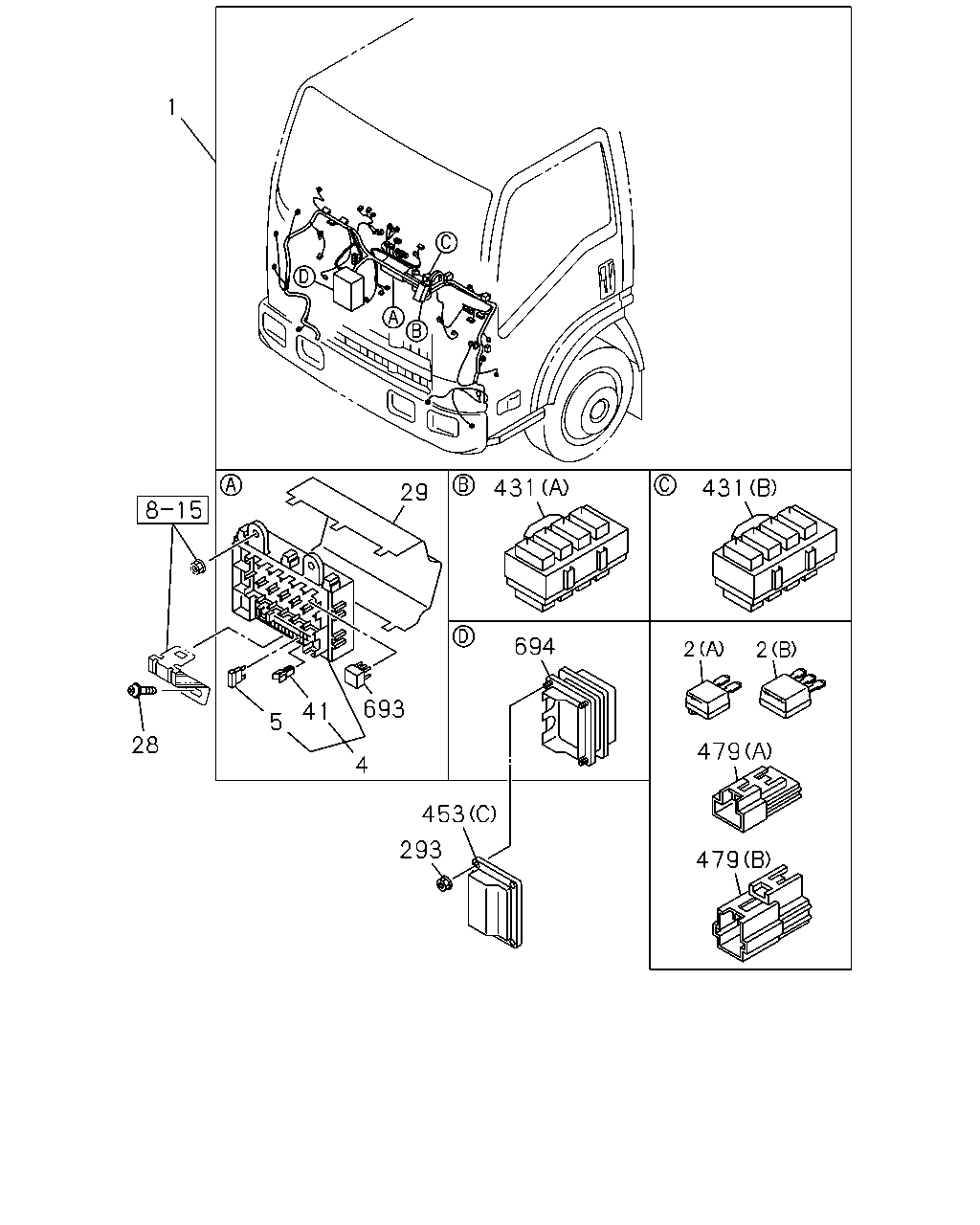

1 29 693 41 5 4 28 694 431 431 2 2 479 479 293 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98207-656-0	01	1	1207-			●
1	02.480 HARNESS; CAB 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98207-656-0	01	1	1207-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF>	8-98207-656-0	01	1	1207-		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98207-659-0	01	1	1207-			●
1	02.480 HARNESS; CAB 4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98207-659-0	01	1	1207-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF>	8-98207-655-0	01	1	1207-			●
1	02.480 HARNESS; CAB 4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF>	8-98207-655-0	01	1	1207-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF>	8-98207-655-0	01	1	1207-		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98207-663-0	01	1	1207-		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF>	8-98207-662-0	01	1	1207-		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98207-664-0	01	1	1207-		●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98212-837-0	01	1	1210-			●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU)	8-98212-837-0	01	1	1210-				●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98204-555-0	01	1	1207-			●
1	02.480 HARNESS; CAB 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98204-555-0	01	1	1207-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98204-559-0	01	1	1207-		●
2	02.483 DIODE; CABLE HARNESS 4HK1-TCN ENG(RDQ) (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1207-		●	●
2	02.483 DIODE; CABLE HARNESS 4HK1-TCS ENG(RJS) (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1207-	●
2	02.483 DIODE; CABLE HARNESS 4HK1-TCN ENG(RDQ) (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1207-		●	●
2	02.483 DIODE; CABLE HARNESS 4HK1-TCS ENG(RJS) (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1207-	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1207-1209	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1210-	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1207-1209	●	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1210-	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1207-1209	●	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1210-	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1207-1209	●	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1210-	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1207-1209	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1210-1212	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1207-1209	●	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1210-	●	●	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1207-1209	●	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1210-	●	●	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1207-1209	●	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1210-	●	●	●	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A)	8-98046-205-0	01	1	1207-		●	●
431	02.530 CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (A)	8-98046-205-0	01	1	1207-	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1207-1209	●	●	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1210-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	1207-1209	●	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGAPORE EQUIPMENT(2G0) FRAME STRAIGHT TYPE<7KJ> (A)	8-94417-716-0	02	1	1210-	●	●	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) SINGAPORE EQUIPMENT(2G0) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94417-716-0	02	1	1210-	●		●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1207-1209	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1210-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1207-1209	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1210-	●	●	●	●
453	02.483 PROTECTOR; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,4 WHEEL ANTI LOCK BRA KE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A)	8-94417-716-0	01	1	1210-			●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	01	1	1210-				●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1207-1209	●	●	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (A)	8-98108-678-0	01	1	1210-			●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1210-	●	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1210-				●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1207-1209	●	●	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (B)	8-98108-679-0	01	1	1210-			●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1210-	●	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1210-				●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1207-1209	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1210-	●	●	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	1207-1209	●	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	1210-	●	●	●	●

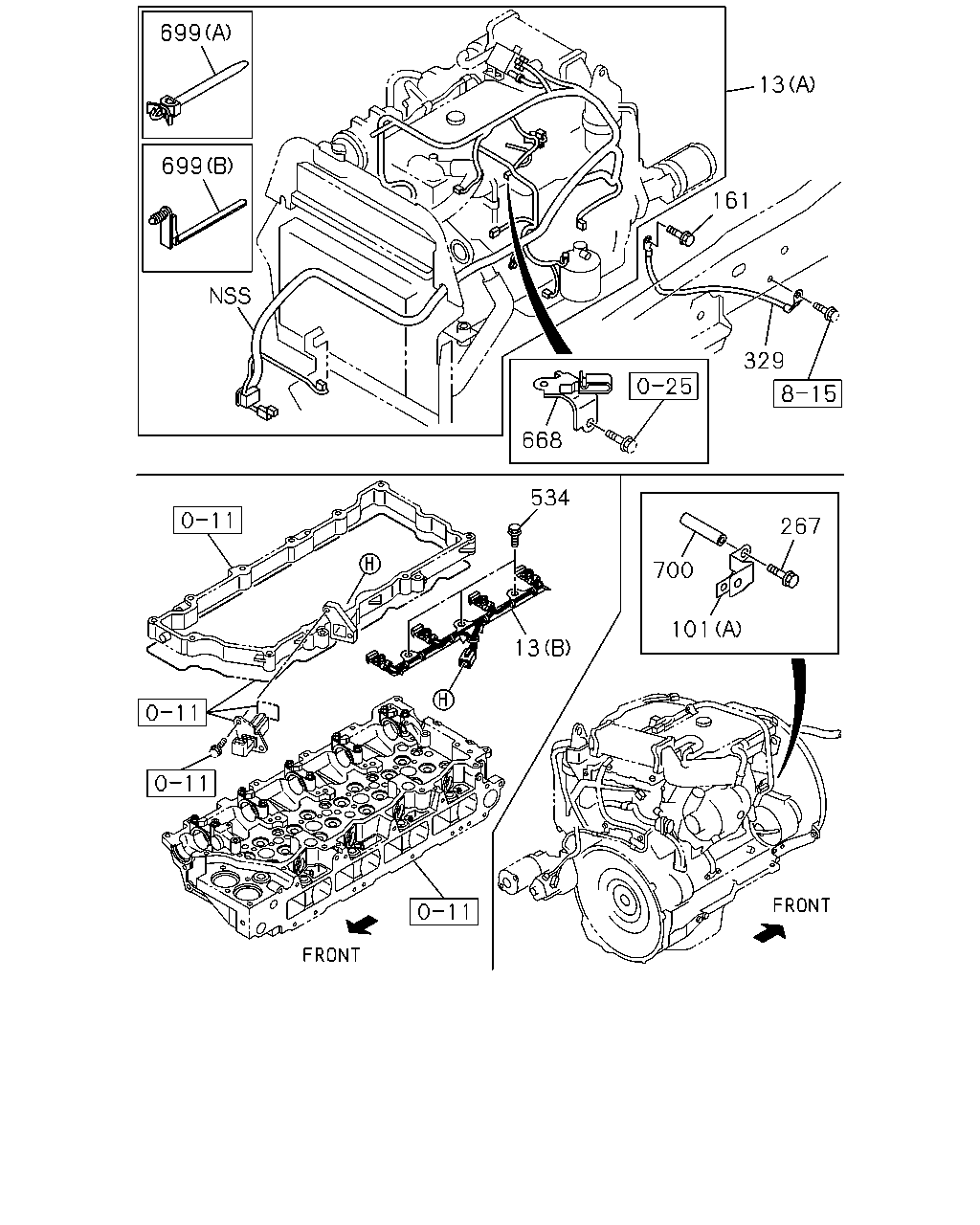

101 267 700 13 534 329 161 13 699 699 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A)	8-98135-316-1	01	1	1207-1312	●	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A)	8-98257-243-0	01	1	1401-	●	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1207-	●	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A)	8-98135-317-1	01	1	1207-1312	●	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A)	8-98257-244-0	01	1	1401-	●	●	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (C)	8-98212-179-1	01	1	1210-1310			●	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (C)	8-98244-738-0	01	1	1311-			●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1207-		●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCS ENG(RJS) (A)	8-98052-805-0	01	1	1207-	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98133-387-1	01	1	1207-1209	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> (B)	8-98133-387-1	01	1	1210-			●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98133-387-1	01	1	1210-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) 02.183 (C)	8-98030-725-1	01	1	1210-			●	●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98032-447-1	01	1	1210-			●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98032-447-1	01	1	1210-				●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1207-		●	●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1207-	●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	1210-			●	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	1207-		●	●
267	02.483 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	1207-	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98102-465-0	01	1	1207-		●	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS)	8-98102-465-0	01	1	1207-	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU)	8-98030-126-1	01	1	1210-			●	●
534	02.483 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	1207-	●	●	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98061-780-0	01	1	1207-	●	●	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) L=146.2	8-98052-677-0	01	1	1207-1312	●	●	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.105 (B) L=140	8-97122-360-0	02	1	1210-1310			●	●
700	02.483 TUBE; DISTANCE 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	1207-		●	●
700	02.483 TUBE; DISTANCE 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	1207-	●

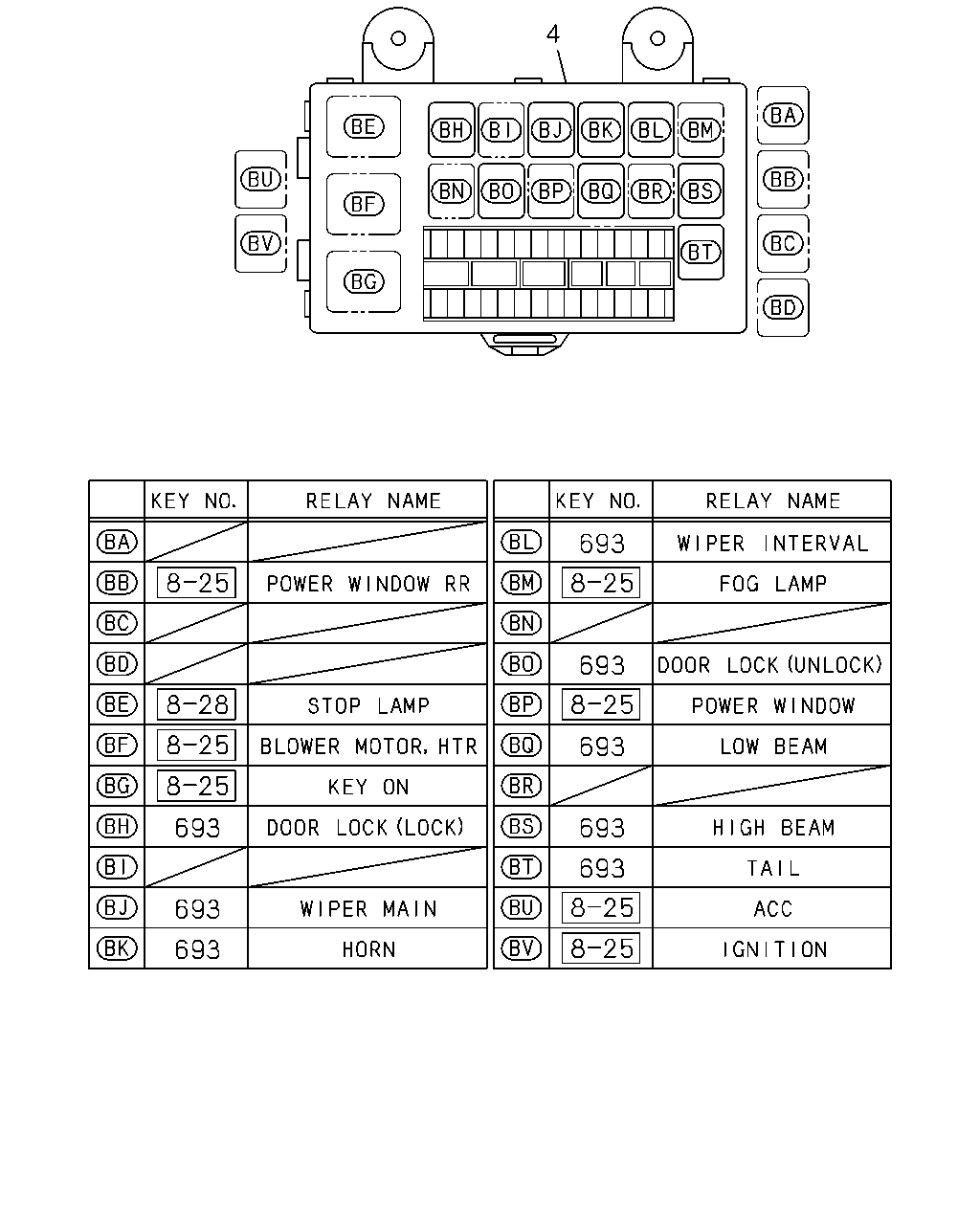

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1207-1209	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1210-	●	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1207-1209	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1210-	●	●	●	●

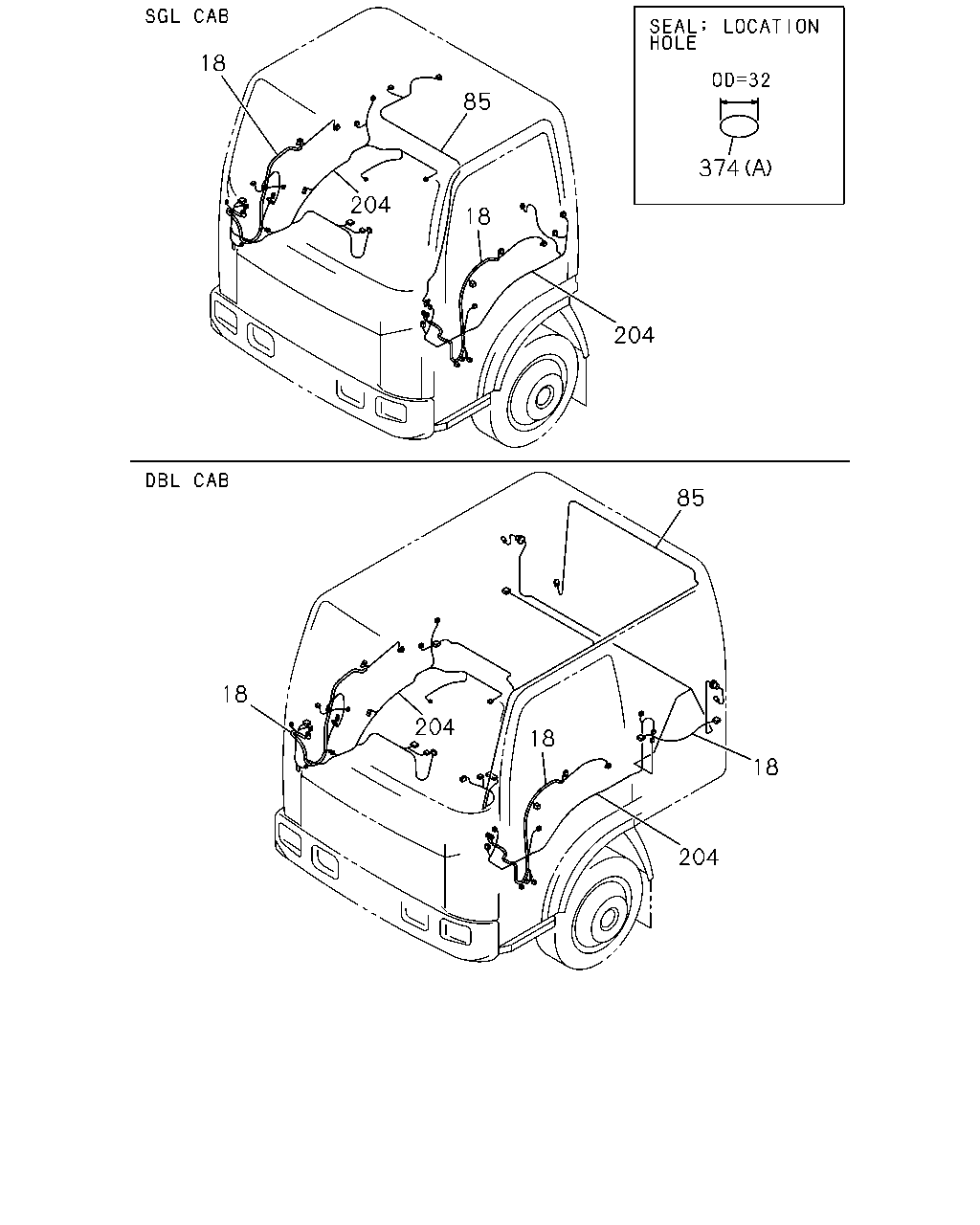

18 204 85 18 204 374 85 18 204 18 204 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> REAR	8-98202-555-0	02	1	1207-		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98046-746-5	01	1	1207-1209	●		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98046-746-5	01	1	1207-1209		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98046-746-5	01	1	1210-	●		●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98046-746-5	01	1	1210-		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98077-596-3	01	1	1207-1209	●		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98077-596-3	01	1	1207-1209		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98077-596-3	01	1	1210-	●		●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98077-596-3	01	1	1210-		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98046-744-2	01	1	1207-1209	●		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98046-744-2	01	1	1207-1209		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98046-744-2	01	1	1210-	●		●	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98046-744-2	01	1	1210-		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98046-749-2	01	1	1207-1209	●		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98046-749-2	01	1	1207-1209		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98046-749-2	01	1	1210-	●		●	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98046-749-2	01	1	1210-		●
85	06.495 HARNESS; ROOM LAMP	8-98029-741-4	01	1	1207-		●
85	06.495 HARNESS; ROOM LAMP	8-98047-149-3	01	1	1207-1209	●		●
85	06.495 HARNESS; ROOM LAMP	8-98047-149-3	01	1	1210-	●		●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98047-157-6	01	1	1207-	●		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98074-592-3	01	1	1207-1211	●		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98074-592-3	01	1	1207-1211	●		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF)	8-98074-592-3	01	1	1212-	●		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>	8-98075-612-3	01	1	1207-	●		●
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>, REMOTE CONT DOOR LOCK<6NF>	8-98070-807-3	01	1	1207-1211	●		●
204	02.559 HARNESS; CABLE,FLOOR REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	1207-1211	●		●
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	1212-	●		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31>	8-98029-726-6	01	1	1207-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98070-793-3	01	1	1207-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31>	8-98074-594-3	01	1	1207-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98074-593-3	01	1	1207-		●
204	02.559 HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98070-792-3	01	1	1207-		●
204	02.559 HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-810-3	01	1	1207-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98070-791-3	01	1	1207-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, POWER WINDOW FRT&REAR DOOR<A31>	8-98070-809-3	01	1	1207-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98070-787-4	01	1	1207-1209	●		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98070-787-4	01	1	1210-	●		●
204	02.559 HARNESS; CABLE,FLOOR	8-98070-787-4	01	1	1210-				●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (B) OD=24.5 T=7.5	8-97224-683-0	01	1	1207-		●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONTDOOR LOCK<6NF> 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	1207-1209	●		●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONTDOOR LOCK<6NF> 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	1210-	●		●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	1210-				●

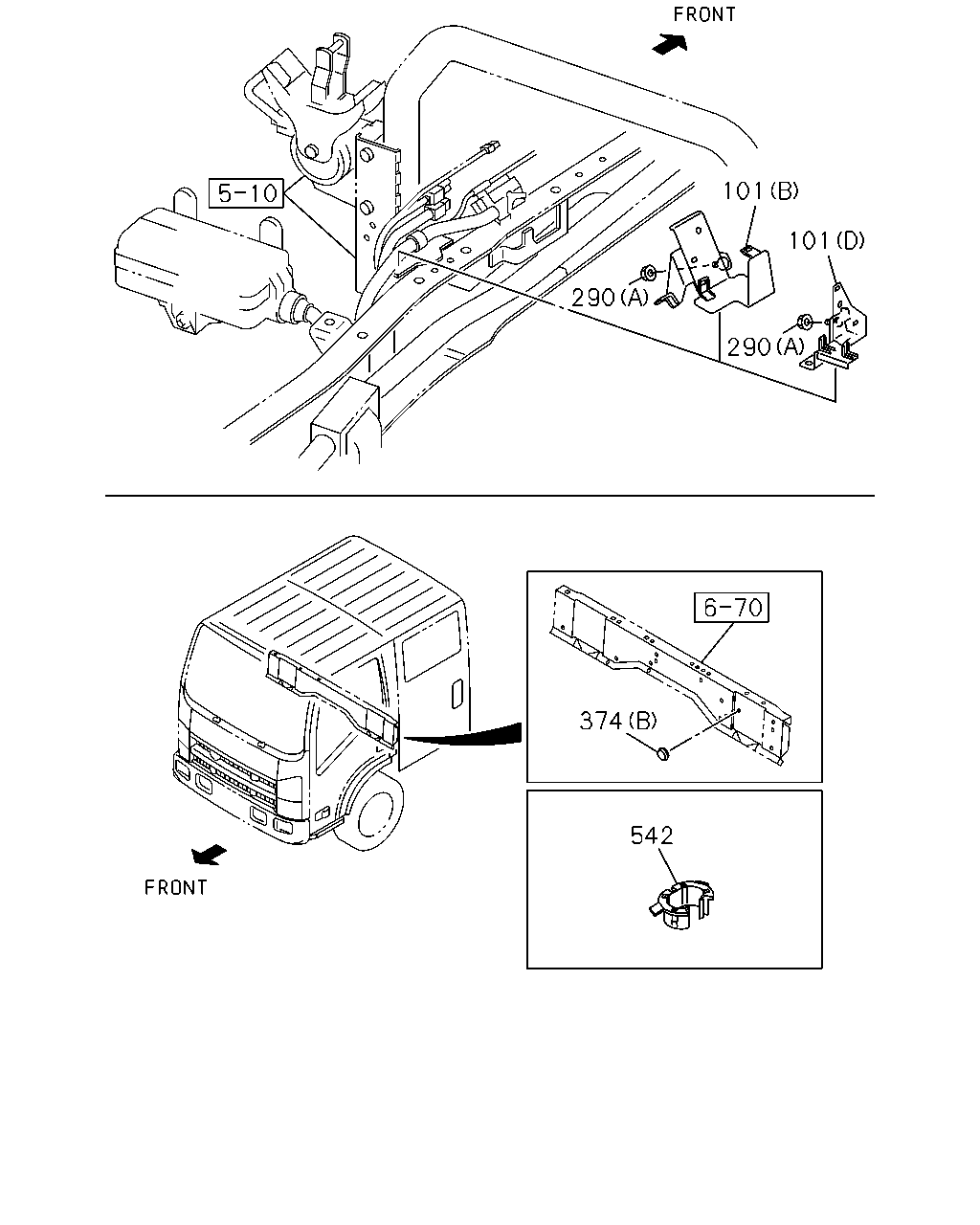

290 290 101 101 374 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1207-		●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCS ENG(RJS) (A)	8-98052-805-0	01	1	1207-	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98133-387-1	01	1	1207-1209	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> (B)	8-98133-387-1	01	1	1210-			●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98133-387-1	01	1	1210-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) 02.183 (C)	8-98030-725-1	01	1	1210-			●	●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98032-447-1	01	1	1210-			●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98032-447-1	01	1	1210-				●
290	02.483 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
290	02.483 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●
290	02.483 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1210-			●	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (B) OD=24.5 T=7.5	8-97224-683-0	01	1	1207-		●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONTDOOR LOCK<6NF> 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	1207-1209	●		●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONTDOOR LOCK<6NF> 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	1210-	●		●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	1210-				●
542	02.483 GROMMET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	01	1	1210-			●
542	02.483 GROMMET; HARNESS 02.343 ID=17	8-94128-319-2	01	1	1210-				●

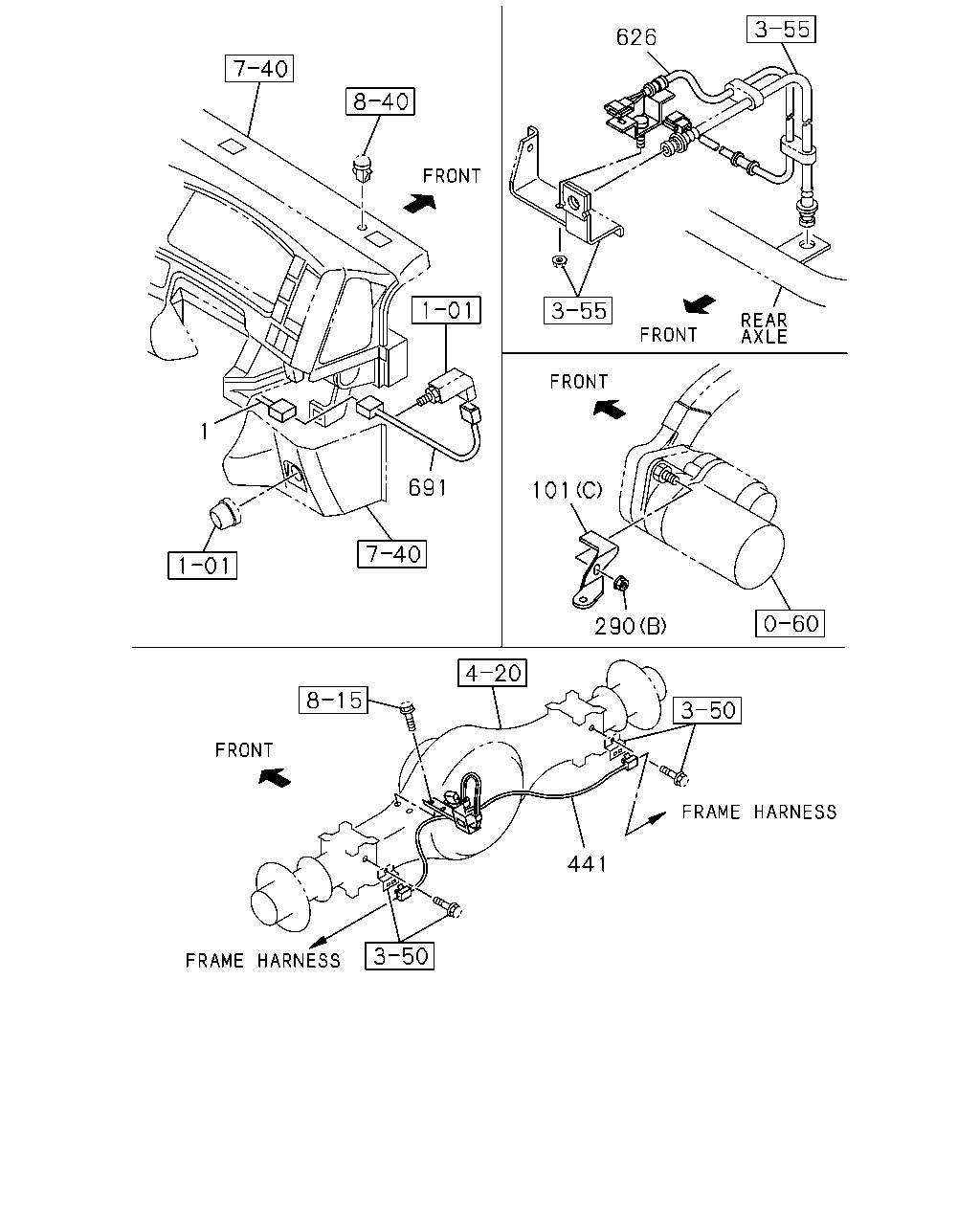

441 290 101 691 1 626

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98207-656-0	01	1	1207-			●
1	02.480 HARNESS; CAB 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98207-656-0	01	1	1207-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF>	8-98207-656-0	01	1	1207-		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98207-659-0	01	1	1207-			●
1	02.480 HARNESS; CAB 4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98207-659-0	01	1	1207-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF>	8-98207-655-0	01	1	1207-			●
1	02.480 HARNESS; CAB 4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF>	8-98207-655-0	01	1	1207-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF>	8-98207-655-0	01	1	1207-		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98207-663-0	01	1	1207-		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,REMOTE CONT DOOR LOCK <6NF>	8-98207-662-0	01	1	1207-		●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98207-664-0	01	1	1207-		●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98212-837-0	01	1	1210-			●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU)	8-98212-837-0	01	1	1210-				●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98204-555-0	01	1	1207-			●
1	02.480 HARNESS; CAB 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98204-555-0	01	1	1207-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98204-559-0	01	1	1207-		●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1207-		●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCS ENG(RJS) (A)	8-98052-805-0	01	1	1207-	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98133-387-1	01	1	1207-1209	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> (B)	8-98133-387-1	01	1	1210-			●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98133-387-1	01	1	1210-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) 02.183 (C)	8-98030-725-1	01	1	1210-			●	●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98032-447-1	01	1	1210-			●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98032-447-1	01	1	1210-				●
290	02.483 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
290	02.483 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●
290	02.483 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1210-			●	●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97308-225-4	01	1	1210-			●
626	02.480 HARNESS; FLEX HOSE	8-97253-968-1	01	1	1207-1209		●	●
626	02.480 HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97253-968-1	01	1	1210-			●
626	02.480 HARNESS; FLEX HOSE	8-97253-968-1	01	1	1210-		●
626	02.480 HARNESS; FLEX HOSE	8-97253-969-1	01	1	1207-1209		●	●
626	02.480 HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97253-969-1	01	1	1210-			●
626	02.480 HARNESS; FLEX HOSE	8-97253-969-1	01	1	1210-		●
691	02.480 HARNESS; IDLE CONT	8-98049-014-2	01	1	1207-1209	●	●	●
691	02.480 HARNESS; IDLE CONT	8-98049-014-2	01	1	1210-	●	●	●	●

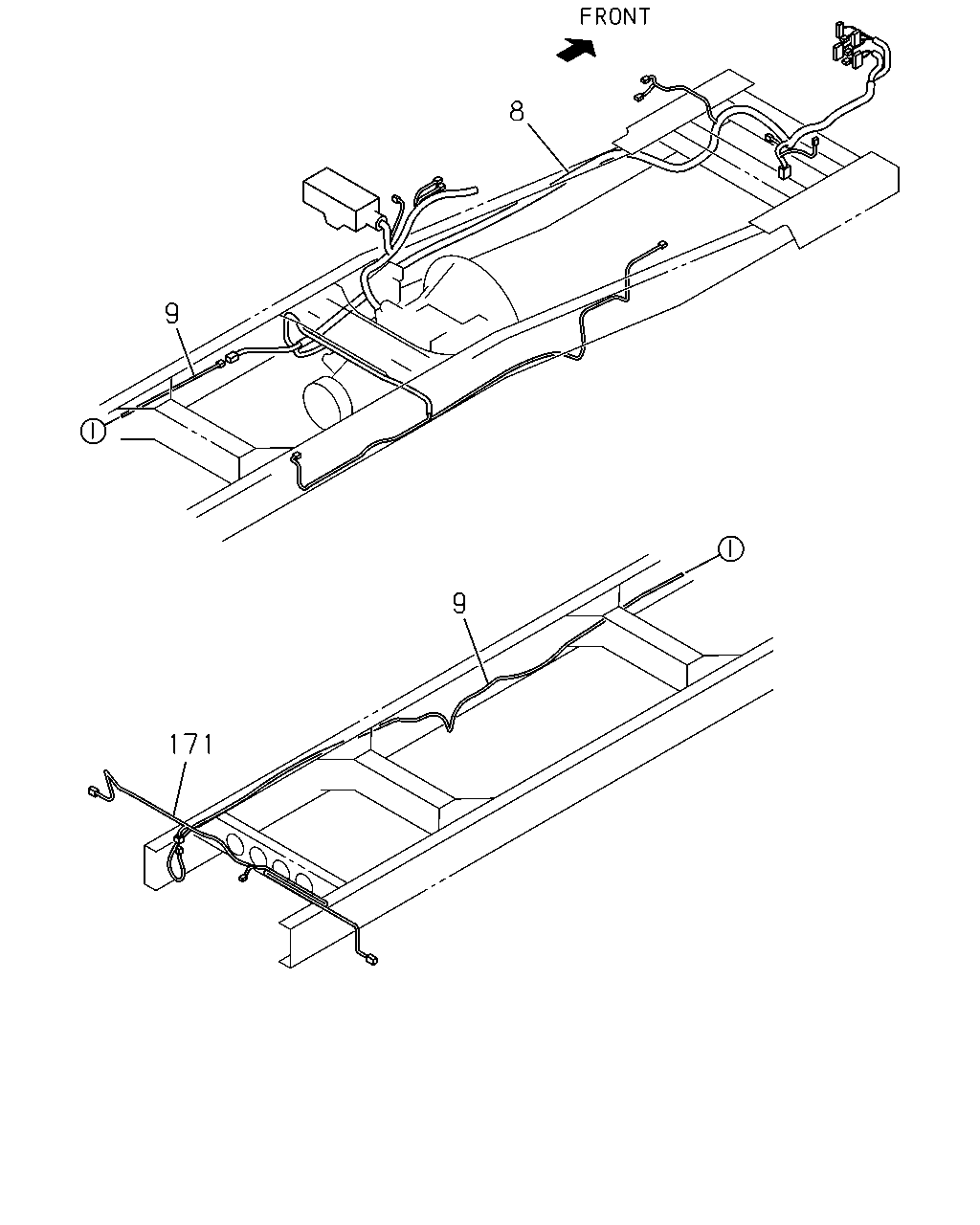

171 9 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF)	8-98211-690-2	01	1	1207-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF)	8-98293-980-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98211-689-1	01	1	1207-1409		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98293-979-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98211-688-1	01	1	1207-1209			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98211-688-1	01	1	1210-1409			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98293-978-0	01	1	1410-			●
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,4 WHEEL ANTI LOCK BRA KE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98212-204-1	01	1	1210-1409			●
8	02.480 HARNESS; FRAME,FRT	8-98212-204-1	01	1	1210-1409				●
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,4 WHEEL ANTI LOCK BRA KE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98293-965-0	01	1	1410-			●
8	02.480 HARNESS; FRAME,FRT	8-98293-965-0	01	1	1410-				●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-98047-001-2	01	1	1210-			●
9	02.480 HARNESS; FRAME,RR	8-98047-001-2	01	1	1210-				●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-98047-009-2	01	1	1210-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4100MM(41W)	8-98117-250-0	01	1	1207-	●
9	02.480 HARNESS; FRAME,RR	8-98117-257-0	01	1	1207-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98117-253-0	01	1	1207-1209			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98117-253-0	01	1	1210-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W)	8-98117-254-0	01	1	1207-1209			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98117-254-0	01	1	1210-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W)	8-98117-249-0	01	1	1207-1209	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-249-0	01	1	1210-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W)	8-98117-249-0	01	1	1210-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-002-1	01	1	1210-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-248-0	01	1	1210-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-010-1	01	1	1210-			●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	1207-1209	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	1210-	●	●	●	●

13 161 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A)	8-98135-316-1	01	1	1207-1312	●	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A)	8-98257-243-0	01	1	1401-	●	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1207-	●	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A)	8-98135-317-1	01	1	1207-1312	●	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A)	8-98257-244-0	01	1	1401-	●	●	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (C)	8-98212-179-1	01	1	1210-1310			●	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (C)	8-98244-738-0	01	1	1311-			●	●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1207-		●	●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1207-	●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	1210-			●	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98102-465-0	01	1	1207-		●	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS)	8-98102-465-0	01	1	1207-	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU)	8-98030-126-1	01	1	1210-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
