Sayfa 7-50 - Isuzu EPC

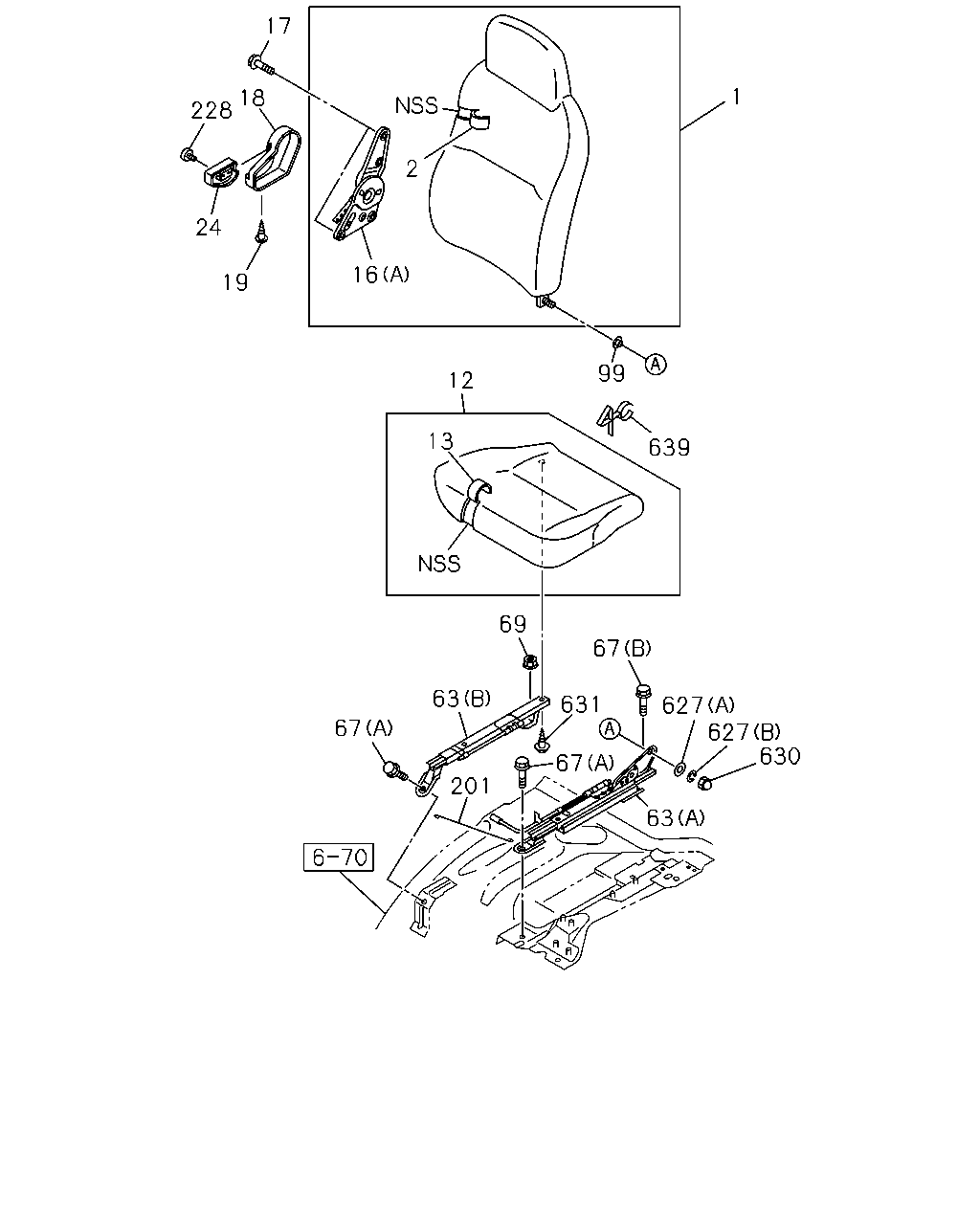

7-50 — FRONT SEAT (#94282) — 298 parça

1 2 17 18 228 24 19 16 12 13 99 639 67 69 630 627 627 631 67 63 63 201 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-235-1	01	1	1207-1209	●	●	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-235-1	01	1	1210-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-234-1	01	1	1207-1209	●	●	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-234-1	01	1	1210-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-142-7	01	1	1207-1209	●	●	●
1	16.720 BACK ASM; SEAT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-142-7	01	1	1210-	●	●	●	●
1	16.720 BACK ASM; SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-312-7	01	1	1207-1209	●	●	●
1	16.720 BACK ASM; SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-312-7	01	1	1210-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-254-0	01	1	1207-1209	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-254-0	01	1	1210-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-253-0	01	1	1207-1209	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-253-0	01	1	1210-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-910-2	01	1	1207-1209	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-910-2	01	1	1210-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-318-2	01	1	1207-1209	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-318-2	01	1	1210-	●	●	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-248-1	01	1	1207-1209	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-248-1	01	1	1207-1209			●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-248-1	01	1	1210-	●	●		●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-248-1	01	1	1210-			●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-1	01	1	1207-1209	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-1	01	1	1210-	●	●		●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-247-1	01	1	1207-1209	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-247-1	01	1	1207-1209			●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-247-1	01	1	1210-	●	●		●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-247-1	01	1	1210-			●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>, INSPECTIONENGINE COVER<8GA> DARK GRAY	8-97421-240-1	01	1	1207-1209	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>, INSPECTIONENGINE COVER<8GA> DARK GRAY	8-97421-240-1	01	1	1210-	●	●		●
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-149-0	01	1	1207-1209	●	●
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-149-0	01	1	1207-1209			●
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-149-0	01	1	1210-	●	●		●
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-149-0	01	1	1210-			●
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-143-4	01	1	1207-1209	●	●
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-143-4	01	1	1210-	●	●		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	1207-1209	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	1207-1209			●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	1210-	●	●		●
12	16.670 CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	1210-			●
12	16.670 CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-322-4	01	1	1207-1209	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-322-4	01	1	1210-	●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-268-1	01	1	1207-1209	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-268-1	01	1	1207-1209			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-268-1	01	1	1210-	●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-268-1	01	1	1210-			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-1	01	1	1207-1209	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-1	01	1	1210-	●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-267-1	01	1	1207-1209	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-267-1	01	1	1207-1209			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-267-1	01	1	1210-	●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-267-1	01	1	1210-			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>, INSPECTIONENGINE COVER<8GA> DARK GRAY	8-97421-259-1	01	1	1207-1209	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>, INSPECTIONENGINE COVER<8GA> DARK GRAY	8-97421-259-1	01	1	1210-	●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-860-0	01	1	1207-1209	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-860-0	01	1	1207-1209			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-860-0	01	1	1210-	●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-860-0	01	1	1210-			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-144-2	01	1	1207-1209	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-144-2	01	1	1210-	●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	1207-1209	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	1207-1209			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	1210-	●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	1210-			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-328-2	01	1	1207-1209	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-328-2	01	1	1210-	●	●		●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1207-1209	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1210-1408	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1409-	●	●		●
16	16.682 ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1409-	●	●		●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A)	8-98003-087-1	01	1	1409-	●	●		●
16	16.682 ADJUSTER ASM; RECLINING SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1409-	●	●		●
16	16.682 ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A)	8-98003-087-1	01	1	1409-	●	●		●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1409-			●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1207-1209	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1210-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-274-3	01	1	1207-1209	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-274-3	01	1	1210-	●	●	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1207-1209	●	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1210-1408	●	●	●	●
17	16.682 BOLT; RECLINING SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	1409-	●	●		●
17	16.682 BOLT; RECLINING EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	1409-	●	●		●
17	16.682 BOLT; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M10X20	8-98062-661-0	04	1	1409-	●	●		●
17	16.682 BOLT; RECLINING SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	1409-	●	●		●
17	16.682 BOLT; RECLINING SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M10X20	8-98062-661-0	04	1	1409-	●	●		●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1409-			●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	1207-1209	●	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	1210-1408	●	●	●	●
18	16.682 COVER; RECLINING SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	1409-	●	●		●
18	16.682 COVER; RECLINING EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	1409-	●	●		●
18	16.682 COVER; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1409-	●	●		●
18	16.682 COVER; RECLINING SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	1409-	●	●		●
18	16.682 COVER; RECLINING SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> GRAY	8-97409-332-0	01	1	1409-	●	●		●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	1409-			●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1207-1209	●	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1210-1408	●	●	●	●
19	16.686 SCREW; COVER SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	1409-	●	●		●
19	16.686 SCREW; COVER EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	1409-	●	●		●
19	16.686 SCREW; COVER INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1409-	●	●		●
19	16.686 SCREW; COVER SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	1409-	●	●		●
19	16.686 SCREW; COVER SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M5	8-98062-663-0	01	1	1409-	●	●		●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1409-			●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1207-1209	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1210-1408	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	1409-	●	●		●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	1409-	●	●		●
24	16.682 KNOB; RECLINING,FRT,SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1409-	●	●		●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	1409-	●	●		●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> GRAY	8-97409-333-0	01	1	1409-	●	●		●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1409-			●
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-2	01	1	1207-1209	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-2	01	1	1210-1408	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (A)	8-97382-800-2	01	1	1409-	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (A)	8-97382-800-2	01	1	1409-	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A)	8-97382-800-2	01	1	1409-	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97382-800-2	01	1	1409-	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A)	8-97382-800-2	01	1	1409-	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-2	01	1	1409-			●
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-1	01	1	1207-1209	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-1	01	1	1210-1408	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (B)	8-97382-801-1	01	1	1409-	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (B)	8-97382-801-1	01	1	1409-	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B)	8-97382-801-1	01	1	1409-	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-97382-801-1	01	1	1409-	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (B)	8-97382-801-1	01	1	1409-	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-1	01	1	1409-			●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1207-1209	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1210-	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1207-1209	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1210-	●	●	●	●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	1207-1209	●	●	●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	1210-	●	●	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1207-1209	●	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1210-1408	●	●	●	●
99	16.716 BUSHING; SEAT BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	1409-	●	●		●
99	16.716 BUSHING; SEAT BACK EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	1409-	●	●		●
99	16.716 BUSHING; SEAT BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>	8-98112-751-0	01	1	1409-	●	●		●
99	16.716 BUSHING; SEAT BACK SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	1409-	●	●		●
99	16.716 BUSHING; SEAT BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>	8-98112-751-0	01	1	1409-	●	●		●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1409-			●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1207-1209	●	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1210-1408	●	●	●	●
201	16.682 CABLE; ADJ SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA>	8-98003-086-1	01	1	1409-	●	●		●
201	16.682 CABLE; ADJ EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA>	8-98003-086-1	01	1	1409-	●	●		●
201	16.682 CABLE; ADJ INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>	8-98003-086-1	01	1	1409-	●	●		●
201	16.682 CABLE; ADJ SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA>	8-98003-086-1	01	1	1409-	●	●		●
201	16.682 CABLE; ADJ SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>	8-98003-086-1	01	1	1409-	●	●		●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1409-			●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1207-1209	●	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1210-1408	●	●	●	●
228	16.714 SCREW; KNOB SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	1409-	●	●		●
228	16.714 SCREW; KNOB EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	1409-	●	●		●
228	16.714 SCREW; KNOB INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1409-	●	●		●
228	16.714 SCREW; KNOB SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	1409-	●	●		●
228	16.714 SCREW; KNOB SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M4	8-98062-662-0	01	1	1409-	●	●		●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1409-			●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1207-1209	●	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1210-1408	●	●	●	●
627	16.682 WASHER; FRT SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	1409-	●	●		●
627	16.682 WASHER; FRT SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	1409-	●	●		●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A)	8-98063-223-0	01	1	1409-	●	●		●
627	16.682 WASHER; FRT SEAT SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	1409-	●	●		●
627	16.682 WASHER; FRT SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A)	8-98063-223-0	01	1	1409-	●	●		●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1409-			●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1207-1209	●	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1210-1408	●	●	●	●
627	16.682 WASHER; FRT SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	1409-	●	●		●
627	16.682 WASHER; FRT SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	1409-	●	●		●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B)	8-98063-224-0	01	1	1409-	●	●		●
627	16.682 WASHER; FRT SEAT SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	1409-	●	●		●
627	16.682 WASHER; FRT SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (B)	8-98063-224-0	01	1	1409-	●	●		●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1409-			●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1207-1209	●	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1210-1408	●	●	●	●
630	16.682 NUT; CAP SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	1409-	●	●		●
630	16.682 NUT; CAP EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	1409-	●	●		●
630	16.682 NUT; CAP INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M8	8-98063-225-0	01	1	1409-	●	●		●
630	16.682 NUT; CAP SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	1409-	●	●		●
630	16.682 NUT; CAP SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M8	8-98063-225-0	01	1	1409-	●	●		●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1409-			●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1207-1209	●	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1210-1408	●	●	●	●
631	16.682 BOLT; ADJ,SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-	●	●		●
631	16.682 BOLT; ADJ,SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-	●	●		●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-	●	●		●
631	16.682 BOLT; ADJ,SEAT SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-	●	●		●
631	16.682 BOLT; ADJ,SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-	●	●		●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-			●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1207-1209	●	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1210-1408	●	●	●	●
631	16.682 BOLT; ADJ,SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-	●	●		●
631	16.682 BOLT; ADJ,SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-	●	●		●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-	●	●		●
631	16.682 BOLT; ADJ,SEAT SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-	●	●		●
631	16.682 BOLT; ADJ,SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-	●	●		●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-			●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	1207-1209	●	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	1207-1209			●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	1210-	●	●		●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	1210-			●

460 161 160 141 368 361 16 126 139 139 139 460 114 16 126 361 368 478 139 115 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1207-1209	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1210-1408	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1409-	●	●		●
16	16.682 ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1409-	●	●		●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A)	8-98003-087-1	01	1	1409-	●	●		●
16	16.682 ADJUSTER ASM; RECLINING SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1409-	●	●		●
16	16.682 ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A)	8-98003-087-1	01	1	1409-	●	●		●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1409-			●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1207-1209	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1210-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-274-3	01	1	1207-1209	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-274-3	01	1	1210-	●	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-291-0	01	1	1207-1209	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-291-0	01	1	1207-1209			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-291-0	01	1	1210-	●	●		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-291-0	01	1	1210-			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-292-0	01	1	1207-1209	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-292-0	01	1	1210-	●	●		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-276-1	01	1	1207-1209	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-276-1	01	1	1207-1209			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-276-1	01	1	1210-	●	●		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-276-1	01	1	1210-			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-720-0	01	1	1207-1209	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-720-0	01	1	1210-	●	●		●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-321-1	01	1	1207-1209	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-321-1	01	1	1207-1209			●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-321-2	01	1	1210-	●	●		●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-321-2	01	1	1210-			●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-320-2	01	1	1207-1209	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-320-2	01	1	1210-	●	●		●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97405-346-5	01	1	1207-1209	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97405-346-5	01	1	1207-1209			●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97405-346-5	01	1	1210-	●	●		●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97405-346-5	01	1	1210-			●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-705-2	01	1	1207-1209	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-705-2	01	1	1210-	●	●		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-341-0	01	1	1207-1209	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97421-341-0	01	1	1207-1209			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-341-1	01	1	1210-	●	●		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97421-341-1	01	1	1210-			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-340-1	01	1	1207-1209	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-340-1	01	1	1210-	●	●		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-290-3	01	1	1207-1209	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-290-3	01	1	1207-1209			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-290-3	01	1	1210-	●	●		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-290-3	01	1	1210-			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-734-1	01	1	1207-1209	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-734-1	01	1	1210-	●	●		●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	1207-1209	●	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	1210-	●	●	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1207-1209	●	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1210-	●	●	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-305-1	01	1	1207-1209	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-305-1	01	1	1207-1209			●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-305-1	01	1	1210-	●	●		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-305-1	01	1	1210-			●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-306-0	01	1	1207-1209	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-306-0	01	1	1210-	●	●		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-336-2	01	1	1207-1209	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-336-2	01	1	1207-1209			●
141	16.724 COVER; TRIM,BENCH SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-336-2	01	1	1210-	●	●		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-336-2	01	1	1210-			●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-726-0	01	1	1207-1209	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-726-0	01	1	1210-	●	●		●
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	01	1	1207-1209	●	●	●
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	01	1	1210-	●	●	●	●
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	1207-1209	●	●	●
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	1210-	●	●	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	1207-1209	●	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	1210-	●	●	●	●
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1207-1209	●	●	●
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1210-	●	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-278-0	01	1	1207-1209	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-278-0	01	1	1207-1209			●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-278-0	01	1	1210-	●	●		●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-278-0	01	1	1210-			●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-299-1	01	1	1207-1209	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97421-299-1	01	1	1207-1209			●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-299-1	01	1	1210-	●	●		●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97421-299-1	01	1	1210-			●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-279-0	01	1	1207-1209	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-279-0	01	1	1210-	●	●		●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-300-1	01	1	1207-1209	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-300-1	01	1	1210-	●	●		●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97405-334-4	01	1	1207-1209	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97405-334-4	01	1	1207-1209			●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97405-334-4	01	1	1210-	●	●		●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97405-334-4	01	1	1210-			●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97405-337-4	01	1	1207-1209	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97405-337-4	01	1	1207-1209			●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97405-337-4	01	1	1210-	●	●		●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97405-337-4	01	1	1210-			●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97418-691-0	01	1	1207-1209	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97418-691-0	01	1	1210-	●	●		●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-697-2	01	1	1207-1209	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-697-2	01	1	1210-	●	●		●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	1207-1209	●	●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	1210-	●	●	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1207-1209	●	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1210-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
