7-40 — INSTRUMENT PANEL AND BOX (#94278) — 290 parça

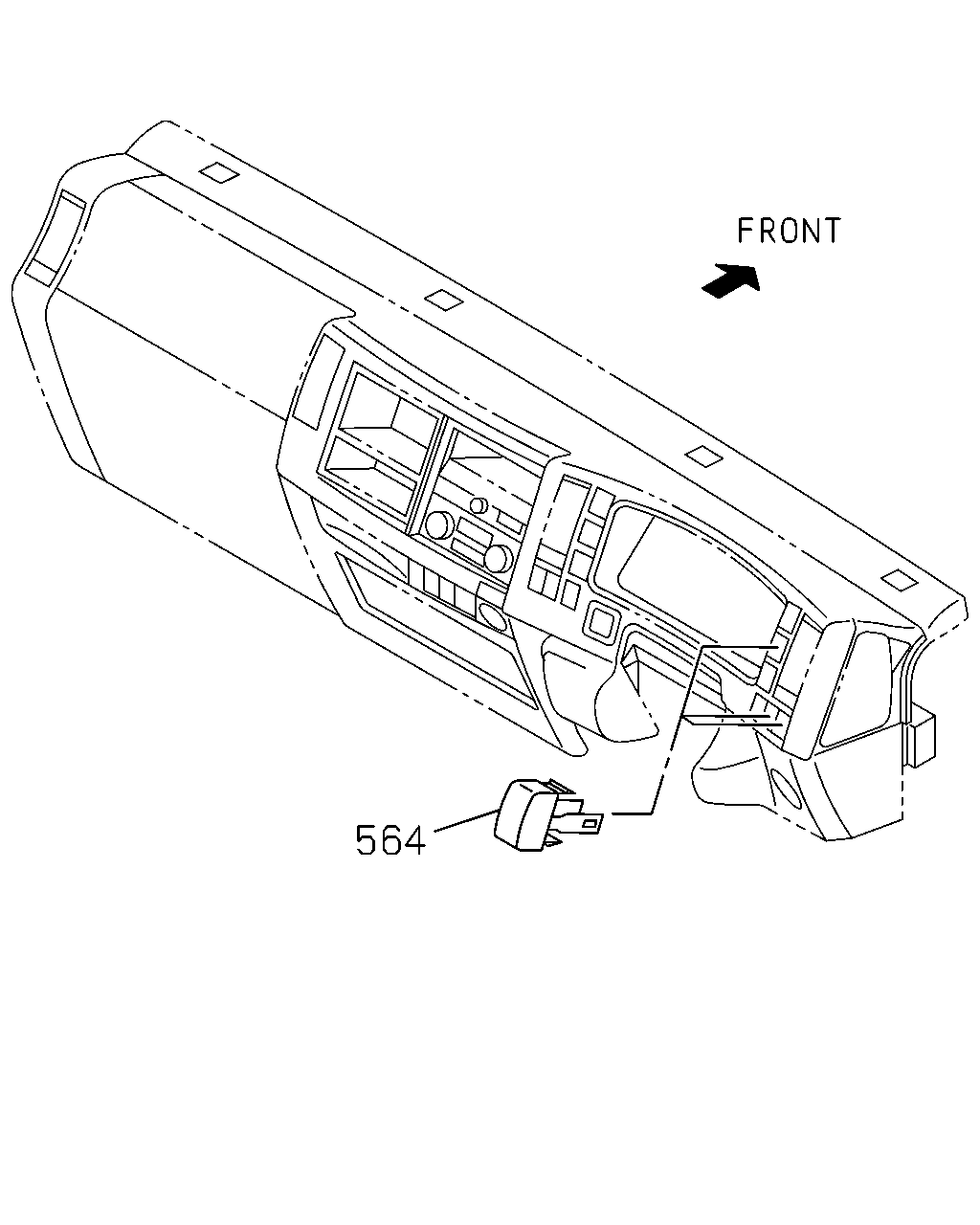

çizim 286641
564
BalonParca AdiParca NoAdetTipApplied Date A B C D
564 16.081 COVER; SW 8-98025-954-1 03 1 1207-1209 ● ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1210- ● ● ● ●

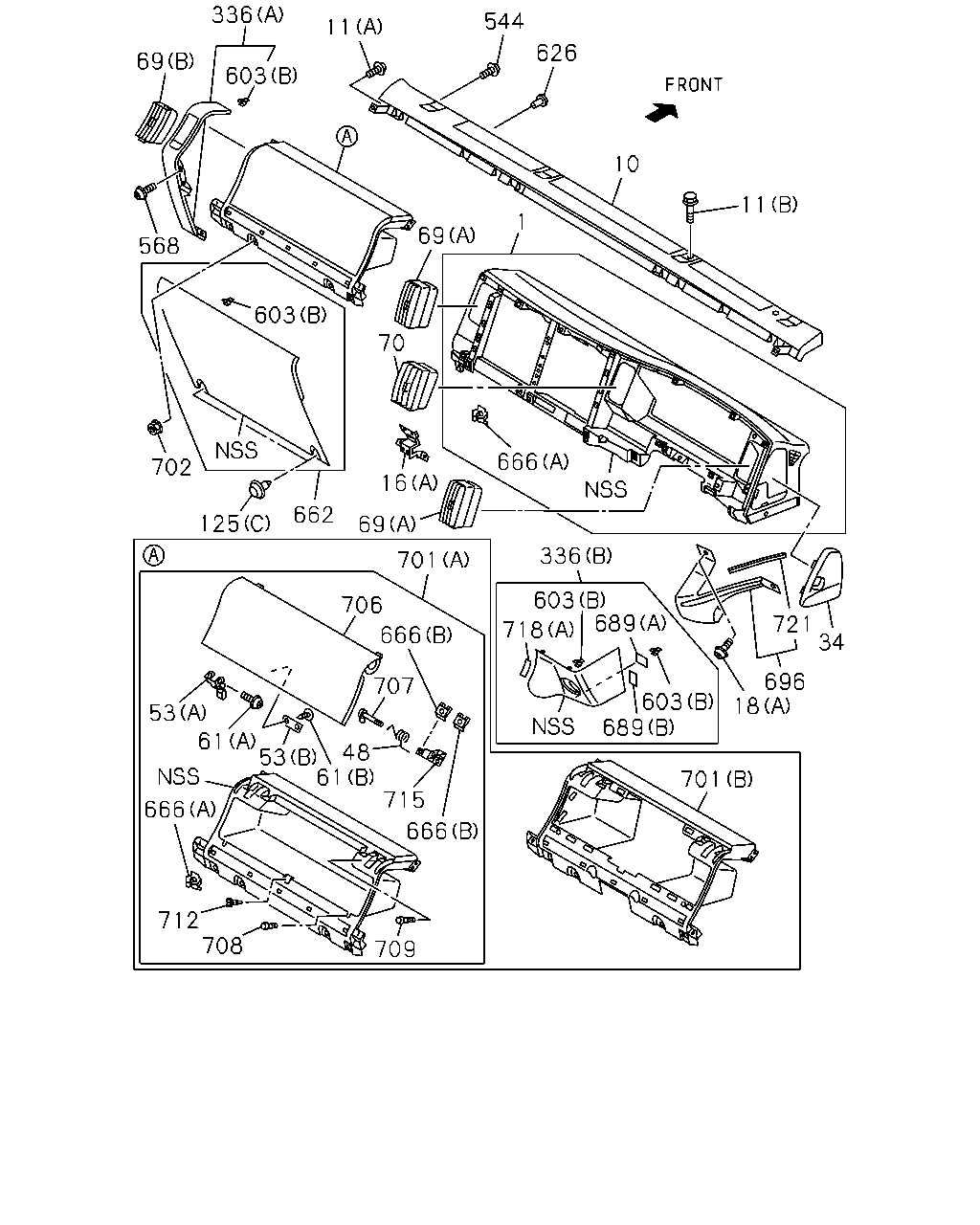

çizim 286643
10 11 721 34 696 18 701 689 718 689 336 603 603 707 715 666 61 53 61 53 125 662 16 69 701 666 11 69 1 336 603 69 568 603 702 666 544 626 712 708 709 48 70 706 666
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 1207-1209 ● ● ●
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 1210- ● ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1207-1209 ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1210- ● ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1207-1209 ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1210- ● ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1207-1209 ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1210-1212 ● ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1207-1209 ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1210- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1210- ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1210- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1207-1209 ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1210- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1210- ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1210- ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1207-1209 ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1210- ● ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1207-1209 ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1210-1212 ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1207-1209 ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1210- ● ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1207-1209 ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1210- ● ● ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1207-1209 ● ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1210- ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1207-1209 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1210-1311 ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1210-1311 ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405 ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406- ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1207-1209 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1210-1311 ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1210-1311 ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405 ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406- ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1207-1209 ● ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1210-1405 ● ● ●
53 16.115 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1210-1405 ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ● ●
53 16.115 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406- ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1207-1209 ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1210-1405 ● ● ●
61 16.100 SCREW; GLOVE BOX
(A) 		8-98108-915-0 01 1 1210-1405 ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ● ●
61 16.100 SCREW; GLOVE BOX
(B) M4X85 		8-97926-404-0 02 1 1406- ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1207-1209 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1210- ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1207-1209 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1210- ● ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1207-1209 ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1210- ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1207-1209 ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1210- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1207-1209 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1210- ● ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1207-1209 ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1210- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1207-1209 ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1210- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 1207-1209 ● ● ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 1210- ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1207-1209 ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1210-1212 ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1207-1209 ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1210-1212 ● ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1207-1209 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1207-1209 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1210- ● ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1210- ● ● ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1207-1209 ● ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1210- ● ● ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1207-1209 ● ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1210- ● ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1207-1209 ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1210- ● ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1207-1209 ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1210- ● ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1207-1209 ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1210- ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 1210- ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 1207-1209 ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 1210-1311 ● ● ●
666 16.085 INSERT; INST PANEL
(B) 		8-98038-450-0 04 1 1210-1311 ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5 		8-97926-400-0 04 1 1312- ● ● ●
666 16.085 INSERT; INST PANEL
(B) M5 		8-97926-400-0 04 1 1312- ●
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1207-1209 ● ● ●
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1210- ● ● ● ●
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1207-1209 ● ● ●
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1210- ● ● ● ●
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 1207-1209 ● ● ●
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 1210-1211 ● ● ● ●
696 16.085 BRACKET; KNEE 8-98199-366-0 01 1 1212- ● ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 1207-1209 ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 1210-1405 ● ● ●
701 16.100 TRAY; INST
(A) GRAY 		8-97415-542-6 01 1 1210-1405 ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-702-1 01 1 1406- ● ● ●
701 16.100 TRAY; INST
(A) GRAY 		8-97429-702-1 01 1 1406- ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-908-2 01 1 1207- ● ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1207-1209 ● ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1210- ● ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1207-1209 ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1210-1405 ● ● ●
706 16.081 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1210-1405 ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ● ●
706 16.081 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406- ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1207-1209 ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1210-1311 ● ● ●
707 09.744 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1210-1311 ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ● ●
707 09.744 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312- ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1207-1209 ● ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1210- ● ● ●
708 16.100 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1210- ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1207-1209 ● ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1210- ● ● ●
709 16.085 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1210- ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1207-1209 ● ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1210- ● ● ●
712 16.110 LOCK; TRAY INST LID 8-98031-846-0 01 1 1210- ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1207-1209 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1210-1311 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1210-1311 ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ● ●
715 16.081 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312- ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1207-1209 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1210-1311 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1210-1311 ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ● ●
715 16.081 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312- ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1207-1209 ● ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1210- ● ● ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1207-1209 ● ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1210- ● ● ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1207-1209 ● ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1210- ● ● ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1207-1209 ● ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1210- ● ● ● ●
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 1207-1209 ● ● ●
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 1210-1211 ● ● ● ●
721 16.650 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212- ● ● ● ●

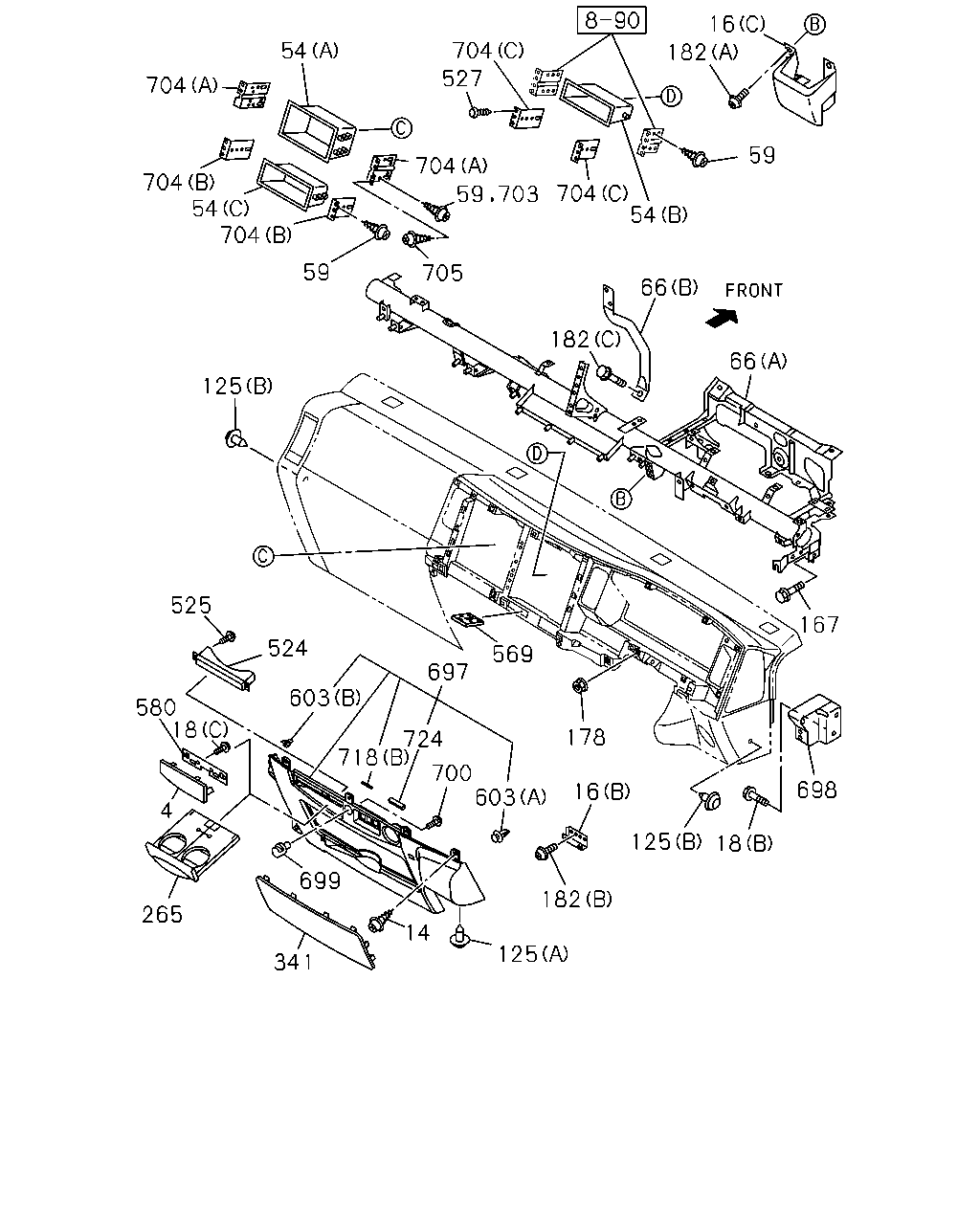

çizim 286645
341 125 14 699 265 4 580 18 525 125 704 54 704 704 54 704 527 704 59 703 704 59 182 16 54 705 59 66 182 66 167 524 603 697 724 718 700 603 178 16 125 18 698 182 569
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1207-1209 ● ● ●
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1210- ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1207-1209 ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1210-1212 ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1207-1209 ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1210- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1210- ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1210- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1207-1209 ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1210- ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1210- ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1210- ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1207-1209 ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1210- ● ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1207-1209 ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1210-1212 ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1207-1209 ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1210- ● ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1207-1209 ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1210- ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1207-1209 ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1207-1209 ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1210- ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1210- ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1210- ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1210- ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1207-1209 ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1210- ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1207-1209 ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1207-1209 ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1210- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1210- ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1207-1209 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1207-1209 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1207-1209 ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1207-1209 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210- ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210- ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210- ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210- ●
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210- ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98199-358-1 01 1 1207-1209 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98199-358-1 01 1 1210- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98199-358-1 01 1 1210- ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98199-359-1 01 1 1207- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 1207-1209 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 1210- ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1207-1209 ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1210- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1207-1209 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1210- ● ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1207-1209 ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1210- ● ● ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1207-1209 ● ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1210- ● ● ● ●
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 03 1 1207-1209 ● ● ●
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 03 1 1210- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1207-1209 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1210-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1207-1209 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1210-1212 ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1210-1212 ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1210-1212 ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ●
182 16.085 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1207-1209 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1210- ● ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1207-1209 ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1210- ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1207-1209 ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1210- ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1207-1209 ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1210- ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1207-1209 ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1210-1212 ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1207-1209 ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1210- ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1210- ● ●
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1210- ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1207-1209 ● ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1210- ● ● ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1207-1209 ● ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1210- ● ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1207-1209 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1207-1209 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1210- ● ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1210- ● ● ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1207-1209 ● ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1210- ● ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1207-1209 ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1210- ● ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1207-1209 ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1210- ● ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1207-1209 ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1210- ● ● ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1207-1209 ● ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1210- ● ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1207-1209 ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1210-1212 ● ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1207-1209 ● ● ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1210- ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1207-1209 ● ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1210- ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1207-1209 ● ● ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1210- ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 1207-1209 ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C) 		8-98107-549-0 02 1 1210- ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 1210- ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 1210- ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1207-1209 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1207-1209 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1212 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1212 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1207-1209 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1210-1212 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1210-1212 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1210-1212 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1207-1209 ● ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1210- ● ● ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1207-1209 ● ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1210- ● ● ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1207-1209 ● ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1210- ● ● ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1207-1209 ● ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1210- ● ● ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1207-1209 ● ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
