◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51267 - NN/NP/NQR(RHD)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#94277) — 24 parça
çizim 286410
20 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98201-216-0 01 1 1207-1209 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98201-216-0 01 1 1210- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1207-1209 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1210- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1207-1209 ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1210- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1207-1209 ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1210- ● ● ● ●

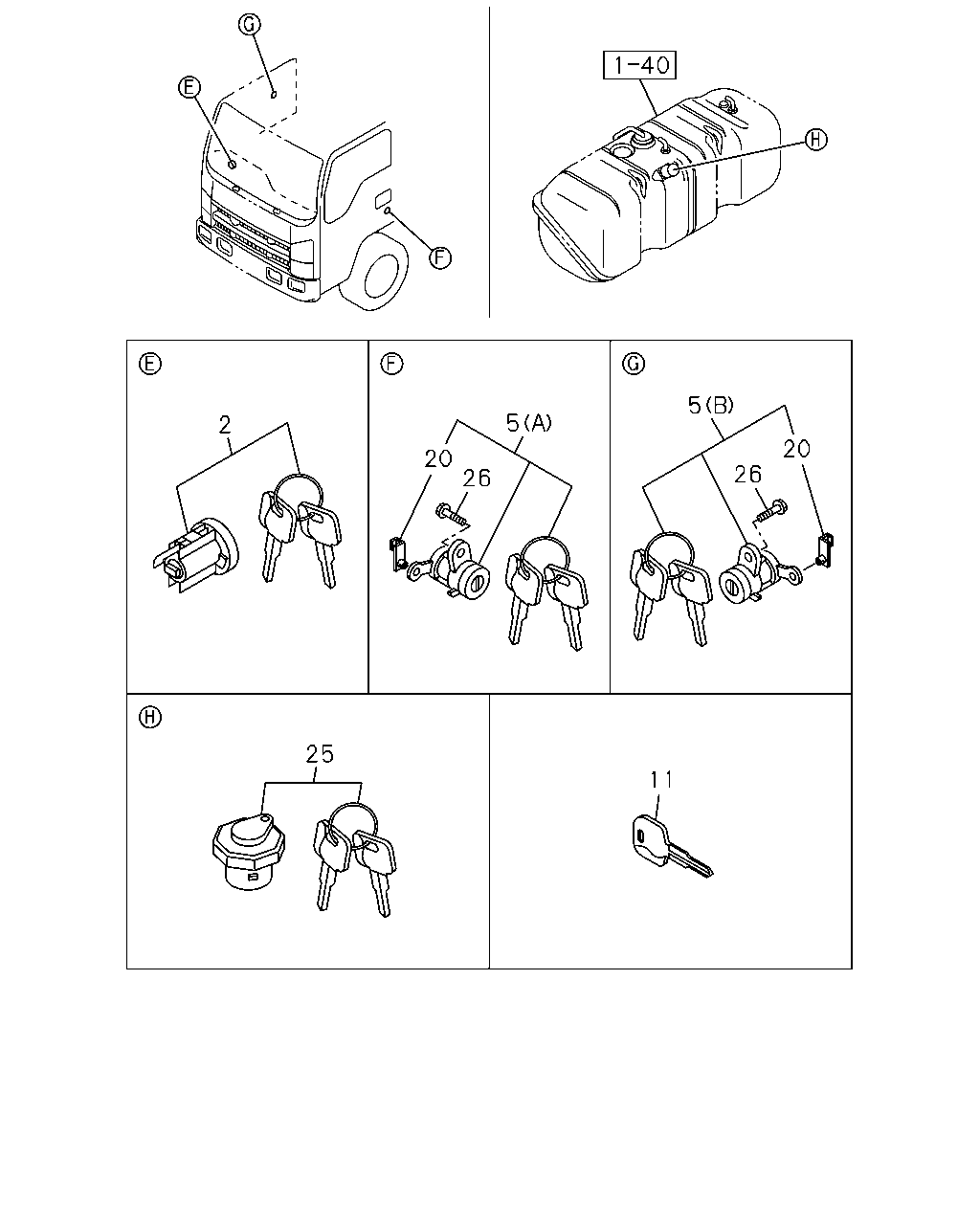

çizim 286414
20 26 5 5 26 20 2 25 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1207-1209 ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1210- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1207-1209 ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1210- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1207-1209 ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1210- ● ● ● ●
11 02.187 KEY; BLANK 8-98055-170-0 AR 1 1207-1209 ● ● ●
11 02.187 KEY; BLANK 8-98055-170-0 AR 1 1210- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1207-1209 ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1210- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1207-1209 ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1210- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98146-010-0 01 1 1207-1209 ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98146-010-0 01 1 1210- ● ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1207-1209 ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
