7-20 — MIRROR AND MIRROR STAY (#94276) — 75 parça

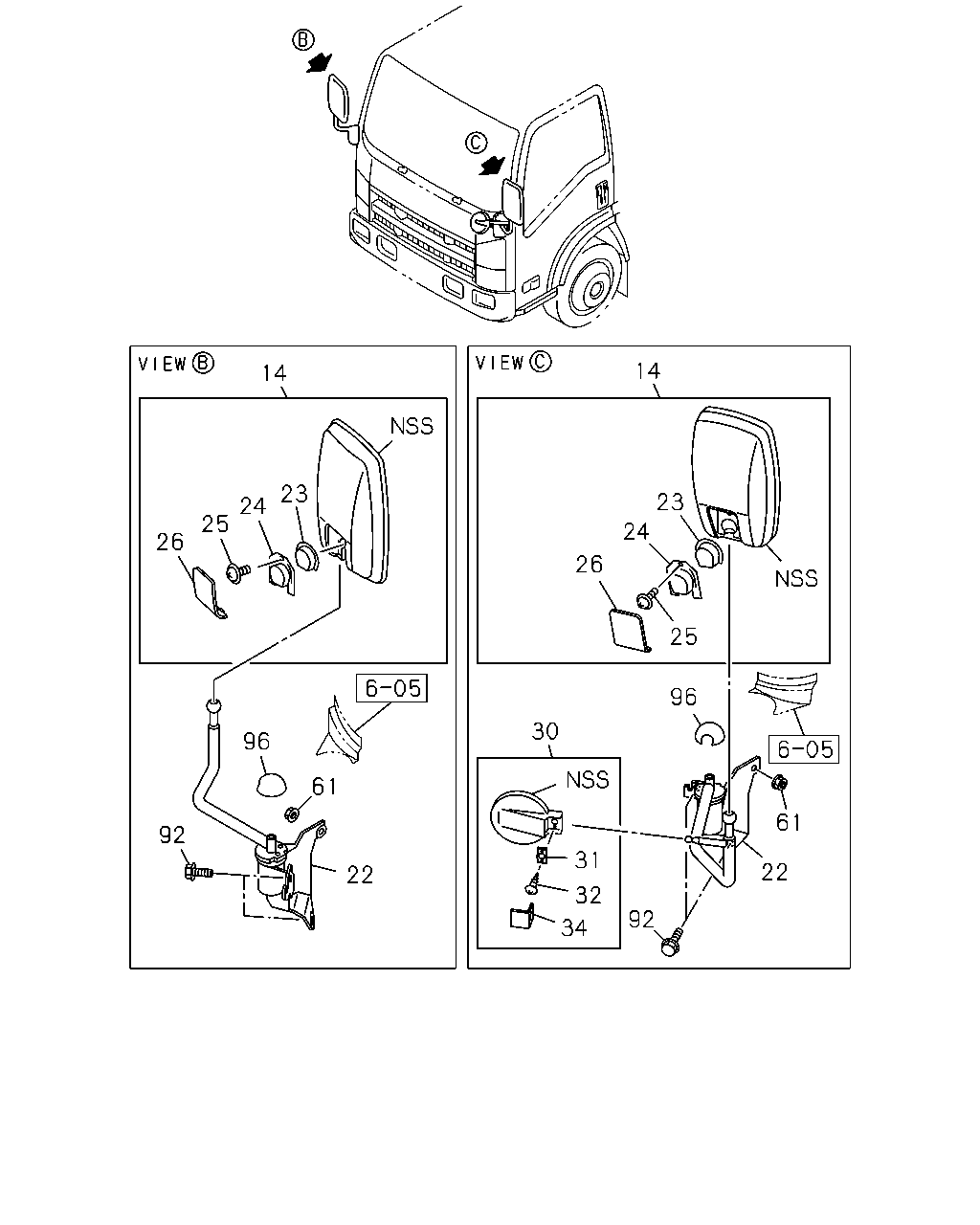

çizim 286415
22 61 25 96 23 24 26 92 34 32 31 30 22 61 96 92 14 14 23 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-542-3 01 1 1207-1209 ● ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-542-3 01 1 1207-1209 ● ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-542-3 01 1 1210- ● ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-542-3 01 1 1210- ● ● ●
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1210- ●
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1210- ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG S TAY<8EB> 		8-98147-079-0 01 1 1207- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG S TAY<8EB> 		8-98147-082-0 01 1 1207- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG S TAY<8EB> EXC. UNDER MIRROR<RR9> 		8-98147-080-0 01 1 1207- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> 		8-98027-519-0 01 1 1207-1209 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> 		8-98027-519-0 01 1 1210- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98027-519-0 01 1 1210- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> 		8-98038-224-1 01 1 1207-1209 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> 		8-98038-224-1 01 1 1210- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR 8-98038-224-1 01 1 1210- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> EXC. UNDER MIRROR<RR9> 		8-98070-509-0 01 1 1207-1209 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> EXC. UNDER MIRROR<RR9> 		8-98070-509-0 01 1 1210- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98070-509-0 01 1 1210- ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.0 		8-94262-545-0 01 1 1207-1209 ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.0 		8-94262-545-0 01 1 1207-1209 ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.0 		8-94262-545-0 01 1 1210- ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.0 		8-94262-545-0 01 1 1210- ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1210- ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1210- ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=1.6 		8-94262-546-1 01 1 1207-1209 ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=1.6 		8-94262-546-1 01 1 1207-1209 ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=1.6 		8-94262-546-1 01 1 1210- ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=1.6 		8-94262-546-1 01 1 1210- ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1210- ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1210- ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M6X30 		8-94279-365-0 01 1 1207-1209 ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M6X30 		8-94279-365-0 01 1 1207-1209 ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M6X30 		8-94279-365-0 01 1 1210- ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M6X30 		8-94279-365-0 01 1 1210- ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1210- ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1210- ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.3 		8-94262-547-2 01 1 1207-1209 ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.3 		8-94262-547-2 01 1 1207-1209 ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.3 		8-94262-547-2 01 1 1210- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.3 		8-94262-547-2 01 1 1210- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 1210- ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 1210- ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-625-2 01 1 1207-1209 ● ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-625-2 01 1 1210- ● ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 1210- ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-631-0 01 1 1207-1209 ● ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-631-0 01 1 1210- ● ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 1210- ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M5X18 		8-94279-372-0 02 1 1207-1209 ● ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M5X18 		8-94279-372-0 02 1 1210- ● ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 1210- ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-629-0 01 1 1207-1209 ● ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-629-0 01 1 1210- ● ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 1210- ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1207-1209 ● ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1210- ● ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1210- ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1207-1209 ● ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1210- ● ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1210- ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98027-552-2 02 1 1207-1209 ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98027-552-2 02 1 1210- ● ● ●
96 16.069 CAP; MIRROR STAY 8-98027-552-2 02 1 1210- ●

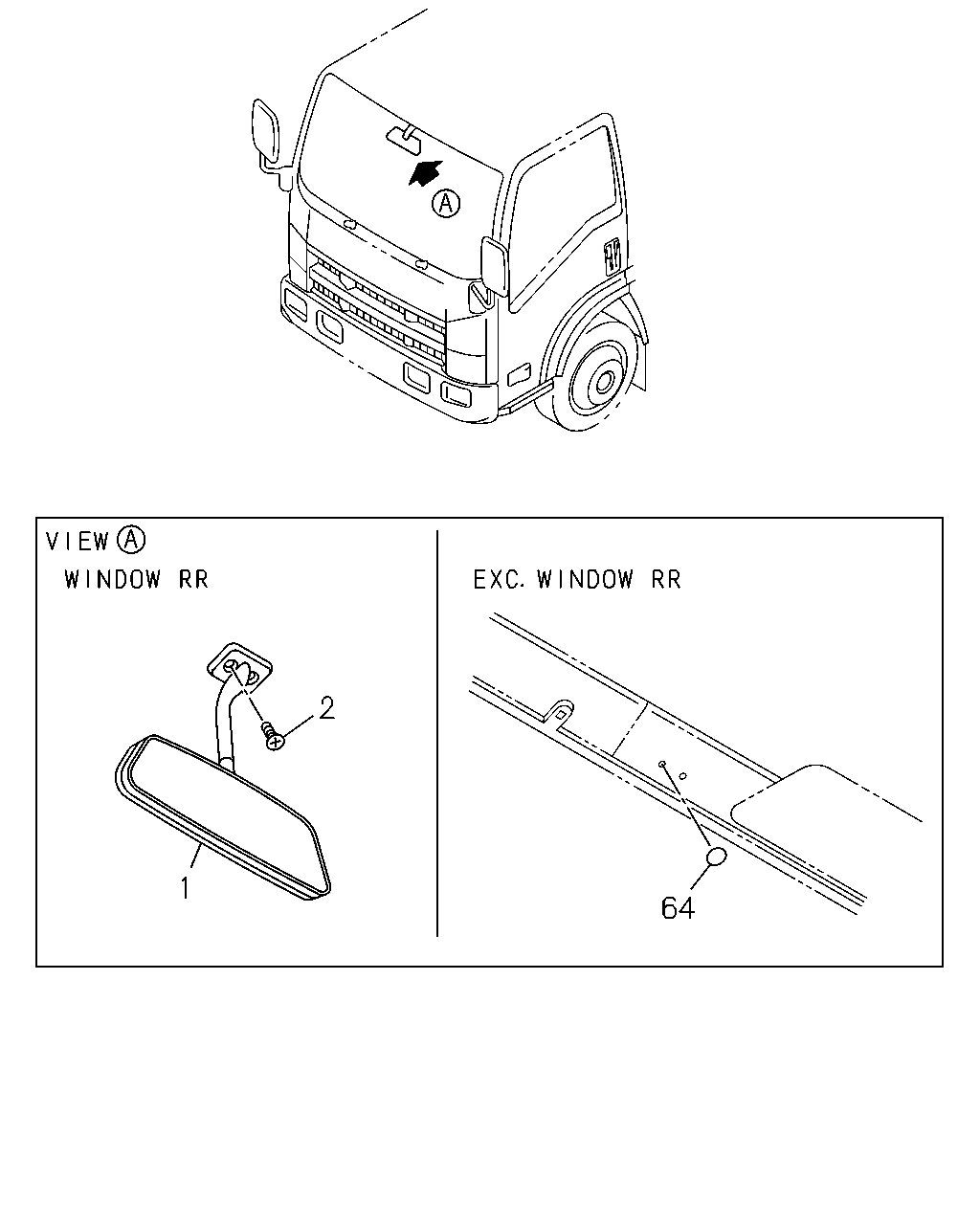

çizim 286640
1 2 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 1207-1209 ● ●
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1207-1209 ●
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 1210- ● ● ●
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1210- ●
2 16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26 		8-98033-674-0 02 1 1207-1209 ● ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 1207-1209 ●
2 16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26 		8-98033-674-0 02 1 1210- ● ● ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 1210- ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK2(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANG E(944),BODY COLOR SUNBELT GREEN(989), BODY COLOR QUICK SILVER MET(998),BODY COL OR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1207-1209 ● ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK2(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANG E(944),BODY COLOR SUNBELT GREEN(989), BODY COLOR QUICK SILVER MET(998),BODY COL OR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1210- ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1207-1209 ● ●
64 16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1210- ● ● ●
