51267 - NN/NP/NQR(RHD)EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-84 - BACK TRIM
▶

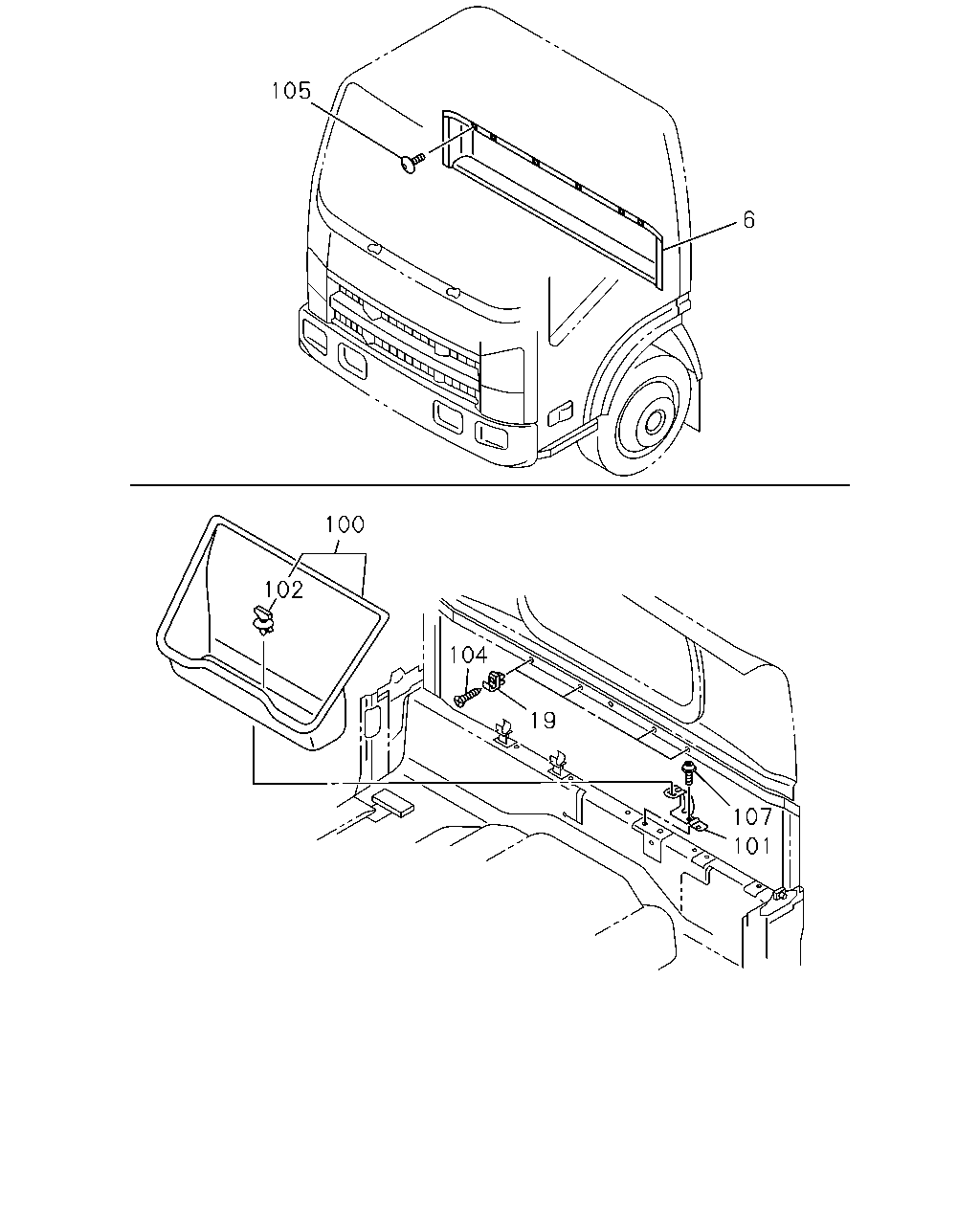

6-84 — BACK TRIM
(#94272) — 18 parça
Tümü
A - NPR5SN
B - NPR5SS
C - NPR5SE
6
105
100
102
104
19
107
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
16.592 MAT; SILENCER,CAB BACK
INSPECTION ENGINE COVER<8GA> GRAY
8-97405-290-3
01
1
1207-1209
●
●
6
16.592 MAT; SILENCER,CAB BACK
INSPECTION ENGINE COVER<8GA> GRAY
8-97405-290-3
01
1
1210-
●
●
●
6
16.592 MAT; SILENCER,CAB BACK
EXC. INSPECTION ENGINE COVER<8GA> GRAY
8-97405-289-3
01
1
1207-1209
●
●
6
16.592 MAT; SILENCER,CAB BACK
EXC. INSPECTION ENGINE COVER<8GA> GRAY
8-97405-289-3
01
1
1210-
●
●
●
19
16.165 HOOK; RET
GRAY
8-97406-042-0
04
1
1207-1209
●
●
19
16.165 HOOK; RET
GRAY
8-97406-042-0
04
1
1210-
●
●
●
100
16.587 TRAY; BACK PANEL
GRAY
8-97405-174-1
01
1
1207-1209
●
●
100
16.587 TRAY; BACK PANEL
GRAY
8-97405-174-1
01
1
1210-
●
●
●
101
17.225 BRACKET; TRAY,BACK PANEL
8-98029-438-1
01
1
1207-1209
●
●
101
17.225 BRACKET; TRAY,BACK PANEL
8-98029-438-1
01
1
1210-
●
●
●
102
16.584 CLIP; TRAY,BACK PANEL
GRAY
8-97406-996-0
01
1
1207-1209
●
●
102
16.584 CLIP; TRAY,BACK PANEL
GRAY
8-97406-996-0
01
1
1210-
●
●
●
104
17.225 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
04
1
1207-1209
●
●
104
17.225 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
04
1
1210-
●
●
●
105
16.166 CLIP; BACK TRIM
GRAY
8-97405-295-0
02
1
1207-1209
●
●
105
16.166 CLIP; BACK TRIM
GRAY
8-97405-295-0
02
1
1210-
●
●
●
107
16.588 SCREW; BRKT
16.570 M6X16
0-38050-616-0
01
1
1207-1209
●
●
107
16.588 SCREW; BRKT
16.570 M6X16
0-38050-616-0
01
1
1210-
●
●
●
