◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51267 - NN/NP/NQR(RHD)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#94261) — 24 parça

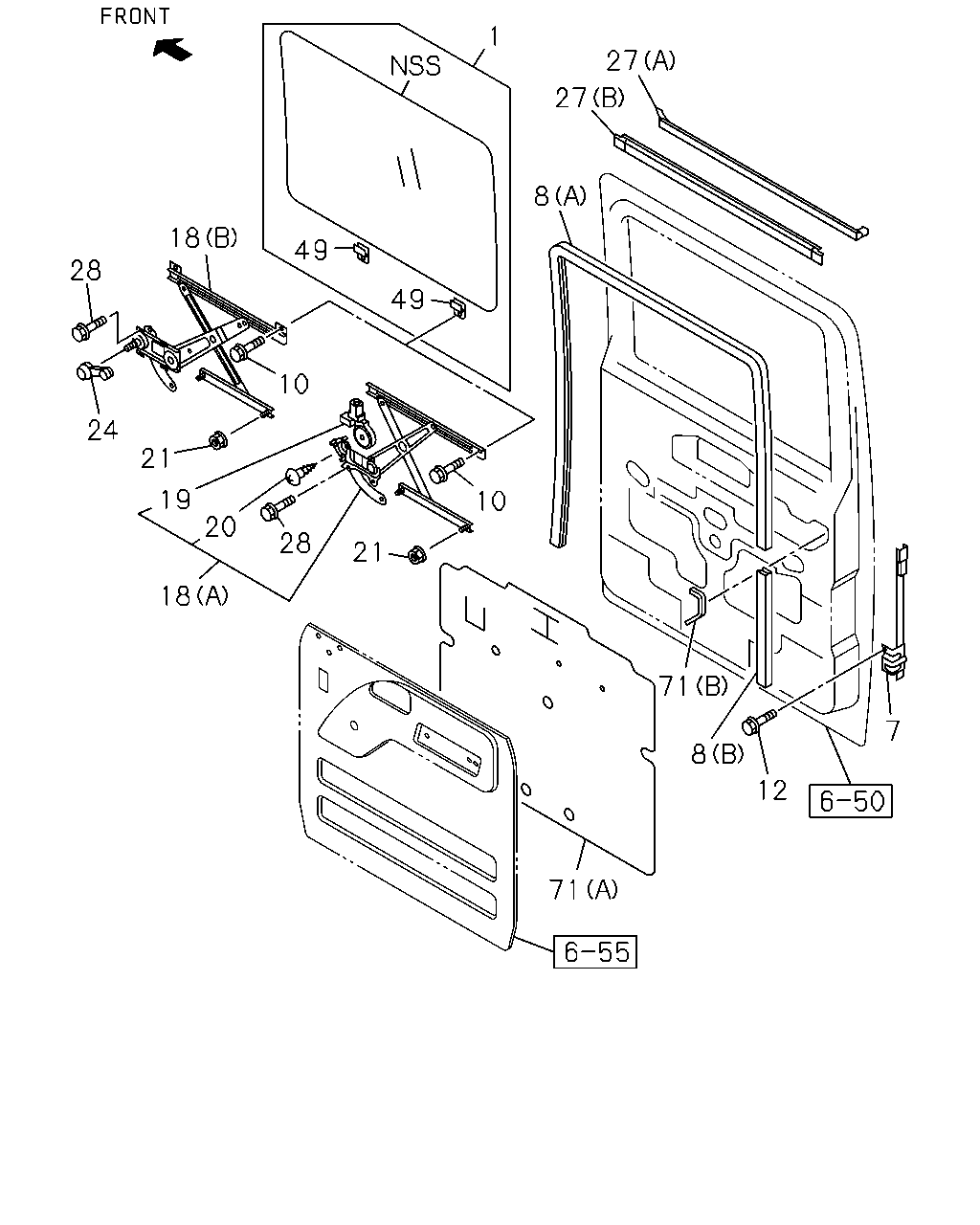

çizim 286379
1 27 27 8 49 49 18 28 24 21 20 19 18 28 10 21 71 8 12 7 71 10
BalonParca AdiParca NoAdetTipApplied Date
1 16.180 GLASS; RR DOOR 8-98211-769-0 01 1 1207-
1 16.180 GLASS; RR DOOR 8-98211-770-0 01 1 1207-
7 16.190 CHANNEL; GLASS RUN,RR DOOR 8-98032-137-2 01 1 1207-
7 16.190 CHANNEL; GLASS RUN,RR DOOR 8-98032-138-2 01 1 1207-
8 16.190 RUN; GLASS,RR DOOR
(A) 		8-97587-685-1 01 1 1207-
8 16.190 RUN; GLASS,RR DOOR
(A) 		8-98002-256-1 01 1 1207-
8 16.190 RUN; GLASS,RR DOOR
(B) 		8-98070-147-0 02 1 1207-
10 16.183 SCREW; GLASS
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 1207-
12 16.181 SCREW; CHANNEL,GLASS RUN
03.671 BOLT M6X10 FLANGE 		0-28050-610-0 04 1 1207-
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-97587-695-3 01 1 1207-
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-97587-696-3 01 1 1207-
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98155-996-0 01 1 1207-
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98155-997-0 01 1 1207-
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-300-0 01 1 1207-
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-301-0 01 1 1207-
20 16.270 SCREW
POWER WINDOW FRT&REAR DOOR<A31> 16.230 		8-98058-431-0 06 1 1207-
21 16.270 NUT; FLANGE,WINDOW REG
01.062 M6 FLANGE 		0-91180-106-0 04 1 1207-
24 16.270 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97405-313-3 02 1 1207-
27 16.183 SEAL; WAIST,RR DOOR
(A) 		8-97587-691-1 02 1 1207-
27 16.183 SEAL; WAIST,RR DOOR
(B) 		8-97587-692-1 02 1 1207-
28 16.181 BOLT; WINDOW REG
03.671 M6X10 FLANGE 		0-28050-610-0 08 1 1207-
49 16.180 HOLDER; DOOR GLASS
16.183 		8-98211-762-0 04 1 1207-
71 16.183 SEAL; WATER,RR DOOR
(A) 		8-97587-700-1 02 1 1207-
71 16.183 SEAL; WATER,RR DOOR
(B) 		8-98061-351-0 02 1 1207-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
