Isuzu WW
▶
TRUCKS
▶
FRR
▶
10826 - FRR/FSR/FRD(AUST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

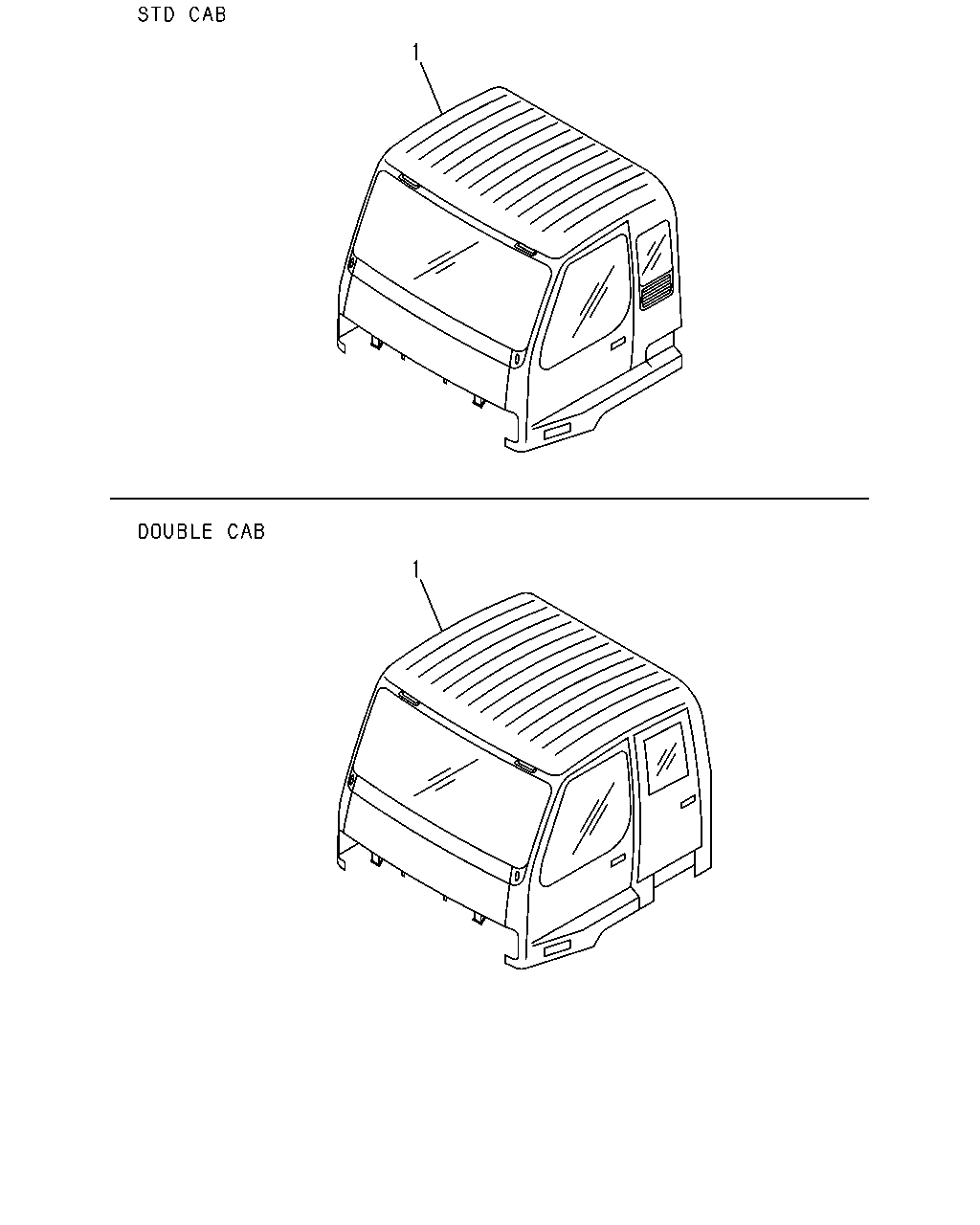

6-04 - CAB ASM
▶
6-04 — CAB ASM
(#9426) — 6 parça
Tümü
A - FRR5MF
B - FSR5MF
C - FRR5WF
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) CUSTOM CAB(SR5) POWER WINDOW<A30>
1-61084-452-0
01
1
0005-0210
●
1
CAB ASM; SERVICE,WO/ELEC
POWER WINDOW<A30> CAB SUSPENSION SEMI FLOATING<SDK> CUSTOM CAB(SR5)
1-61085-522-0
01
1
0211-
●
1
CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) DOOR WINDOW MANUAL CONT<SKF> EXC. CUSTOM CAB(SR5)
1-61084-451-0
01
1
0005-0210
●
●
1
CAB ASM; SERVICE,WO/ELEC
POWER WINDOW<A30> CAB SUSPENSION SEMI FLOATING<SDK> EXC. CUSTOM CAB(SR5)
1-61085-521-0
01
1
0211-
●
●
1
CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) DOOR WINDOW MANUAL CONT<SKF>
1-61084-453-0
01
1
0005-0210
●
1
CAB ASM; SERVICE,WO/ELEC
DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION RIGID<W71> EXC. CUSTOM CAB(SR5)
1-61085-525-0
01
1
0211-
●
