6-20 — SIDE PANEL AND STEP (#94253) — 239 parça

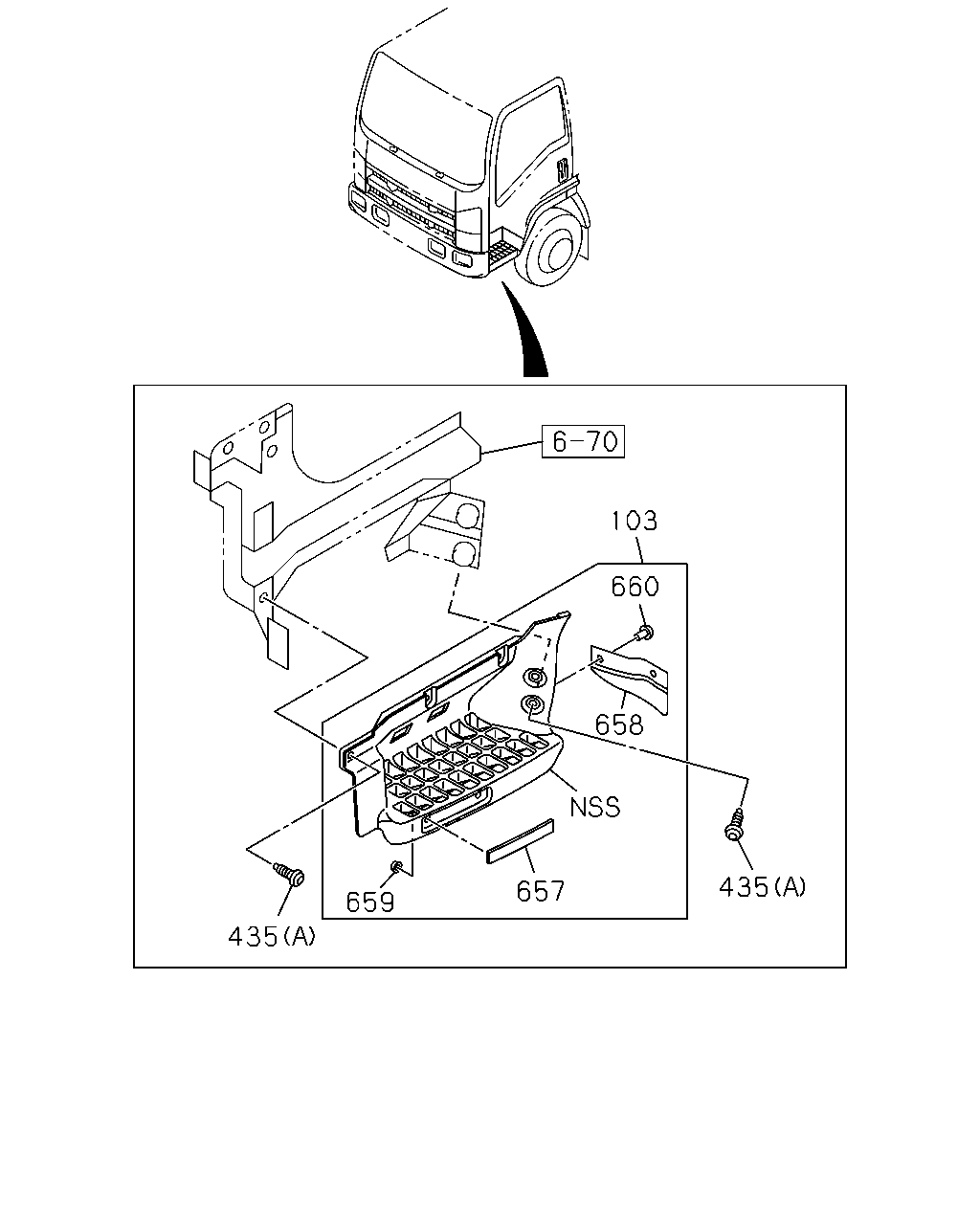

çizim 286353
103 660 658 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date A B C D
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1207-1209 ● ● ●
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1210- ● ● ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1207-1209 ● ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1210- ● ● ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1207-1209 ● ● ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1210- ● ● ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 1207- ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1207-1209 ● ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1210- ● ● ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1207-1209 ● ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1210- ● ● ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1207-1209 ● ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1210- ● ● ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1207-1209 ● ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1210- ● ● ● ●

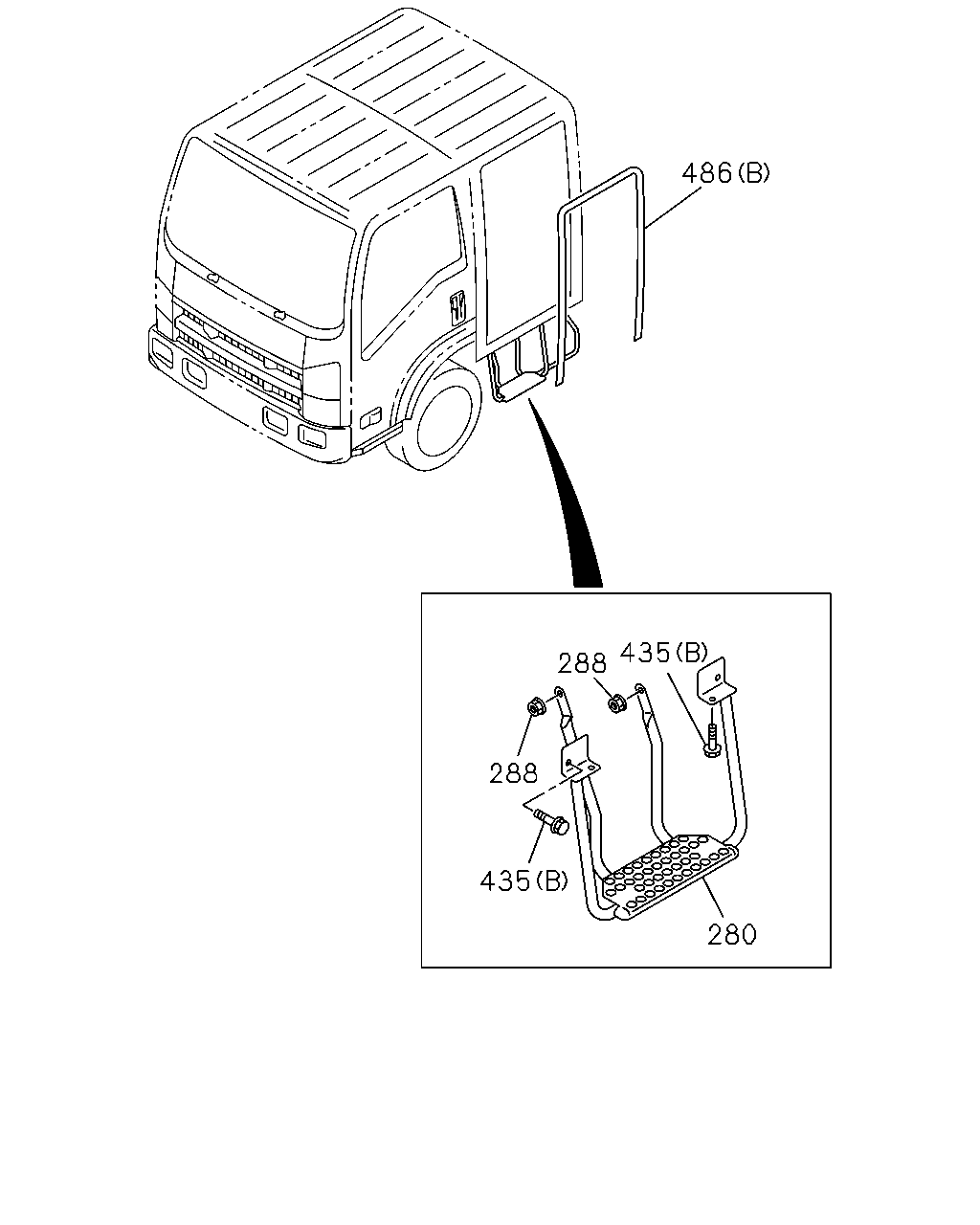

çizim 286355
486 435 288 288 435 280
BalonParca AdiParca NoAdetTipApplied Date A B C D
280 08.225 STEP ASM; RR 8-98084-128-1 01 1 1207- ●
280 08.225 STEP ASM; RR 8-98084-129-1 01 1 1207- ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 04 1 1207- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1207-1209 ● ● ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1210- ● ● ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 1207- ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1207- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK2(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANG E(944),BODY COLOR SUNBELT GREEN(989), BODY COLOR QUICK SILVER MET(998),BODY COL OR TRANS BLUE(999) 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1207-1209 ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK2(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANG E(944),BODY COLOR SUNBELT GREEN(989), BODY COLOR QUICK SILVER MET(998),BODY COL OR TRANS BLUE(999) 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1210- ● ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1207-1209 ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1210- ● ● ●

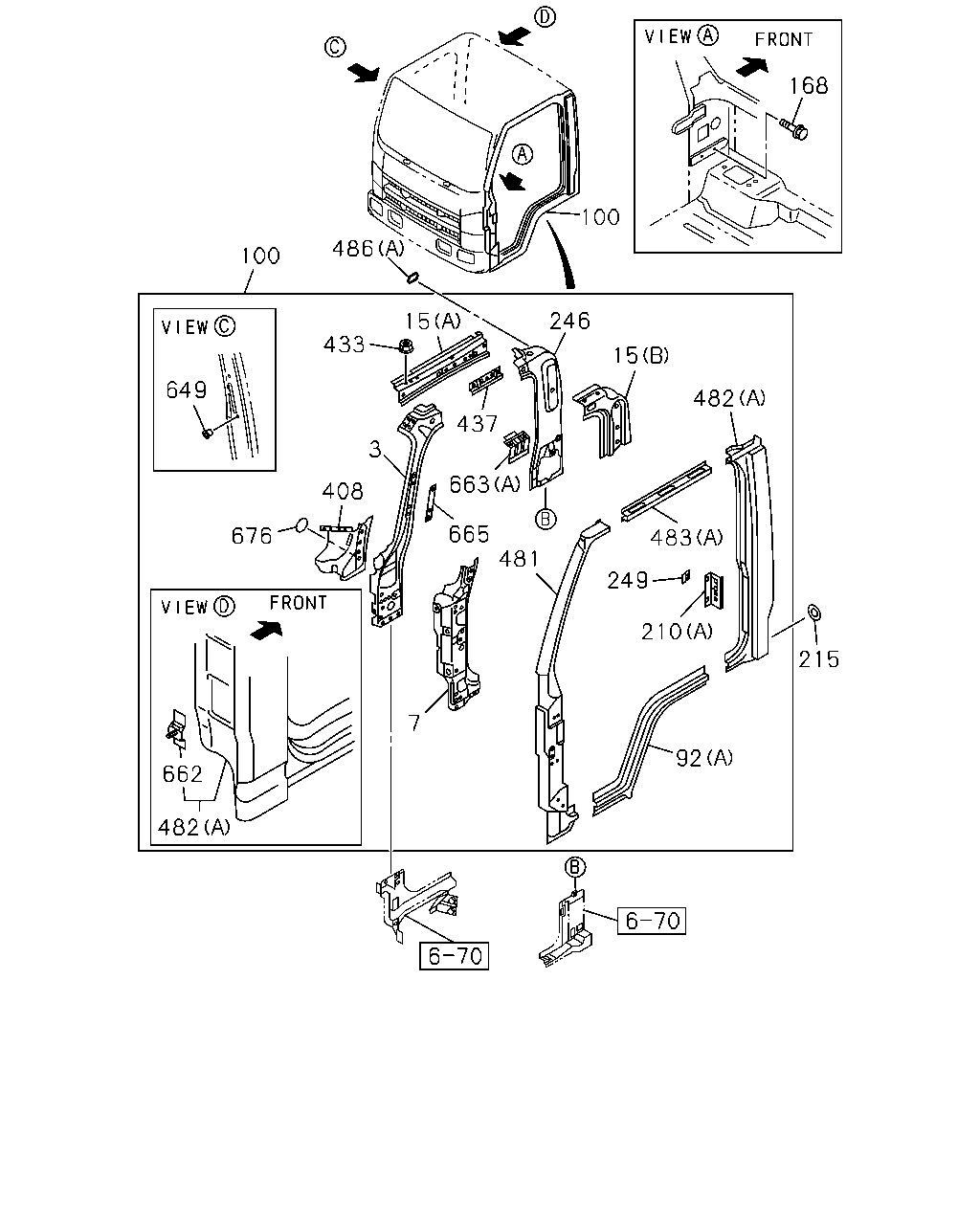

çizim 286358
168 100 486 100 649 433 15 246 15 482 483 249 210 215 92 7 481 665 663 437 3 408 676 662 482
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1207-1209 ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1210- ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1207-1209 ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1210- ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1207-1209 ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1210- ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1207-1209 ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1210- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1207-1209 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1210- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1207-1209 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1210- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1207-1209 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1210- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1207-1209 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1210- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1207- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1207- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1207-1209 ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1210- ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1207-1209 ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1210- ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1207- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1207-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1207-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1207-1209 ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1210- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1207-1209 ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1210- ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1207-1209 ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1210- ● ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1207-1209 ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1210- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1207-1209 ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1210- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1207- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1207- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1207- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1207- ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1207-1209 ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1210- ● ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1207-1209 ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1210- ● ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1207-1209 ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1210- ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 02 1 1207-1209 ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 02 1 1210-1408 ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1409- ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1409- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1207-1209 ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1210- ● ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1207-1209 ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1210- ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1409- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1207-1209 ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1210-1408 ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1409- ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1409- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1207-1209 ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1210- ● ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1207-1209 ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1210- ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1207-1209 ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1210- ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1207-1209 ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1210- ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 1207-1209 ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 1210- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1207-1209 ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1210- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1207- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1207- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1207-1209 ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1210- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1207-1209 ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1210- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1207- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1207- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1207- ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1207- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK2(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANG E(944),BODY COLOR SUNBELT GREEN(989), BODY COLOR QUICK SILVER MET(998),BODY COL OR TRANS BLUE(999) 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1207-1209 ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK2(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANG E(944),BODY COLOR SUNBELT GREEN(989), BODY COLOR QUICK SILVER MET(998),BODY COL OR TRANS BLUE(999) 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1210- ● ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1207-1209 ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1210- ● ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1207-1209 ● ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1210- ● ● ● ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1207- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1207-1209 ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1210- ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 02 1 1207- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1207-1209 ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1210- ● ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1207-1209 ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1210- ● ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1409- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1207-1209 ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1210-1408 ● ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1409- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1409- ● ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1207-1209 ● ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1210- ● ● ● ●

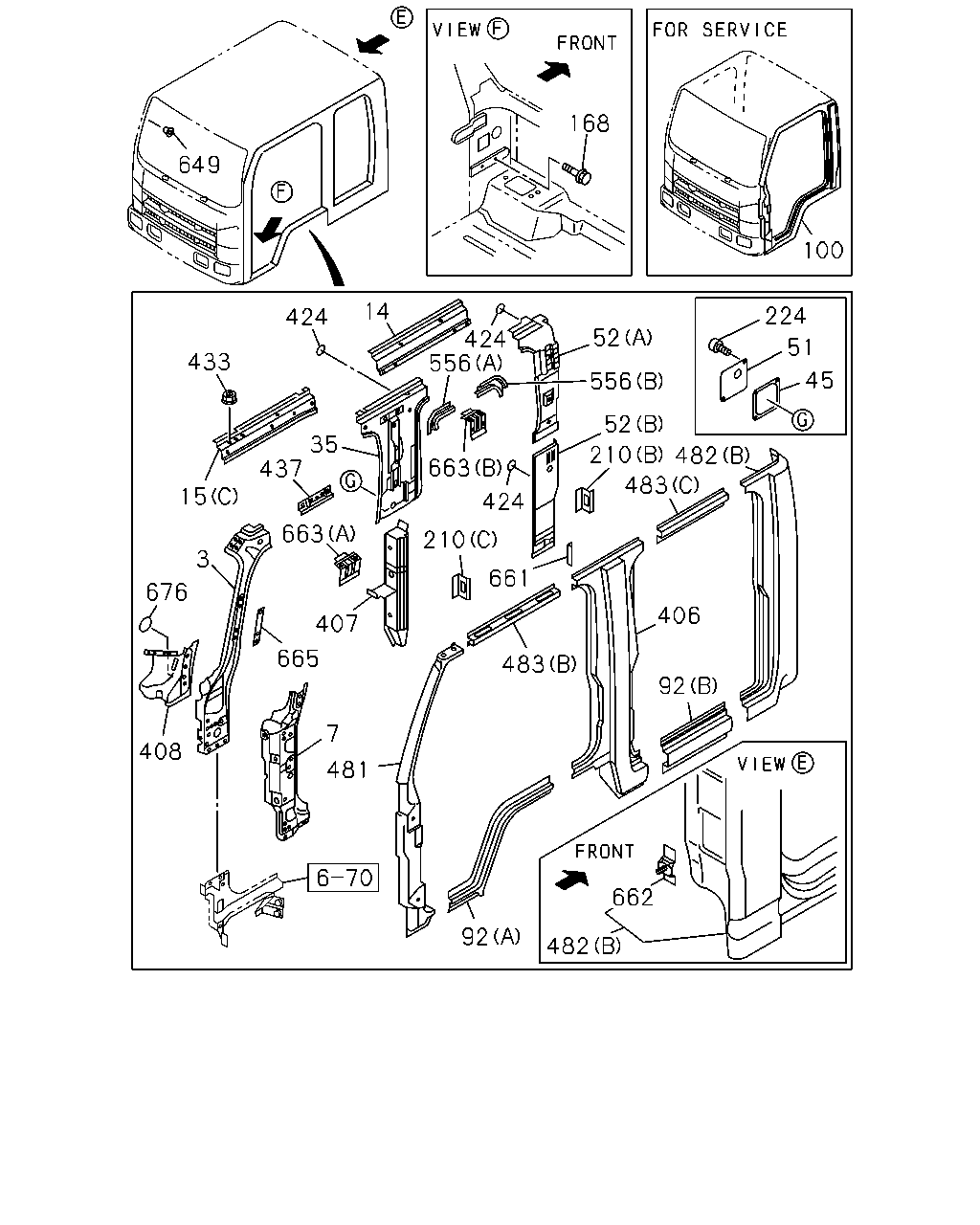

çizim 286740
649 168 100 224 51 45 52 556 52 210 483 482 406 92 483 210 424 663 556 424 14 424 433 35 437 15 663 3 676 407 665 7 481 408 92 482 662 661
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1207-1209 ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1210- ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1207-1209 ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1210- ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1207-1209 ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1210- ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1207-1209 ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1210- ● ● ● ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 02 1 1207- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1207-1209 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1210- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1207-1209 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1210- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1207-1209 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1210- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1207-1209 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1210- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1207- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1207- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-97583-703-4 01 1 1207- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98013-489-4 01 1 1207- ●
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 1207- ●
51 16.570 COVER; HOLE,B-C POST 8-94273-658-0 02 1 1207- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-707-4 01 1 1207- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-708-4 01 1 1207- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-779-2 01 1 1207- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-780-2 01 1 1207- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1207-1209 ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1210- ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1207-1209 ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1210- ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1207- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1207-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1207-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1207-1209 ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1210- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1207-1209 ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1210- ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1207-1209 ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1210- ● ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1207-1209 ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1210- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1207-1209 ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1210- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1207- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1207- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1207- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1207- ●
224 16.570 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1207- ●
406 16.570 PILLAR; CENTER 8-98069-085-0 01 1 1207- ●
406 16.570 PILLAR; CENTER 8-98069-086-0 01 1 1207- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 1207- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 1207- ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1207-1209 ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1210- ● ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1207-1209 ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1210- ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR EBONY BLACK2(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANG E(944),BODY COLOR SUNBELT GREEN(989), BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 1207- ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 12 1 1207- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1409- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1207-1209 ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1210-1408 ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1409- ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1409- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1207-1209 ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1210- ● ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1207-1209 ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1210- ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1207-1209 ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1210- ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1207-1209 ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1210- ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 1207-1209 ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 1210- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1207-1209 ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1210- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1207- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1207- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1207-1209 ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1210- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1207-1209 ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1210- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1207- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1207- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1207- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 1207- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 1207- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 1207- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 1207- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1207-1209 ● ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1210- ● ● ● ●
661 16.570 BRACKET; SIDE PANEL 8-98012-621-1 01 1 1207- ●
661 16.570 BRACKET; SIDE PANEL 8-98012-623-1 01 1 1207- ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1207- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1207-1209 ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1210- ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 02 1 1207- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1207-1209 ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1210- ● ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1207-1209 ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1210- ● ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1409- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1207-1209 ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1210-1408 ● ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1409- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1409- ● ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1207-1209 ● ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
