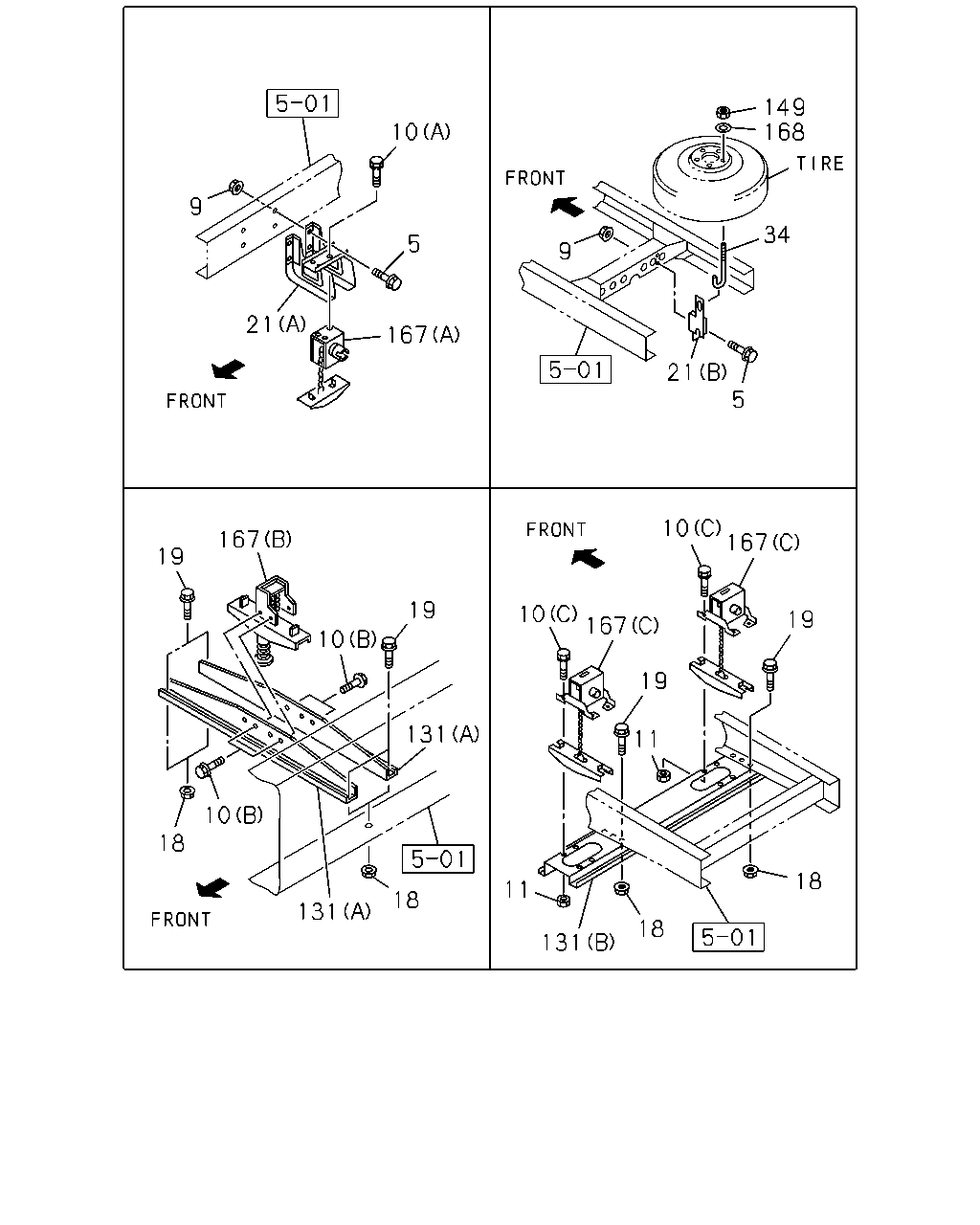

5-30 — SPARE TIRE CARRIER AND COVER (#94247) — 92 parça

9 21 167 5 10 9 21 5 34 168 149 19 167 10 19 131 10 18 131 18 131 11 18 18 11 19 167 10 10 167 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W) 09.171 M10X25 FLANGE	0-28051-025-0	04	1	1207-	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1207-1209		●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1210-		●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1207-1209		●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1207-1209	●
5	07.632 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1207-1209			●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1210-		●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1210-	●
5	07.632 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1210-			●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-1209		●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-		●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	04	1	1207-1209		●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE	0-91180-108-0	04	1	1207-1209	●
9	07.633 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	04	1	1207-1209			●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1210-		●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE	0-91180-108-0	04	1	1210-	●
9	07.633 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	04	1	1210-			●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 4100MM(41W) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1207-	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1207-1209		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3800MM(38W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1207-1209	●
10	07.632 BOLT; TIRE HANGER 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1207-1209			●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1210-1510		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1210-1510		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3800MM(38W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1210-1510	●
10	07.632 BOLT; TIRE HANGER 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1210-1510			●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1511-		●
10	07.632 BOLT; TIRE HANGER EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1511-		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3800MM(38W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1511-	●
10	07.632 BOLT; TIRE HANGER 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1511-			●
10	07.632 BOLT; TIRE HANGER 01.531 (C) M8X20 FLANGE	0-28650-820-0	08	1	1210-				●
11	07.629 NUT; TIRE HANGER 01.062 M8 FLANGE	0-91180-108-0	08	1	1210-				●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-1209		●
18	07.633 NUT; MEMBER WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-1209	●
18	07.633 NUT; MEMBER 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-1209			●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1210-1510		●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1210-1510		●
18	07.633 NUT; MEMBER WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	04	1	1210-1510	●
18	07.633 NUT; MEMBER 03.162 M10 FLANGE	0-91180-110-0	04	1	1210-1510			●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	04	1	1511-		●
18	07.633 NUT; MEMBER WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	04	1	1511-	●
18	07.633 NUT; MEMBER 03.162 M10 FLANGE	0-91180-110-0	04	1	1511-			●
18	07.633 NUT; MEMBER 03.162 M10 FLANGE	0-91180-110-0	06	1	1210-				●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1207-1209		●
19	07.632 BOLT; C/MBR WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1207-1209	●
19	07.632 BOLT; C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1207-1209			●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1210-1510		●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1210-1510		●
19	07.632 BOLT; C/MBR WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1210-1510	●
19	07.632 BOLT; C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1210-1510			●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-		●
19	07.632 BOLT; C/MBR WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-	●
19	07.632 BOLT; C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-			●
19	07.632 BOLT; C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1210-				●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 4100MM(41W) (A)	8-98072-378-2	01	1	1207-	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 3300MM(33W) (B)	8-98019-889-0	01	1	1207-1209		●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B)	8-98019-889-0	01	1	1210-		●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 3800MM(38W) (B)	8-98019-889-0	02	1	1207-1209		●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B)	8-98019-889-0	02	1	1207-1209	●
21	07.629 BRACKET; SPARE TIRE HANGER (B)	8-98019-889-0	02	1	1207-1209			●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B)	8-98019-889-0	02	1	1210-		●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B)	8-98019-889-0	02	1	1210-	●
21	07.629 BRACKET; SPARE TIRE HANGER (B)	8-98019-889-0	02	1	1210-			●
34	07.629 BOLT; SPARE TIRE M12X305	8-94441-189-0	02	1	1207-1209	●	●	●
34	07.629 BOLT; SPARE TIRE M12X330	8-98226-501-0	02	1	1210-1210	●	●	●
34	07.629 BOLT; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> M12X330	8-98226-501-0	02	1	1210-		●
34	07.629 BOLT; SPARE TIRE M12X330	8-98226-501-0	02	1	1210-	●		●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98035-827-1	02	1	1207-1209		●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3800MM(38W) (A)	8-98035-827-1	02	1	1207-1209	●
131	07.629 CROSSMEMBER; SPARE TIRE (A)	8-98035-827-1	02	1	1207-1209			●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-827-1	02	1	1210-		●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3800MM(38W) (A)	8-98035-827-1	02	1	1210-	●
131	07.629 CROSSMEMBER; SPARE TIRE (A)	8-98035-827-1	02	1	1210-			●
131	07.629 CROSSMEMBER; SPARE TIRE (B)	8-98029-266-1	01	1	1210-				●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98024-842-2	02	1	1210-1510		●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98024-842-2	02	1	1511-		●
149	07.629 NUT; CARRIER 05.002 M12	0-91110-512-0	02	1	1207-1209	●	●	●
149	07.629 NUT; CARRIER FRAME STRAIGHT TYPE<7KJ> 05.002 M12	0-91110-512-0	02	1	1210-		●
149	07.629 NUT; CARRIER 05.002 M12	0-91110-512-0	02	1	1210-	●		●
167	07.629 HANGER; TIRE WHEEL BASE 4100MM(41W) (A)	8-97010-955-1	01	1	1207-	●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-98036-383-0	01	1	1207-1209		●
167	07.629 HANGER; TIRE WHEEL BASE 3800MM(38W) (B)	8-98036-383-0	01	1	1207-1209	●
167	07.629 HANGER; TIRE (B)	8-98036-383-0	01	1	1207-1209			●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) FRAME STRAIGHT TYPE<7KJ> (B)	8-98036-383-0	01	1	1210-		●
167	07.629 HANGER; TIRE WHEEL BASE 3800MM(38W) (B)	8-98036-383-0	01	1	1210-	●
167	07.629 HANGER; TIRE (B)	8-98036-383-0	01	1	1210-			●
167	07.629 HANGER; TIRE (C)	8-97182-113-1	02	1	1210-				●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5F-1 15(07H) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98036-384-0	01	1	1210-1510		●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5F-1 15(07H) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98036-384-0	01	1	1511-		●
168	07.633 WASHER; SPARE TIRE 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	1207-1209	●	●	●
168	07.633 WASHER; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	1210-		●
168	07.633 WASHER; SPARE TIRE 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	1210-	●		●
