Sayfa 6-01 - Isuzu EPC

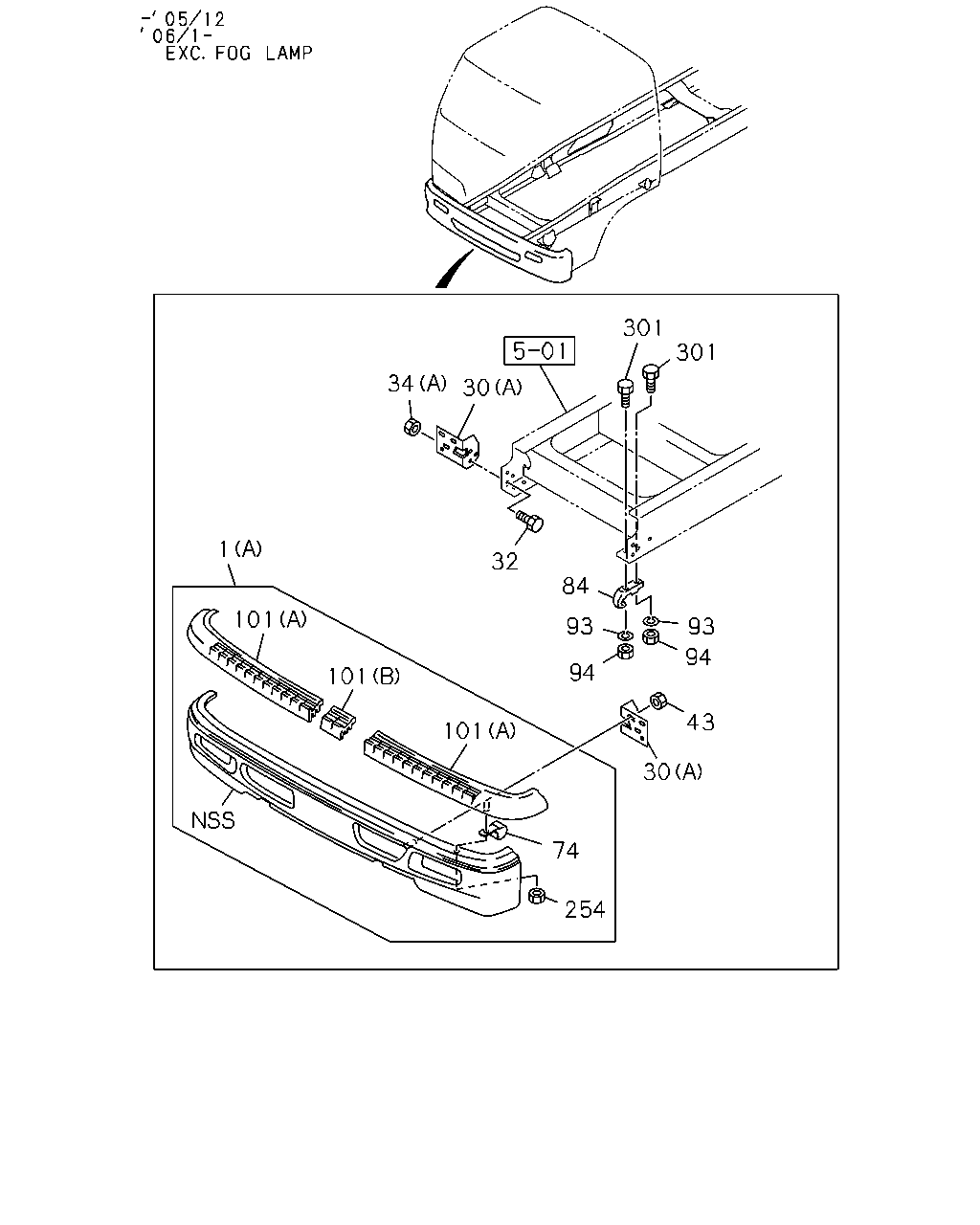

6-01 — FRONT BUMPER (#9424) — 659 parça

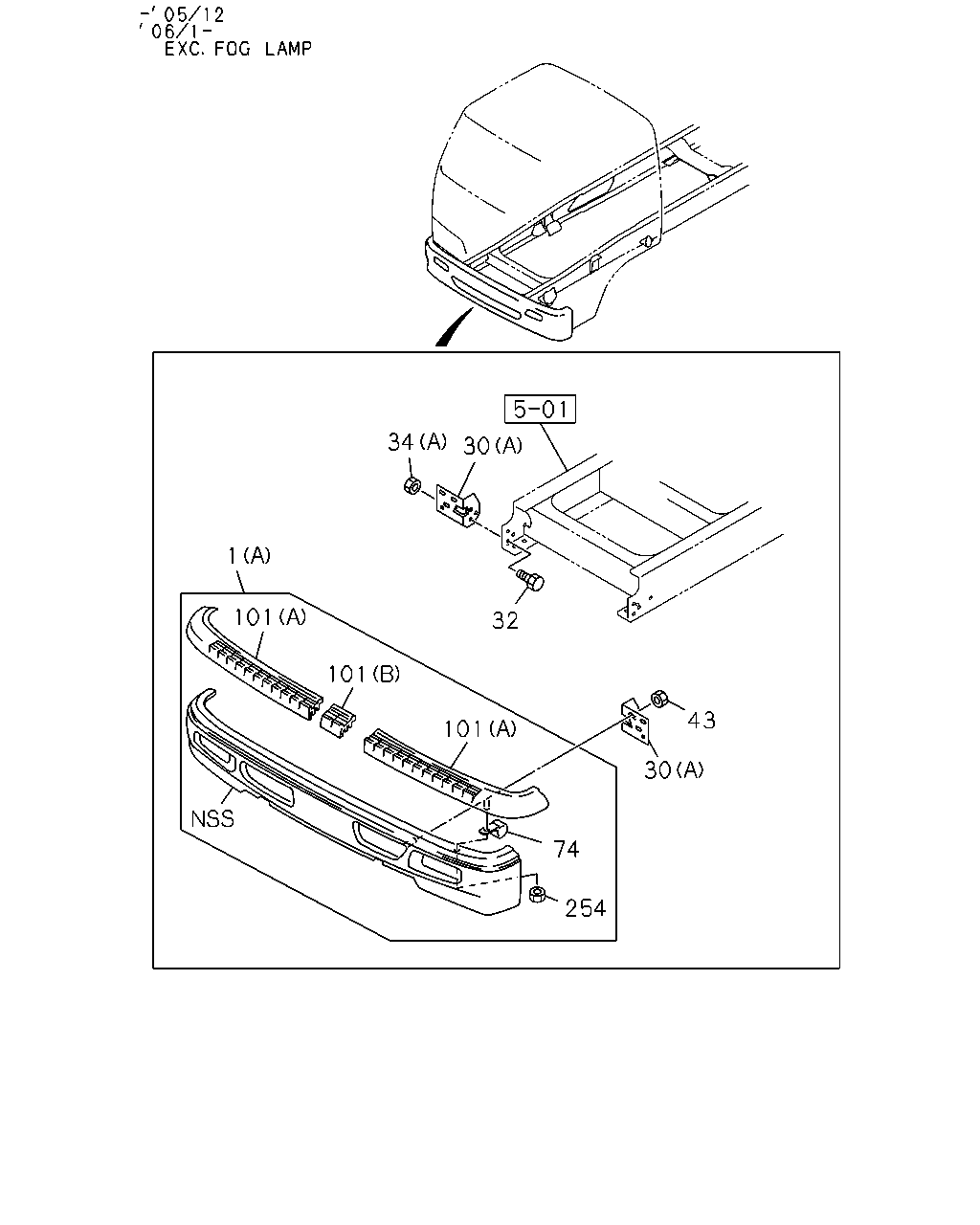

34 30 1 101 32 101 43 101 30 74 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-216-4	01	1	0601-0601	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-216-4	01	1	0601-0601		●	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-368-3	01	1	0602-0611	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0602-0611		●	●
1	BUMPER ASM; FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-368-3	01	1	0612-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0612-			●
1	BUMPER ASM; FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0612-		●
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0210	●		●
1	BUMPER ASM; FRT EXC. FRONT UNDER SPOILER<VP1> (A)	1-71210-941-0	01	1	0211-0411	●
1	BUMPER ASM; FRT (A)	1-71210-941-0	01	1	0211-0411			●
1	BUMPER ASM; FRT (B) WHITE	1-71210-846-2	01	1	0005-0210				●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (B) WHITE	1-71210-846-3	01	1	0601-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (B) WHITE	1-71210-846-3	01	1	0601-				●
1	BUMPER ASM; FRT FRONT UNDER SPOILER<VP1> (B) WHITE	1-71210-846-3	01	1	0211-0512	●
1	BUMPER ASM; FRT (B) WHITE	1-71210-846-3	01	1	0211-0512				●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71210-941-1	01	1	0601-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (A)	1-71210-941-1	01	1	0601-		●	●
1	BUMPER ASM; FRT EXC. FRONT UNDER SPOILER<VP1> (A)	1-71210-941-1	01	1	0412-0512	●
1	BUMPER ASM; FRT (A)	1-71210-941-1	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-208-3	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-568-1	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (B)	1-53414-199-0	02	1	0211-	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-511-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-511-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-510-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-510-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-				●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-481-0	01	1	0601-		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-568-0	01	1	0112-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-482-0	01	1	0601-		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0411	●		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0412-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91150-212-0	04	1	0211-0602	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91180-212-0	04	1	0603-	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0005-0411	●		●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0412-0602	●	●	●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0210	●		●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0211-0411	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0211-0411			●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0412-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0412-0512		●	●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0601-0602				●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-				●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0210				●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	06	1	0211-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0211-0512				●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0601-0602	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	04	1	0601-0602		●	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0603-	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0005-0411	●		●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0412-0512	●	●	●	●
74	CLIP; FOG LAMP HARNESS EXC. FOG LAMP<T96>	1-09701-203-0	05	1	0601-	●	●	●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (B)	1-71260-082-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (A)	1-71260-081-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (A)	1-71260-080-1	01	1	0601-	●	●	●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0005-0411	●		●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0412-0512	●	●	●	●
254	NUT; STEP EXC. FOG LAMP<T96> M8 FLANGE	0-91150-108-0	11	1	0601-0602	●	●	●	●
254	NUT; STEP EXC. FOG LAMP<T96> M8 FLANGE	0-91180-108-0	11	1	0603-	●	●	●	●

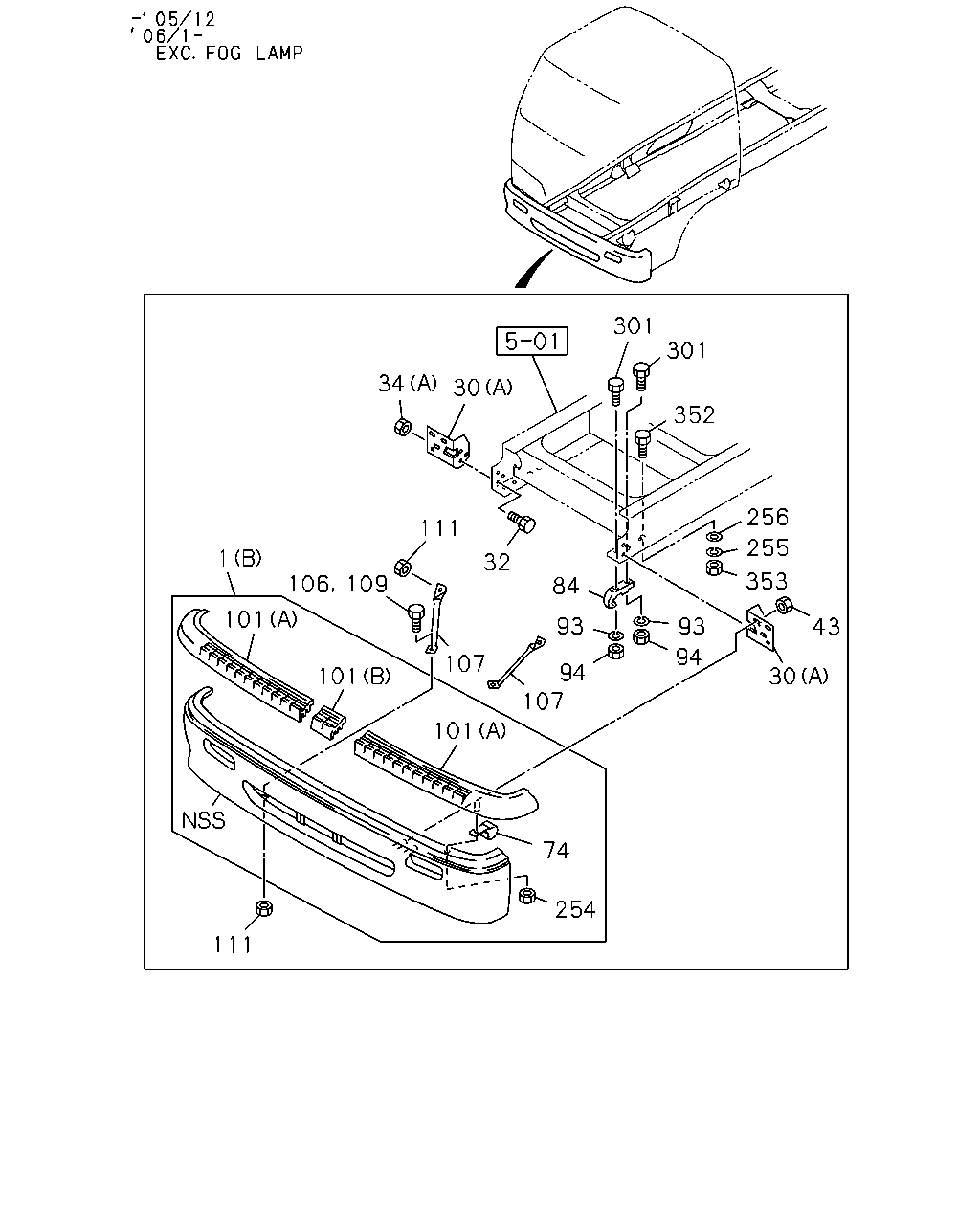

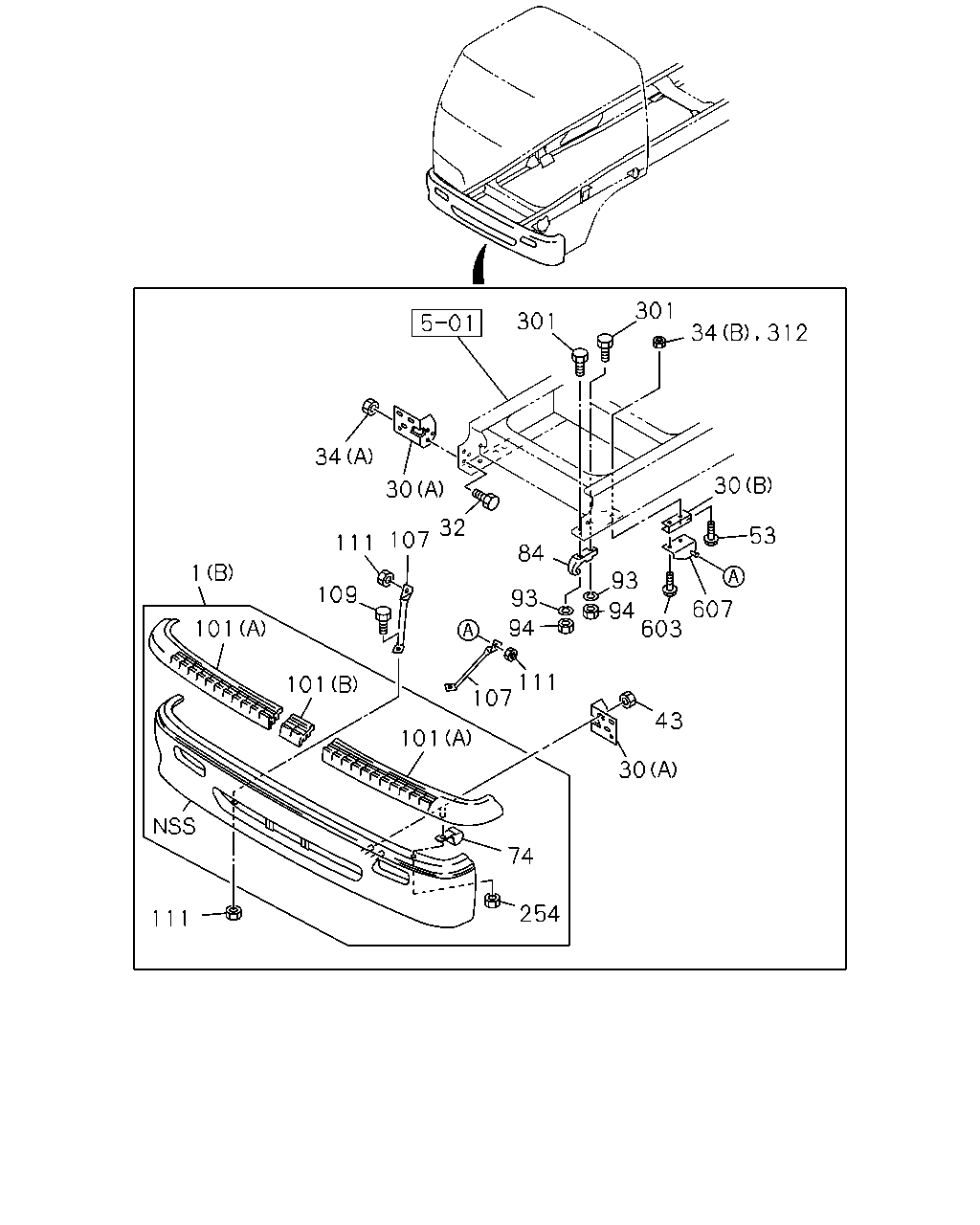

603 34 30 32 607 111 106 43 1 30 107 107 111 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-216-4	01	1	0601-0601	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-216-4	01	1	0601-0601		●	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-368-3	01	1	0602-0611	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0602-0611		●	●
1	BUMPER ASM; FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-368-3	01	1	0612-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0612-			●
1	BUMPER ASM; FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0612-		●
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0210	●		●
1	BUMPER ASM; FRT EXC. FRONT UNDER SPOILER<VP1> (A)	1-71210-941-0	01	1	0211-0411	●
1	BUMPER ASM; FRT (A)	1-71210-941-0	01	1	0211-0411			●
1	BUMPER ASM; FRT (B) WHITE	1-71210-846-2	01	1	0005-0210				●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (B) WHITE	1-71210-846-3	01	1	0601-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (B) WHITE	1-71210-846-3	01	1	0601-				●
1	BUMPER ASM; FRT FRONT UNDER SPOILER<VP1> (B) WHITE	1-71210-846-3	01	1	0211-0512	●
1	BUMPER ASM; FRT (B) WHITE	1-71210-846-3	01	1	0211-0512				●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71210-941-1	01	1	0601-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (A)	1-71210-941-1	01	1	0601-		●	●
1	BUMPER ASM; FRT EXC. FRONT UNDER SPOILER<VP1> (A)	1-71210-941-1	01	1	0412-0512	●
1	BUMPER ASM; FRT (A)	1-71210-941-1	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-208-3	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-568-1	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (B)	1-53414-199-0	02	1	0211-	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-511-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-511-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-510-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-510-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-				●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-481-0	01	1	0601-		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-568-0	01	1	0112-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-482-0	01	1	0601-		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0411	●		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0412-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91150-212-0	04	1	0211-0602	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91180-212-0	04	1	0603-	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0005-0411	●		●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0412-0602	●	●	●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0210	●		●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0211-0411	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0211-0411			●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0412-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0412-0512		●	●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0601-0602				●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-				●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0210				●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	06	1	0211-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0211-0512				●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0601-0602	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	04	1	0601-0602		●	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0603-	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
106	BOLT; AIR DAM M10X25 FLANGE	0-28681-025-0	02	1	0005-0210				●
107	STAY; AIR DAM FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	1-71260-231-0	01	1	0601-	●
107	STAY; AIR DAM FOG LAMP<T96>	1-71260-231-0	01	1	0601-		●	●
107	STAY; AIR DAM FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	8-98018-200-1	01	1	0601-	●
107	STAY; AIR DAM FOG LAMP<T96>	8-98018-200-1	01	1	0601-		●	●
107	STAY; AIR DAM	1-71260-130-1	01	1	0005-0210				●
107	STAY; AIR DAM FRONT UNDER SPOILER<VP1>	1-71260-132-1	01	1	0211-	●
107	STAY; AIR DAM	1-71260-132-1	01	1	0211-				●
107	STAY; AIR DAM	1-71260-129-1	01	1	0005-0210				●
107	STAY; AIR DAM FRONT UNDER SPOILER<VP1>	1-71260-131-1	01	1	0211-	●
107	STAY; AIR DAM	1-71260-131-1	01	1	0211-				●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	02	1	0601-0604	●
111	NUT; STAY FOG LAMP<T96> M10 FLANGE	0-91150-210-0	02	1	0601-0604		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	02	1	0605-	●
111	NUT; STAY FOG LAMP<T96> M10 FLANGE	0-91180-210-0	02	1	0605-		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6 FLANGE	0-91150-206-0	02	1	0601-0602	●
111	NUT; STAY FOG LAMP<T96> M6 FLANGE	0-91150-206-0	02	1	0601-0602		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6 FLANGE	0-91180-206-0	02	1	0603-	●
111	NUT; STAY FOG LAMP<T96> M6 FLANGE	0-91180-206-0	02	1	0603-		●	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0005-0210				●
111	NUT; STAY FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0211-0602	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0211-0602				●
111	NUT; STAY FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0603-	●
111	NUT; STAY M10 FLANGE	0-91180-210-0	04	1	0603-				●
312	NUT; BRKT FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0601-0604	●
312	NUT; BRKT FOG LAMP<T96> M10 FLANGE	0-91150-210-0	04	1	0601-0604		●	●
312	NUT; BRKT FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0605-	●
312	NUT; BRKT FOG LAMP<T96> M10 FLANGE	0-91180-210-0	04	1	0605-		●	●
312	NUT; BRKT FRONT UNDER SPOILER<VP1> M12 FLANGE	0-91150-212-0	04	1	0211-0602	●
312	NUT; BRKT FRONT UNDER SPOILER<VP1> M12 FLANGE	0-91180-212-0	04	1	0603-	●
603	BOLT; BRKT FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
603	BOLT; BRKT FOG LAMP<T96> M10X30 FLANGE	0-28651-030-0	04	1	0601-		●	●
603	BOLT; BRKT FRONT UNDER SPOILER<VP1> M12X35 FLANGE	0-28681-235-0	04	1	0211-0512	●
603	BOLT; BRKT FRONT UNDER SPOILER<VP1> M12X35 FLANGE	0-28651-235-0	04	1	0601-	●
607	BRACKET FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	8-98003-067-2	01	1	0601-	●
607	BRACKET FOG LAMP<T96>	8-98003-067-2	01	1	0601-		●	●
607	BRACKET FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	8-98003-068-2	01	1	0601-	●
607	BRACKET FOG LAMP<T96>	8-98003-068-2	01	1	0601-		●	●
607	BRACKET FRONT UNDER SPOILER<VP1>	1-47477-689-0	01	1	0211-	●
607	BRACKET FRONT UNDER SPOILER<VP1>	1-47477-690-0	01	1	0211-	●

301 301 34 30 1 32 84 101 93 93 94 94 101 43 101 30 74 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-216-4	01	1	0601-0601	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-216-4	01	1	0601-0601		●	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-368-3	01	1	0602-0611	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0602-0611		●	●
1	BUMPER ASM; FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-368-3	01	1	0612-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0612-			●
1	BUMPER ASM; FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0612-		●
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0210	●		●
1	BUMPER ASM; FRT EXC. FRONT UNDER SPOILER<VP1> (A)	1-71210-941-0	01	1	0211-0411	●
1	BUMPER ASM; FRT (A)	1-71210-941-0	01	1	0211-0411			●
1	BUMPER ASM; FRT (B) WHITE	1-71210-846-2	01	1	0005-0210				●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (B) WHITE	1-71210-846-3	01	1	0601-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (B) WHITE	1-71210-846-3	01	1	0601-				●
1	BUMPER ASM; FRT FRONT UNDER SPOILER<VP1> (B) WHITE	1-71210-846-3	01	1	0211-0512	●
1	BUMPER ASM; FRT (B) WHITE	1-71210-846-3	01	1	0211-0512				●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71210-941-1	01	1	0601-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (A)	1-71210-941-1	01	1	0601-		●	●
1	BUMPER ASM; FRT EXC. FRONT UNDER SPOILER<VP1> (A)	1-71210-941-1	01	1	0412-0512	●
1	BUMPER ASM; FRT (A)	1-71210-941-1	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-208-3	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-568-1	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (B)	1-53414-199-0	02	1	0211-	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-511-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-511-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-510-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-510-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-				●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-481-0	01	1	0601-		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-568-0	01	1	0112-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-482-0	01	1	0601-		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0411	●		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0412-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91150-212-0	04	1	0211-0602	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91180-212-0	04	1	0603-	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0005-0411	●		●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0412-0602	●	●	●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0210	●		●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0211-0411	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0211-0411			●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0412-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0412-0512		●	●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0601-0602				●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-				●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0210				●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	06	1	0211-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0211-0512				●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0601-0602	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	04	1	0601-0602		●	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0603-	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0005-0411	●		●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0412-0512	●	●	●	●
74	CLIP; FOG LAMP HARNESS EXC. FOG LAMP<T96>	1-09701-203-0	05	1	0601-	●	●	●	●
84	HOOK	1-57181-017-2	01	1	0005-0210	●		●
84	HOOK	1-57181-003-5	01	1	0005-0210				●
93	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	0005-0210	●		●	●
94	NUT; HOOK M14	9-99110-414-0	02	1	0005-0210	●		●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (B)	1-71260-082-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (A)	1-71260-081-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (A)	1-71260-080-1	01	1	0601-	●	●	●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0005-0411	●		●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0412-0512	●	●	●	●
254	NUT; STEP EXC. FOG LAMP<T96> M8 FLANGE	0-91150-108-0	11	1	0601-0602	●	●	●	●
254	NUT; STEP EXC. FOG LAMP<T96> M8 FLANGE	0-91180-108-0	11	1	0603-	●	●	●	●
301	BOLT; HOOK TO FRAME M14X70	0-10811-470-0	01	1	0005-0210	●		●
301	BOLT; HOOK TO FRAME M14X60	0-10811-460-0	01	1	0005-0210	●		●	●
301	BOLT; HOOK TO FRAME M14X50	0-10811-450-0	01	1	0005-0210				●

34 30 32 111 109 43 30 107 107 228 2 670 72 668 667 111 669

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE	1-71211-216-4	01	1	0601-0601				●
2	BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE	1-71211-368-3	01	1	0602-0611				●
2	BUMPER; FRT,CENTER BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE	1-71211-368-3	01	1	0612-				●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-208-3	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-568-1	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (B)	1-53414-199-0	02	1	0211-	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-511-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-511-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-510-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-510-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-				●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-481-0	01	1	0601-		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-568-0	01	1	0112-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-482-0	01	1	0601-		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0411	●		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0412-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91150-212-0	04	1	0211-0602	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91180-212-0	04	1	0603-	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0005-0411	●		●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0412-0602	●	●	●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0210	●		●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0211-0411	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0211-0411			●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0412-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0412-0512		●	●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0601-0602				●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-				●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0210				●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	06	1	0211-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0211-0512				●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0601-0602	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	04	1	0601-0602		●	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0603-	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
72	NUT; BRKT BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91150-106-0	02	1	0601-0601				●
72	NUT; BRKT BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91180-106-0	02	1	0602-0611				●
72	NUT; BRKT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91180-106-0	02	1	0612-				●
107	STAY; AIR DAM FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	1-71260-231-0	01	1	0601-	●
107	STAY; AIR DAM FOG LAMP<T96>	1-71260-231-0	01	1	0601-		●	●
107	STAY; AIR DAM FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	8-98018-200-1	01	1	0601-	●
107	STAY; AIR DAM FOG LAMP<T96>	8-98018-200-1	01	1	0601-		●	●
107	STAY; AIR DAM	1-71260-130-1	01	1	0005-0210				●
107	STAY; AIR DAM FRONT UNDER SPOILER<VP1>	1-71260-132-1	01	1	0211-	●
107	STAY; AIR DAM	1-71260-132-1	01	1	0211-				●
107	STAY; AIR DAM	1-71260-129-1	01	1	0005-0210				●
107	STAY; AIR DAM FRONT UNDER SPOILER<VP1>	1-71260-131-1	01	1	0211-	●
107	STAY; AIR DAM	1-71260-131-1	01	1	0211-				●
109	BOLT; STAY TO AIR DAM FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6X16 FLANGE	0-28650-616-0	02	1	0601-	●
109	BOLT; STAY TO AIR DAM FOG LAMP<T96> M6X16 FLANGE	0-28650-616-0	02	1	0601-		●	●
109	BOLT; STAY TO AIR DAM FRONT UNDER SPOILER<VP1> M10X25 FLANGE	0-28681-025-0	02	1	0211-0512	●
109	BOLT; STAY TO AIR DAM M10X25 FLANGE	0-28681-025-0	02	1	0211-0512				●
109	BOLT; STAY TO AIR DAM FRONT UNDER SPOILER<VP1> M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
109	BOLT; STAY TO AIR DAM M10X25 FLANGE	0-28651-025-0	02	1	0601-				●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	02	1	0601-0604	●
111	NUT; STAY FOG LAMP<T96> M10 FLANGE	0-91150-210-0	02	1	0601-0604		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	02	1	0605-	●
111	NUT; STAY FOG LAMP<T96> M10 FLANGE	0-91180-210-0	02	1	0605-		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6 FLANGE	0-91150-206-0	02	1	0601-0602	●
111	NUT; STAY FOG LAMP<T96> M6 FLANGE	0-91150-206-0	02	1	0601-0602		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6 FLANGE	0-91180-206-0	02	1	0603-	●
111	NUT; STAY FOG LAMP<T96> M6 FLANGE	0-91180-206-0	02	1	0603-		●	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0005-0210				●
111	NUT; STAY FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0211-0602	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0211-0602				●
111	NUT; STAY FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0603-	●
111	NUT; STAY M10 FLANGE	0-91180-210-0	04	1	0603-				●
228	BOLT; BRKT BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6X16 FLANGE	0-28650-616-0	02	1	0601-0611				●
228	BOLT; BRKT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6X16 FLANGE	0-28650-616-0	02	1	0612-				●
667	SPOILER; AIR,FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE	1-71260-208-1	01	1	0601-0611				●
667	SPOILER; AIR,FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE	1-71260-208-1	01	1	0612-				●
668	BOLT; SPOILER BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6X16 FLANGE	0-28650-616-0	08	1	0601-0611				●
668	BOLT; SPOILER BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6X16 FLANGE	0-28650-616-0	08	1	0612-				●
669	NUT; SPOILER BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91150-106-0	08	1	0601-0601				●
669	NUT; SPOILER BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91180-106-0	08	1	0602-0611				●
669	NUT; SPOILER BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91180-106-0	08	1	0612-				●
670	BRACKET; SPOILER BODY COLOR ARC WHITE(729) FOG LAMP<T96>	1-71211-213-0	02	1	0601-0611				●
670	BRACKET; SPOILER BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96>	1-71211-213-0	02	1	0612-				●

301 301 34 30 30 32 107 53 111 84 1 93 109 93 607 94 603 94 101 111 107 101 43 101 30 74 254 111 34 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-216-4	01	1	0601-0601	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-216-4	01	1	0601-0601		●	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-368-3	01	1	0602-0611	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0602-0611		●	●
1	BUMPER ASM; FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-368-3	01	1	0612-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0612-			●
1	BUMPER ASM; FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0612-		●
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0210	●		●
1	BUMPER ASM; FRT EXC. FRONT UNDER SPOILER<VP1> (A)	1-71210-941-0	01	1	0211-0411	●
1	BUMPER ASM; FRT (A)	1-71210-941-0	01	1	0211-0411			●
1	BUMPER ASM; FRT (B) WHITE	1-71210-846-2	01	1	0005-0210				●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (B) WHITE	1-71210-846-3	01	1	0601-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (B) WHITE	1-71210-846-3	01	1	0601-				●
1	BUMPER ASM; FRT FRONT UNDER SPOILER<VP1> (B) WHITE	1-71210-846-3	01	1	0211-0512	●
1	BUMPER ASM; FRT (B) WHITE	1-71210-846-3	01	1	0211-0512				●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71210-941-1	01	1	0601-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (A)	1-71210-941-1	01	1	0601-		●	●
1	BUMPER ASM; FRT EXC. FRONT UNDER SPOILER<VP1> (A)	1-71210-941-1	01	1	0412-0512	●
1	BUMPER ASM; FRT (A)	1-71210-941-1	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-208-3	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-568-1	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (B)	1-53414-199-0	02	1	0211-	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-511-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-511-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-510-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-510-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-				●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-481-0	01	1	0601-		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-568-0	01	1	0112-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-482-0	01	1	0601-		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0411	●		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0412-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91150-212-0	04	1	0211-0602	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91180-212-0	04	1	0603-	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0005-0411	●		●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0412-0602	●	●	●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0210	●		●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0211-0411	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0211-0411			●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0412-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0412-0512		●	●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0601-0602				●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-				●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0210				●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	06	1	0211-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0211-0512				●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0601-0602	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	04	1	0601-0602		●	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0603-	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
53	BOLT; BRKT TO FRAME FRONT UNDER SPOILER<VP1> M12X35 FLANGE	0-28681-235-0	04	1	0211-0512	●
53	BOLT; BRKT TO FRAME FRONT UNDER SPOILER<VP1> M12X35 FLANGE	0-28651-235-0	04	1	0601-	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0005-0411	●		●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0412-0512	●	●	●	●
74	CLIP; FOG LAMP HARNESS EXC. FOG LAMP<T96>	1-09701-203-0	05	1	0601-	●	●	●	●
84	HOOK	1-57181-017-2	01	1	0005-0210	●		●
84	HOOK	1-57181-003-5	01	1	0005-0210				●
93	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	0005-0210	●		●	●
94	NUT; HOOK M14	9-99110-414-0	02	1	0005-0210	●		●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (B)	1-71260-082-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (A)	1-71260-081-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (A)	1-71260-080-1	01	1	0601-	●	●	●	●
107	STAY; AIR DAM FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	1-71260-231-0	01	1	0601-	●
107	STAY; AIR DAM FOG LAMP<T96>	1-71260-231-0	01	1	0601-		●	●
107	STAY; AIR DAM FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	8-98018-200-1	01	1	0601-	●
107	STAY; AIR DAM FOG LAMP<T96>	8-98018-200-1	01	1	0601-		●	●
107	STAY; AIR DAM	1-71260-130-1	01	1	0005-0210				●
107	STAY; AIR DAM FRONT UNDER SPOILER<VP1>	1-71260-132-1	01	1	0211-	●
107	STAY; AIR DAM	1-71260-132-1	01	1	0211-				●
107	STAY; AIR DAM	1-71260-129-1	01	1	0005-0210				●
107	STAY; AIR DAM FRONT UNDER SPOILER<VP1>	1-71260-131-1	01	1	0211-	●
107	STAY; AIR DAM	1-71260-131-1	01	1	0211-				●
109	BOLT; STAY TO AIR DAM FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6X16 FLANGE	0-28650-616-0	02	1	0601-	●
109	BOLT; STAY TO AIR DAM FOG LAMP<T96> M6X16 FLANGE	0-28650-616-0	02	1	0601-		●	●
109	BOLT; STAY TO AIR DAM FRONT UNDER SPOILER<VP1> M10X25 FLANGE	0-28681-025-0	02	1	0211-0512	●
109	BOLT; STAY TO AIR DAM M10X25 FLANGE	0-28681-025-0	02	1	0211-0512				●
109	BOLT; STAY TO AIR DAM FRONT UNDER SPOILER<VP1> M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
109	BOLT; STAY TO AIR DAM M10X25 FLANGE	0-28651-025-0	02	1	0601-				●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	02	1	0601-0604	●
111	NUT; STAY FOG LAMP<T96> M10 FLANGE	0-91150-210-0	02	1	0601-0604		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	02	1	0605-	●
111	NUT; STAY FOG LAMP<T96> M10 FLANGE	0-91180-210-0	02	1	0605-		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6 FLANGE	0-91150-206-0	02	1	0601-0602	●
111	NUT; STAY FOG LAMP<T96> M6 FLANGE	0-91150-206-0	02	1	0601-0602		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6 FLANGE	0-91180-206-0	02	1	0603-	●
111	NUT; STAY FOG LAMP<T96> M6 FLANGE	0-91180-206-0	02	1	0603-		●	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0005-0210				●
111	NUT; STAY FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0211-0602	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0211-0602				●
111	NUT; STAY FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0603-	●
111	NUT; STAY M10 FLANGE	0-91180-210-0	04	1	0603-				●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0005-0411	●		●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0412-0512	●	●	●	●
254	NUT; STEP EXC. FOG LAMP<T96> M8 FLANGE	0-91150-108-0	11	1	0601-0602	●	●	●	●
254	NUT; STEP EXC. FOG LAMP<T96> M8 FLANGE	0-91180-108-0	11	1	0603-	●	●	●	●
301	BOLT; HOOK TO FRAME M14X70	0-10811-470-0	01	1	0005-0210	●		●
301	BOLT; HOOK TO FRAME M14X60	0-10811-460-0	01	1	0005-0210	●		●	●
301	BOLT; HOOK TO FRAME M14X50	0-10811-450-0	01	1	0005-0210				●
312	NUT; BRKT FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0601-0604	●
312	NUT; BRKT FOG LAMP<T96> M10 FLANGE	0-91150-210-0	04	1	0601-0604		●	●
312	NUT; BRKT FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0605-	●
312	NUT; BRKT FOG LAMP<T96> M10 FLANGE	0-91180-210-0	04	1	0605-		●	●
312	NUT; BRKT FRONT UNDER SPOILER<VP1> M12 FLANGE	0-91150-212-0	04	1	0211-0602	●
312	NUT; BRKT FRONT UNDER SPOILER<VP1> M12 FLANGE	0-91180-212-0	04	1	0603-	●
603	BOLT; BRKT FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
603	BOLT; BRKT FOG LAMP<T96> M10X30 FLANGE	0-28651-030-0	04	1	0601-		●	●
603	BOLT; BRKT FRONT UNDER SPOILER<VP1> M12X35 FLANGE	0-28681-235-0	04	1	0211-0512	●
603	BOLT; BRKT FRONT UNDER SPOILER<VP1> M12X35 FLANGE	0-28651-235-0	04	1	0601-	●
607	BRACKET FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	8-98003-067-2	01	1	0601-	●
607	BRACKET FOG LAMP<T96>	8-98003-067-2	01	1	0601-		●	●
607	BRACKET FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	8-98003-068-2	01	1	0601-	●
607	BRACKET FOG LAMP<T96>	8-98003-068-2	01	1	0601-		●	●
607	BRACKET FRONT UNDER SPOILER<VP1>	1-47477-689-0	01	1	0211-	●
607	BRACKET FRONT UNDER SPOILER<VP1>	1-47477-690-0	01	1	0211-	●

301 301 34 30 352 256 111 255 1 32 353 106 109 84 101 93 93 43 94 107 94 107 101 30 101 74 254 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-216-4	01	1	0601-0601	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-216-4	01	1	0601-0601		●	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-368-3	01	1	0602-0611	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0602-0611		●	●
1	BUMPER ASM; FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> (C) WHITE	1-71211-368-3	01	1	0612-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0612-			●
1	BUMPER ASM; FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> (C) WHITE	1-71211-368-3	01	1	0612-		●
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0210	●		●
1	BUMPER ASM; FRT EXC. FRONT UNDER SPOILER<VP1> (A)	1-71210-941-0	01	1	0211-0411	●
1	BUMPER ASM; FRT (A)	1-71210-941-0	01	1	0211-0411			●
1	BUMPER ASM; FRT (B) WHITE	1-71210-846-2	01	1	0005-0210				●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (B) WHITE	1-71210-846-3	01	1	0601-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (B) WHITE	1-71210-846-3	01	1	0601-				●
1	BUMPER ASM; FRT FRONT UNDER SPOILER<VP1> (B) WHITE	1-71210-846-3	01	1	0211-0512	●
1	BUMPER ASM; FRT (B) WHITE	1-71210-846-3	01	1	0211-0512				●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71210-941-1	01	1	0601-	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (A)	1-71210-941-1	01	1	0601-		●	●
1	BUMPER ASM; FRT EXC. FRONT UNDER SPOILER<VP1> (A)	1-71210-941-1	01	1	0412-0512	●
1	BUMPER ASM; FRT (A)	1-71210-941-1	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-208-3	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FOG LAMP<T96> (A)	1-71230-568-1	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (B)	1-53414-199-0	02	1	0211-	●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-511-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-511-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-511-0	01	1	0601-				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> (A)	1-71230-510-0	01	1	0211-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-510-0	01	1	0211-0512				●
30	BRACKET; FRT BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-510-0	01	1	0601-				●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-481-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-481-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-481-0	01	1	0601-		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●		●	●
30	BRACKET; FRT BUMPER (A)	1-71230-568-0	01	1	0112-0210	●		●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0211-0411	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0211-0411			●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0412-0512	●
30	BRACKET; FRT BUMPER (A)	1-71230-482-0	01	1	0412-0512		●	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> (A)	1-71230-482-0	01	1	0601-	●
30	BRACKET; FRT BUMPER EXC. FOG LAMP<T96> (A)	1-71230-482-0	01	1	0601-		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0411	●		●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0412-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91150-212-0	04	1	0211-0602	●
34	NUT; BRKT,BUMPER FRONT UNDER SPOILER<VP1> (B) M12 FLANGE	0-91180-212-0	04	1	0603-	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0005-0411	●		●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91150-210-0	06	1	0412-0602	●	●	●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0210	●		●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0211-0411	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0211-0411			●
43	NUT; BRKT TO BUMPER EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0412-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0412-0512		●	●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	06	1	0601-0602	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0601-0602				●
43	NUT; BRKT TO BUMPER FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	06	1	0603-	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-				●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0210				●
43	NUT; BRKT TO BUMPER FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	06	1	0211-0512	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0211-0512				●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0601-0602	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91150-210-0	04	1	0601-0602		●	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96>,FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0603-	●
43	NUT; BRKT TO BUMPER EXC. FOG LAMP<T96> M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0005-0411	●		●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0412-0512	●	●	●	●
74	CLIP; FOG LAMP HARNESS EXC. FOG LAMP<T96>	1-09701-203-0	05	1	0601-	●	●	●	●
84	HOOK	1-57181-017-2	01	1	0005-0210	●		●
84	HOOK	1-57181-003-5	01	1	0005-0210				●
93	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	0005-0210	●		●	●
94	NUT; HOOK M14	9-99110-414-0	02	1	0005-0210	●		●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (B)	1-71260-082-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (A)	1-71260-081-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0005-0411	●		●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0412-0512	●	●	●	●
101	STEP; BUMPER EXC. FOG LAMP<T96> (A)	1-71260-080-1	01	1	0601-	●	●	●	●
106	BOLT; AIR DAM M10X25 FLANGE	0-28681-025-0	02	1	0005-0210				●
107	STAY; AIR DAM FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	1-71260-231-0	01	1	0601-	●
107	STAY; AIR DAM FOG LAMP<T96>	1-71260-231-0	01	1	0601-		●	●
107	STAY; AIR DAM FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1>	8-98018-200-1	01	1	0601-	●
107	STAY; AIR DAM FOG LAMP<T96>	8-98018-200-1	01	1	0601-		●	●
107	STAY; AIR DAM	1-71260-130-1	01	1	0005-0210				●
107	STAY; AIR DAM FRONT UNDER SPOILER<VP1>	1-71260-132-1	01	1	0211-	●
107	STAY; AIR DAM	1-71260-132-1	01	1	0211-				●
107	STAY; AIR DAM	1-71260-129-1	01	1	0005-0210				●
107	STAY; AIR DAM FRONT UNDER SPOILER<VP1>	1-71260-131-1	01	1	0211-	●
107	STAY; AIR DAM	1-71260-131-1	01	1	0211-				●
109	BOLT; STAY TO AIR DAM FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6X16 FLANGE	0-28650-616-0	02	1	0601-	●
109	BOLT; STAY TO AIR DAM FOG LAMP<T96> M6X16 FLANGE	0-28650-616-0	02	1	0601-		●	●
109	BOLT; STAY TO AIR DAM FRONT UNDER SPOILER<VP1> M10X25 FLANGE	0-28681-025-0	02	1	0211-0512	●
109	BOLT; STAY TO AIR DAM M10X25 FLANGE	0-28681-025-0	02	1	0211-0512				●
109	BOLT; STAY TO AIR DAM FRONT UNDER SPOILER<VP1> M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
109	BOLT; STAY TO AIR DAM M10X25 FLANGE	0-28651-025-0	02	1	0601-				●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	02	1	0601-0604	●
111	NUT; STAY FOG LAMP<T96> M10 FLANGE	0-91150-210-0	02	1	0601-0604		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	02	1	0605-	●
111	NUT; STAY FOG LAMP<T96> M10 FLANGE	0-91180-210-0	02	1	0605-		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6 FLANGE	0-91150-206-0	02	1	0601-0602	●
111	NUT; STAY FOG LAMP<T96> M6 FLANGE	0-91150-206-0	02	1	0601-0602		●	●
111	NUT; STAY FOG LAMP<T96> EXC. FRONT UNDER SPOILER<VP1> M6 FLANGE	0-91180-206-0	02	1	0603-	●
111	NUT; STAY FOG LAMP<T96> M6 FLANGE	0-91180-206-0	02	1	0603-		●	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0005-0210				●
111	NUT; STAY FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0211-0602	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0211-0602				●
111	NUT; STAY FRONT UNDER SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0603-	●
111	NUT; STAY M10 FLANGE	0-91180-210-0	04	1	0603-				●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0005-0411	●		●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0412-0512	●	●	●	●
254	NUT; STEP EXC. FOG LAMP<T96> M8 FLANGE	0-91150-108-0	11	1	0601-0602	●	●	●	●
254	NUT; STEP EXC. FOG LAMP<T96> M8 FLANGE	0-91180-108-0	11	1	0603-	●	●	●	●
255	WASHER; LK ID=14.2	9-09150-514-0	01	1	0005-0210				●
256	WASHER; PL ID=15	9-09651-069-0	01	1	0008-0210				●
301	BOLT; HOOK TO FRAME M14X70	0-10811-470-0	01	1	0005-0210	●		●
301	BOLT; HOOK TO FRAME M14X60	0-10811-460-0	01	1	0005-0210	●		●	●
301	BOLT; HOOK TO FRAME M14X50	0-10811-450-0	01	1	0005-0210				●
352	BOLT; FRAME M14X40	0-20801-440-0	01	1	0005-0210				●
353	NUT; FRAME M14	9-99110-414-0	01	1	0005-0210				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
