4-65B — REAR LEAF SPRING (#94239) — 19 parça

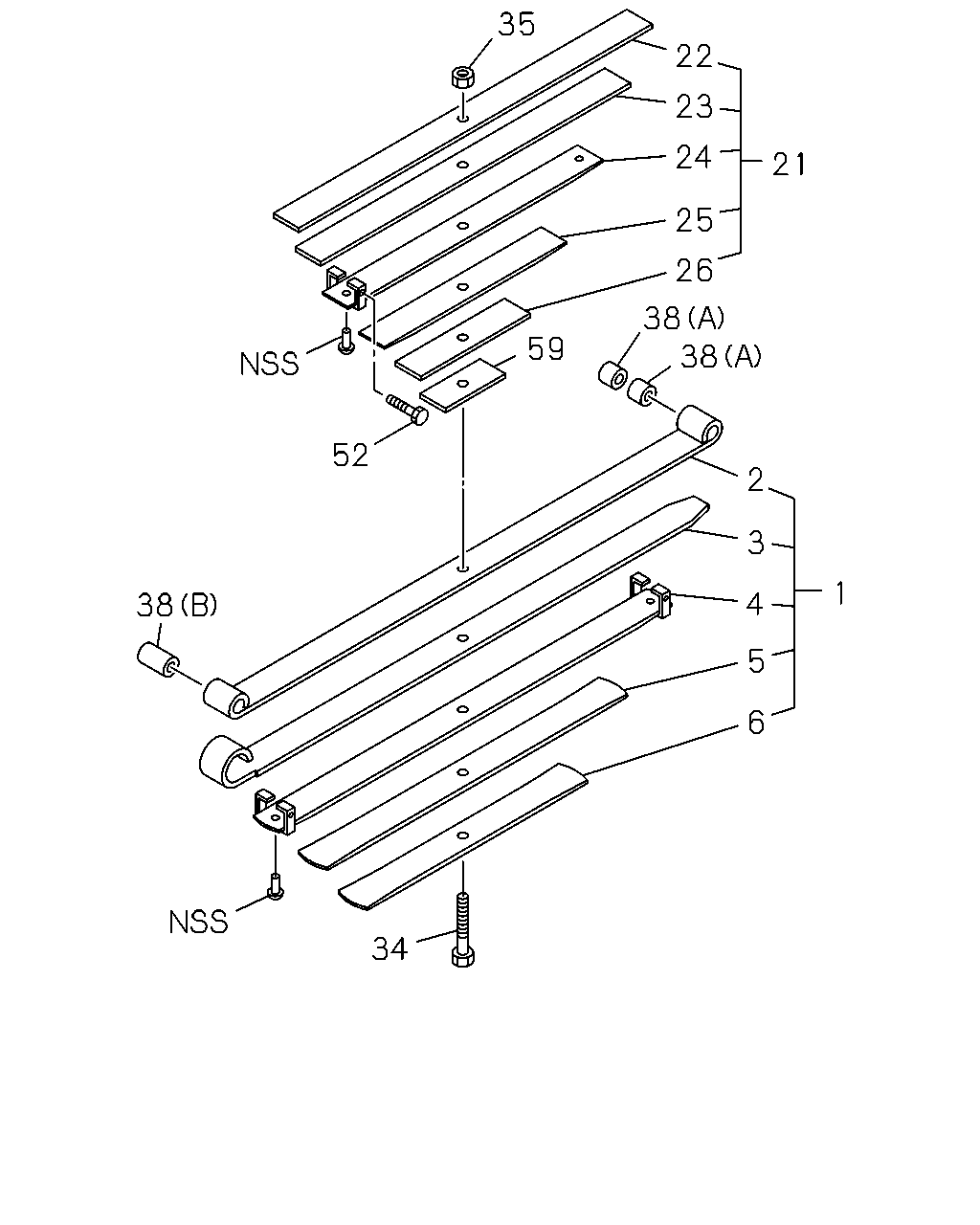

çizim 286316
35 22 23 24 21 25 26 38 38 2 3 4 1 5 6 34 38 52 59
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-894-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-895-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-896-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-897-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-898-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-899-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-900-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-901-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-902-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-903-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-904-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-98025-049-0, 98025049 		8-98063-905-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=125 ASM PART: A = 8-98025-049-0, 98025049 		8-98037-584-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98025-049-0, 98025049 		9-99110-512-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), BEST VALUE PARTS ASM PART: A = 8-98025-049-0, 98025049 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-98025-049-0, 98025049 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-98025-049-0, 98025049 		8-97074-826-0 01 1 -
52 07.506 BOLT; CLIP,LEAF SPR,RR SUB
M8X89 ASM PART: A = 8-98025-049-0, 98025049 		8-97129-689-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
07.518, T=6 ASM PART: A = 8-98025-049-0, 98025049 		8-94367-965-0 01 1 -
