◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51267 - NN/NP/NQR(RHD)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶
4-65A — REAR LEAF SPRING (#94238) — 13 parça

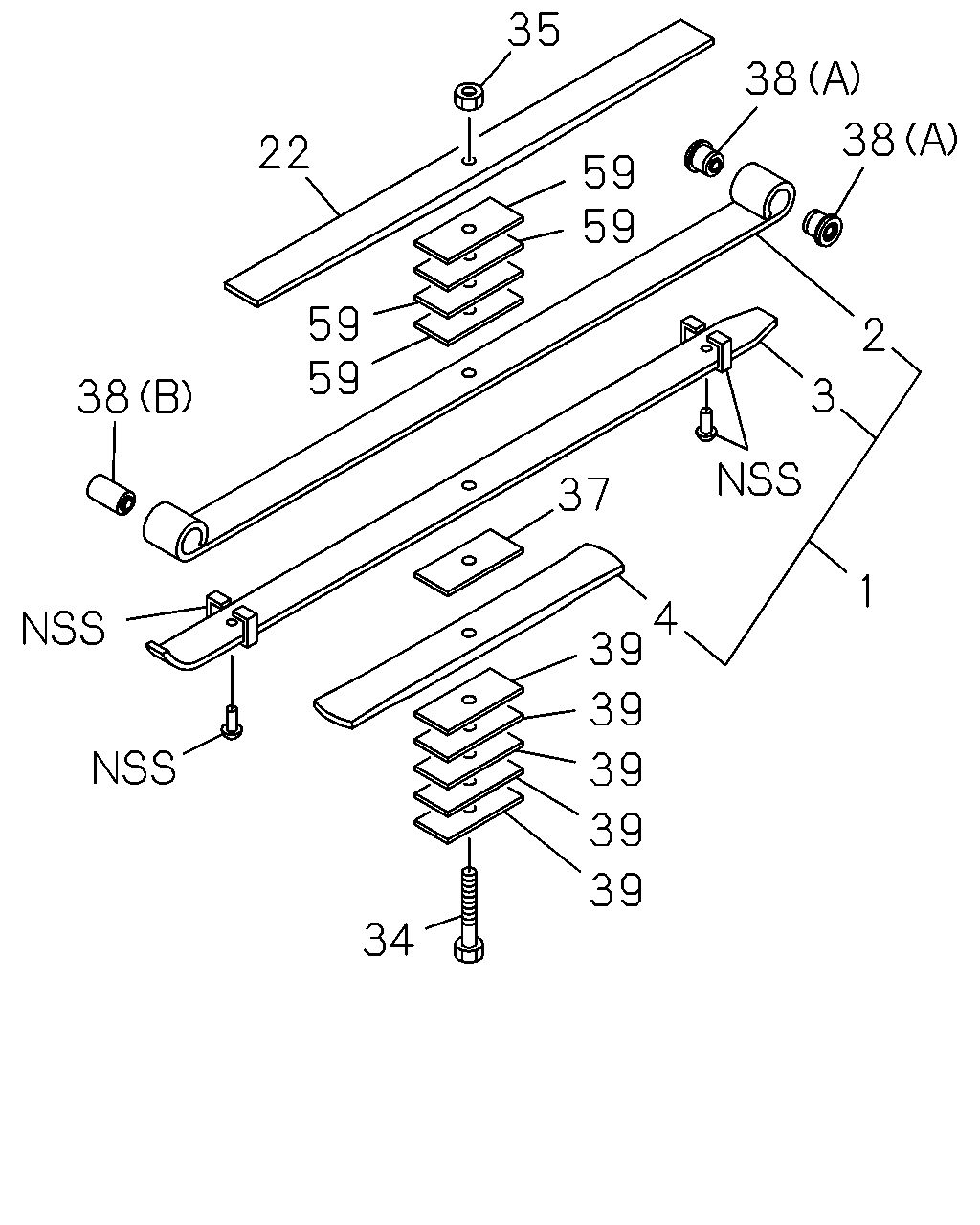

çizim 286314
1 3 2 38 38 59 59 35 22 59 59 38 34 39 39 39 39 39 4 37
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98025-048-0, 98025048 		8-98094-327-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98025-048-0, 98025048 		8-98094-328-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98025-048-0, 98025048 		8-98094-329-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98025-048-0, 98025048 		8-98094-330-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98025-048-0, 98025048 		8-98094-331-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=145 ASM PART: A = 8-98025-048-0, 98025048 		8-98048-313-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98025-048-0, 98025048 		9-99110-512-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98025-048-0, 98025048 		8-97084-102-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), BEST VALUE PARTS ASM PART: A = 8-98025-048-0, 98025048 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-98025-048-0, 98025048 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-98025-048-0, 98025048 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
07.513, T=8 ASM PART: A = 8-98025-048-0, 98025048 		8-98040-779-0 05 1 -
59 07.513 SEAT; RR SPRING,SUB
T=8 ASM PART: A = 8-98025-048-0, 98025048 		8-98040-779-0 04 1 -
