Sayfa 4-42 - Isuzu EPC

4-42 — POWER STEERING OIL PUMP (#94232) — 178 parça

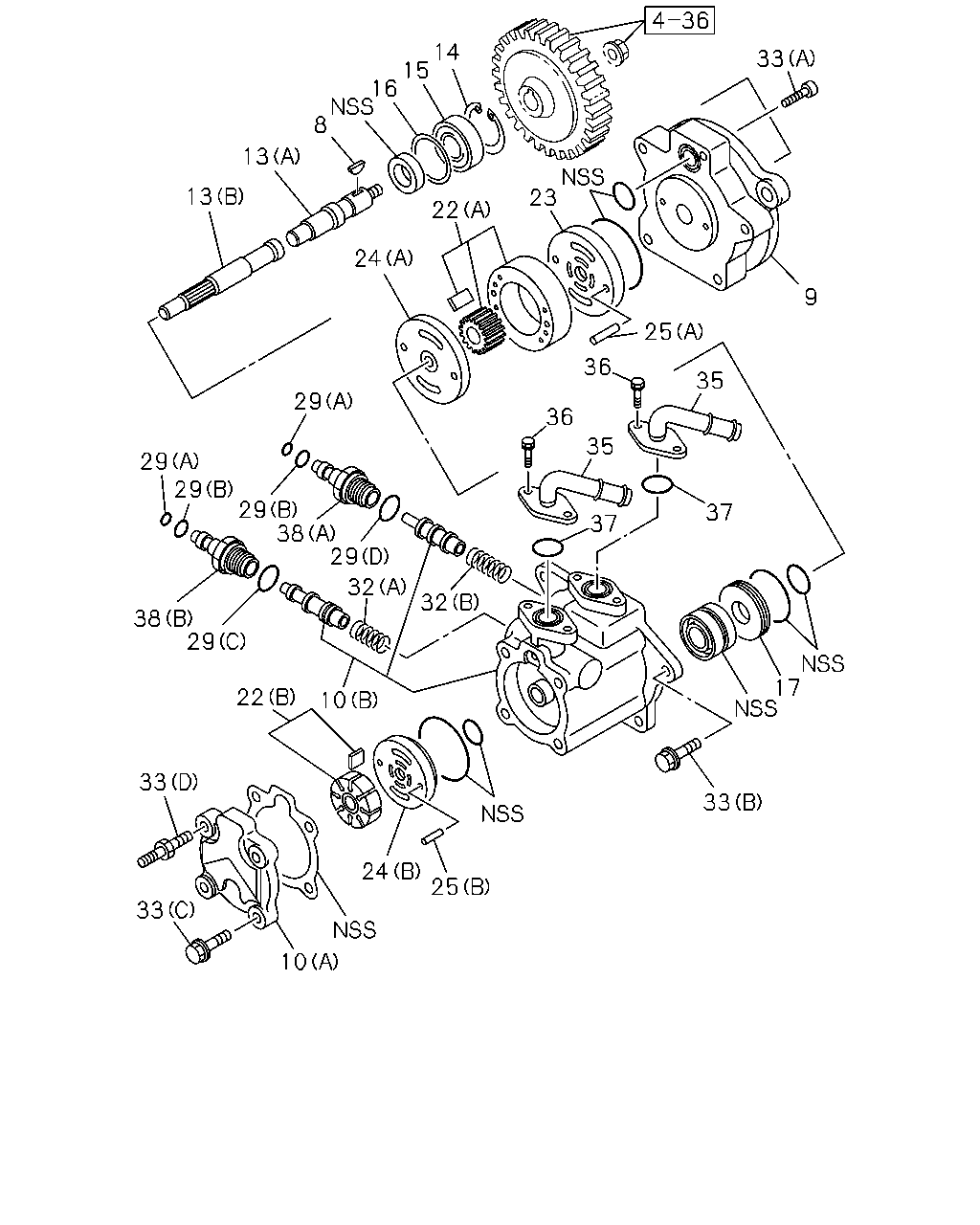

29 29 38 27 36 35 9 22 33 33 33 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	8-97182-095-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-98006-793-4, 98006793	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-428-1	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-097-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-108-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (C) ASM PART: A = 8-98006-793-4, 98006793	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609, (C) ASM PART: B = 8-98043-204-4, 98043204	8-98159-587-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-092-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-102-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (C) ASM PART: B = 8-98043-204-4, 98043204	8-98061-406-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (C) ASM PART: A = 8-98006-793-4, 98006793	8-98216-517-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-98006-793-4, 98006793	8-98058-091-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-410-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (E) ASM PART: A = 8-98006-793-4, 98006793	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: A = 8-98006-793-4, 98006793	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G) ASM PART: B = 8-98043-204-4, 98043204	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (H) ASM PART: B = 8-98043-204-4, 98043204	8-98061-422-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (C) ASM PART: C = 8-98055-007-2, 98055007	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98055-007-2, 98055007	9-88510-248-0	01	1	-
33	06.606 BOLT; COVER (B) ASM PART: C = 8-98055-007-2, 98055007	1-44519-119-0	04	1	-
33	06.606 BOLT; COVER (C) ASM PART: C = 8-98055-007-2, 98055007	1-48119-054-0	02	1	-
33	06.606 BOLT; COVER (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-100-0	01	1	-
33	06.606 BOLT; COVER (D) ASM PART: C = 8-98055-007-2, 98055007	8-97182-110-0	02	1	-
33	06.606 BOLT; COVER (E) ASM PART: A = 8-98006-793-4, 98006793	8-97184-761-0	02	1	-
33	06.606 BOLT; COVER (F) ASM PART: A = 8-98006-793-4, 98006793	8-97184-762-0	02	1	-
33	06.606 BOLT; COVER (G) ASM PART: B = 8-98043-204-4, 98043204	8-98061-385-0	04	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	8-97258-420-1	02	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-98006-793-4, 98006793	8-98058-094-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-419-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: C = 8-98055-007-2, 98055007	8-94461-139-1	04	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-98006-793-4, 98006793	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-98043-204-4, 98043204	8-98061-418-0	02	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-98006-793-4, 98006793	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-098-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-109-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98043-204-4, 98043204	8-98061-407-0	01	1	-

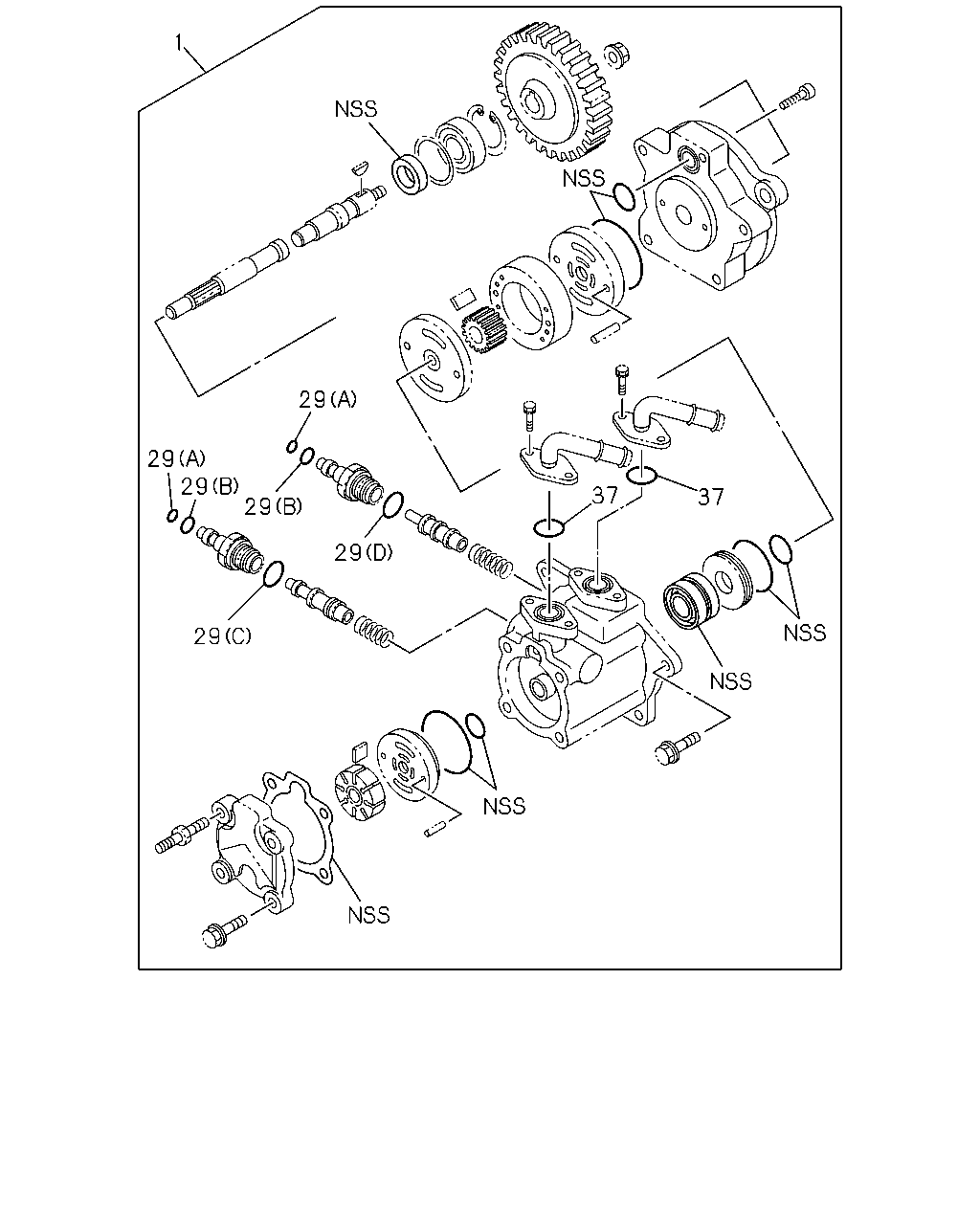

20 29 29 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	8-97182-111-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-98006-793-4, 98006793	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98159-585-0	01	1	-
20	06.635 GASKET; FRT,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-424-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (E) ASM PART: A = 8-98006-793-4, 98006793	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: A = 8-98006-793-4, 98006793	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G) ASM PART: B = 8-98043-204-4, 98043204	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (H) ASM PART: B = 8-98043-204-4, 98043204	8-98061-422-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (C) ASM PART: C = 8-98055-007-2, 98055007	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98055-007-2, 98055007	9-88510-248-0	01	1	-

1 29 29 29 29 29 29 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	8-97182-111-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-98006-793-4, 98006793	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98159-585-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (E) ASM PART: A = 8-98006-793-4, 98006793	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: A = 8-98006-793-4, 98006793	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G) ASM PART: B = 8-98043-204-4, 98043204	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (H) ASM PART: B = 8-98043-204-4, 98043204	8-98061-422-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (C) ASM PART: C = 8-98055-007-2, 98055007	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98055-007-2, 98055007	9-88510-248-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	1-19519-292-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-417-0	01	1	-

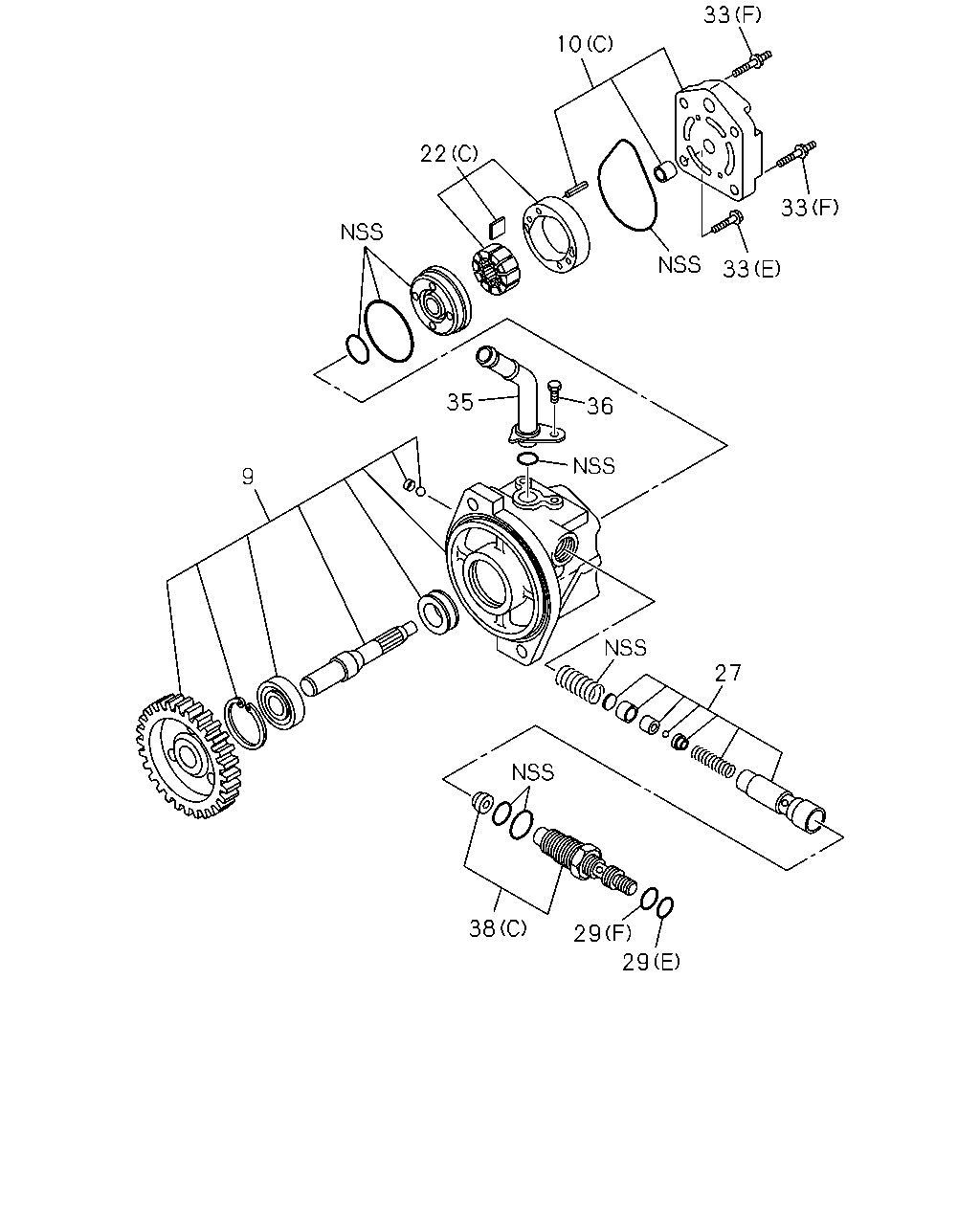

29 29 9 38 27 37 32 22 36 35 10 33 25 25 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	8-97182-095-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-98006-793-4, 98006793	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-428-1	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-097-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-108-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (C) ASM PART: A = 8-98006-793-4, 98006793	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609, (C) ASM PART: B = 8-98043-204-4, 98043204	8-98159-587-0	01	1	-
20	06.635 GASKET; FRT,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-424-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-092-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-102-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (C) ASM PART: B = 8-98043-204-4, 98043204	8-98061-406-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (C) ASM PART: A = 8-98006-793-4, 98006793	8-98216-517-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	8-97182-094-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-404-0	01	1	-
25	06.608 PIN; HSG,P/S (A) ASM PART: C = 8-98055-007-2, 98055007	1-19519-052-0	02	1	-
25	06.608 PIN; HSG,P/S (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-104-0	02	1	-
25	06.608 PIN; HSG,P/S (C) ASM PART: B = 8-98043-204-4, 98043204	8-98061-412-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-98006-793-4, 98006793	8-98058-091-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-410-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (E) ASM PART: A = 8-98006-793-4, 98006793	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: A = 8-98006-793-4, 98006793	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G) ASM PART: B = 8-98043-204-4, 98043204	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (H) ASM PART: B = 8-98043-204-4, 98043204	8-98061-422-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (C) ASM PART: C = 8-98055-007-2, 98055007	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98055-007-2, 98055007	9-88510-248-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (A) ASM PART: C = 8-98055-007-2, 98055007	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP (C) ASM PART: B = 8-98043-204-4, 98043204	8-98061-411-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (B) ASM PART: C = 8-98055-007-2, 98055007	9-19529-013-0	01	1	-
33	06.606 BOLT; COVER (B) ASM PART: C = 8-98055-007-2, 98055007	1-44519-119-0	04	1	-
33	06.606 BOLT; COVER (C) ASM PART: C = 8-98055-007-2, 98055007	1-48119-054-0	02	1	-
33	06.606 BOLT; COVER (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-100-0	01	1	-
33	06.606 BOLT; COVER (D) ASM PART: C = 8-98055-007-2, 98055007	8-97182-110-0	02	1	-
33	06.606 BOLT; COVER (E) ASM PART: A = 8-98006-793-4, 98006793	8-97184-761-0	02	1	-
33	06.606 BOLT; COVER (F) ASM PART: A = 8-98006-793-4, 98006793	8-97184-762-0	02	1	-
33	06.606 BOLT; COVER (G) ASM PART: B = 8-98043-204-4, 98043204	8-98061-385-0	04	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	8-97258-420-1	02	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-98006-793-4, 98006793	8-98058-094-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-419-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: C = 8-98055-007-2, 98055007	8-94461-139-1	04	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-98006-793-4, 98006793	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-98043-204-4, 98043204	8-98061-418-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	1-19519-292-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-417-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-98006-793-4, 98006793	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-098-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-109-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98043-204-4, 98043204	8-98061-407-0	01	1	-

1 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	8-97182-111-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-98006-793-4, 98006793	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98159-585-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (E) ASM PART: A = 8-98006-793-4, 98006793	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: A = 8-98006-793-4, 98006793	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G) ASM PART: B = 8-98043-204-4, 98043204	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (H) ASM PART: B = 8-98043-204-4, 98043204	8-98061-422-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (C) ASM PART: C = 8-98055-007-2, 98055007	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98055-007-2, 98055007	9-88510-248-0	01	1	-

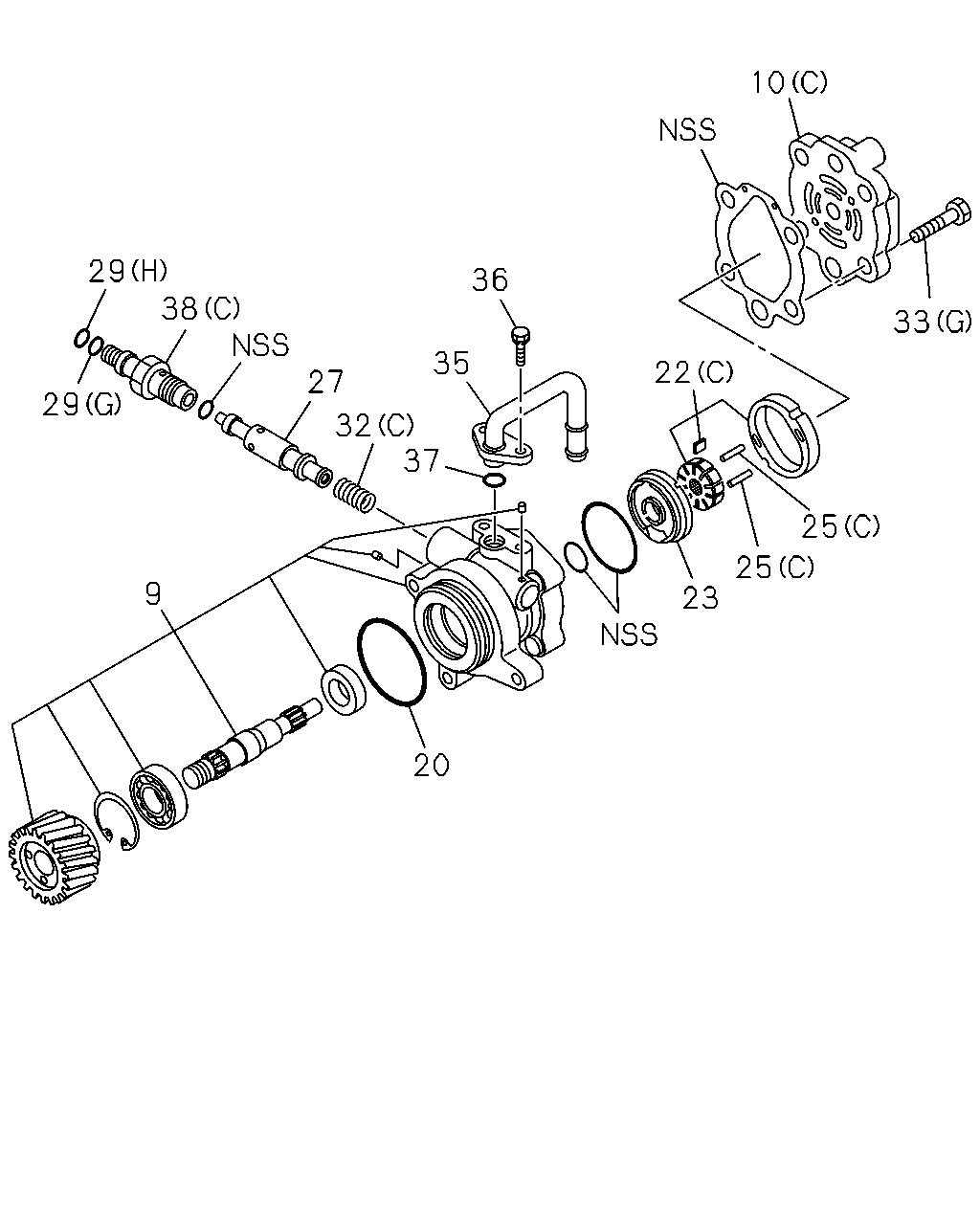

10 33 33 25 24 10 22 29 38 33 17 32 32 29 38 29 29 29 35 37 37 35 25 36 36 29 24 22 23 33 9 14 15 16 8 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	06.616 KEY; SHAFT,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	9-19519-089-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	8-97182-095-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-98006-793-4, 98006793	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-428-1	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-097-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-108-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (C) ASM PART: A = 8-98006-793-4, 98006793	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609, (C) ASM PART: B = 8-98043-204-4, 98043204	8-98159-587-0	01	1	-
13	06.605 SHAFT KIT; RET (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-096-0	01	1	-
13	06.605 SHAFT KIT; RET (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-105-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	1-19519-257-0	01	1	-
15	06.616 BEARING; BALL,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	1-19519-264-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	1-19519-258-0	01	1	-
17	06.616 RING; RET ASM PART: C = 8-98055-007-2, 98055007	8-97182-106-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-092-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-102-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (C) ASM PART: B = 8-98043-204-4, 98043204	8-98061-406-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (C) ASM PART: A = 8-98006-793-4, 98006793	8-98216-517-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	8-97182-094-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-404-0	01	1	-
24	06.612 PLATE ASM; THRUST (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-093-0	01	1	-
24	06.612 PLATE ASM; THRUST (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-103-0	01	1	-
25	06.608 PIN; HSG,P/S (A) ASM PART: C = 8-98055-007-2, 98055007	1-19519-052-0	02	1	-
25	06.608 PIN; HSG,P/S (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-104-0	02	1	-
25	06.608 PIN; HSG,P/S (C) ASM PART: B = 8-98043-204-4, 98043204	8-98061-412-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (E) ASM PART: A = 8-98006-793-4, 98006793	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: A = 8-98006-793-4, 98006793	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G) ASM PART: B = 8-98043-204-4, 98043204	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (H) ASM PART: B = 8-98043-204-4, 98043204	8-98061-422-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-98055-007-2, 98055007	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (C) ASM PART: C = 8-98055-007-2, 98055007	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98055-007-2, 98055007	9-88510-248-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (A) ASM PART: C = 8-98055-007-2, 98055007	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP (C) ASM PART: B = 8-98043-204-4, 98043204	8-98061-411-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (B) ASM PART: C = 8-98055-007-2, 98055007	9-19529-013-0	01	1	-
33	06.606 BOLT; COVER (B) ASM PART: C = 8-98055-007-2, 98055007	1-44519-119-0	04	1	-
33	06.606 BOLT; COVER (C) ASM PART: C = 8-98055-007-2, 98055007	1-48119-054-0	02	1	-
33	06.606 BOLT; COVER (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-100-0	01	1	-
33	06.606 BOLT; COVER (D) ASM PART: C = 8-98055-007-2, 98055007	8-97182-110-0	02	1	-
33	06.606 BOLT; COVER (E) ASM PART: A = 8-98006-793-4, 98006793	8-97184-761-0	02	1	-
33	06.606 BOLT; COVER (F) ASM PART: A = 8-98006-793-4, 98006793	8-97184-762-0	02	1	-
33	06.606 BOLT; COVER (G) ASM PART: B = 8-98043-204-4, 98043204	8-98061-385-0	04	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	8-97258-420-1	02	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-98006-793-4, 98006793	8-98058-094-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-419-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: C = 8-98055-007-2, 98055007	8-94461-139-1	04	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-98006-793-4, 98006793	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-98043-204-4, 98043204	8-98061-418-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-98055-007-2, 98055007	1-19519-292-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98043-204-4, 98043204	8-98061-417-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-98006-793-4, 98006793	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: C = 8-98055-007-2, 98055007	8-97182-098-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: C = 8-98055-007-2, 98055007	8-97182-109-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98043-204-4, 98043204	8-98061-407-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
