4-36 — POWER STEERING CONTROL; ENGINE SIDE (#94230) — 32 parça

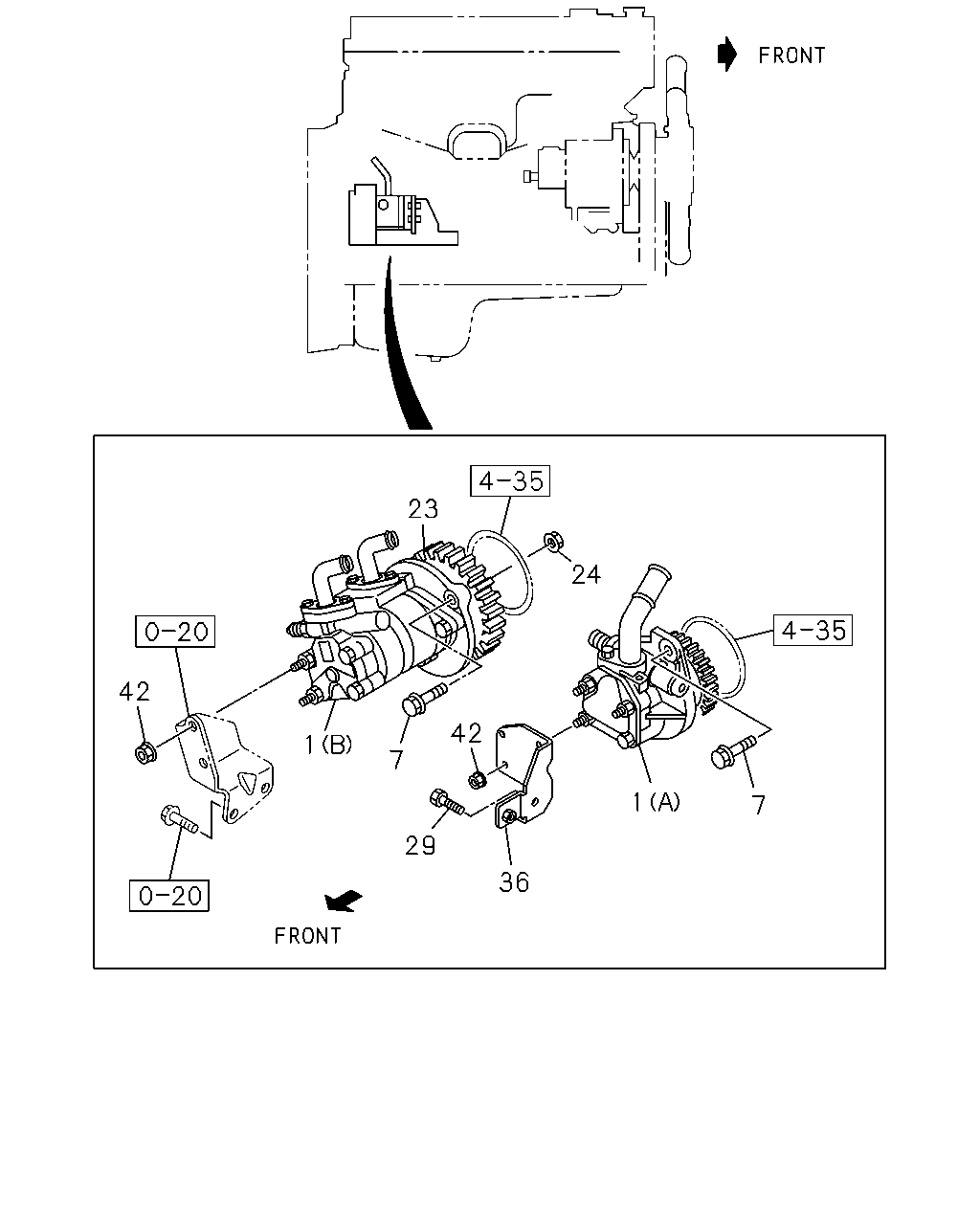

çizim 286287
23 24 42 1 7 36 29 1 7 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-98055-007-2 01 1 1207-1209 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-2 01 1 1210- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-98055-007-2 01 1 1210- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		8-98006-793-4 01 1 1207-1209 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-4 01 1 1210- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		8-98006-793-4 01 1 1210- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (C) 		8-98043-204-4 01 1 1210- ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HK1-TCN ENG(RDQ) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1207- ●
7 09.181 BOLT; OIL PUMP,P/S
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1207- ● ●
23 06.660 GEAR; OIL PUMP 8-97114-550-1 01 1 1207-1209 ● ●
23 06.660 GEAR; OIL PUMP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 1210- ●
23 06.660 GEAR; OIL PUMP 8-97114-550-1 01 1 1210- ●
24 06.673 NUT; GEAR,P/S PUMP
05.816 M12 FLANGE 		0-91180-212-0 01 1 1207-1209 ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE 		0-91180-212-0 01 1 1210- ●
24 06.673 NUT; GEAR,P/S PUMP
05.816 M12 FLANGE 		0-91180-212-0 01 1 1210- ●
29 09.171 BOLT; BRKT,POWER STRG
M14X20 FLANGE 		0-28851-420-0 01 1 1207-1209 ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 1210- ●
29 09.171 BOLT; BRKT,POWER STRG
M14X20 FLANGE 		0-28851-420-0 01 1 1210- ●
36 06.606 BRACKET; PLATE,P/S PUMP 8-98036-532-0 01 1 1207-1209 ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 1210- ●
36 06.606 BRACKET; PLATE,P/S PUMP 8-98036-532-0 01 1 1210- ●
42 06.672 NUT; ADJ PLATE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1207-1209 ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1210- ●
42 06.672 NUT; ADJ PLATE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1210- ● ●

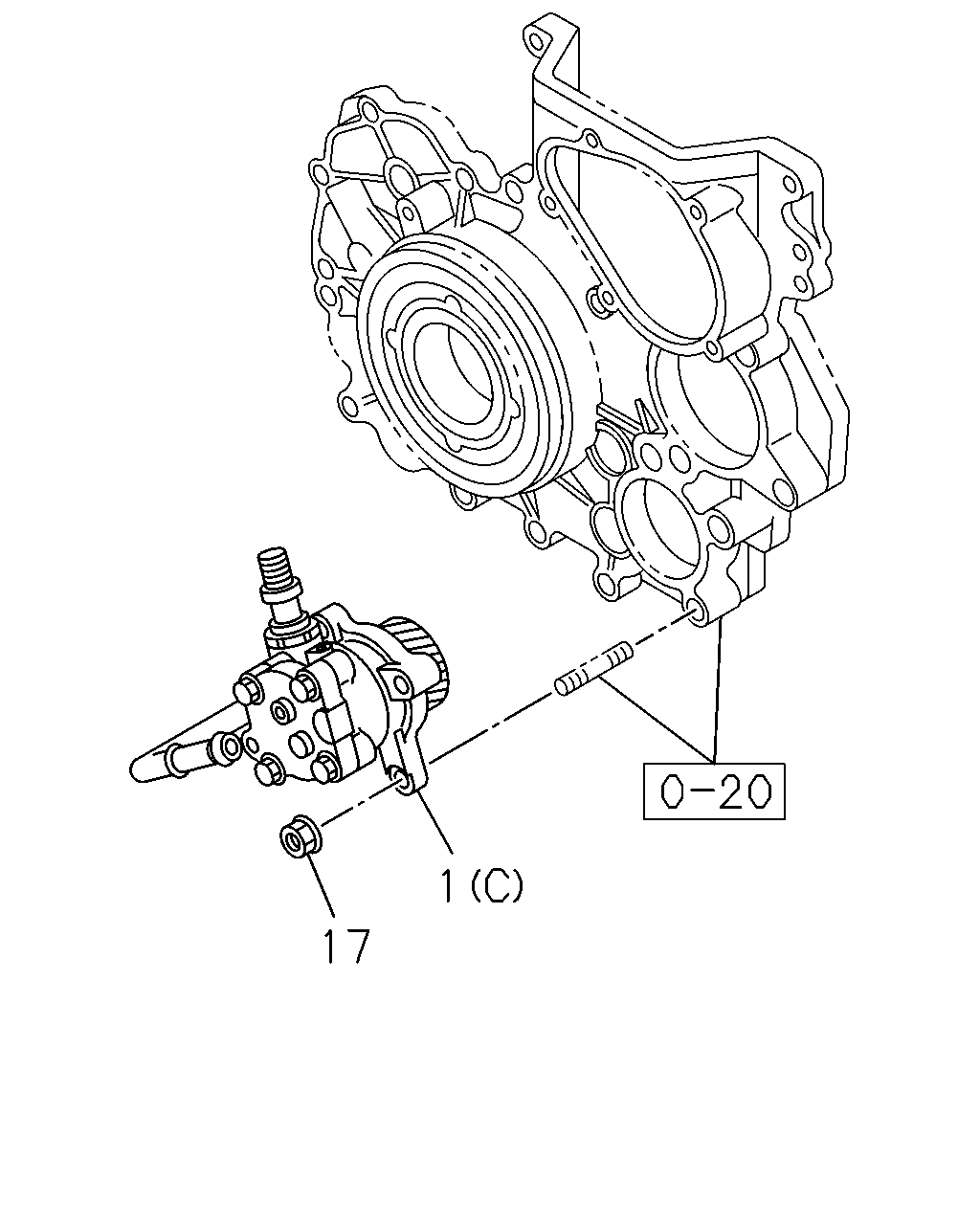

çizim 286727
17 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-98055-007-2 01 1 1207-1209 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-2 01 1 1210- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-98055-007-2 01 1 1210- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		8-98006-793-4 01 1 1207-1209 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-4 01 1 1210- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		8-98006-793-4 01 1 1210- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (C) 		8-98043-204-4 01 1 1210- ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1210- ● ●
