Isuzu WW
▶
TRUCKS
▶
FRR
▶
10826 - FRR/FSR/FRD(AUST)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#9423) — 26 parça
Tümü
A - FRR5MF
B - FRR5WF
C - FSR5MF
◀
[530A] FSR (13 parça)
[530A] FRR (13 parça)
▶

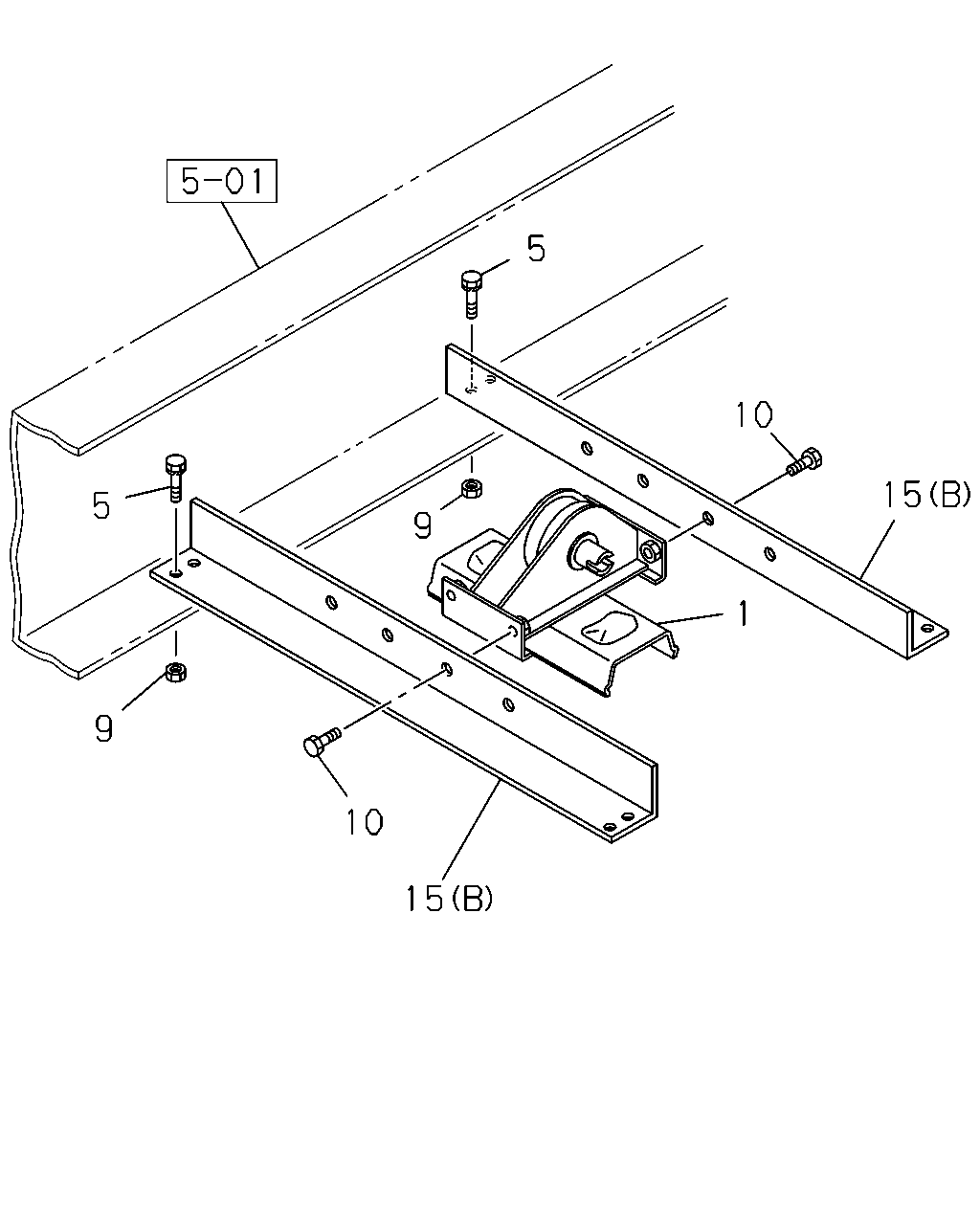

5
10
15
5
9
1
9
10
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
HANGER ASM; TIRE FT
1-53630-188-3
01
1
0005-
●
●
1
HANGER ASM; TIRE FT
1-53630-208-3
01
1
0005-
●
5
BOLT; BRKT TO FRAME
M10X25 FLANGE
0-28081-025-0
08
1
0005-0512
●
5
BOLT; BRKT TO FRAME
M10X25 FLANGE
0-28051-025-0
08
1
0601-
●
9
NUT; BRKT TO FRAME
M10 FLANGE
0-91150-210-0
08
1
0005-0602
●
9
NUT; BRKT TO FRAME
M10 FLANGE
0-91180-210-0
08
1
0603-
●
10
BOLT; TIRE HANGER
M10X20 FLANGE
0-28681-020-0
04
1
0005-0512
●
●
10
BOLT; TIRE HANGER
M10X20 FLANGE
0-28651-020-0
04
1
0601-
●
●
10
BOLT; TIRE HANGER
M12X30 FLANGE
0-28681-230-0
04
1
0005-0210
●
10
BOLT; TIRE HANGER
M12X30 FLANGE
0-28681-230-0
04
1
0211-0512
●
10
BOLT; TIRE HANGER
M12X30 FLANGE
0-28651-230-0
04
1
0601-
●
15
MEMBER; CROSS,SPARE TIRE
(A)
1-53631-343-2
02
1
0005-
●
●
15
MEMBER; CROSS,SPARE TIRE
(B)
1-53631-394-0
02
1
0005-
●

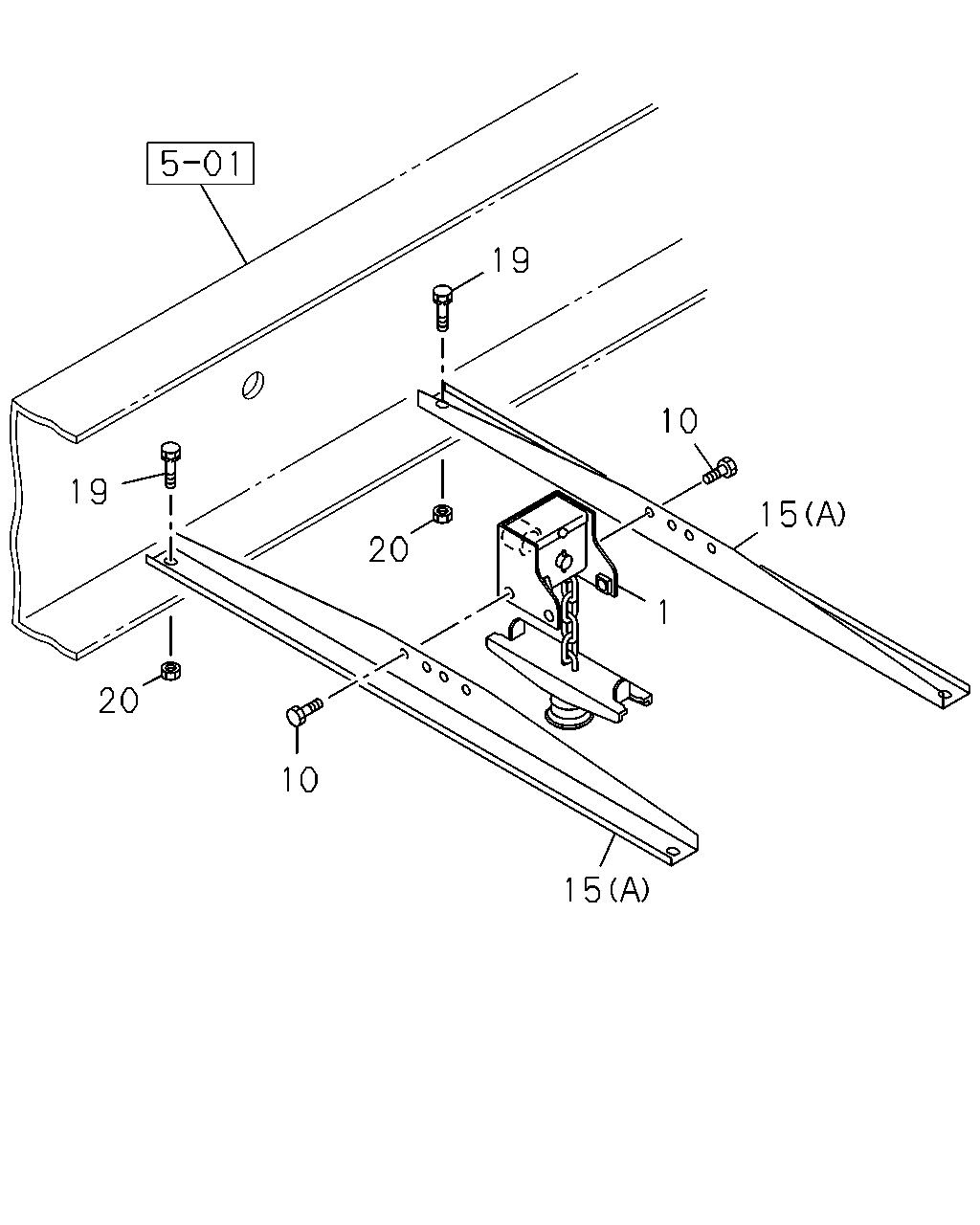

19
10
19
15
20
1
20
10
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
HANGER ASM; TIRE FT
1-53630-188-3
01
1
0005-
●
●
1
HANGER ASM; TIRE FT
1-53630-208-3
01
1
0005-
●
10
BOLT; TIRE HANGER
M10X20 FLANGE
0-28681-020-0
04
1
0005-0512
●
●
10
BOLT; TIRE HANGER
M10X20 FLANGE
0-28651-020-0
04
1
0601-
●
●
10
BOLT; TIRE HANGER
M12X30 FLANGE
0-28681-230-0
04
1
0005-0210
●
10
BOLT; TIRE HANGER
M12X30 FLANGE
0-28681-230-0
04
1
0211-0512
●
10
BOLT; TIRE HANGER
M12X30 FLANGE
0-28651-230-0
04
1
0601-
●
15
MEMBER; CROSS,SPARE TIRE
(A)
1-53631-343-2
02
1
0005-
●
●
15
MEMBER; CROSS,SPARE TIRE
(B)
1-53631-394-0
02
1
0005-
●
19
BOLT; C/MBR
M10X25 FLANGE
0-28081-025-0
04
1
0005-0512
●
●
19
BOLT; C/MBR
M10X25 FLANGE
0-28051-025-0
04
1
0601-
●
●
20
NUT; C/MBR
M10 FLANGE
0-91150-210-0
04
1
0005-0602
●
●
20
NUT; C/MBR
M10 FLANGE
0-91180-210-0
04
1
0603-
●
●
