4-11 — FRONT HUB AND DRUM OR ROTOR (#94223) — 125 parça

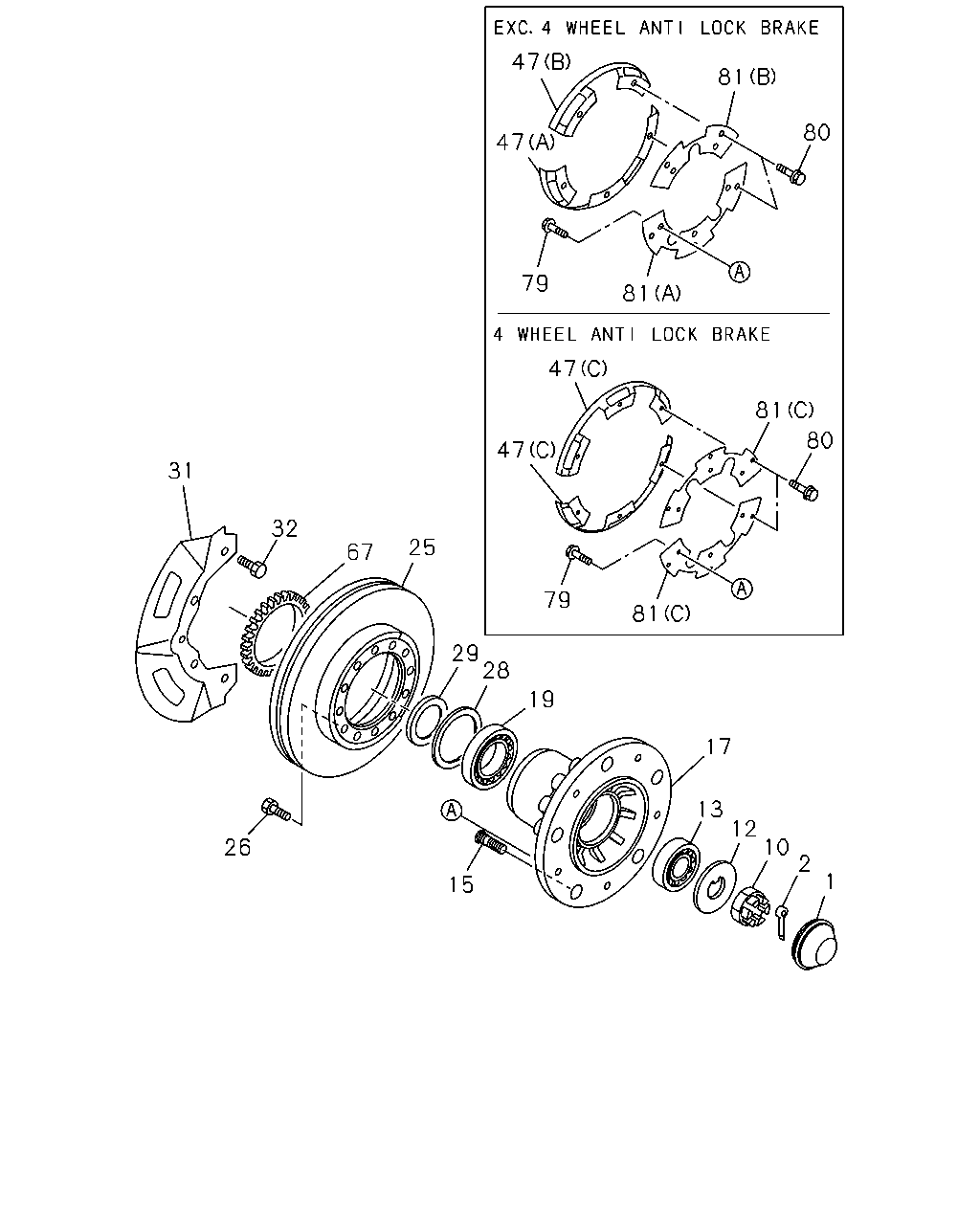

47 47 79 81 81 80 81 80 81 79 47 47 1 2 10 12 13 17 19 28 29 25 67 32 31 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1207-1209	●	●	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1210-1407	●	●	●	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-	●	●	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1207-1209	●	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1210-	●	●	●	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1207-1209	●	●	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1210-	●	●	●	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1207-1209	●	●	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1210-1502	●	●	●	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1503-	●	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1207-1209	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1210-	●	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1207-1209	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1210-	●	●	●	●
15	05.812 PIN; WHEEL,FRT AXLE M20X28,M22X50 RH THREAD	8-97131-283-3	06	1	1207-		●
15	05.812 PIN; WHEEL,FRT AXLE M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-3	06	1	1207-		●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 RH THREAD	8-97168-456-2	06	1	1207-1209	●		●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> M20X53 RH THREAD	8-97168-456-2	06	1	1210-	●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 RH THREAD	8-97168-456-2	06	1	1210-			●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 LH THREAD	8-97168-457-2	06	1	1207-1209	●		●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> M20X53 LH THREAD	8-97168-457-2	06	1	1210-	●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 LH THREAD	8-97168-457-2	06	1	1210-			●
15	05.812 PIN; WHEEL,FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X46 RH THREAD	8-98028-532-1	05	1	1210-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1210-				●
15	05.812 PIN; WHEEL,FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X46 LH THREAD	8-98028-533-1	05	1	1210-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1210-				●
17	06.307 HUB; FRT AXLE	8-97131-236-0	02	1	1207-		●
17	06.307 HUB; FRT AXLE	8-97168-460-0	02	1	1207-1209	●		●
17	06.307 HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97168-460-0	02	1	1210-	●
17	06.307 HUB; FRT AXLE	8-97168-460-0	02	1	1210-			●
17	06.307 HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97017-193-0	02	1	1210-	●
17	06.307 HUB; FRT AXLE	8-97017-193-0	02	1	1210-				●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1207-1209	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1210-	●	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1207-1209	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1210-	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-98105-058-0	02	1	1207-1209	●
25	05.809 ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY)	8-98105-058-0	02	1	1210-1309	●
25	05.809 ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY)	8-98248-895-0	02	1	1310-	●
25	05.809 ROTOR; DISC BRK,FRT	8-97387-229-0	02	1	1207-1209			●
25	05.809 ROTOR; DISC BRK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-229-0	02	1	1210-	●
25	05.809 ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV)	8-97387-229-0	02	1	1210-	●
25	05.809 ROTOR; DISC BRK,FRT	8-97387-229-0	02	1	1210-			●	●
26	05.812 BOLT; BRK,DISC TO HUB	8-94474-923-0	24	1	1207-1209	●		●
26	05.812 BOLT; BRK,DISC TO HUB	8-94474-923-0	24	1	1210-	●		●	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1207-1209	●	●	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1210-	●	●	●	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1207-1209	●	●	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1210-	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE	8-98037-377-0	02	1	1207-1209	●		●
31	04.665 COVER; DUST,FRT BRAKE	8-98037-377-0	02	1	1210-	●		●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1207-1209	●		●
32	04.665 BOLT; DUST COVER TO KNUCKLE 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1210-	●		●	●
47	06.308 HOLDER; TIRE VALVE,FRT HUB (C)	8-97213-660-0	04	1	1207-1209			●
47	06.308 HOLDER; TIRE VALVE,FRT HUB 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97213-660-0	04	1	1210-	●
47	06.308 HOLDER; TIRE VALVE,FRT HUB (C)	8-97213-660-0	04	1	1210-			●
47	06.308 HOLDER; TIRE VALVE,FRT HUB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97228-399-0	02	1	1210-	●
47	06.308 HOLDER; TIRE VALVE,FRT HUB (A)	8-97228-399-0	02	1	1210-				●
47	06.308 HOLDER; TIRE VALVE,FRT HUB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97228-400-0	02	1	1210-	●
47	06.308 HOLDER; TIRE VALVE,FRT HUB (B)	8-97228-400-0	02	1	1210-				●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1207-1209	●		●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-159-0	02	1	1210-	●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1210-			●
79	04.665 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	12	1	1207-1209			●
79	04.665 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	12	1	1210-	●
79	04.665 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	12	1	1210-			●
79	04.665 BOLT; BRKT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	10	1	1210-	●
79	04.665 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	10	1	1210-				●
80	05.812 BOLT; VALVE HOLDER 02.483 M10X16 FLANGE	0-28051-016-0	12	1	1207-1209			●
80	05.812 BOLT; VALVE HOLDER 4 WHEEL ANTI LOCK BRAKE<JE5> 02.483 M10X16 FLANGE	0-28051-016-0	12	1	1210-	●
80	05.812 BOLT; VALVE HOLDER 02.483 M10X16 FLANGE	0-28051-016-0	12	1	1210-			●
80	05.812 BOLT; VALVE HOLDER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1210-	●
80	05.812 BOLT; VALVE HOLDER 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1210-				●
81	05.812 BRACKET; VALVE HOLDER (C)	8-97214-247-0	04	1	1207-1209			●
81	05.812 BRACKET; VALVE HOLDER 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97214-247-0	04	1	1210-	●
81	05.812 BRACKET; VALVE HOLDER (C)	8-97214-247-0	04	1	1210-			●
81	05.812 BRACKET; VALVE HOLDER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97214-248-0	02	1	1210-	●
81	05.812 BRACKET; VALVE HOLDER (A)	8-97214-248-0	02	1	1210-				●
81	05.812 BRACKET; VALVE HOLDER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97214-249-0	02	1	1210-	●
81	05.812 BRACKET; VALVE HOLDER (B)	8-97214-249-0	02	1	1210-				●

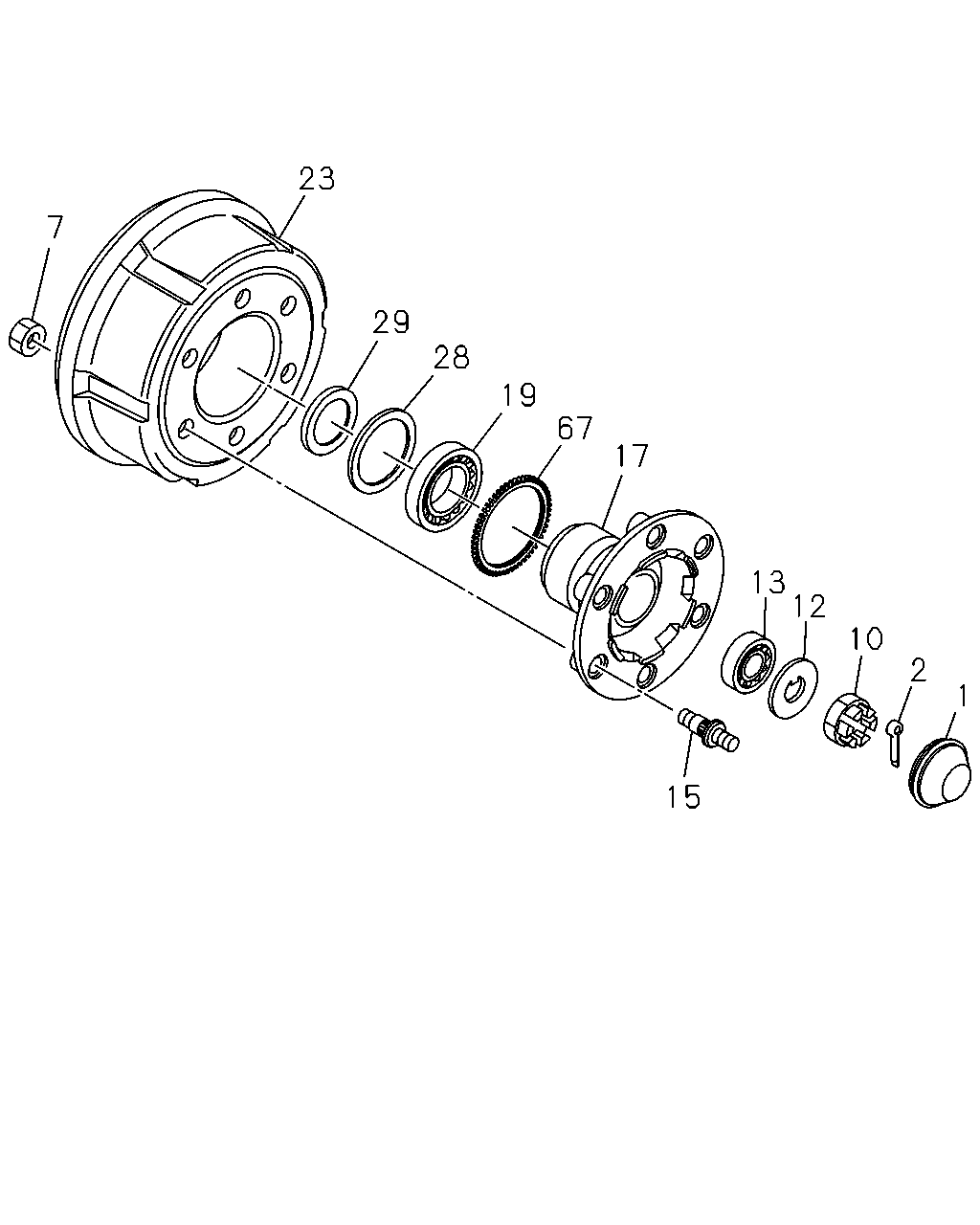

1 2 10 12 13 15 17 67 19 28 29 23 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1207-1209	●	●	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1210-1407	●	●	●	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-	●	●	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1207-1209	●	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1210-	●	●	●	●
7	05.812 NUT; FRT HUB 07.172 M22	0-91110-522-0	12	1	1207-		●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1207-1209	●	●	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1210-	●	●	●	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1207-1209	●	●	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1210-1502	●	●	●	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1503-	●	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1207-1209	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1210-	●	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1207-1209	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1210-	●	●	●	●
15	05.812 PIN; WHEEL,FRT AXLE M20X28,M22X50 RH THREAD	8-97131-283-3	06	1	1207-		●
15	05.812 PIN; WHEEL,FRT AXLE M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-3	06	1	1207-		●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 RH THREAD	8-97168-456-2	06	1	1207-1209	●		●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> M20X53 RH THREAD	8-97168-456-2	06	1	1210-	●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 RH THREAD	8-97168-456-2	06	1	1210-			●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 LH THREAD	8-97168-457-2	06	1	1207-1209	●		●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> M20X53 LH THREAD	8-97168-457-2	06	1	1210-	●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 LH THREAD	8-97168-457-2	06	1	1210-			●
15	05.812 PIN; WHEEL,FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X46 RH THREAD	8-98028-532-1	05	1	1210-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1210-				●
15	05.812 PIN; WHEEL,FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X46 LH THREAD	8-98028-533-1	05	1	1210-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1210-				●
17	06.307 HUB; FRT AXLE	8-97131-236-0	02	1	1207-		●
17	06.307 HUB; FRT AXLE	8-97168-460-0	02	1	1207-1209	●		●
17	06.307 HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97168-460-0	02	1	1210-	●
17	06.307 HUB; FRT AXLE	8-97168-460-0	02	1	1210-			●
17	06.307 HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97017-193-0	02	1	1210-	●
17	06.307 HUB; FRT AXLE	8-97017-193-0	02	1	1210-				●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1207-1209	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1210-	●	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1207-1209	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1210-	●	●	●	●
23	05.809 DRUM; BRK,FRT	8-97188-115-0	02	1	1207-		●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1207-1209	●	●	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1210-	●	●	●	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1207-1209	●	●	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1210-	●	●	●	●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1207-1209	●		●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-159-0	02	1	1210-	●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1210-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
