◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51267 - NN/NP/NQR(RHD)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#94222) — 93 parça

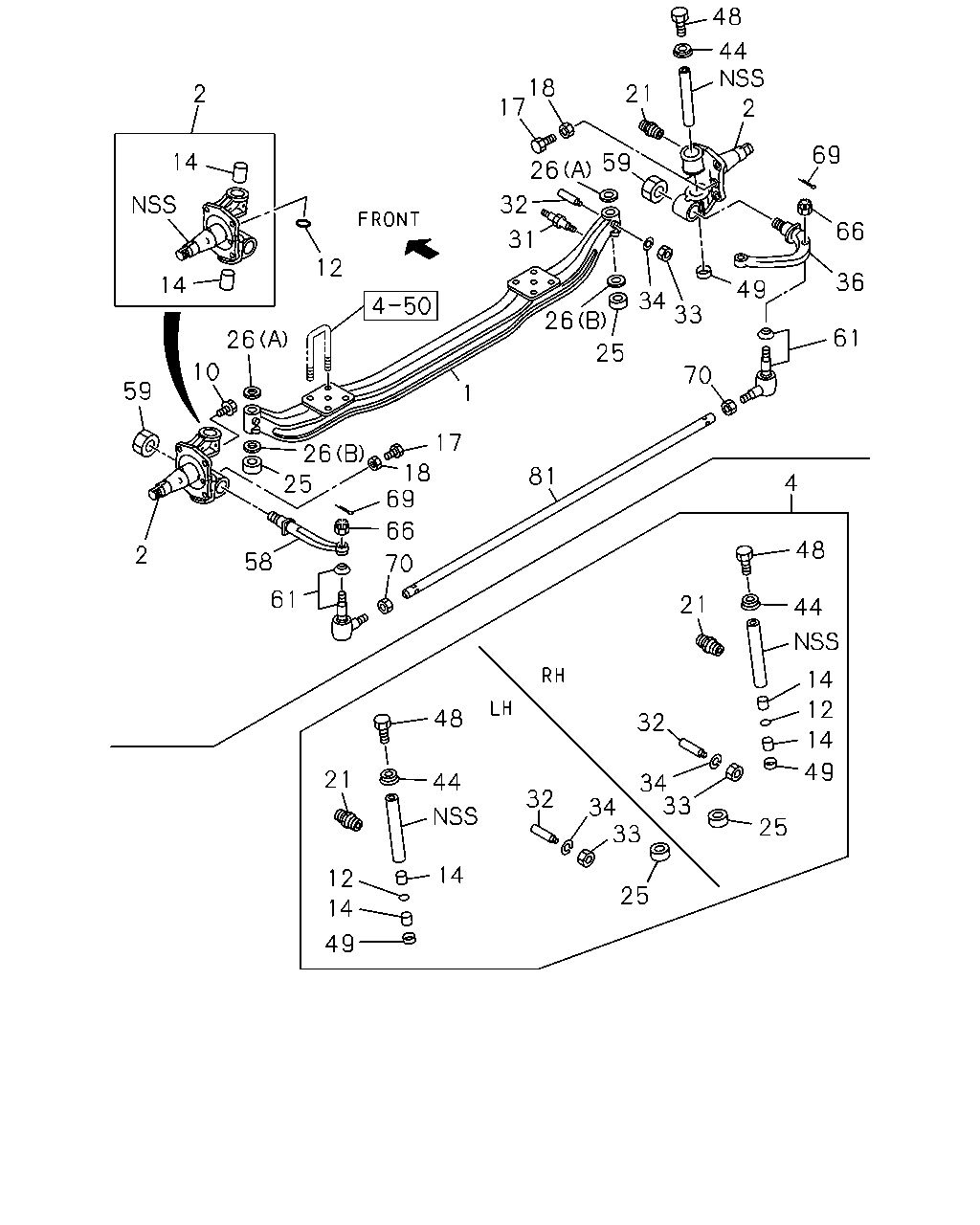

çizim 286720
61 36 66 69 2 44 48 21 59 26 32 31 26 25 34 33 49 70 4 48 44 14 12 14 49 25 33 34 32 21 25 33 34 32 48 44 14 49 14 12 21 61 58 2 59 10 26 12 14 14 2 25 26 17 1 81 18 69 66 70 17 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.008 AXLE; FRT 8-98038-384-3 01 1 1207-1209 ● ● ●
1 06.008 AXLE; FRT 8-98038-384-3 01 1 1210- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-1 01 1 1207-1209 ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-2 01 1 1210- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-1 01 1 1207-1209 ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-2 01 1 1210- ● ● ● ●
4 06.203 KING PIN KIT
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87832-220-2 01 1 1403- ●
4 06.203 KING PIN KIT 5-87832-220-2 01 1 1403- ● ●
4 06.203 KING PIN KIT 5-87832-219-2 01 1 1207-1209 ● ● ●
4 06.203 KING PIN KIT 5-87832-219-2 01 1 1210-1402 ● ● ● ●
4 06.203 KING PIN KIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87832-219-2 01 1 1403- ●
4 06.203 KING PIN KIT 5-87832-219-2 01 1 1403- ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1207-1209 ● ● ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1210- ● ● ● ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 1207-1209 ● ● ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 1210- ● ● ● ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1207-1209 ● ● ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1210- ● ● ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1207-1209 ● ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1210- ● ● ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 1207-1209 ● ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 1210- ● ● ● ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 1207-1209 ● ● ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 1210- ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 02 1 1207-1209 ● ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 02 1 1210-1402 ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 1403- ●
25 06.210 BEARING; THRUST,KING PIN
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 1403- ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 1403- ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 1403- ●
25 06.210 BEARING; THRUST,KING PIN
4 WHEEL ANTI LOCK BRAKE<JE5> 06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 1403- ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 1403- ● ●
25 06.210 BEARING; THRUST,KING PIN
4 WHEEL ANTI LOCK BRAKE<JE5> OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1403- ●
25 06.210 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1403- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1207-1209 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1210- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1207-1209 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1210- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1207-1209 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1210- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1207-1209 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1210- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 02 1 1207-1209 ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 02 1 1210-1402 ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1403- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.460 (B) T=1.95 		8-94168-490-0 01 1 1403- ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1403- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1207-1209 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1210- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1207-1209 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1210- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1207-1209 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1210- ● ● ● ●
31 07.347 PIN; S/ABS,LWR 8-97145-460-0 02 1 1207-1209 ● ● ●
31 07.347 PIN; S/ABS,LWR 8-97145-460-0 02 1 1210- ● ● ● ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-1 02 1 1207-1209 ● ● ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1210- ● ● ● ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 1207-1209 ● ● ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 1210- ● ● ● ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 1207-1209 ● ● ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 1210- ● ● ● ●
36 06.103 ARM; KNUCKLE 8-97202-776-4 01 1 1207-1209 ● ● ●
36 06.103 ARM; KNUCKLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97202-776-5 01 1 1210- ●
36 06.103 ARM; KNUCKLE 8-97202-776-5 01 1 1210- ● ●
36 06.103 ARM; KNUCKLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97226-688-5 01 1 1210- ●
36 06.103 ARM; KNUCKLE 8-97226-688-5 01 1 1210- ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1207-1209 ● ● ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1210- ● ● ● ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1207-1209 ● ● ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1210- ● ● ● ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 1207-1209 ● ● ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 1210- ● ● ● ●
58 06.103 ARM; TIE ROD 8-97138-304-1 01 1 1207-1209 ● ● ●
58 06.103 ARM; TIE ROD 8-97138-304-2 01 1 1210- ● ● ● ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 1207-1209 ● ● ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 1210- ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97107-349-2 01 1 1311- ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 1207-1209 ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 1210-1310 ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97107-348-2 01 1 1311- ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 1207-1209 ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 1210-1310 ● ● ● ●
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1207-1209 ● ● ●
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1210- ● ● ● ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1207-1209 ● ● ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1210- ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1311- ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1207-1209 ● ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1210-1310 ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1207-1209 ● ● ●
70 06.234 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1210- ● ● ● ●
81 06.230 ROD; TIE 8-97061-869-0 01 1 1207-1209 ● ● ●
81 06.230 ROD; TIE 8-97061-869-0 01 1 1210- ● ● ● ●
