◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51267 - NN/NP/NQR(RHD)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#94220) — 1056 parça

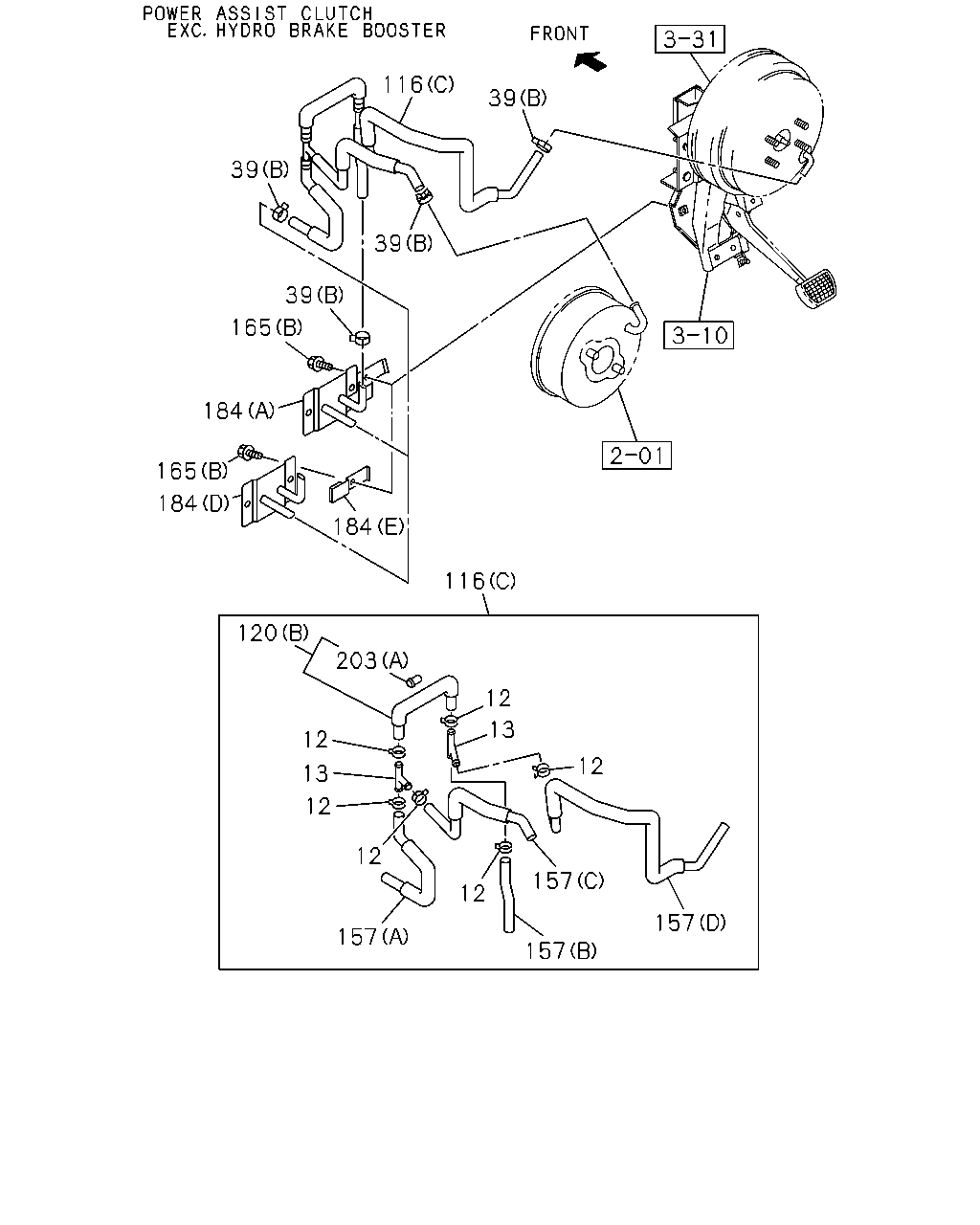

çizim 286258
39 116 39 39 39 165 184 165 184 184 116 120 203 12 13 12 13 12 12 12 12 157 157 157 157
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 1207-1209 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 1207-1209 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 1210- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 1210- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 10 1 1207-1209 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 10 1 1210- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1207-1209 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1207-1209 ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1210- ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1210- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1207-1209 ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 03 1 1210- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1207-1209 ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 1210- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1207-1209 ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 1210- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1207-1209 ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1210- ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1210- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1210- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-548-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1207-1209 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1207-1209 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1210- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1207-1209 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1210-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(D) 		8-98255-535-0 01 1 1312- ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1207-1209 ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 1210- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1207-1209 ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 1210- ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1210- ● ●

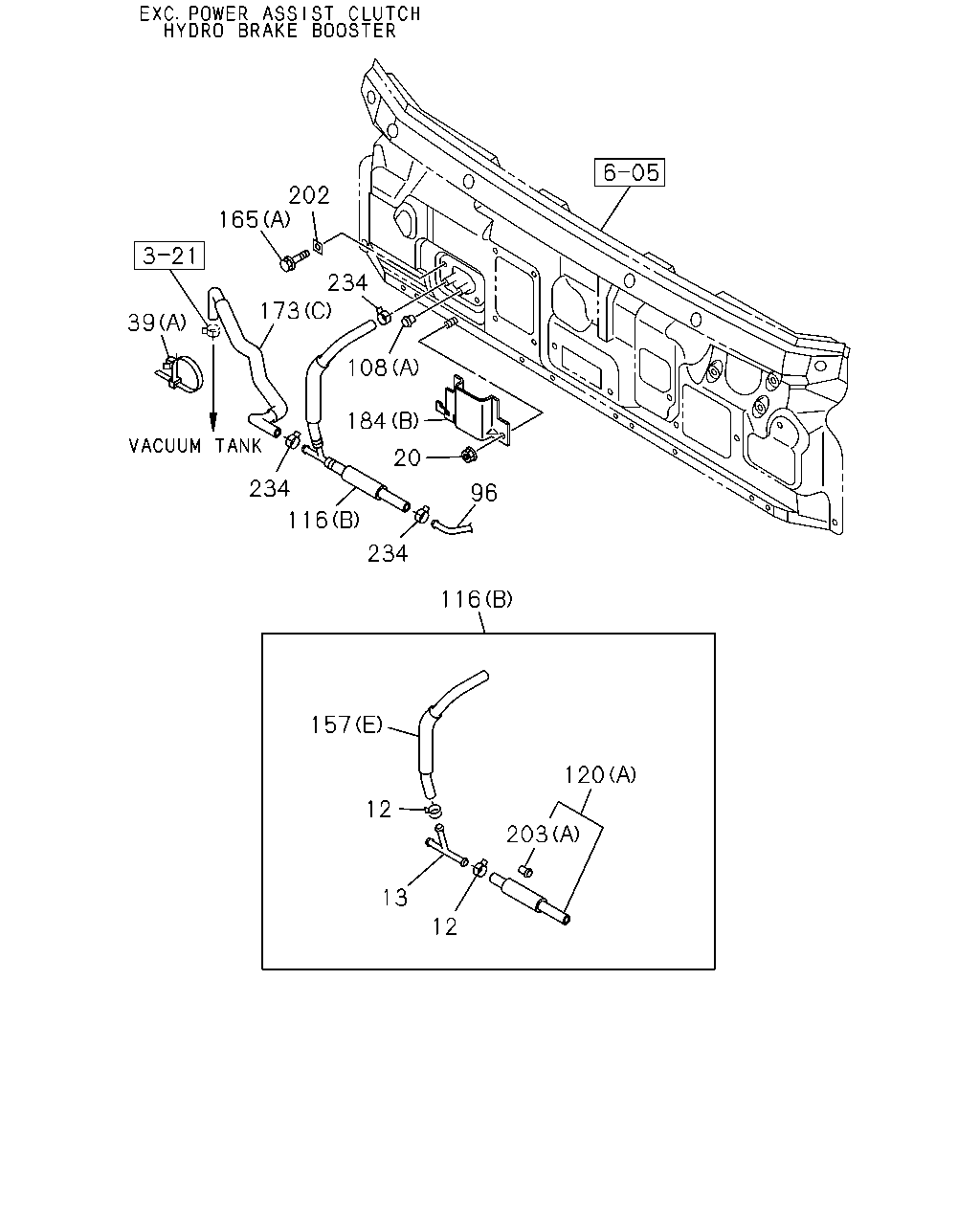

çizim 286263
202 165 234 173 108 184 96 116 234 116 234 39 120 203 12 13 12 157 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 1207-1209 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 1207-1209 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 1210- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 1210- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 10 1 1207-1209 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 10 1 1210- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1207-1209 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1207-1209 ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1210- ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1210- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1207-1209 ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 03 1 1210- ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1207-1209 ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1210- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1207-1209 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1207-1209 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1210- ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1207-1209 ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1210- ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1207-1209 ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1210- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1207-1209 ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 1210- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1207-1209 ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 1210- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1207-1209 ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1210- ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1210- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1210- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1207-1209 ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 1210- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1207-1209 ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 1210- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1207-1209 ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98107-558-0 01 1 1210- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-548-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1207-1209 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1207-1209 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1210- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1207-1209 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1210-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(D) 		8-98255-535-0 01 1 1312- ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1207-1209 ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1210- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1207-1209 ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 1210- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1207-1209 ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 1210- ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1210- ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1207-1209 ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1207-1209 ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1210- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1210- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1210- ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1210- ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1207-1209 ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 1210- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1210- ● ●

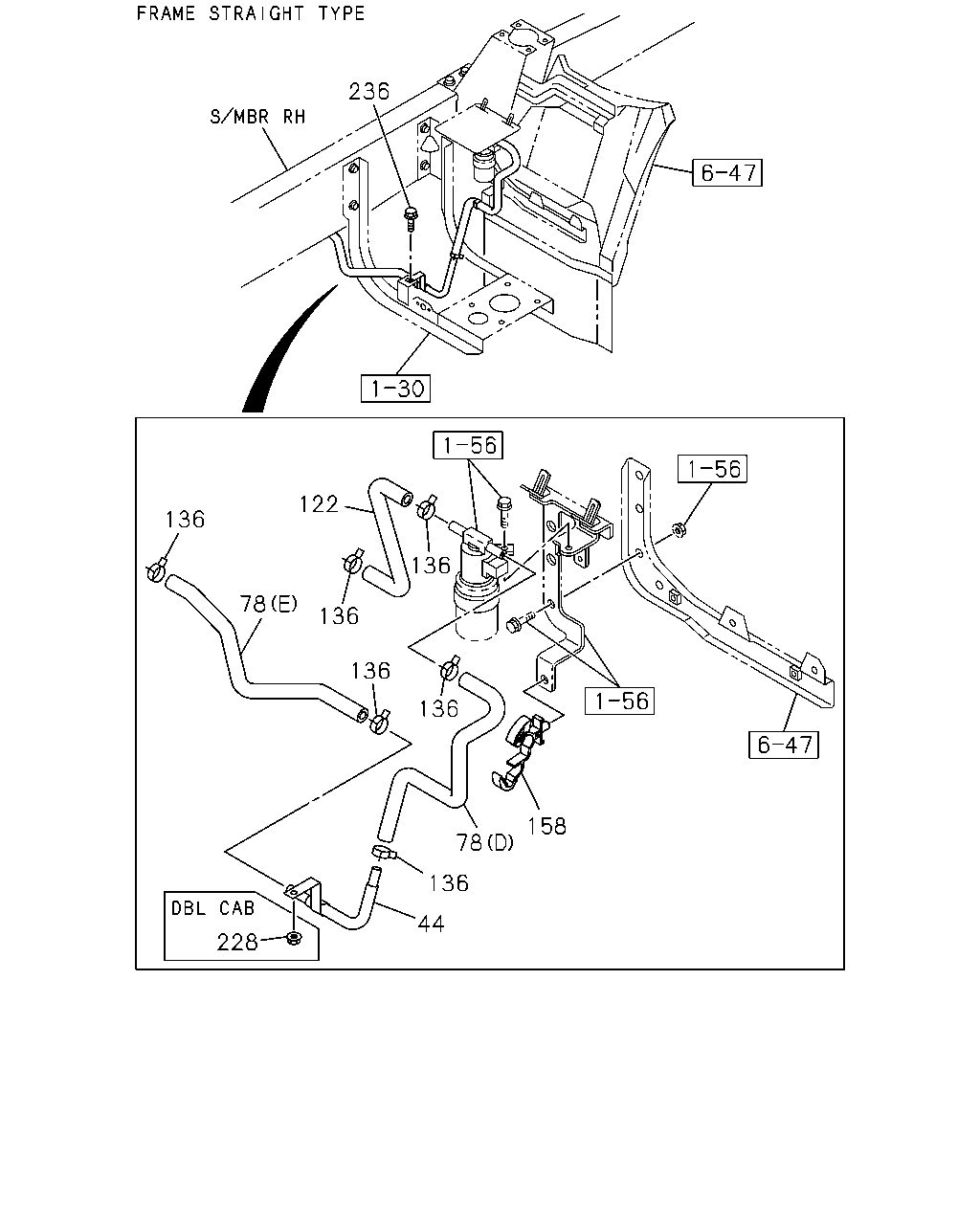

çizim 286264
236 136 122 136 78 136 136 136 158 78 136 44 228
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 04.930 PIPE; VAC,MAG VLV 8-98040-634-0 01 1 1207- ●
44 04.930 PIPE; VAC,MAG VLV 8-98034-281-1 01 1 1207-1209 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> 		8-98034-281-1 01 1 1210- ●
44 04.930 PIPE; VAC,MAG VLV 8-98034-281-1 01 1 1210- ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98063-777-0 01 1 1210- ●
44 04.930 PIPE; VAC,MAG VLV 8-98063-777-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1207- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1207- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (F) 		8-98080-833-1 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 1207-1209 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98133-654-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-106-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-288-0 01 1 1210- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-105-0 01 1 1207- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1207-1209 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98189-104-0 01 1 1210- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1210- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1210- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 1210- ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1207-1209 ● ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1210- ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1210- ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1210- ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 02 1 1210- ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 04 1 1210- ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 1210- ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1207-1209 ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1210- ● ● ●
228 04.930 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 01 1 1207- ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1207- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207-1209 ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ● ● ●

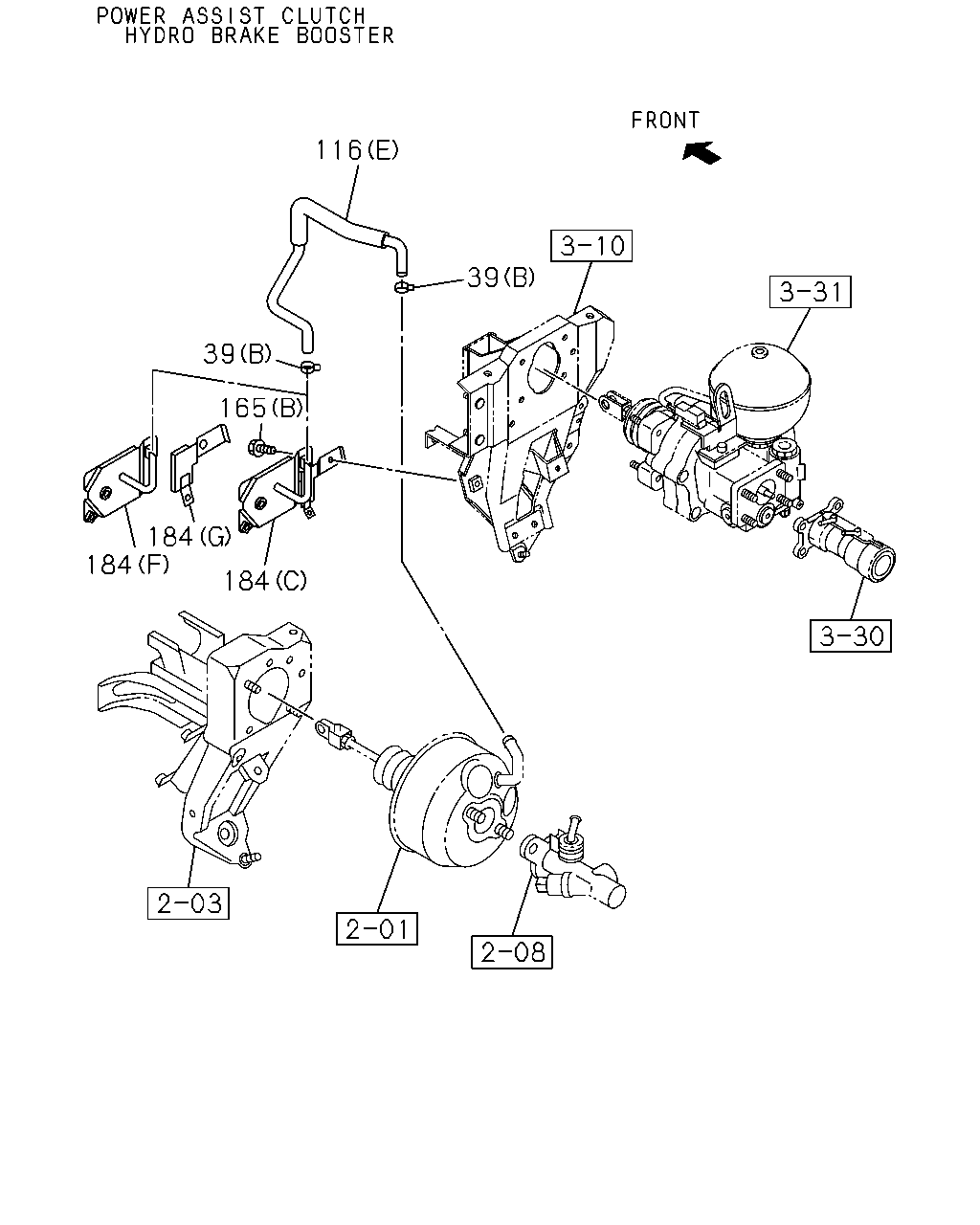

çizim 286265
39 116 39 165 184 184 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1210- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1210- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-548-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1207-1209 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1207-1209 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1210- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1207-1209 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1210-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(D) 		8-98255-535-0 01 1 1312- ● ●

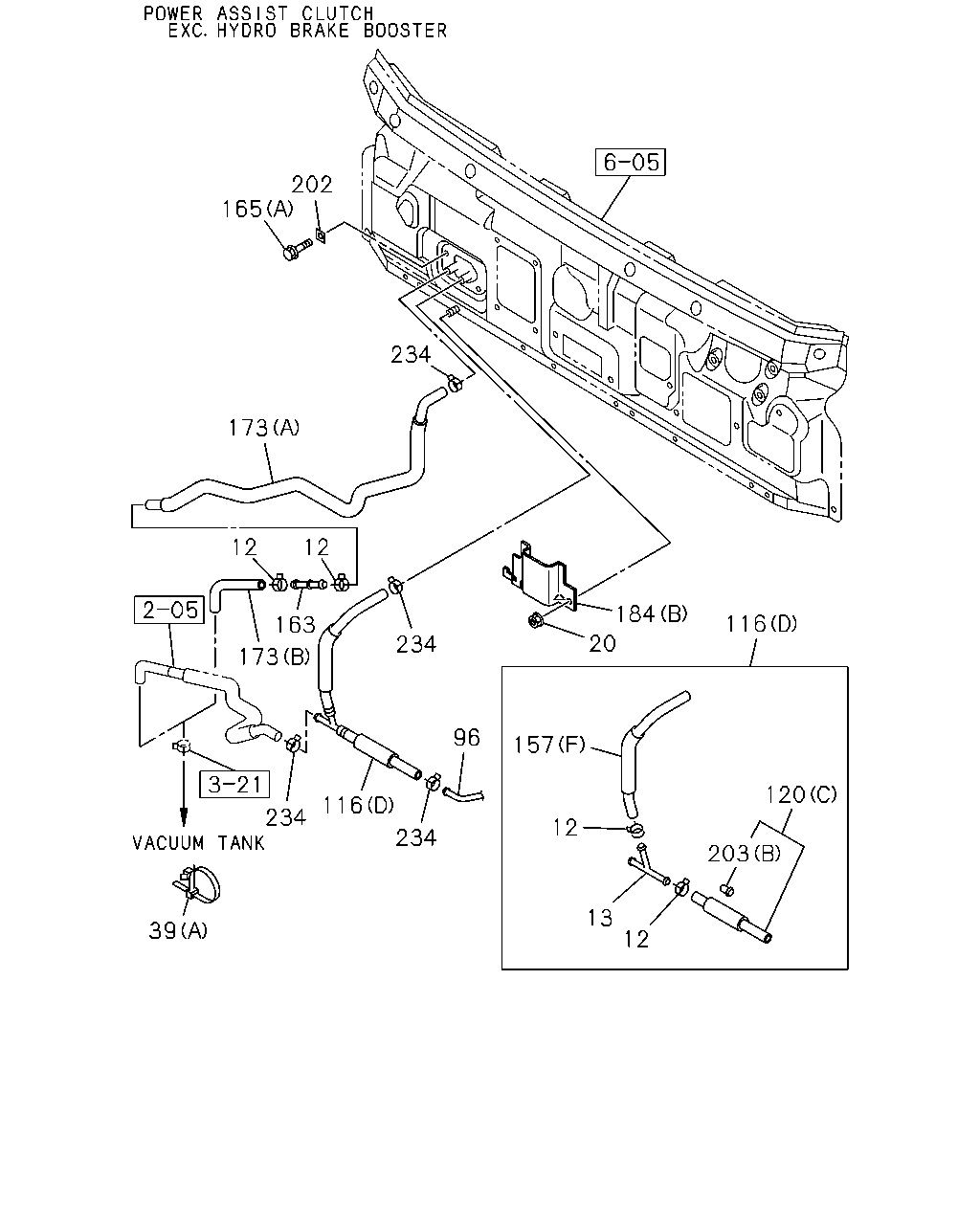

çizim 286267
202 165 234 173 12 12 234 163 173 96 234 116 234 39 116 184 20 120 203 12 13 12 157
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 1207-1209 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 1207-1209 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 1210- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 1210- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 10 1 1207-1209 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 10 1 1210- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1207-1209 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1207-1209 ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1210- ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1210- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1207-1209 ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 03 1 1210- ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1207-1209 ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1210- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1207-1209 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1207-1209 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1207-1209 ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 1210- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1207-1209 ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 1210- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1207-1209 ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1210- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1207-1209 ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1210- ● ● ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 03.163 		8-97353-668-0 01 1 1207-1209 ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.163 		8-97353-668-0 01 1 1210- ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1210- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1210- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1207-1209 ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 1210- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1207-1209 ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 1210- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1207-1209 ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98107-558-0 01 1 1210- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-548-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1207-1209 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1207-1209 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1210- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1207-1209 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1210-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(D) 		8-98255-535-0 01 1 1312- ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1207-1209 ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1210- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1207-1209 ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 1210- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1207-1209 ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 1210- ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1210- ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1207-1209 ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1207-1209 ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1210- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1210- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1210- ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1210- ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1207-1209 ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 1210- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1210- ● ●

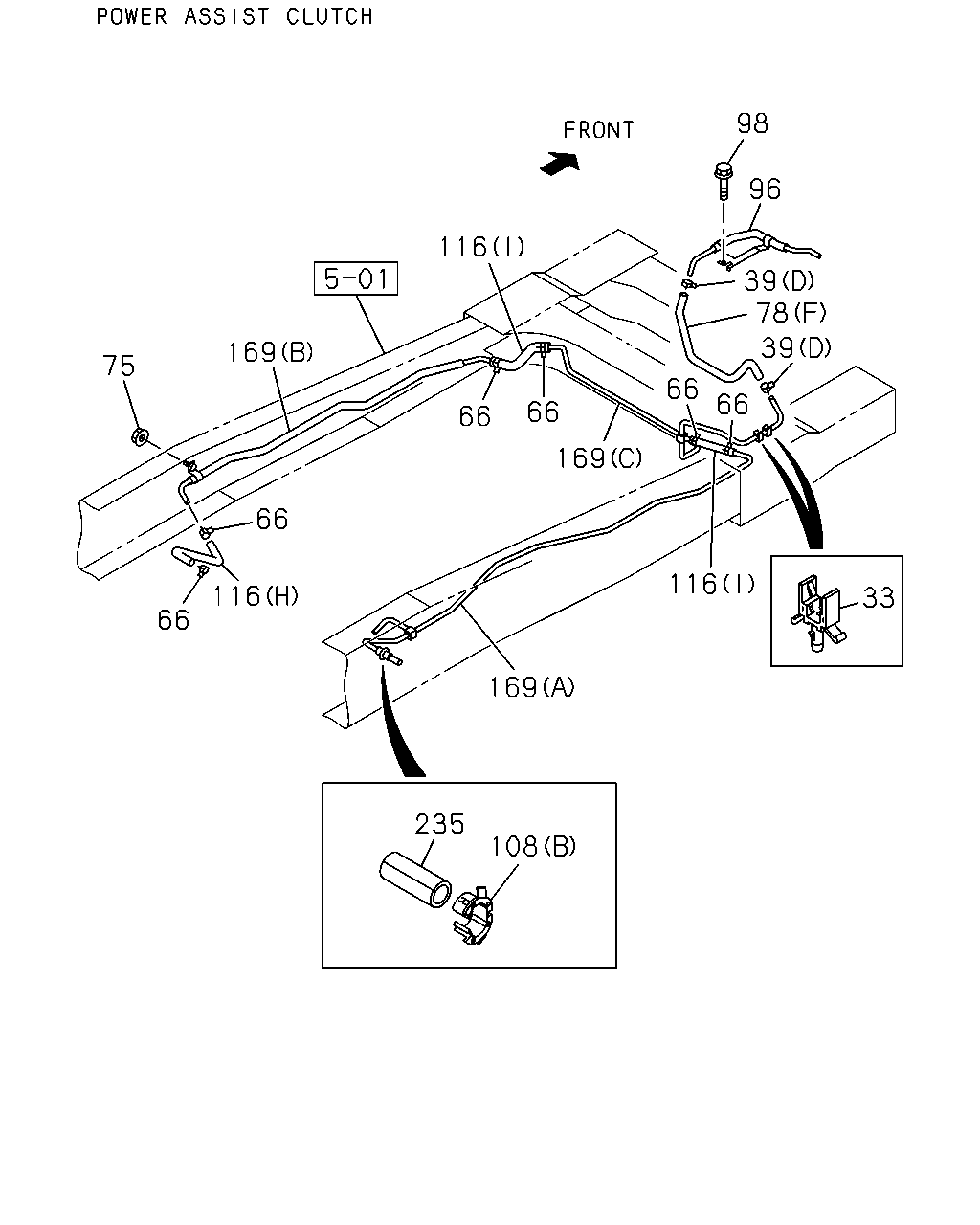

çizim 286268
98 96 39 39 78 66 66 116 169 66 66 33 116 169 75 66 116 66 169 108 235
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) ID=10 H=40 		8-94462-219-0 02 1 1207-1209 ● ●
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1207-1209 ●
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 1210- ●
33 04.930 CLIP; VAC PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 1210- ●
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) ID=10 H=40 		8-94462-219-0 02 1 1210- ●
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1207-1209 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1210- ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1210- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1210- ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1210- ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1207-1209 ● ● ●
75 04.930 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1210- ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1210- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1207- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1207- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (F) 		8-98080-833-1 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 1207-1209 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98133-654-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-106-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-288-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1207-1209 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1207-1209 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1210- ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1207-1209 ● ● ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1207-1209 ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1210- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1210- ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1210- ●
98 04.931 BOLT; VAC PIPE FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207-1209 ● ●
98 04.931 BOLT; VAC PIPE FIX
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207-1209 ● ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
98 04.931 BOLT; VAC PIPE FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
98 04.931 BOLT; VAC PIPE FIX
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1207-1209 ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1210- ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1207-1209 ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1210- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (C) 		8-98041-053-4 01 1 1207-1209 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-053-4 01 1 1207-1209 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (C) 		8-98041-053-4 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-053-4 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98067-259-2 01 1 1207-1209 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98067-259-2 01 1 1207-1209 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98067-259-2 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98067-259-2 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98067-259-2 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98067-259-2 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(B) 		8-98154-771-1 01 1 1207-1209 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98154-771-1 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(B) 		8-98154-771-1 01 1 1210- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 1207-1209 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98048-903-0 01 1 1207-1209 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98048-903-0 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98048-903-0 01 1 1210- ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1207-1209 ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1210- ● ● ● ●
çizim 286269
39 78 39 39 78 39 80 39 39 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1207- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1207- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (F) 		8-98080-833-1 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 1207-1209 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98133-654-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-106-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-288-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98220-580-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98220-580-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
04.685 (D) 		8-97386-605-0 01 1 1207-1209 ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
04.685 (D) 		8-97386-605-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
(E) 		8-98097-788-0 01 1 1207-1209 ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98097-788-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
(E) 		8-98097-788-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98051-652-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-596-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98058-596-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYPE<7KJ> (C) 		8-98135-521-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98135-521-0 01 1 1210- ●
çizim 286271
236 136 122 136 136 78 136 136 158 78 136 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 04.930 PIPE; VAC,MAG VLV 8-98040-634-0 01 1 1207- ●
44 04.930 PIPE; VAC,MAG VLV 8-98034-281-1 01 1 1207-1209 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> 		8-98034-281-1 01 1 1210- ●
44 04.930 PIPE; VAC,MAG VLV 8-98034-281-1 01 1 1210- ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98063-777-0 01 1 1210- ●
44 04.930 PIPE; VAC,MAG VLV 8-98063-777-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1207- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1207- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (F) 		8-98080-833-1 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 1207-1209 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98133-654-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-106-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-288-0 01 1 1210- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-105-0 01 1 1207- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1207-1209 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98189-104-0 01 1 1210- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1210- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1210- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 1210- ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1207-1209 ● ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1210- ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1210- ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1210- ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 02 1 1210- ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 04 1 1210- ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 1210- ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1207-1209 ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1210- ● ● ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1207- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207-1209 ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ● ● ●
çizim 286272
116 66 66 169 75 116 169 66 66 169 66 116 66 235 108
BalonParca AdiParca NoAdetTipApplied Date A B C D
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1207-1209 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1210- ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1210- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1210- ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1210- ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1207-1209 ● ● ●
75 04.930 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1210- ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1210- ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1207-1209 ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1210- ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1207-1209 ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1210- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (C) 		8-98041-053-4 01 1 1207-1209 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-053-4 01 1 1207-1209 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (C) 		8-98041-053-4 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-053-4 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98067-259-2 01 1 1207-1209 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98067-259-2 01 1 1207-1209 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98067-259-2 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98067-259-2 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98067-259-2 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98067-259-2 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(B) 		8-98154-771-1 01 1 1207-1209 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98154-771-1 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(B) 		8-98154-771-1 01 1 1210- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 1207-1209 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98048-903-0 01 1 1207-1209 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98048-903-0 01 1 1210- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98048-903-0 01 1 1210- ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1207-1209 ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1210- ● ● ● ●
çizim 286274
202 165 234 184 39 20 234 234 116 96 116 12 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 1207-1209 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 1207-1209 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 1210- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 1210- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 10 1 1207-1209 ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 10 1 1210- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1207-1209 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1207-1209 ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1210- ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1210- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1207-1209 ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 03 1 1210- ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1207-1209 ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1210- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1207-1209 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1207-1209 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1210- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1210- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-548-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1207-1209 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1207-1209 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1210- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1207-1209 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1210-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(D) 		8-98255-535-0 01 1 1312- ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1207-1209 ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1210- ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1207-1209 ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1207-1209 ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1210- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1210- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1210- ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1210- ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1207-1209 ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 1210- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1210- ● ●
çizim 286717
108 80 85 66 66 116 116 80 78 80 39 98 96 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1207-1209 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1210- ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1210- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1210- ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1207- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1207- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (F) 		8-98080-833-1 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 1207-1209 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98133-654-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1207-1209 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-106-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1210- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-288-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98220-580-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98220-580-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
04.685 (D) 		8-97386-605-0 01 1 1207-1209 ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
04.685 (D) 		8-97386-605-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
(E) 		8-98097-788-0 01 1 1207-1209 ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98097-788-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
(E) 		8-98097-788-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98051-652-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-596-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98058-596-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYPE<7KJ> (C) 		8-98135-521-0 01 1 1210- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98135-521-0 01 1 1210- ●
85 04.931 HOSE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1210- ●
85 04.931 HOSE; VAC,ENG SIDE
AIR CONDITIONER MANUAL CONT(C60) 		8-97389-705-2 01 1 1210- ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYPE<7KJ> 		8-98135-573-0 01 1 1210- ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-98135-573-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1207-1209 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1207-1209 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1210- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1210- ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1207-1209 ● ● ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1207-1209 ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1210- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1210- ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1210- ●
98 04.931 BOLT; VAC PIPE FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207-1209 ● ●
98 04.931 BOLT; VAC PIPE FIX
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207-1209 ● ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
98 04.931 BOLT; VAC PIPE FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
98 04.931 BOLT; VAC PIPE FIX
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1207-1209 ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1210- ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1207-1209 ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1210- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
çizim 286719
184 184 165 184 165 39 116 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1210- ● ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1207-1209 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1207-1209 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1207-1209 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1207-1209 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1210- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1207-1209 ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1210- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1210- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1210- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1207-1209 ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1210- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-548-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1207-1209 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1207-1209 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1210- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1207-1209 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1210-1311 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1210-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(D) 		8-98255-535-0 01 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
