Isuzu WW
▶
TRUCKS
▶
FRR
▶
10826 - FRR/FSR/FRD(AUST)
▶
5 - Frame, Cab Mounting
▶

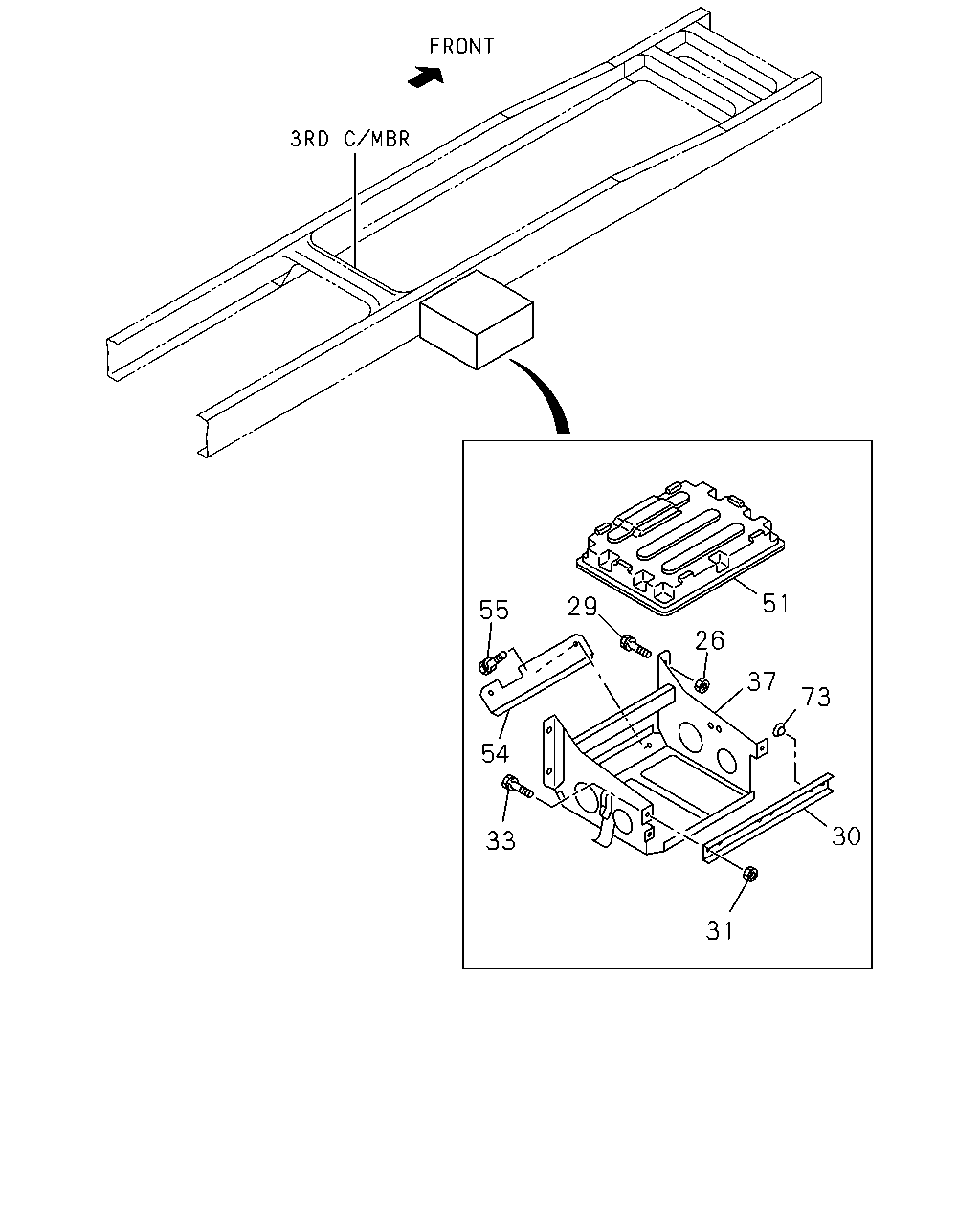

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#9422) — 22 parça
Tümü
A - FRR5MF
B - FRR5WF
C - FSR5MF
D - FRD5MF
51
29
55
26
37
73
54
30
33
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
26
NUT; BRKT
M10
9-09110-510-0
04
1
0005-0411
●
●
●
26
NUT; BRKT
M10
9-09110-510-0
04
1
0412-0512
●
●
●
●
26
NUT; BRKT
M10
0-91110-510-0
04
1
0601-
●
●
●
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28681-035-0
04
1
0005-0411
●
●
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28681-035-0
04
1
0412-0512
●
●
●
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
0601-
●
●
●
●
30
PLATE; BATTERY
1-53616-046-3
01
1
0005-0411
●
●
●
30
PLATE; BATTERY
1-53616-046-3
01
1
0412-
●
●
●
●
31
NUT; PLATE
M8
9-09110-408-0
02
1
0005-0411
●
●
●
31
NUT; PLATE
M8
9-09110-408-0
02
1
0412-0512
●
●
●
●
31
NUT; PLATE
M8
0-91110-508-0
02
1
0601-
●
●
●
●
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0005-0411
●
●
●
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0412-0512
●
●
●
●
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
●
●
37
BRACKET; BATTERY
1-53613-354-3
01
1
0005-0411
●
●
●
37
BRACKET; BATTERY
1-53613-354-3
01
1
0412-
●
●
●
●
51
COVER; BATTERY
1-53612-019-1
01
1
0005-0411
●
●
●
51
COVER; BATTERY
1-53612-019-1
01
1
0412-
●
●
●
●
54
PROTECTOR; HEAT,BATTERY
1-53619-069-1
01
1
0005-0210
●
55
BOLT; HEAT PROTECTOR
M8X20 FLANGE
0-28680-820-0
02
1
0005-0210
●
73
RUBBER; CUSHION,PLATE
1-09337-002-0
04
1
0005-0411
●
●
●
73
RUBBER; CUSHION,PLATE
1-09337-002-0
04
1
0412-
●
●
●
●
