3-55 — BRAKE PIPING; OIL,REAR (#94218) — 121 parça

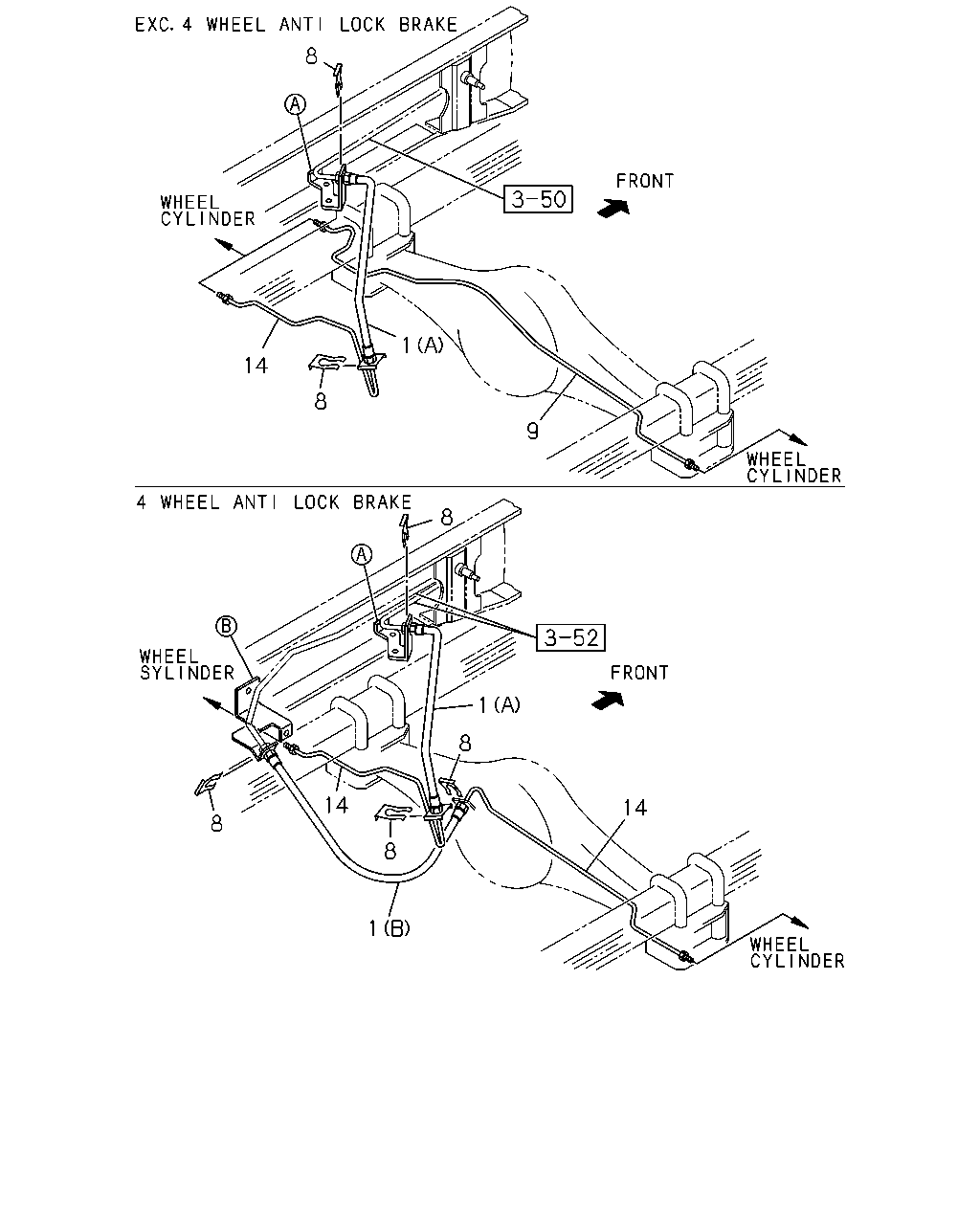

14 1 8 8 1 14 8 8 9 8 14 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.680 HOSE; FLEX,RR BRK (C)	8-97253-569-0	01	1	1207-1209	●	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97253-569-0	01	1	1210-	●
1	04.680 HOSE; FLEX,RR BRK (C)	8-97253-569-0	01	1	1210-		●
1	04.680 HOSE; FLEX,RR BRK (C)	8-97253-570-0	01	1	1207-1209	●	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97253-570-0	01	1	1210-	●
1	04.680 HOSE; FLEX,RR BRK (C)	8-97253-570-0	01	1	1210-		●
1	04.680 HOSE; FLEX,RR BRK (C) L=405	8-97089-061-0	01	1	1207-1209			●
1	04.680 HOSE; FLEX,RR BRK FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405	8-97089-061-0	01	1	1210-	●
1	04.680 HOSE; FLEX,RR BRK (C) L=405	8-97089-061-0	01	1	1210-			●
1	04.680 HOSE; FLEX,RR BRK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310	8-97035-063-1	01	1	1210-	●
1	04.680 HOSE; FLEX,RR BRK (A) L=310	8-97035-063-1	01	1	1210-				●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345	8-97230-284-1	01	1	1210-	●
8	04.686 CLIP; RR BRK	8-97360-054-0	04	1	1207-1209	●	●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	04	1	1210-	●
8	04.686 CLIP; RR BRK	8-97360-054-0	04	1	1210-		●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	1207-1209			●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	02	1	1210-	●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	1210-			●	●
9	04.685 PIPE; BRK,RR AXLE	8-98026-057-0	01	1	1207-1507			●
9	04.685 PIPE; BRK,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98026-057-0	01	1	1508-	●
9	04.685 PIPE; BRK,RR AXLE	8-98026-057-0	01	1	1508-			●
9	04.685 PIPE; BRK,RR AXLE	8-98072-007-0	01	1	1210-				●
9	04.685 PIPE; BRK,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98039-603-0	01	1	1210-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-749-0	01	1	1207-1209	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY)	8-97359-749-0	01	1	1210-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-748-0	01	1	1207-1209	●		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY)	8-97359-748-0	01	1	1210-1507	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-748-0	01	1	1210-1507			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY)	8-97359-748-0	01	1	1508-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-748-0	01	1	1508-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-746-0	01	1	1207-1209		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV)	8-97359-746-0	01	1	1210-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-746-0	01	1	1210-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-747-0	01	1	1207-1209		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV)	8-97359-747-0	01	1	1210-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-747-0	01	1	1210-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98027-461-0	01	1	1210-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-98027-461-0	01	1	1210-				●

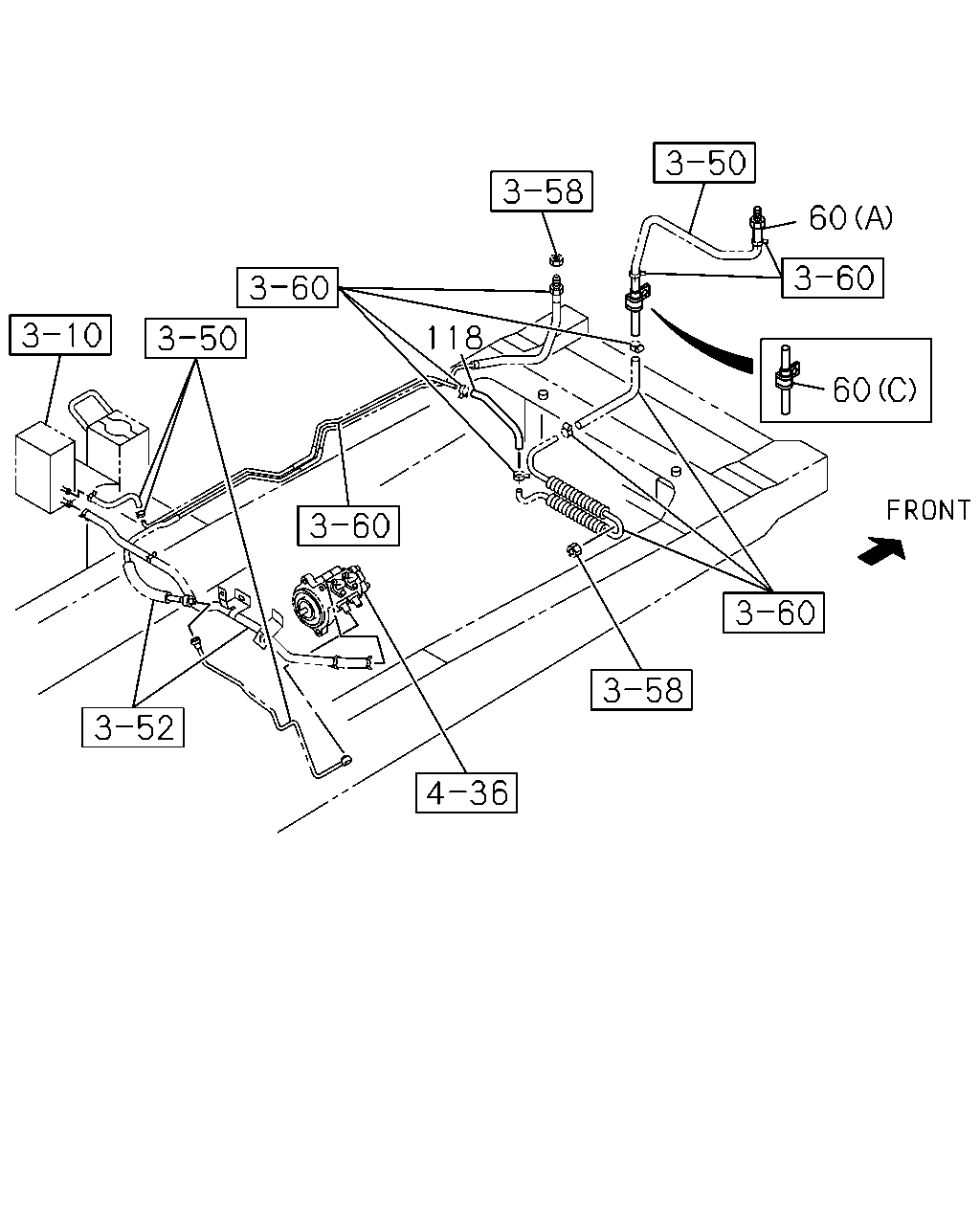

118 60 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
60	04.685 PIPE ASM; BRK (B)	8-98041-326-1	01	1	1207-1209	●	●
60	04.685 PIPE ASM; BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98041-326-1	01	1	1210-	●
60	04.685 PIPE ASM; BRK (B)	8-98041-326-1	01	1	1210-		●
60	04.685 PIPE ASM; BRK (A)	8-98080-549-0	01	1	1207-1209	●	●
60	04.685 PIPE ASM; BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-549-0	01	1	1210-	●
60	04.685 PIPE ASM; BRK (A)	8-98080-549-0	01	1	1210-		●
60	04.685 PIPE ASM; BRK (C)	8-98088-313-1	01	1	1207-1209	●	●
60	04.685 PIPE ASM; BRK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98088-313-1	01	1	1210-	●
60	04.685 PIPE ASM; BRK (C)	8-98088-313-1	01	1	1210-		●
118	04.680 HOSE; PIPE TO PIPE	8-98158-200-0	01	1	1207-1209	●	●
118	04.680 HOSE; PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ)	8-98158-200-0	01	1	1210-	●
118	04.680 HOSE; PIPE TO PIPE	8-98158-200-0	01	1	1210-		●

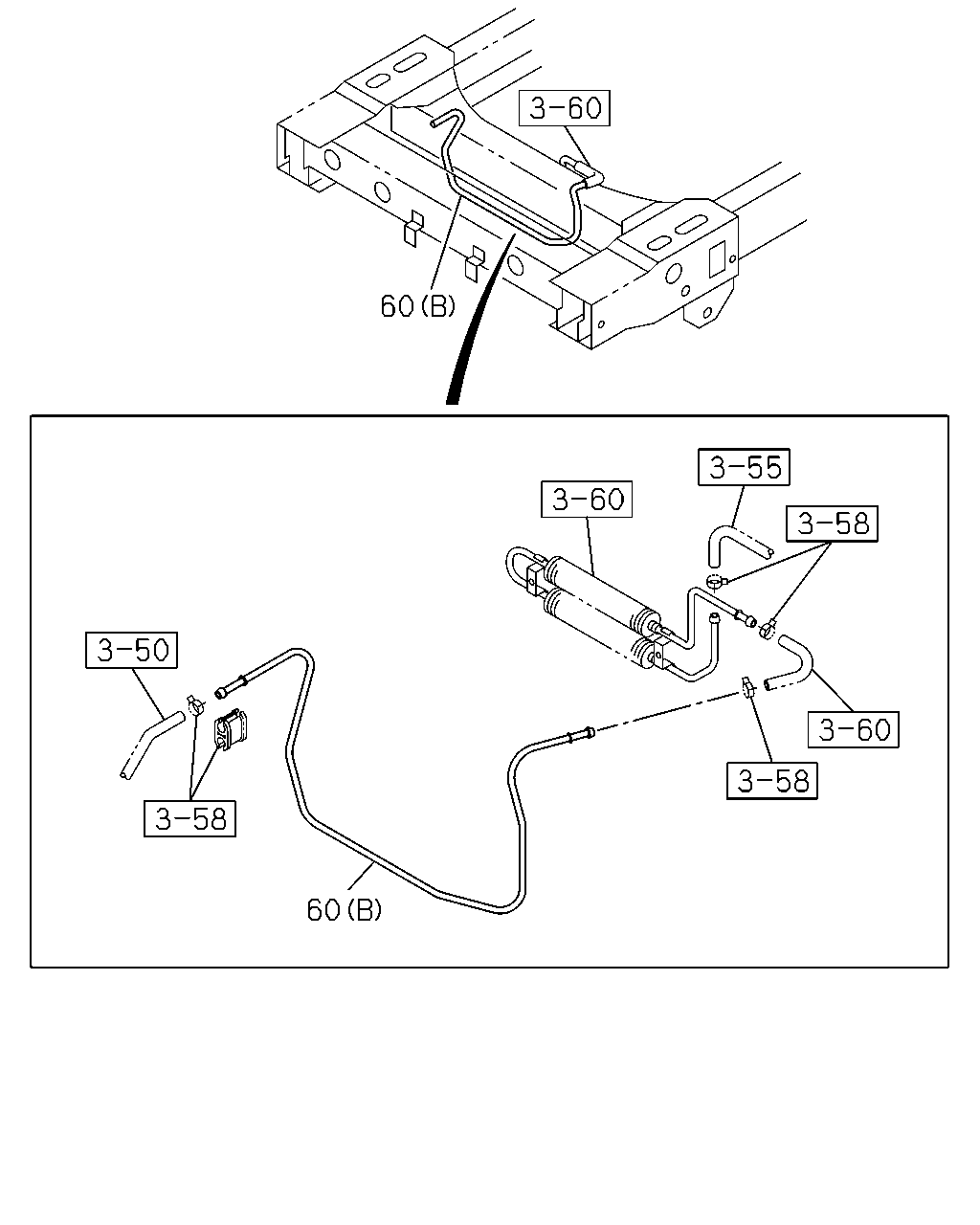

60 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
60	04.685 PIPE ASM; BRK (B)	8-98041-326-1	01	1	1207-1209	●	●
60	04.685 PIPE ASM; BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98041-326-1	01	1	1210-	●
60	04.685 PIPE ASM; BRK (B)	8-98041-326-1	01	1	1210-		●
60	04.685 PIPE ASM; BRK (A)	8-98080-549-0	01	1	1207-1209	●	●
60	04.685 PIPE ASM; BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-549-0	01	1	1210-	●
60	04.685 PIPE ASM; BRK (A)	8-98080-549-0	01	1	1210-		●
60	04.685 PIPE ASM; BRK (C)	8-98088-313-1	01	1	1207-1209	●	●
60	04.685 PIPE ASM; BRK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98088-313-1	01	1	1210-	●
60	04.685 PIPE ASM; BRK (C)	8-98088-313-1	01	1	1210-		●

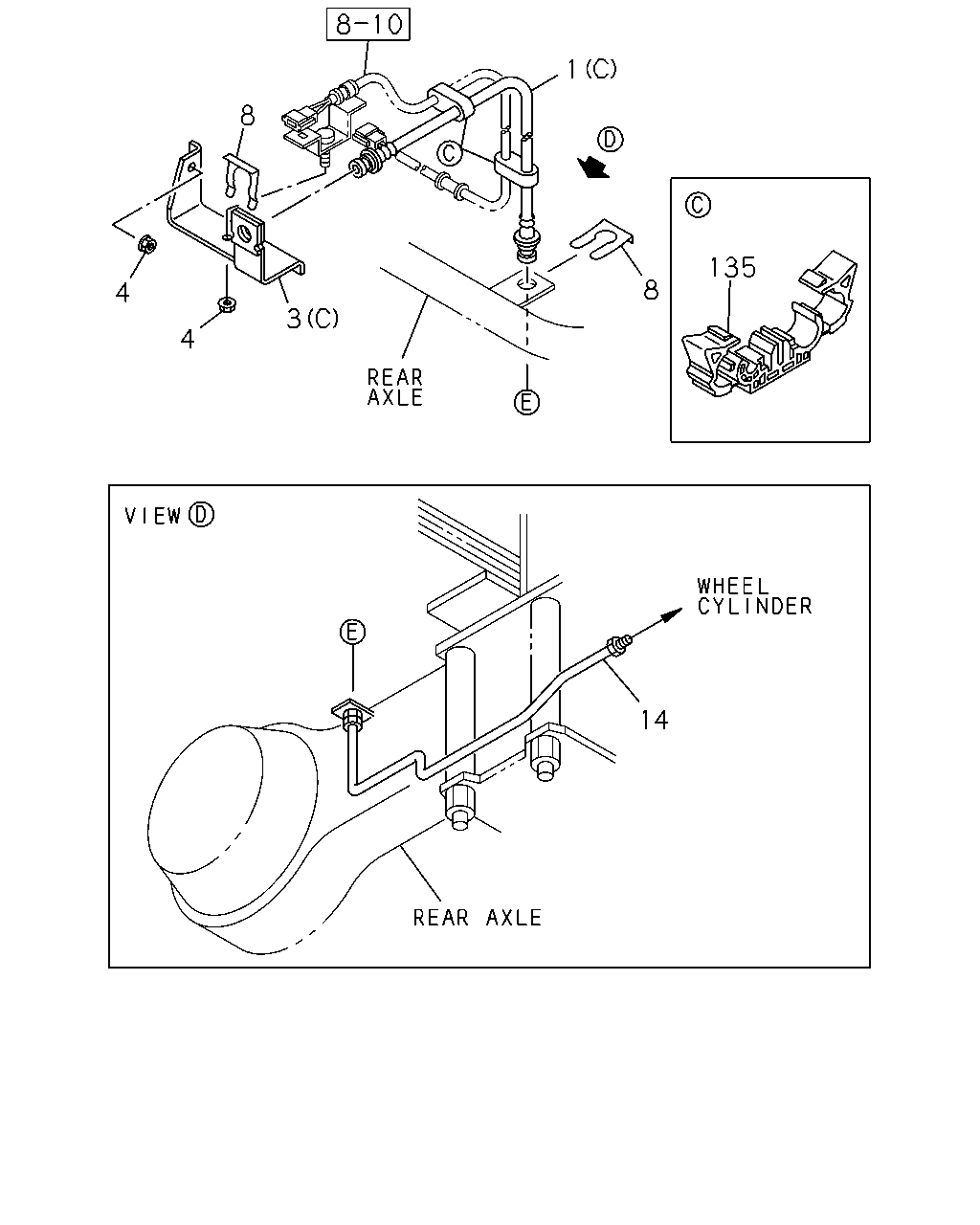

14 135 3 4 4 8 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.680 HOSE; FLEX,RR BRK (C)	8-97253-569-0	01	1	1207-1209	●	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97253-569-0	01	1	1210-	●
1	04.680 HOSE; FLEX,RR BRK (C)	8-97253-569-0	01	1	1210-		●
1	04.680 HOSE; FLEX,RR BRK (C)	8-97253-570-0	01	1	1207-1209	●	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97253-570-0	01	1	1210-	●
1	04.680 HOSE; FLEX,RR BRK (C)	8-97253-570-0	01	1	1210-		●
1	04.680 HOSE; FLEX,RR BRK (C) L=405	8-97089-061-0	01	1	1207-1209			●
1	04.680 HOSE; FLEX,RR BRK FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405	8-97089-061-0	01	1	1210-	●
1	04.680 HOSE; FLEX,RR BRK (C) L=405	8-97089-061-0	01	1	1210-			●
1	04.680 HOSE; FLEX,RR BRK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310	8-97035-063-1	01	1	1210-	●
1	04.680 HOSE; FLEX,RR BRK (A) L=310	8-97035-063-1	01	1	1210-				●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345	8-97230-284-1	01	1	1210-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (C)	8-97205-714-1	01	1	1207-1209	●	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (C)	8-97205-714-1	01	1	1207-1209	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97205-714-1	01	1	1210-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK FRAME STRAIGHT TYPE<7KJ> (C)	8-97205-714-1	01	1	1210-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (C)	8-97205-714-1	01	1	1210-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (C)	8-97205-714-1	01	1	1210-		●
3	04.681 BRACKET; FLEX HOSE,RR BRK EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A)	8-97205-199-1	01	1	1210-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 04.845 (A)	8-97205-199-1	01	1	1210-				●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98117-514-1	01	1	1210-	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-1209	●	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-		●
8	04.686 CLIP; RR BRK	8-97360-054-0	04	1	1207-1209	●	●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	04	1	1210-	●
8	04.686 CLIP; RR BRK	8-97360-054-0	04	1	1210-		●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	1207-1209			●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	02	1	1210-	●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	1210-			●	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-749-0	01	1	1207-1209	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY)	8-97359-749-0	01	1	1210-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-748-0	01	1	1207-1209	●		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY)	8-97359-748-0	01	1	1210-1507	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-748-0	01	1	1210-1507			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY)	8-97359-748-0	01	1	1508-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-748-0	01	1	1508-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-746-0	01	1	1207-1209		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV)	8-97359-746-0	01	1	1210-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-746-0	01	1	1210-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-747-0	01	1	1207-1209		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV)	8-97359-747-0	01	1	1210-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-747-0	01	1	1210-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98027-461-0	01	1	1210-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-98027-461-0	01	1	1210-				●
135	04.686 CLIP; FLEX HOSE	8-97207-699-0	04	1	1207-1209	●	●
135	04.686 CLIP; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97207-699-0	04	1	1210-	●
135	04.686 CLIP; FLEX HOSE	8-97207-699-0	04	1	1210-		●

3 3 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	04.681 BRACKET; FLEX HOSE,RR BRK (C)	8-97205-714-1	01	1	1207-1209	●	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (C)	8-97205-714-1	01	1	1207-1209	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97205-714-1	01	1	1210-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK FRAME STRAIGHT TYPE<7KJ> (C)	8-97205-714-1	01	1	1210-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (C)	8-97205-714-1	01	1	1210-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (C)	8-97205-714-1	01	1	1210-		●
3	04.681 BRACKET; FLEX HOSE,RR BRK EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A)	8-97205-199-1	01	1	1210-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 04.845 (A)	8-97205-199-1	01	1	1210-				●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98117-514-1	01	1	1210-	●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1207-1209	●	●	●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1207-1209	●	●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1210-	●	●	●	●
25	04.686 CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT	0-92107-005-0	01	1	1210-	●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1210-		●
