Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#94217) — 166 parça

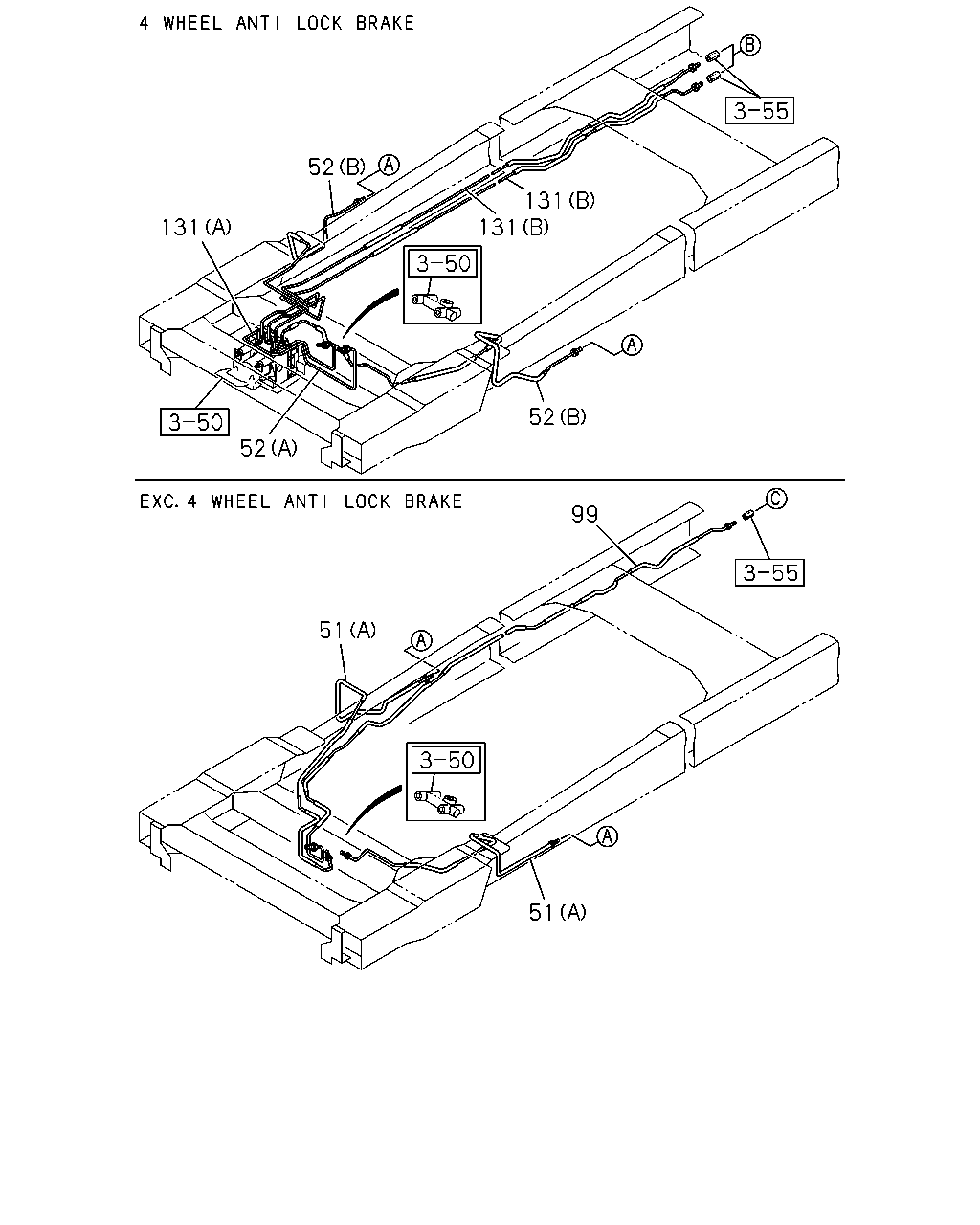

51 51 99 52 52 131 52 131 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
51	04.685 PIPE; BRK (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1207-	●
51	04.685 PIPE; BRK (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98159-906-0	01	1	1207-	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-055-0	01	1	1207-1209		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-055-0	01	1	1210-		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98154-660-1	01	1	1207-1209		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98154-660-1	01	1	1210-		●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1207-1209		●
51	04.685 PIPE; BRK (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1207-1209			●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1210-		●
51	04.685 PIPE; BRK (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1210-			●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-451-2	01	1	1207-1209		●
51	04.685 PIPE; BRK (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-451-2	01	1	1207-1209			●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-451-2	01	1	1210-		●
51	04.685 PIPE; BRK (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-451-2	01	1	1210-			●
51	04.685 PIPE; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98051-643-1	01	1	1210-		●
51	04.685 PIPE; BRK (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98051-643-1	01	1	1210-				●
51	04.685 PIPE; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98106-598-0	01	1	1210-		●
51	04.685 PIPE; BRK (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98106-598-0	01	1	1210-				●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-520-1	01	1	1210-		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-533-1	01	1	1210-		●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-521-1	01	1	1210-		●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-534-1	01	1	1210-		●
52	04.685 PIPE; BRK WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR	8-98159-766-0	01	1	1207-	●
52	04.685 PIPE; BRK (D)	8-98036-162-0	01	1	1207-1209	●	●
52	04.685 PIPE; BRK HYDRO BRAKE BOOSTER(7QQ) (D)	8-98036-162-0	01	1	1210-		●
52	04.685 PIPE; BRK (D)	8-98036-162-0	01	1	1210-	●
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1207-1209		●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1210-		●
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1210-			●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98033-765-2	01	1	1207-1209		●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98033-765-2	01	1	1210-		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98033-765-2	01	1	1210-			●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98159-905-0	01	1	1207-1209		●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH	8-98159-905-0	01	1	1210-		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98159-905-0	01	1	1210-			●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR	8-98168-430-0	01	1	1207-1209	●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-430-0	01	1	1210-		●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR	8-98168-430-0	01	1	1210-	●
52	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-319-0	01	1	1210-		●
52	04.685 PIPE; BRK (C) 2WAY TO REAR	8-98056-319-0	01	1	1210-				●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98046-877-2	01	1	1210-		●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98046-878-1	01	1	1210-		●
52	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98168-429-0	01	1	1210-		●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-415-0	01	1	1210-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1207-1209	●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1210-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1210-	●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR	8-97389-415-2	01	1	1210-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4/6WAY TO 2WAY,REAR	8-97389-415-2	01	1	1210-				●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (A) 4WAY TO HU,REAR	8-97389-372-2	01	1	1207-1209		●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR	8-97389-372-2	01	1	1210-		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (A) 4WAY TO HU,REAR	8-97389-372-2	01	1	1210-			●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98033-767-1	01	1	1207-1209		●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98033-767-1	01	1	1210-		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98033-767-1	01	1	1210-			●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98033-768-1	01	1	1207-1209		●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98033-768-1	01	1	1210-		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98033-768-1	01	1	1210-			●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98192-805-0	01	1	1210-		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98192-818-0	01	1	1210-		●

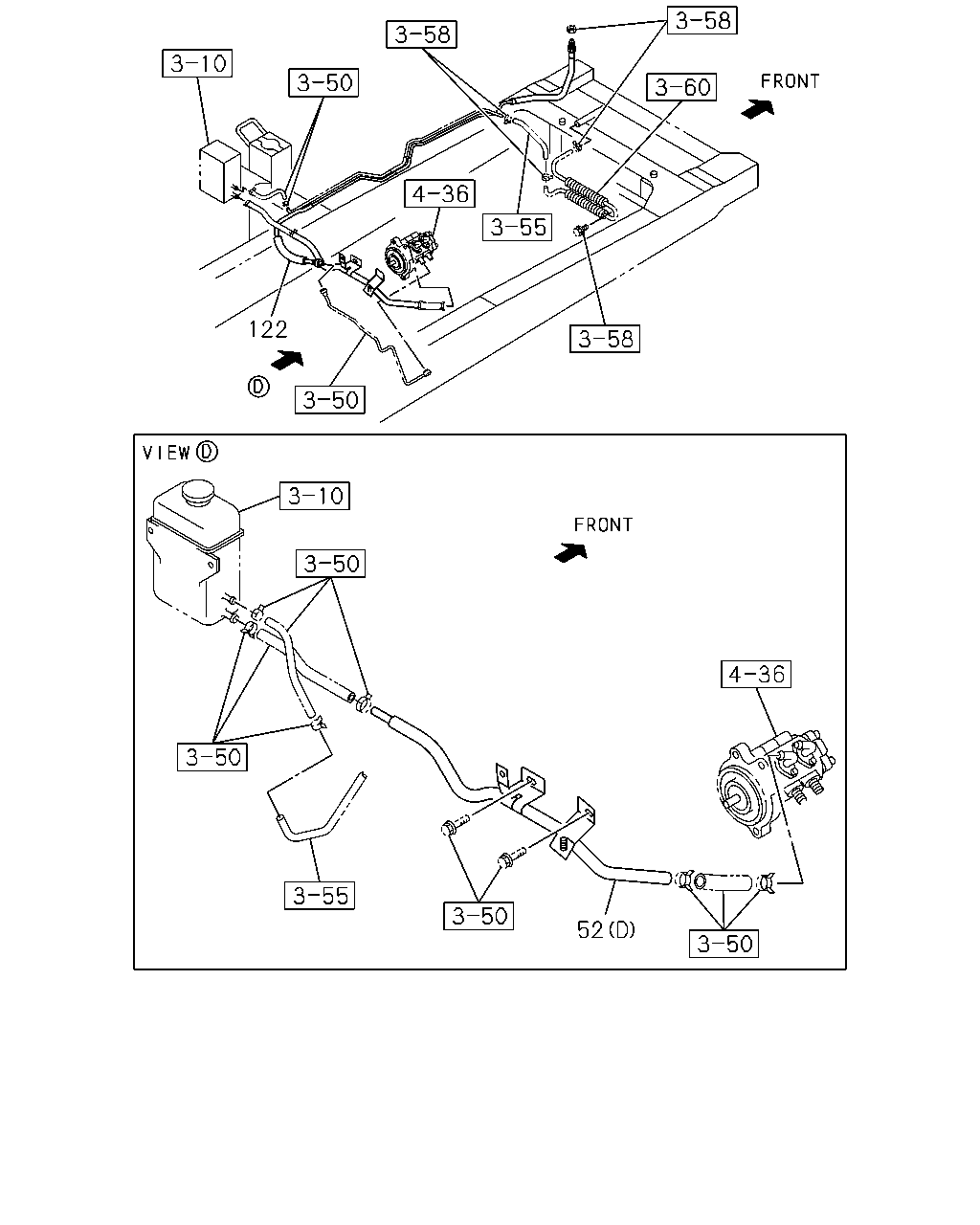

52 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	04.685 PIPE; BRK WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR	8-98159-766-0	01	1	1207-	●
52	04.685 PIPE; BRK (D)	8-98036-162-0	01	1	1207-1209	●	●
52	04.685 PIPE; BRK HYDRO BRAKE BOOSTER(7QQ) (D)	8-98036-162-0	01	1	1210-		●
52	04.685 PIPE; BRK (D)	8-98036-162-0	01	1	1210-	●
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1207-1209		●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1210-		●
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1210-			●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98033-765-2	01	1	1207-1209		●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98033-765-2	01	1	1210-		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98033-765-2	01	1	1210-			●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98159-905-0	01	1	1207-1209		●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH	8-98159-905-0	01	1	1210-		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98159-905-0	01	1	1210-			●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR	8-98168-430-0	01	1	1207-1209	●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-430-0	01	1	1210-		●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR	8-98168-430-0	01	1	1210-	●
52	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-319-0	01	1	1210-		●
52	04.685 PIPE; BRK (C) 2WAY TO REAR	8-98056-319-0	01	1	1210-				●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98046-877-2	01	1	1210-		●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98046-878-1	01	1	1210-		●
52	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98168-429-0	01	1	1210-		●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-415-0	01	1	1210-		●
122	04.685 PIPE ASM; BRK,2 WAY L=1839	8-98136-573-0	01	1	1207-1209	●	●
122	04.685 PIPE ASM; BRK,2 WAY HYDRO BRAKE BOOSTER(7QQ) L=1839	8-98136-573-0	01	1	1210-		●
122	04.685 PIPE ASM; BRK,2 WAY L=1839	8-98136-573-0	01	1	1210-	●

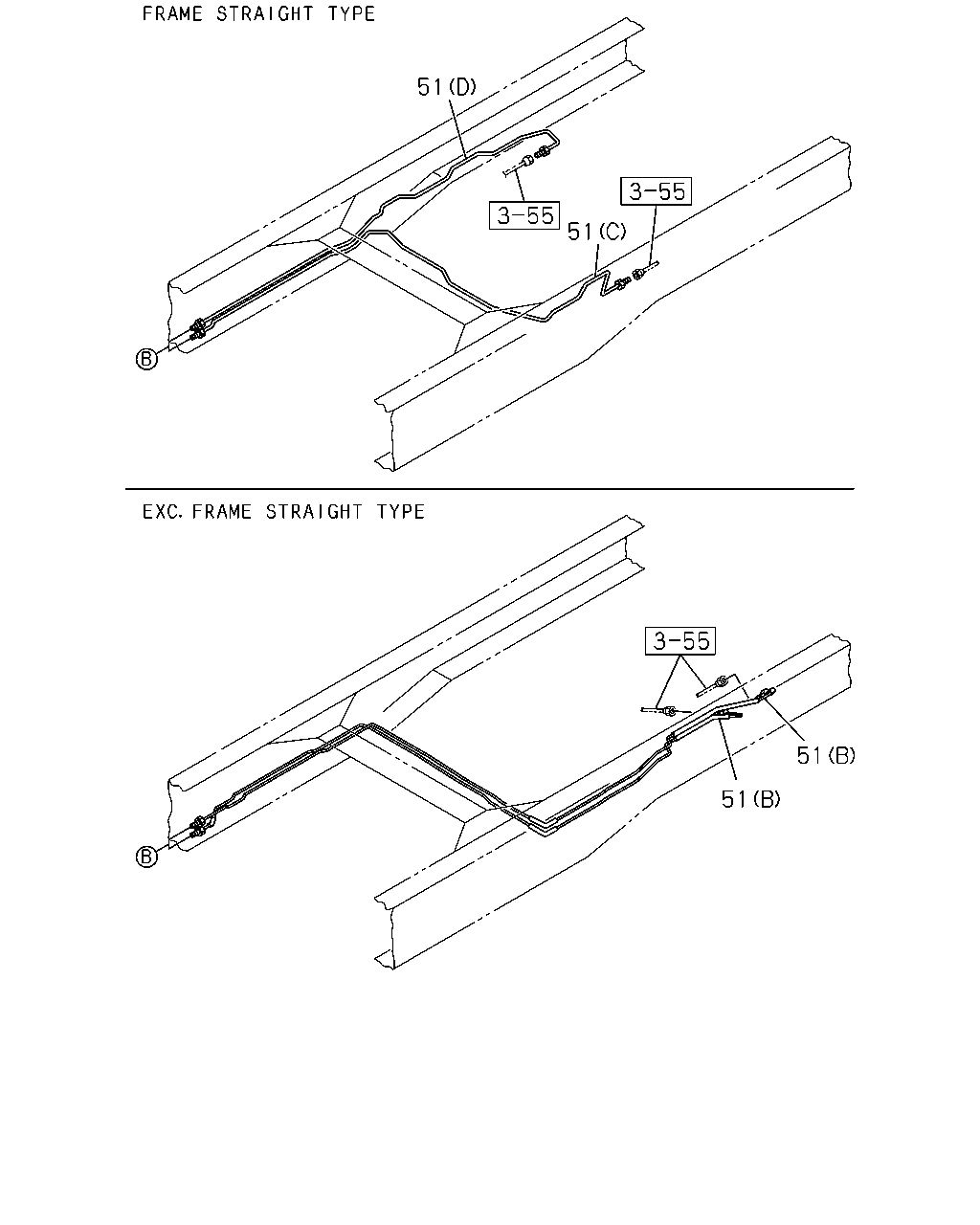

51 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
51	04.685 PIPE; BRK (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1207-	●
51	04.685 PIPE; BRK (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98159-906-0	01	1	1207-	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-055-0	01	1	1207-1209		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-055-0	01	1	1210-		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98154-660-1	01	1	1207-1209		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98154-660-1	01	1	1210-		●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1207-1209		●
51	04.685 PIPE; BRK (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1207-1209			●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1210-		●
51	04.685 PIPE; BRK (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1210-			●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-451-2	01	1	1207-1209		●
51	04.685 PIPE; BRK (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-451-2	01	1	1207-1209			●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-451-2	01	1	1210-		●
51	04.685 PIPE; BRK (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-451-2	01	1	1210-			●
51	04.685 PIPE; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98051-643-1	01	1	1210-		●
51	04.685 PIPE; BRK (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98051-643-1	01	1	1210-				●
51	04.685 PIPE; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98106-598-0	01	1	1210-		●
51	04.685 PIPE; BRK (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98106-598-0	01	1	1210-				●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-520-1	01	1	1210-		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-533-1	01	1	1210-		●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-521-1	01	1	1210-		●
51	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-534-1	01	1	1210-		●

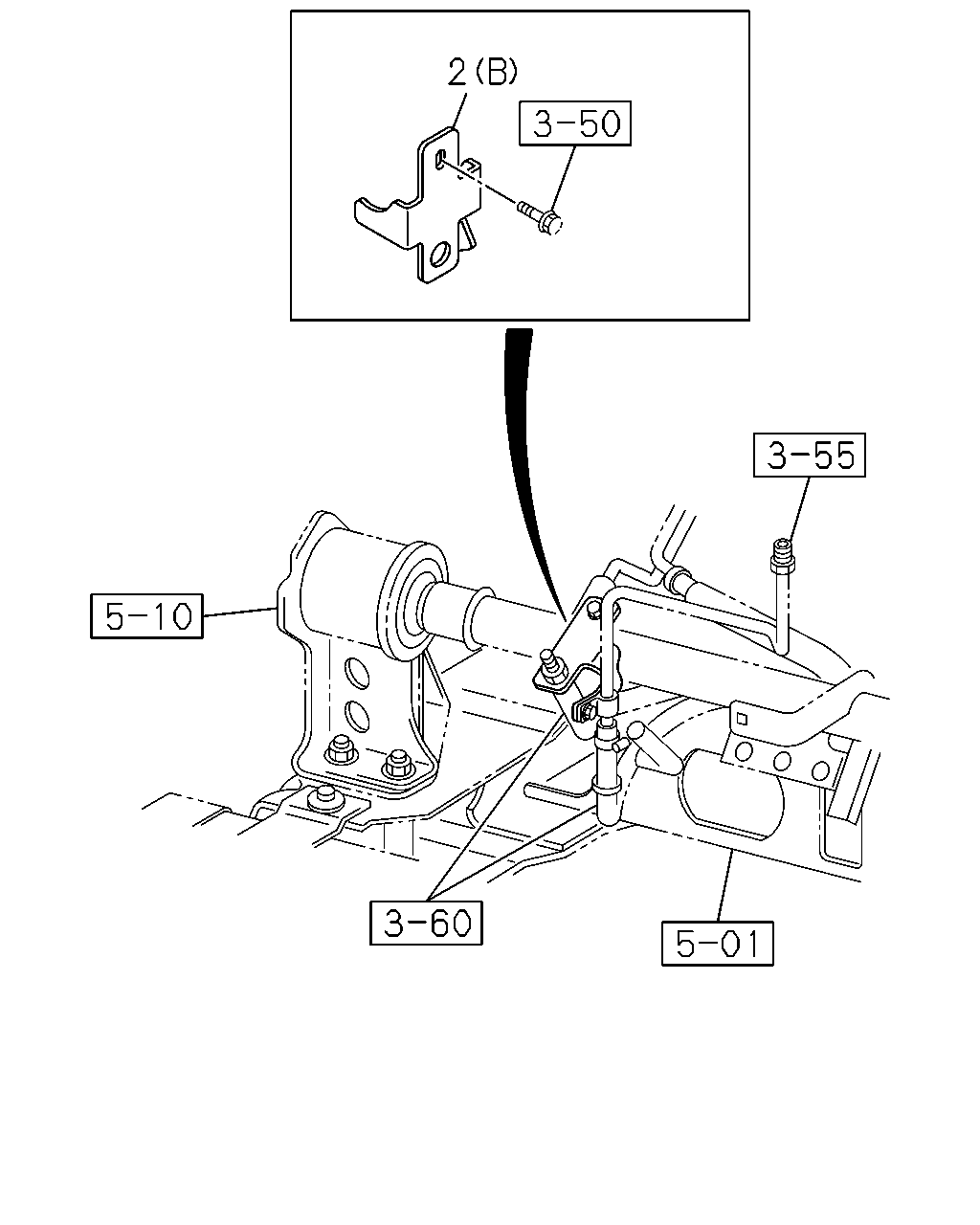

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	04.681 BRACKET; FLEX HOSE,FRT BRK (B)	8-98136-577-0	01	1	1207-1209	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98136-577-0	01	1	1210-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (B)	8-98136-577-0	01	1	1210-	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-776-3	01	1	1207-1209		●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRAME STRAIGHT TYPE<7KJ> (A)	8-97365-776-3	01	1	1210-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-776-3	01	1	1210-			●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-778-3	01	1	1207-1209		●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRAME STRAIGHT TYPE<7KJ> (A)	8-97365-778-3	01	1	1210-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-778-3	01	1	1210-			●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-527-1	01	1	1210-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-98047-527-1	01	1	1210-				●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-528-1	01	1	1210-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-98047-528-1	01	1	1210-				●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	04.685 PIPE; BRK WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR	8-98159-766-0	01	1	1207-	●
52	04.685 PIPE; BRK (D)	8-98036-162-0	01	1	1207-1209	●	●
52	04.685 PIPE; BRK HYDRO BRAKE BOOSTER(7QQ) (D)	8-98036-162-0	01	1	1210-		●
52	04.685 PIPE; BRK (D)	8-98036-162-0	01	1	1210-	●
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1207-1209		●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1210-		●
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1210-			●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98033-765-2	01	1	1207-1209		●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98033-765-2	01	1	1210-		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98033-765-2	01	1	1210-			●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98159-905-0	01	1	1207-1209		●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH	8-98159-905-0	01	1	1210-		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98159-905-0	01	1	1210-			●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR	8-98168-430-0	01	1	1207-1209	●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-430-0	01	1	1210-		●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR	8-98168-430-0	01	1	1210-	●
52	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-319-0	01	1	1210-		●
52	04.685 PIPE; BRK (C) 2WAY TO REAR	8-98056-319-0	01	1	1210-				●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98046-877-2	01	1	1210-		●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98046-878-1	01	1	1210-		●
52	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98168-429-0	01	1	1210-		●
52	04.685 PIPE; BRK WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-415-0	01	1	1210-		●

2 9 1 8 8 5 9 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.680 HOSE; FLEX,FRT BRK (B)	8-97039-543-1	02	1	1207-	●
1	04.680 HOSE; FLEX,FRT BRK (A)	8-97365-481-0	02	1	1207-1209		●	●
1	04.680 HOSE; FLEX,FRT BRK (A)	8-97365-481-1	02	1	1210-		●	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (B)	8-98136-577-0	01	1	1207-1209	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98136-577-0	01	1	1210-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (B)	8-98136-577-0	01	1	1210-	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-776-3	01	1	1207-1209		●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRAME STRAIGHT TYPE<7KJ> (A)	8-97365-776-3	01	1	1210-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-776-3	01	1	1210-			●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-778-3	01	1	1207-1209		●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRAME STRAIGHT TYPE<7KJ> (A)	8-97365-778-3	01	1	1210-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-778-3	01	1	1210-			●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-527-1	01	1	1210-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-98047-527-1	01	1	1210-				●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-528-1	01	1	1210-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-98047-528-1	01	1	1210-				●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	1207-1209		●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	1210-		●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1207-1209		●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1210-		●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1207-1209	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1207-1209	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1210-	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1210-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
