Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#94216) — 227 parça

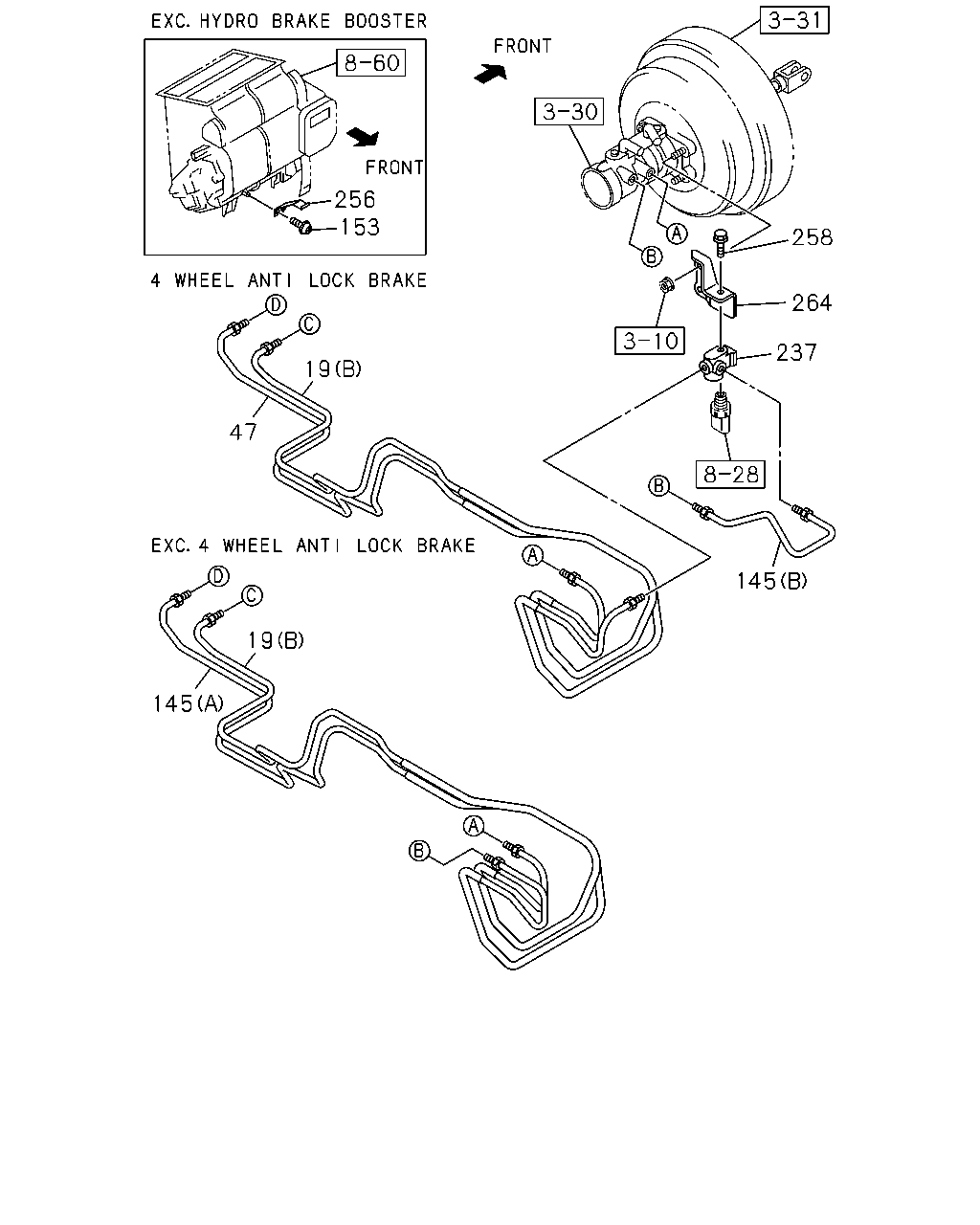

145 237 264 258 256 153 19 47 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	1207-1209	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	1210-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1207-1209	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98098-682-1	01	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1210-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1207-1209			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1210-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1207-1209			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1210-			●	●
47	04.685 PIPE; OIL,FRT BRK L=1148	8-98133-414-0	01	1	1207-1209	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	1210-	●
47	04.685 PIPE; OIL,FRT BRK L=1173	8-98133-413-0	01	1	1207-1209			●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	1210-	●
47	04.685 PIPE; OIL,FRT BRK L=1173	8-98133-413-0	01	1	1210-			●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C) L=268	8-98133-409-0	01	1	1207-1209	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (C) L=268	8-98133-409-0	01	1	1210-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (D)	8-98098-680-1	01	1	1207-1209		●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98098-680-1	01	1	1210-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (D)	8-98098-680-1	01	1	1210-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B) L=201	8-98133-407-0	01	1	1207-1209			●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	1210-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B) L=201	8-98133-407-0	01	1	1210-			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER(7QQ) (A)	8-97389-295-3	01	1	1210-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A)	8-97389-295-3	01	1	1210-				●
153	04.730 SCREW; BRKT FIX 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1207-1209	●	●	●
153	04.730 SCREW; BRKT FIX 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1210-	●	●	●	●
237	04.840 CONNECTOR; MODULATOR	8-98111-748-1	01	1	1207-1209	●		●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-748-1	01	1	1210-	●
237	04.840 CONNECTOR; MODULATOR	8-98111-748-1	01	1	1210-			●
256	04.840 BRACKET; BRK PIPE	8-98163-521-0	01	1	1207-1209	●	●	●
256	04.840 BRACKET; BRK PIPE	8-98163-521-0	01	1	1210-	●	●	●	●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1207-1209	●		●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1210-	●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1210-			●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	1207-1209	●		●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1210-	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	1210-			●

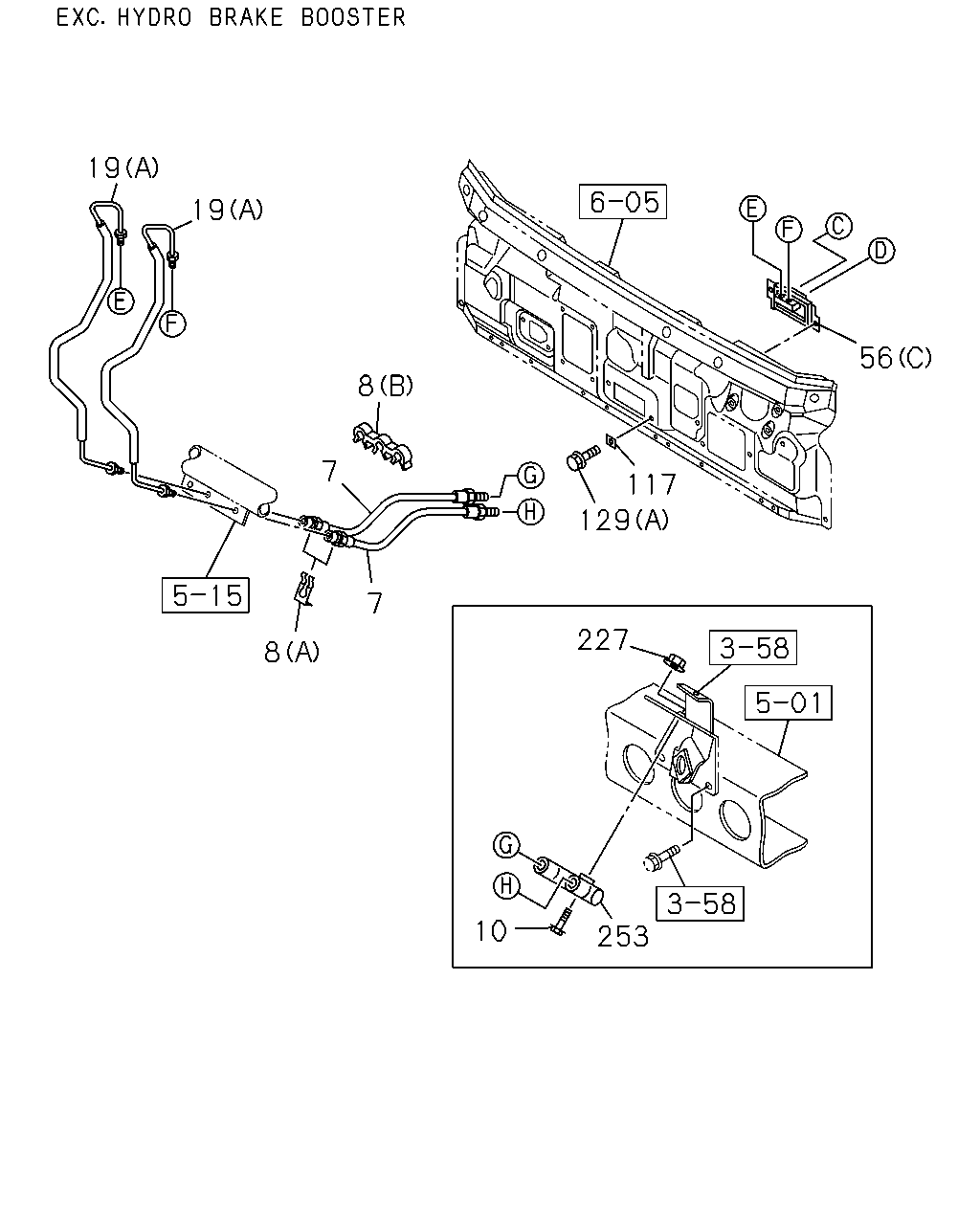

253 10 227 129 117 56 19 19 8 7 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1207-1209	●	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1210-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1207-1209	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1210-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1207-1209	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1210-	●	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1207-1209	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1210-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	1207-1209	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	1210-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1207-1209	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98098-682-1	01	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1210-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1207-1209			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1210-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1207-1209			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1210-			●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	1207-1209	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	1210-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	1210-		●
56	04.686 BRACKET; UNION,BRK (B)	8-98154-266-1	01	1	1207-1209	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98154-266-1	01	1	1210-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98154-266-1	01	1	1210-		●
56	04.686 BRACKET; UNION,BRK (C)	8-98154-264-1	01	1	1207-1209			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98154-264-1	01	1	1210-	●
56	04.686 BRACKET; UNION,BRK (C)	8-98154-264-1	01	1	1210-			●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1207-1209	●	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1210-	●	●	●	●
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1207-1209	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1210-	●
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1210-		●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1207-1209	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1210-	●	●	●	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-1209	●	●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-	●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-		●	●	●
253	04.840 JOINT	8-97038-940-1	01	1	1207-1209	●		●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1210-	●
253	04.840 JOINT	8-97038-940-1	01	1	1210-			●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1207-1209		●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	5-47456-009-1	01	1	1210-	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1210-		●		●

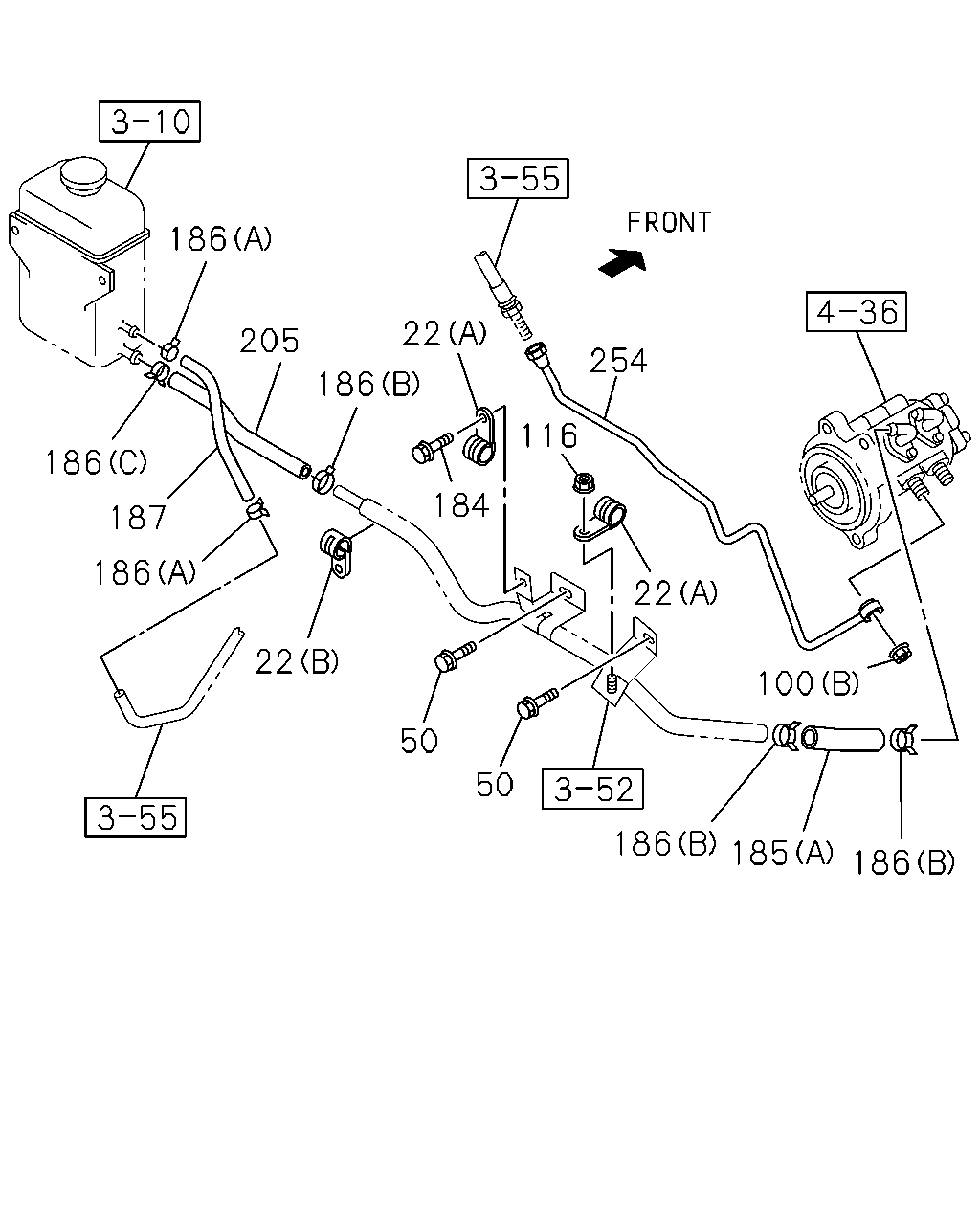

22 50 50 22 100 184 116 254 22 205 186 186 187 186 186 186 185 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.685 CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	1207-1209	●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	1210-	●
22	04.685 CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	1210-		●
22	04.685 CLIP (B) ID=17 L=21	8-98082-035-0	01	1	1207-1209	●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	1210-	●
22	04.685 CLIP (B) ID=17 L=21	8-98082-035-0	01	1	1210-		●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1207-1209	●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1210-	●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1210-		●
100	04.730 NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1207-1209	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1210-	●
100	04.730 NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1210-		●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1207-1209	●		●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1210-	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1210-			●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●
116	04.686 NUT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-		●
184	04.681 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1207-1209	●	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1210-	●
184	04.681 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1210-		●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1207-1209	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1210-	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1210-		●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	1207-1209	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	1210-	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	1210-		●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	02	1	1207-1209	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21	8-94242-034-0	02	1	1210-	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	02	1	1210-		●
186	04.681 CLIP; HOSE 03.278 (C) ID=22	8-97359-141-0	01	1	1207-1209	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22	8-97359-141-0	01	1	1210-	●
186	04.681 CLIP; HOSE 03.278 (C) ID=22	8-97359-141-0	01	1	1210-		●
186	04.681 CLIP; HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	1207-1209	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16	8-98008-098-0	02	1	1210-	●
186	04.681 CLIP; HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	1210-		●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	01	1	1207-1209	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-98150-355-0	01	1	1210-	●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	01	1	1210-		●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1207-1209	●	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1210-	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1210-		●
205	04.681 HOSE; TANK TO PIPE 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1207-1209	●	●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1210-	●
205	04.681 HOSE; TANK TO PIPE 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1210-		●
254	04.685 PIPE; BRAKE,2WAY	8-98036-161-0	01	1	1207-1209	●	●
254	04.685 PIPE; BRAKE,2WAY HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	1210-	●
254	04.685 PIPE; BRAKE,2WAY	8-98036-161-0	01	1	1210-		●

131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	1207-1209	●	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	1210-	●
130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	1210-		●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1207-1209	●	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1210-	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1210-		●

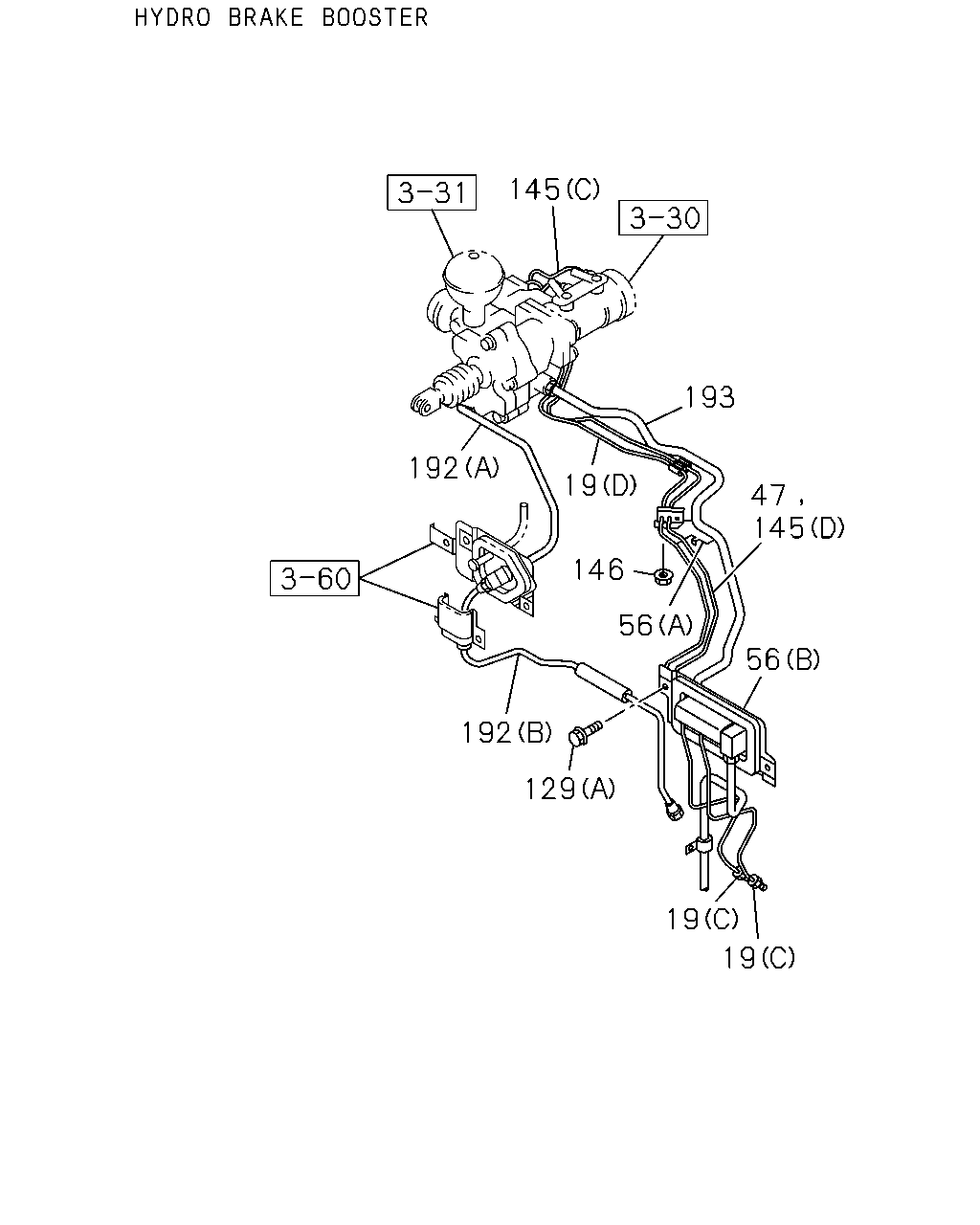

19 19 129 192 56 56 146 145 47 19 192 193 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	1207-1209	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	1210-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1207-1209	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98098-682-1	01	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1210-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1207-1209			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1210-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1207-1209			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	1210-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1210-			●	●
47	04.685 PIPE; OIL,FRT BRK L=1148	8-98133-414-0	01	1	1207-1209	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	1210-	●
47	04.685 PIPE; OIL,FRT BRK L=1173	8-98133-413-0	01	1	1207-1209			●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	1210-	●
47	04.685 PIPE; OIL,FRT BRK L=1173	8-98133-413-0	01	1	1210-			●
56	04.686 BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	1207-1209	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	1210-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	1210-		●
56	04.686 BRACKET; UNION,BRK (B)	8-98154-266-1	01	1	1207-1209	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98154-266-1	01	1	1210-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98154-266-1	01	1	1210-		●
56	04.686 BRACKET; UNION,BRK (C)	8-98154-264-1	01	1	1207-1209			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98154-264-1	01	1	1210-	●
56	04.686 BRACKET; UNION,BRK (C)	8-98154-264-1	01	1	1210-			●	●
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1207-1209	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1210-	●
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1210-		●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1207-1209	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1210-	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C) L=268	8-98133-409-0	01	1	1207-1209	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (C) L=268	8-98133-409-0	01	1	1210-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (D)	8-98098-680-1	01	1	1207-1209		●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98098-680-1	01	1	1210-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (D)	8-98098-680-1	01	1	1210-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B) L=201	8-98133-407-0	01	1	1207-1209			●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	1210-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B) L=201	8-98133-407-0	01	1	1210-			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER(7QQ) (A)	8-97389-295-3	01	1	1210-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A)	8-97389-295-3	01	1	1210-				●
146	04.685 NUT; BRKT 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	1207-1209	●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	1210-	●
146	04.685 NUT; BRKT 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	1210-		●
192	04.685 PIPE; PRESSURE (A)	8-98127-262-0	01	1	1207-1209	●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98127-262-0	01	1	1210-	●
192	04.685 PIPE; PRESSURE (A)	8-98127-262-0	01	1	1210-		●
192	04.685 PIPE; PRESSURE (B)	8-98193-137-0	01	1	1207-1209	●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98193-137-0	01	1	1210-	●
192	04.685 PIPE; PRESSURE (B)	8-98193-137-0	01	1	1210-		●
193	04.685 PIPE; RETURN	8-98098-683-0	01	1	1207-1209	●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98098-683-0	01	1	1210-	●
193	04.685 PIPE; RETURN	8-98098-683-0	01	1	1210-		●

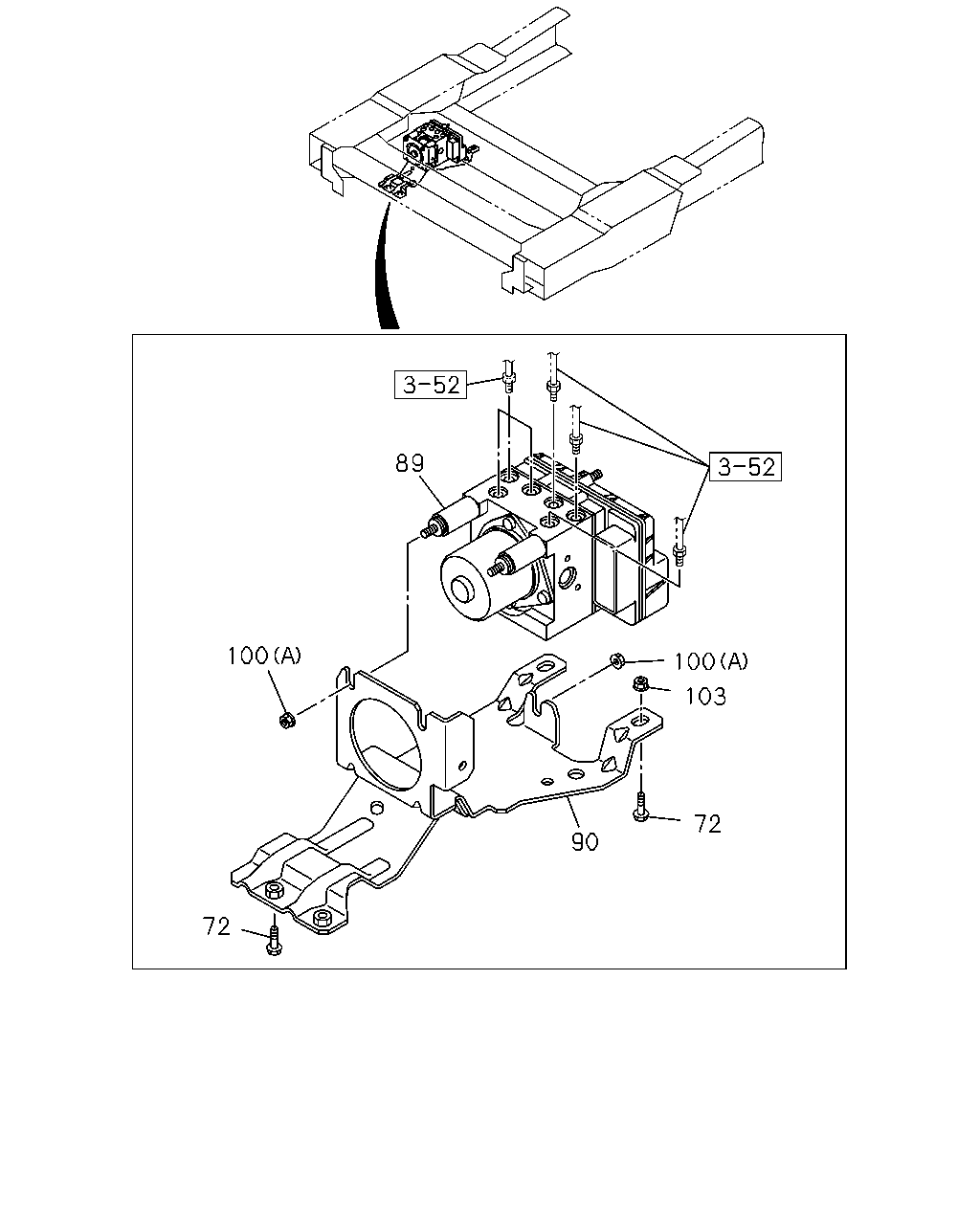

72 90 72 103 100 100 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1207-1209	●		●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1210-	●
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1210-			●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-008-1	01	1	1207-1209	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98158-008-1	01	1	1210-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-007-1	01	1	1207-1209			●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98158-007-1	01	1	1210-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-007-1	01	1	1210-			●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97385-320-0	01	1	1207-1209	●		●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	1210-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97385-320-0	01	1	1210-			●
100	04.730 NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1207-1209	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1210-	●
100	04.730 NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1210-		●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1207-1209	●		●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1210-	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1210-			●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-1209	●		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-1507	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-1507			●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-			●

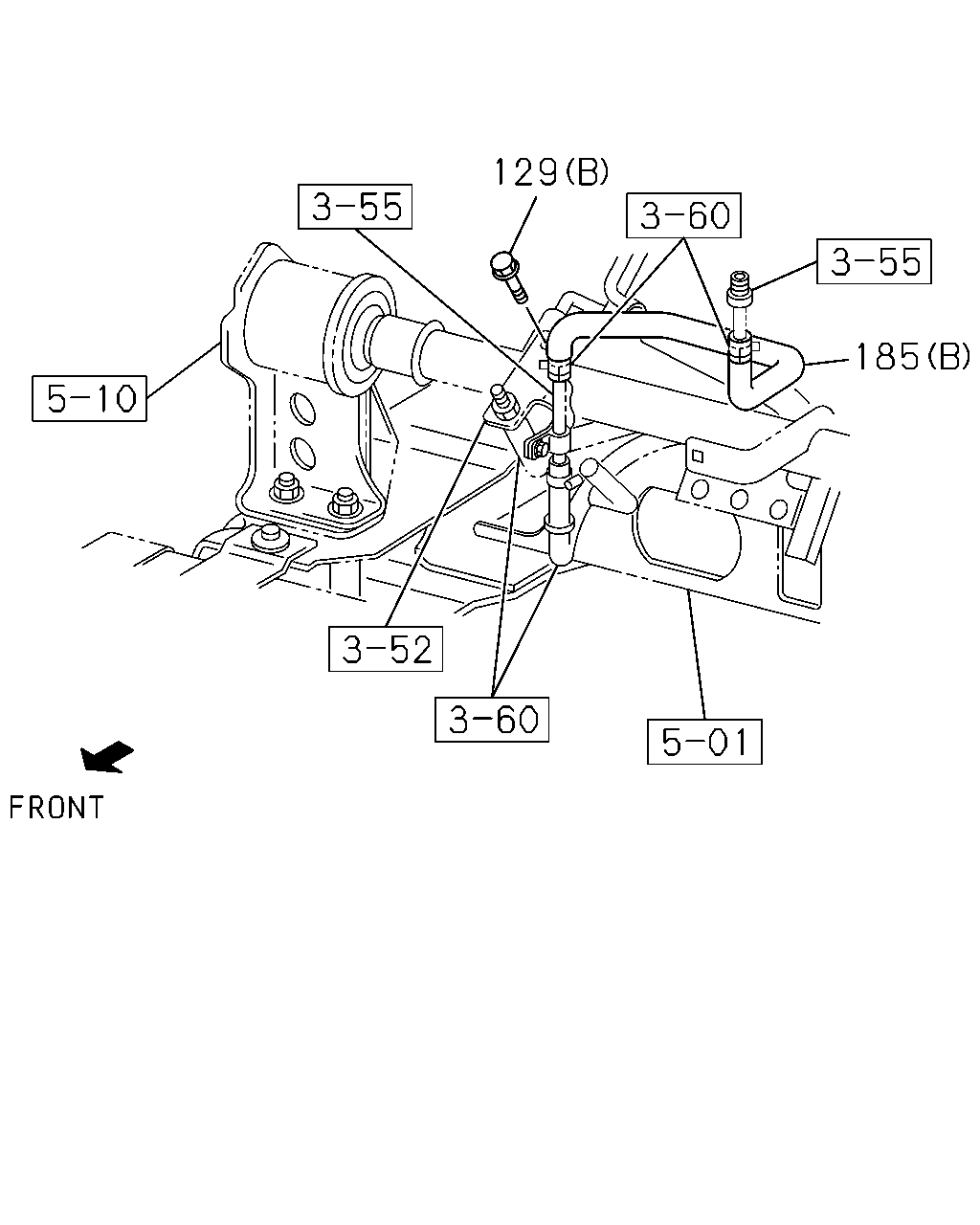

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1207-1209	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1210-	●
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1210-		●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1207-1209	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1210-	●	●	●	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1207-1209	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1210-	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1210-		●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	1207-1209	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	1210-	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	1210-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
