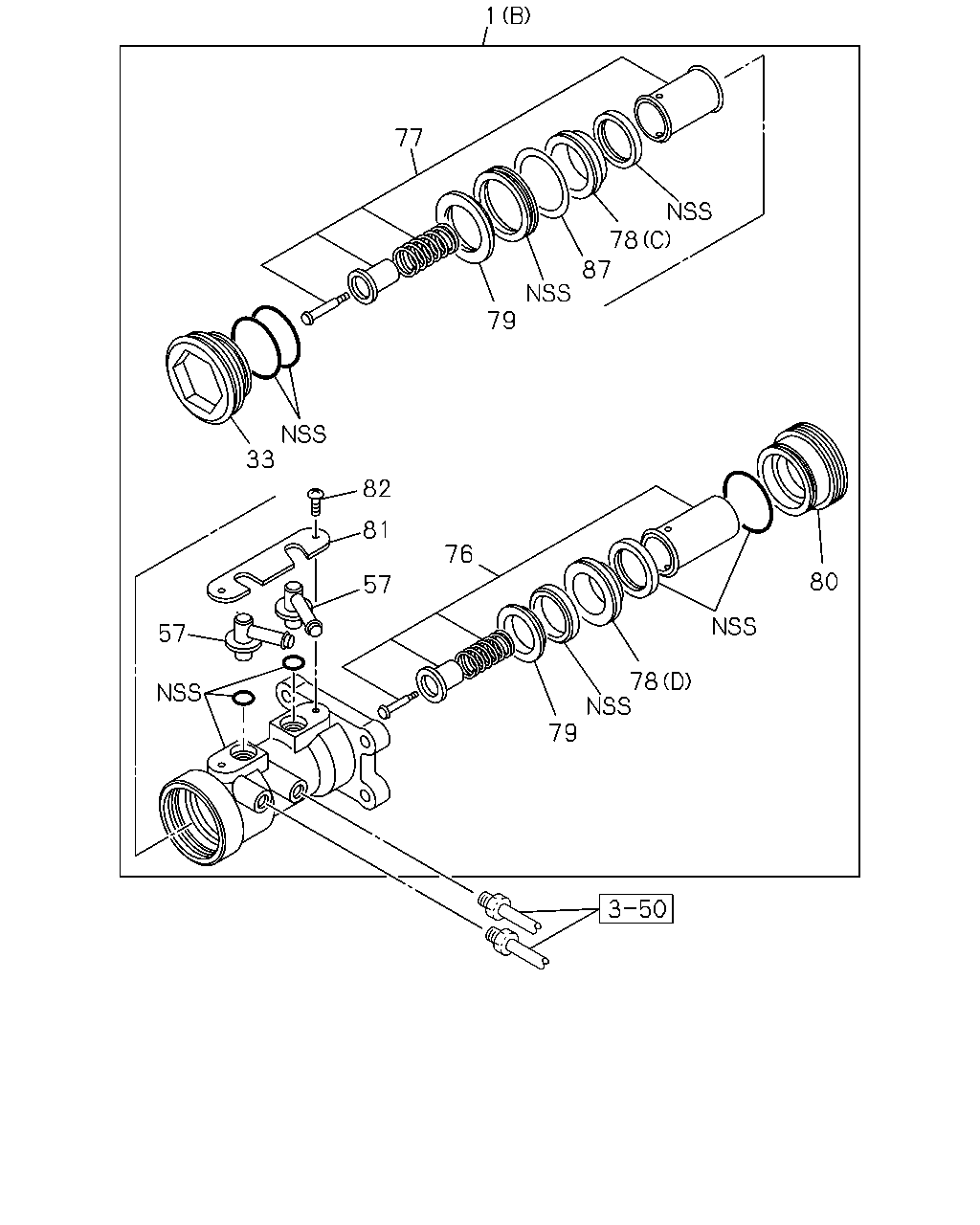

3-30 — BRAKE MASTER CYLINDER (#94214) — 148 parça

1 77 78 87 79 33 82 81 76 57 57 79 78 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.650 CYLINDER ASM; BRK MASTER (B)	8-98032-618-0	01	1	1207-1209	●	●
1	04.650 CYLINDER ASM; BRK MASTER HYDRO BRAKE BOOSTER(7QQ) (B)	8-98032-618-0	01	1	1210-	●
1	04.650 CYLINDER ASM; BRK MASTER (B)	8-98032-618-0	01	1	1210-		●
1	04.650 CYLINDER ASM; BRK MASTER (A)	8-98032-600-0	01	1	1207-1209			●
1	04.650 CYLINDER ASM; BRK MASTER EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98032-600-0	01	1	1210-	●
1	04.650 CYLINDER ASM; BRK MASTER (A)	8-98032-600-0	01	1	1210-			●	●
33	04.661 PLUG; END,M/CYL	8-97186-699-0	01	1	1207-1209	●	●
33	04.661 PLUG; END,M/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97186-699-0	01	1	1210-	●
33	04.661 PLUG; END,M/CYL	8-97186-699-0	01	1	1210-		●
33	04.661 PLUG; END,M/CYL	8-97186-697-0	01	1	1207-1209			●
33	04.661 PLUG; END,M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97186-697-0	01	1	1210-	●
33	04.661 PLUG; END,M/CYL	8-97186-697-0	01	1	1210-			●	●
57	04.651 NIPPLE; BRK M/CYL	8-97130-441-0	02	1	1207-1209	●	●
57	04.651 NIPPLE; BRK M/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97130-441-0	02	1	1210-	●
57	04.651 NIPPLE; BRK M/CYL	8-97130-441-0	02	1	1210-		●
57	04.651 NIPPLE; BRK M/CYL	8-97130-442-0	02	1	1207-1209			●
57	04.651 NIPPLE; BRK M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-442-0	02	1	1210-	●
57	04.651 NIPPLE; BRK M/CYL	8-97130-442-0	02	1	1210-			●	●
76	04.653 PISTON ASM; PRIMARY	8-97224-641-0	01	1	1207-1209	●	●
76	04.653 PISTON ASM; PRIMARY HYDRO BRAKE BOOSTER(7QQ)	8-97224-641-0	01	1	1210-	●
76	04.653 PISTON ASM; PRIMARY	8-97224-641-0	01	1	1210-		●
76	04.653 PISTON ASM; PRIMARY	8-97224-643-0	01	1	1207-1209			●
76	04.653 PISTON ASM; PRIMARY EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-643-0	01	1	1210-	●
76	04.653 PISTON ASM; PRIMARY	8-97224-643-0	01	1	1210-			●	●
77	04.653 PISTON ASM; SECONDARY	8-97224-640-0	01	1	1207-1209	●	●
77	04.653 PISTON ASM; SECONDARY HYDRO BRAKE BOOSTER(7QQ)	8-97224-640-0	01	1	1210-	●
77	04.653 PISTON ASM; SECONDARY	8-97224-640-0	01	1	1210-		●
77	04.653 PISTON ASM; SECONDARY	8-97224-642-0	01	1	1207-1209			●
77	04.653 PISTON ASM; SECONDARY EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-642-0	01	1	1210-	●
77	04.653 PISTON ASM; SECONDARY	8-97224-642-0	01	1	1210-			●	●
78	04.651 BUSHING; MASTER CYL (C)	8-97170-695-0	01	1	1207-1209	●	●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER(7QQ) (C)	8-97170-695-0	01	1	1210-	●
78	04.651 BUSHING; MASTER CYL (C)	8-97170-695-0	01	1	1210-		●
78	04.651 BUSHING; MASTER CYL (D)	8-97207-685-0	01	1	1207-1209	●	●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER(7QQ) (D)	8-97207-685-0	01	1	1210-	●
78	04.651 BUSHING; MASTER CYL (D)	8-97207-685-0	01	1	1210-		●
78	04.651 BUSHING; MASTER CYL (A)	8-97130-455-0	01	1	1207-1209			●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97130-455-0	01	1	1210-	●
78	04.651 BUSHING; MASTER CYL (A)	8-97130-455-0	01	1	1210-			●	●
78	04.651 BUSHING; MASTER CYL (B)	8-97217-312-0	01	1	1207-1209			●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97217-312-0	01	1	1210-	●
78	04.651 BUSHING; MASTER CYL (B)	8-97217-312-0	01	1	1210-			●	●
79	04.651 SUPPORTER; CUP	8-97170-698-0	02	1	1207-1209	●	●
79	04.651 SUPPORTER; CUP HYDRO BRAKE BOOSTER(7QQ)	8-97170-698-0	02	1	1210-	●
79	04.651 SUPPORTER; CUP	8-97170-698-0	02	1	1210-		●
79	04.651 SUPPORTER; CUP	8-97130-463-0	02	1	1207-1209			●
79	04.651 SUPPORTER; CUP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-463-0	02	1	1210-	●
79	04.651 SUPPORTER; CUP	8-97130-463-0	02	1	1210-			●	●
80	04.651 COVER; MASTER CYL	8-97170-692-0	01	1	1207-1209	●	●
80	04.651 COVER; MASTER CYL HYDRO BRAKE BOOSTER(7QQ)	8-97170-692-0	01	1	1210-	●
80	04.651 COVER; MASTER CYL	8-97170-692-0	01	1	1210-		●
80	04.651 COVER; MASTER CYL	8-97130-449-0	01	1	1207-1209			●
80	04.651 COVER; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-449-0	01	1	1210-	●
80	04.651 COVER; MASTER CYL	8-97130-449-0	01	1	1210-			●	●
81	04.651 HOLDER; NIPPLE	8-97130-444-0	01	1	1207-1209	●	●
81	04.651 HOLDER; NIPPLE HYDRO BRAKE BOOSTER(7QQ)	8-97130-444-0	01	1	1210-	●
81	04.651 HOLDER; NIPPLE	8-97130-444-0	01	1	1210-		●
81	04.651 HOLDER; NIPPLE	8-97130-445-0	01	1	1207-1209			●
81	04.651 HOLDER; NIPPLE EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-445-0	01	1	1210-	●
81	04.651 HOLDER; NIPPLE	8-97130-445-0	01	1	1210-			●	●
82	04.651 SCREW; HOLDER	8-97130-446-0	02	1	1207-1209	●	●	●
82	04.651 SCREW; HOLDER	8-97130-446-0	02	1	1210-	●	●	●	●
87	04.662 SPACER; CUP	8-97170-696-0	01	1	1207-1209	●	●
87	04.662 SPACER; CUP HYDRO BRAKE BOOSTER(7QQ)	8-97170-696-0	01	1	1210-	●
87	04.662 SPACER; CUP	8-97170-696-0	01	1	1210-		●
87	04.662 SPACER; CUP	8-97130-459-0	01	1	1207-1209			●
87	04.662 SPACER; CUP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-459-0	01	1	1210-	●
87	04.662 SPACER; CUP	8-97130-459-0	01	1	1210-			●	●

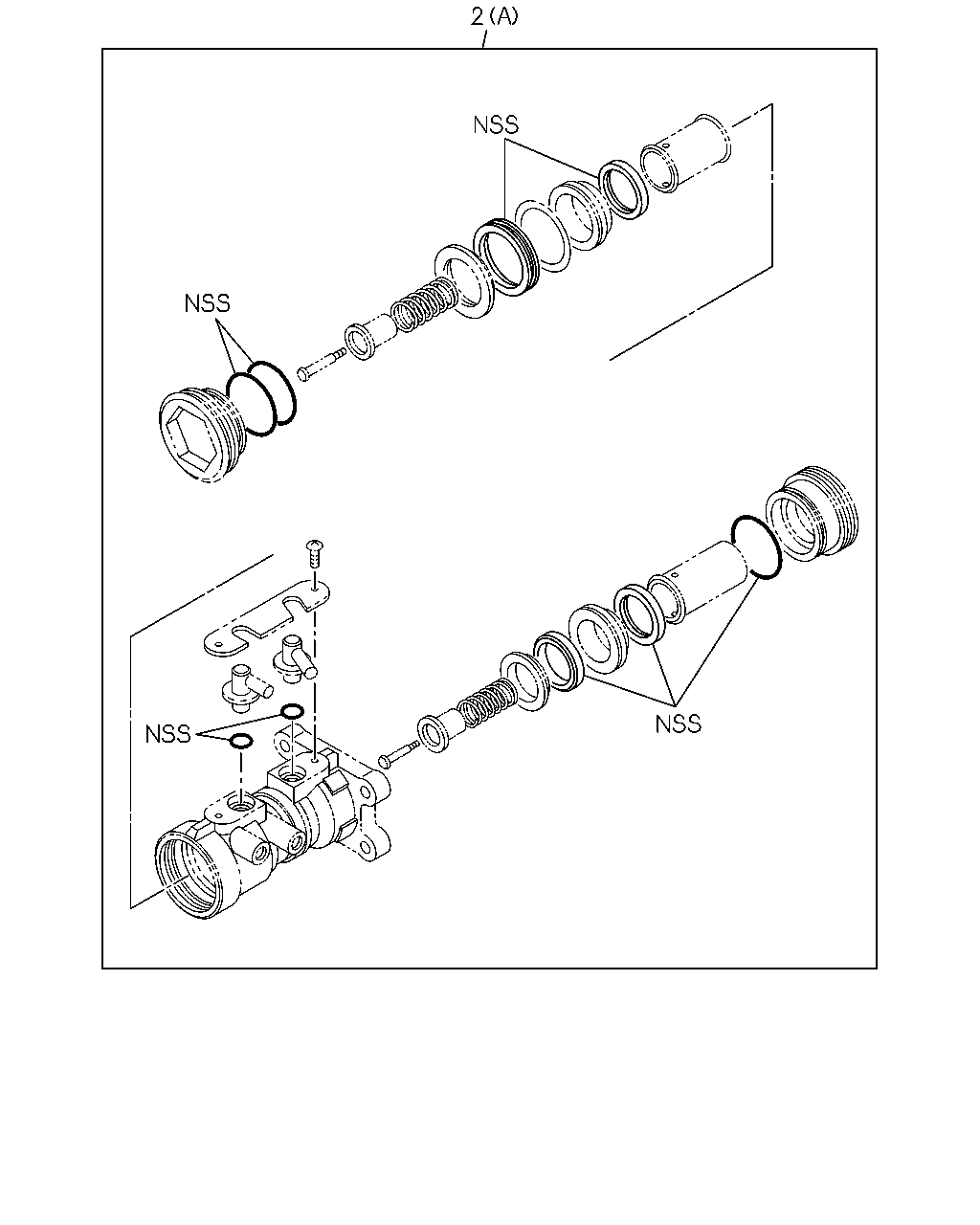

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	04.649 REPAIR KIT; BRK,M/CYL (B)	8-97254-775-0	01	1	1207-1209	●	●
2	04.649 REPAIR KIT; BRK,M/CYL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97254-775-0	01	1	1210-	●
2	04.649 REPAIR KIT; BRK,M/CYL (B)	8-97254-775-0	01	1	1210-		●
2	04.649 REPAIR KIT; BRK,M/CYL (A)	8-97130-471-0	01	1	1207-1209			●
2	04.649 REPAIR KIT; BRK,M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97130-471-0	01	1	1210-	●
2	04.649 REPAIR KIT; BRK,M/CYL (A)	8-97130-471-0	01	1	1210-			●	●

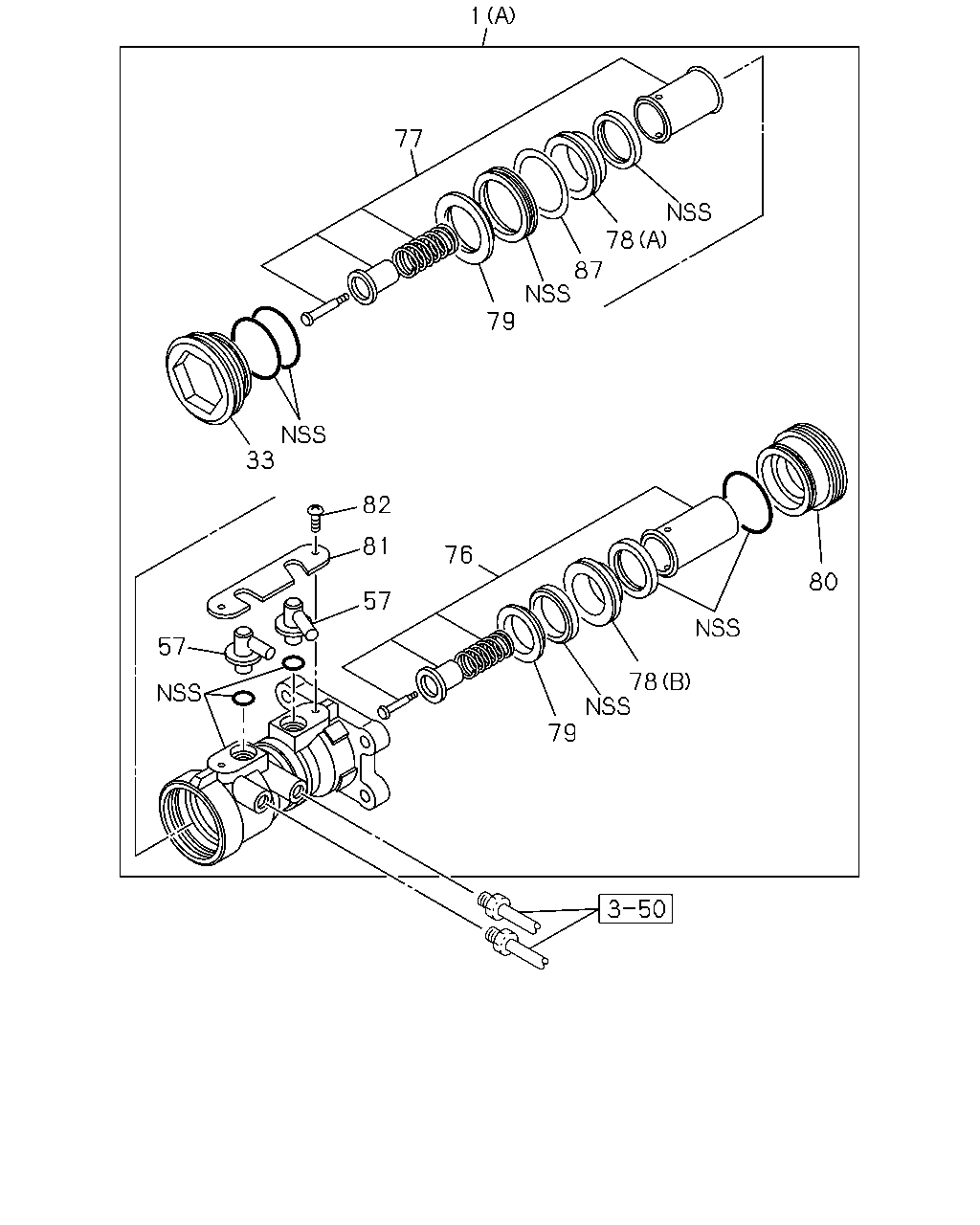

80 78 79 76 57 81 82 57 33 79 87 78 77 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.650 CYLINDER ASM; BRK MASTER (B)	8-98032-618-0	01	1	1207-1209	●	●
1	04.650 CYLINDER ASM; BRK MASTER HYDRO BRAKE BOOSTER(7QQ) (B)	8-98032-618-0	01	1	1210-	●
1	04.650 CYLINDER ASM; BRK MASTER (B)	8-98032-618-0	01	1	1210-		●
1	04.650 CYLINDER ASM; BRK MASTER (A)	8-98032-600-0	01	1	1207-1209			●
1	04.650 CYLINDER ASM; BRK MASTER EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98032-600-0	01	1	1210-	●
1	04.650 CYLINDER ASM; BRK MASTER (A)	8-98032-600-0	01	1	1210-			●	●
33	04.661 PLUG; END,M/CYL	8-97186-699-0	01	1	1207-1209	●	●
33	04.661 PLUG; END,M/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97186-699-0	01	1	1210-	●
33	04.661 PLUG; END,M/CYL	8-97186-699-0	01	1	1210-		●
33	04.661 PLUG; END,M/CYL	8-97186-697-0	01	1	1207-1209			●
33	04.661 PLUG; END,M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97186-697-0	01	1	1210-	●
33	04.661 PLUG; END,M/CYL	8-97186-697-0	01	1	1210-			●	●
57	04.651 NIPPLE; BRK M/CYL	8-97130-441-0	02	1	1207-1209	●	●
57	04.651 NIPPLE; BRK M/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97130-441-0	02	1	1210-	●
57	04.651 NIPPLE; BRK M/CYL	8-97130-441-0	02	1	1210-		●
57	04.651 NIPPLE; BRK M/CYL	8-97130-442-0	02	1	1207-1209			●
57	04.651 NIPPLE; BRK M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-442-0	02	1	1210-	●
57	04.651 NIPPLE; BRK M/CYL	8-97130-442-0	02	1	1210-			●	●
76	04.653 PISTON ASM; PRIMARY	8-97224-641-0	01	1	1207-1209	●	●
76	04.653 PISTON ASM; PRIMARY HYDRO BRAKE BOOSTER(7QQ)	8-97224-641-0	01	1	1210-	●
76	04.653 PISTON ASM; PRIMARY	8-97224-641-0	01	1	1210-		●
76	04.653 PISTON ASM; PRIMARY	8-97224-643-0	01	1	1207-1209			●
76	04.653 PISTON ASM; PRIMARY EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-643-0	01	1	1210-	●
76	04.653 PISTON ASM; PRIMARY	8-97224-643-0	01	1	1210-			●	●
77	04.653 PISTON ASM; SECONDARY	8-97224-640-0	01	1	1207-1209	●	●
77	04.653 PISTON ASM; SECONDARY HYDRO BRAKE BOOSTER(7QQ)	8-97224-640-0	01	1	1210-	●
77	04.653 PISTON ASM; SECONDARY	8-97224-640-0	01	1	1210-		●
77	04.653 PISTON ASM; SECONDARY	8-97224-642-0	01	1	1207-1209			●
77	04.653 PISTON ASM; SECONDARY EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-642-0	01	1	1210-	●
77	04.653 PISTON ASM; SECONDARY	8-97224-642-0	01	1	1210-			●	●
78	04.651 BUSHING; MASTER CYL (C)	8-97170-695-0	01	1	1207-1209	●	●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER(7QQ) (C)	8-97170-695-0	01	1	1210-	●
78	04.651 BUSHING; MASTER CYL (C)	8-97170-695-0	01	1	1210-		●
78	04.651 BUSHING; MASTER CYL (D)	8-97207-685-0	01	1	1207-1209	●	●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER(7QQ) (D)	8-97207-685-0	01	1	1210-	●
78	04.651 BUSHING; MASTER CYL (D)	8-97207-685-0	01	1	1210-		●
78	04.651 BUSHING; MASTER CYL (A)	8-97130-455-0	01	1	1207-1209			●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97130-455-0	01	1	1210-	●
78	04.651 BUSHING; MASTER CYL (A)	8-97130-455-0	01	1	1210-			●	●
78	04.651 BUSHING; MASTER CYL (B)	8-97217-312-0	01	1	1207-1209			●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97217-312-0	01	1	1210-	●
78	04.651 BUSHING; MASTER CYL (B)	8-97217-312-0	01	1	1210-			●	●
79	04.651 SUPPORTER; CUP	8-97170-698-0	02	1	1207-1209	●	●
79	04.651 SUPPORTER; CUP HYDRO BRAKE BOOSTER(7QQ)	8-97170-698-0	02	1	1210-	●
79	04.651 SUPPORTER; CUP	8-97170-698-0	02	1	1210-		●
79	04.651 SUPPORTER; CUP	8-97130-463-0	02	1	1207-1209			●
79	04.651 SUPPORTER; CUP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-463-0	02	1	1210-	●
79	04.651 SUPPORTER; CUP	8-97130-463-0	02	1	1210-			●	●
80	04.651 COVER; MASTER CYL	8-97170-692-0	01	1	1207-1209	●	●
80	04.651 COVER; MASTER CYL HYDRO BRAKE BOOSTER(7QQ)	8-97170-692-0	01	1	1210-	●
80	04.651 COVER; MASTER CYL	8-97170-692-0	01	1	1210-		●
80	04.651 COVER; MASTER CYL	8-97130-449-0	01	1	1207-1209			●
80	04.651 COVER; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-449-0	01	1	1210-	●
80	04.651 COVER; MASTER CYL	8-97130-449-0	01	1	1210-			●	●
81	04.651 HOLDER; NIPPLE	8-97130-444-0	01	1	1207-1209	●	●
81	04.651 HOLDER; NIPPLE HYDRO BRAKE BOOSTER(7QQ)	8-97130-444-0	01	1	1210-	●
81	04.651 HOLDER; NIPPLE	8-97130-444-0	01	1	1210-		●
81	04.651 HOLDER; NIPPLE	8-97130-445-0	01	1	1207-1209			●
81	04.651 HOLDER; NIPPLE EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-445-0	01	1	1210-	●
81	04.651 HOLDER; NIPPLE	8-97130-445-0	01	1	1210-			●	●
82	04.651 SCREW; HOLDER	8-97130-446-0	02	1	1207-1209	●	●	●
82	04.651 SCREW; HOLDER	8-97130-446-0	02	1	1210-	●	●	●	●
87	04.662 SPACER; CUP	8-97170-696-0	01	1	1207-1209	●	●
87	04.662 SPACER; CUP HYDRO BRAKE BOOSTER(7QQ)	8-97170-696-0	01	1	1210-	●
87	04.662 SPACER; CUP	8-97170-696-0	01	1	1210-		●
87	04.662 SPACER; CUP	8-97130-459-0	01	1	1207-1209			●
87	04.662 SPACER; CUP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-459-0	01	1	1210-	●
87	04.662 SPACER; CUP	8-97130-459-0	01	1	1210-			●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	04.649 REPAIR KIT; BRK,M/CYL (B)	8-97254-775-0	01	1	1207-1209	●	●
2	04.649 REPAIR KIT; BRK,M/CYL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97254-775-0	01	1	1210-	●
2	04.649 REPAIR KIT; BRK,M/CYL (B)	8-97254-775-0	01	1	1210-		●
2	04.649 REPAIR KIT; BRK,M/CYL (A)	8-97130-471-0	01	1	1207-1209			●
2	04.649 REPAIR KIT; BRK,M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97130-471-0	01	1	1210-	●
2	04.649 REPAIR KIT; BRK,M/CYL (A)	8-97130-471-0	01	1	1210-			●	●
