Isuzu WW
▶
TRUCKS
▶
NN
▶
51267 - NN/NP/NQR(RHD)EURO4
▶
3 - Brakes, Brake System
▶
3-21 - VACUUM TANK
▶

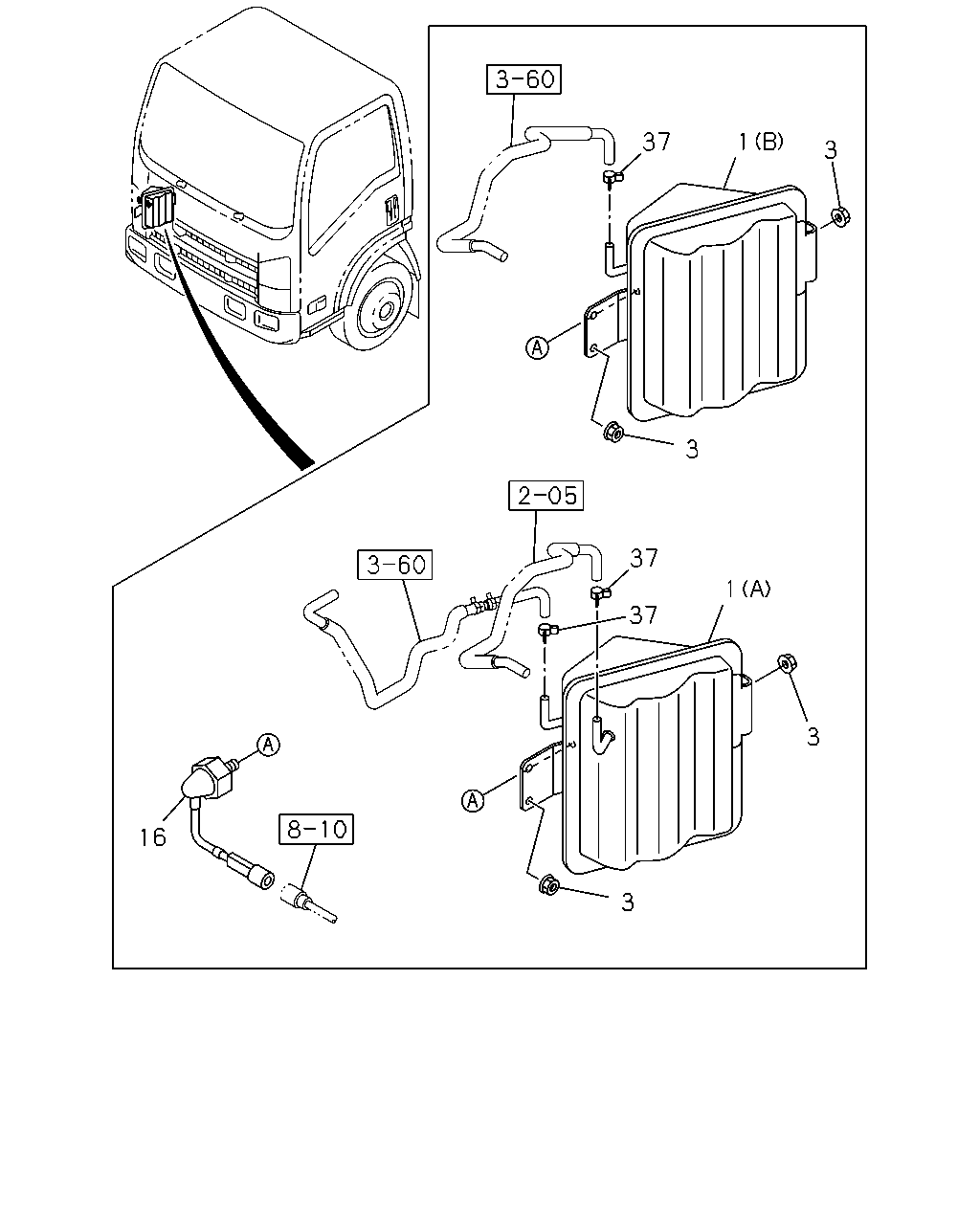

3-21 — VACUUM TANK
(#94213) — 35 parça
Tümü
A - NPR5SN
B - NPR5SS
C - NPR5WN
D - NPR5SE
◀
[321A] HYDRO BRAKE BOOSTER (16 parça)
[321A] EXC.HYDRO BRAKE BOOSTER (19 parça)
▶
37
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-98032-291-0
01
1
1207-1209
●
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98032-291-0
01
1
1210-
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-98032-291-0
01
1
1210-
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98009-121-2
01
1
1207-1209
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)
8-98009-121-2
01
1
1210-
●
●
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-98009-122-2
01
1
1207-1209
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)
8-98009-122-2
01
1
1210-
●
●
●
3
04.902 NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) 04.785
8-98008-071-0
03
1
1207-1209
●
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1207-1209
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1210-
●
●
●
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1207-1209
●
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1207-1209
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1210-
●
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1210-
●
●
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
02
1
1207-1209
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
02
1
1210-
●
●
●
37
1
3
3
37
37
1
3
3
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-98032-291-0
01
1
1207-1209
●
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98032-291-0
01
1
1210-
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-98032-291-0
01
1
1210-
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98009-121-2
01
1
1207-1209
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)
8-98009-121-2
01
1
1210-
●
●
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-98009-122-2
01
1
1207-1209
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)
8-98009-122-2
01
1
1210-
●
●
●
3
04.902 NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) 04.785
8-98008-071-0
03
1
1207-1209
●
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1207-1209
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1210-
●
●
●
●
16
04.906 SWITCH; VAC
8-98049-417-0
01
1
1207-1209
●
16
04.906 SWITCH; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98049-417-0
01
1
1210-
●
16
04.906 SWITCH; VAC
8-98049-417-0
01
1
1210-
●
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1207-1209
●
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1207-1209
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1210-
●
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1210-
●
●
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
02
1
1207-1209
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
02
1
1210-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
