3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#94212) — 78 parça

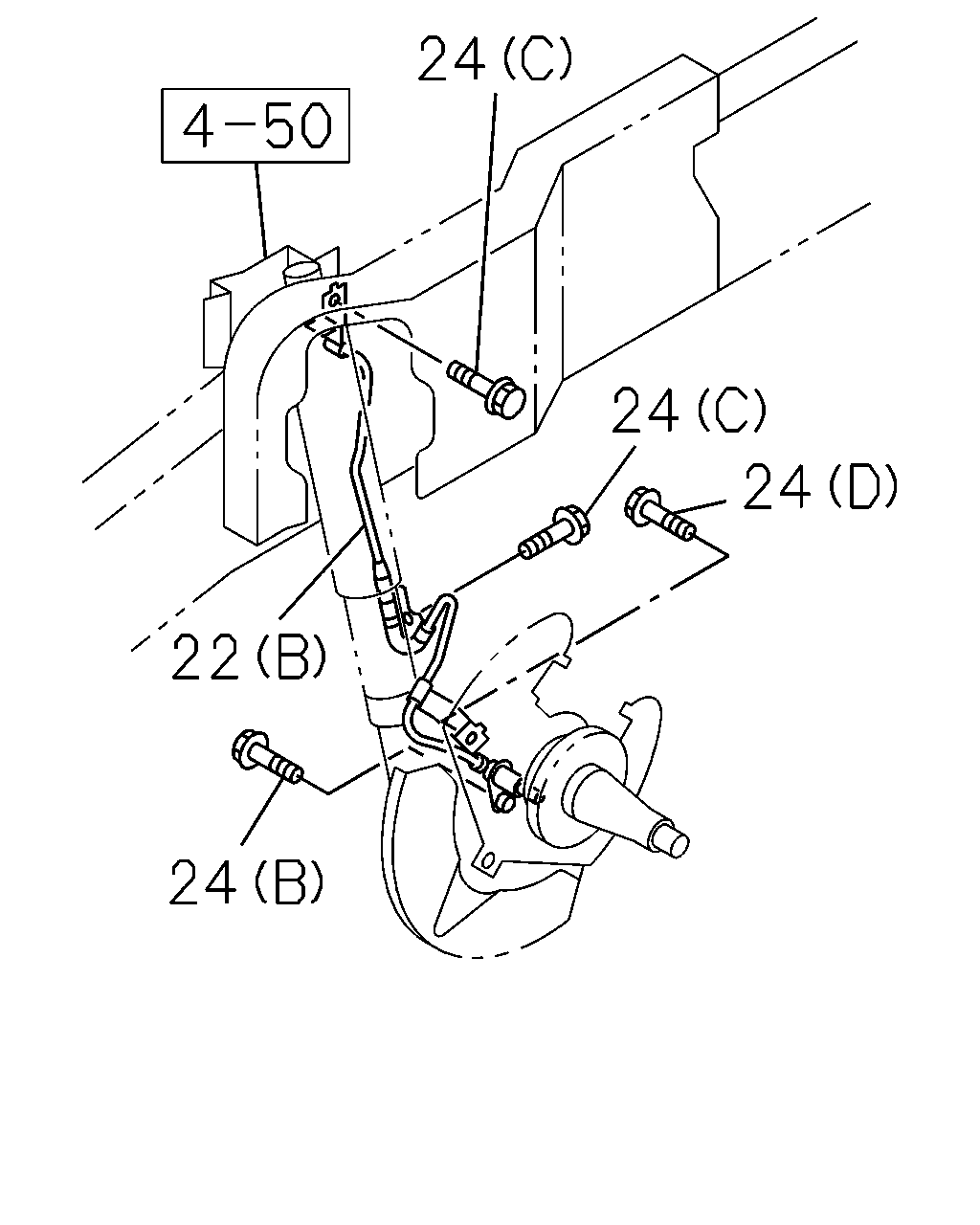

24 24 24 22 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	04.710 SENSOR; SPEED (A)	8-98002-215-0	02	1	1207-1209	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-215-1	02	1	1210-1401	●
22	04.710 SENSOR; SPEED (A)	8-98002-215-1	02	1	1210-1401		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 04.110 (A)	8-98219-354-0	02	1	1402-	●
22	04.710 SENSOR; SPEED 04.110 (A)	8-98219-354-0	02	1	1402-		●
22	04.710 SENSOR; SPEED (B)	8-98006-184-0	01	1	1207-1209	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98006-184-0	01	1	1210-1408	●
22	04.710 SENSOR; SPEED (B)	8-98006-184-0	01	1	1210-1408		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98219-391-0	01	1	1409-	●
22	04.710 SENSOR; SPEED (B)	8-98219-391-0	01	1	1409-		●
22	04.710 SENSOR; SPEED (B)	8-98006-185-0	01	1	1207-1209	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98006-185-0	01	1	1210-1408	●
22	04.710 SENSOR; SPEED (B)	8-98006-185-0	01	1	1210-1408		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98219-392-0	01	1	1409-	●
22	04.710 SENSOR; SPEED (B)	8-98219-392-0	01	1	1409-		●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1207-1209	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1210-1401	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1210-1401		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-		●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1207-1209	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1210-1310	●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1210-1310		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-		●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1207-1209	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1210-	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1210-		●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1207-1209	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1210-	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1210-		●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1207-1209	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1210-	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1210-		●

24 22 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.730 BRACKET; SENSOR	8-98002-440-1	02	1	1207-1209	●
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98002-440-1	02	1	1210-	●
2	04.730 BRACKET; SENSOR	8-98000-019-2	02	1	1207-1209		●
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98000-019-2	02	1	1210-	●
2	04.730 BRACKET; SENSOR	8-98000-019-2	02	1	1210-		●
20	04.710 ROTOR; SENSOR	8-97206-775-3	02	1	1207-1209	●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-97206-775-3	02	1	1210-	●
20	04.710 ROTOR; SENSOR	8-97206-774-4	02	1	1207-1209		●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97206-774-4	02	1	1210-	●
20	04.710 ROTOR; SENSOR	8-97206-774-4	02	1	1210-		●
22	04.710 SENSOR; SPEED (A)	8-98002-215-0	02	1	1207-1209	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-215-1	02	1	1210-1401	●
22	04.710 SENSOR; SPEED (A)	8-98002-215-1	02	1	1210-1401		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 04.110 (A)	8-98219-354-0	02	1	1402-	●
22	04.710 SENSOR; SPEED 04.110 (A)	8-98219-354-0	02	1	1402-		●
22	04.710 SENSOR; SPEED (B)	8-98006-184-0	01	1	1207-1209	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98006-184-0	01	1	1210-1408	●
22	04.710 SENSOR; SPEED (B)	8-98006-184-0	01	1	1210-1408		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98219-391-0	01	1	1409-	●
22	04.710 SENSOR; SPEED (B)	8-98219-391-0	01	1	1409-		●
22	04.710 SENSOR; SPEED (B)	8-98006-185-0	01	1	1207-1209	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98006-185-0	01	1	1210-1408	●
22	04.710 SENSOR; SPEED (B)	8-98006-185-0	01	1	1210-1408		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98219-392-0	01	1	1409-	●
22	04.710 SENSOR; SPEED (B)	8-98219-392-0	01	1	1409-		●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1207-1209	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1210-1401	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1210-1401		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-		●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1207-1209	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1210-1310	●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1210-1310		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-		●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1207-1209	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1210-	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1210-		●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1207-1209	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1210-	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1210-		●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1207-1209	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1210-	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1210-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
