Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#94211) — 230 parça

53 338 225 238 91 324 181 237 85 225 235 91 238 91 238 91 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	04.592 GUIDE; PARKING BRK	8-98096-374-0	01	1	1207-1209	●	●	●
8	04.592 GUIDE; PARKING BRK	8-98096-374-0	01	1	1210-	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98062-232-3	01	1	1207-		●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98041-315-3	01	1	1207-1209	●		●
53	04.779 CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ>	8-98041-315-3	01	1	1210-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98041-315-3	01	1	1210-			●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98052-066-1	01	1	1210-				●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-117-1	01	1	1210-	●
85	04.785 CLIP; BRKT (B) ID=13 L=20	0-95235-236-0	01	1	1207-		●
85	04.785 CLIP; BRKT (A) ID=14.5 L=20	1-09701-012-0	01	1	1207-1209	●		●
85	04.785 CLIP; BRKT (A) ID=14.5 L=20	1-09701-012-0	01	1	1210-	●		●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 04.047 (D)	8-97036-333-1	01	1	1210-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1210-		●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98023-622-0	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98023-622-0	01	1	1210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-98023-697-0	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 04.047 (A)	8-98023-697-0	01	1	1210-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-98023-697-0	01	1	1210-		●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (B)	8-97036-332-1	01	1	1210-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-332-1	01	1	1210-				●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1207-1209	●	●	●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1210-	●	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1207-1209	●	●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1210-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1210-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●		●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●		●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-1209	●	●	●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-		●	●
235	04.785 BRACKET; CONT CABLE TO FRAME (D)	8-98033-907-0	01	1	1207-		●
235	04.785 BRACKET; CONT CABLE TO FRAME (B)	8-98087-322-0	01	1	1207-1209	●		●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (B)	8-98087-322-0	01	1	1210-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (B)	8-98087-322-0	01	1	1210-			●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98074-995-0	01	1	1207-1209	●	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (A)	8-98074-995-0	01	1	1210-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98074-995-0	01	1	1210-		●	●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-410-3	01	1	1210-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (C)	8-98034-410-3	01	1	1210-				●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209			●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-	●	●	●	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-			●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1207-1209	●	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1210-	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1210-		●	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1207-1209	●	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1210-	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1210-		●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1207-1209		●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1210-	●			●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1210-	●			●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1210-		●
324	04.785 BRACKET (A)	8-98034-115-0	01	1	1207-1209	●	●	●
324	04.785 BRACKET (A)	8-98034-115-0	01	1	1210-	●	●	●	●
324	04.785 BRACKET 04.047 (B)	8-98034-185-1	01	1	1207-1209	●	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> 04.047 (B)	8-98034-185-1	01	1	1210-	●
324	04.785 BRACKET 04.047 (B)	8-98034-185-1	01	1	1210-		●	●
324	04.785 BRACKET (D)	8-98087-330-1	01	1	1207-1209	●	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (D)	8-98087-330-1	01	1	1210-	●
324	04.785 BRACKET (D)	8-98087-330-1	01	1	1210-		●	●
324	04.785 BRACKET (C)	8-98099-516-0	01	1	1207-1209	●	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98099-516-0	01	1	1210-1508	●
324	04.785 BRACKET (C)	8-98099-516-0	01	1	1210-1508		●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98216-763-1	01	1	1509-	●
324	04.785 BRACKET (C)	8-98216-763-1	01	1	1509-		●	●
338	04.785 SCREW; GUIDE 16.069 M8X35 FLANGE	8-98046-876-0	01	1	1207-1209	●	●	●
338	04.785 SCREW; GUIDE 16.069 M8X35 FLANGE	8-98046-876-0	01	1	1210-	●	●	●	●

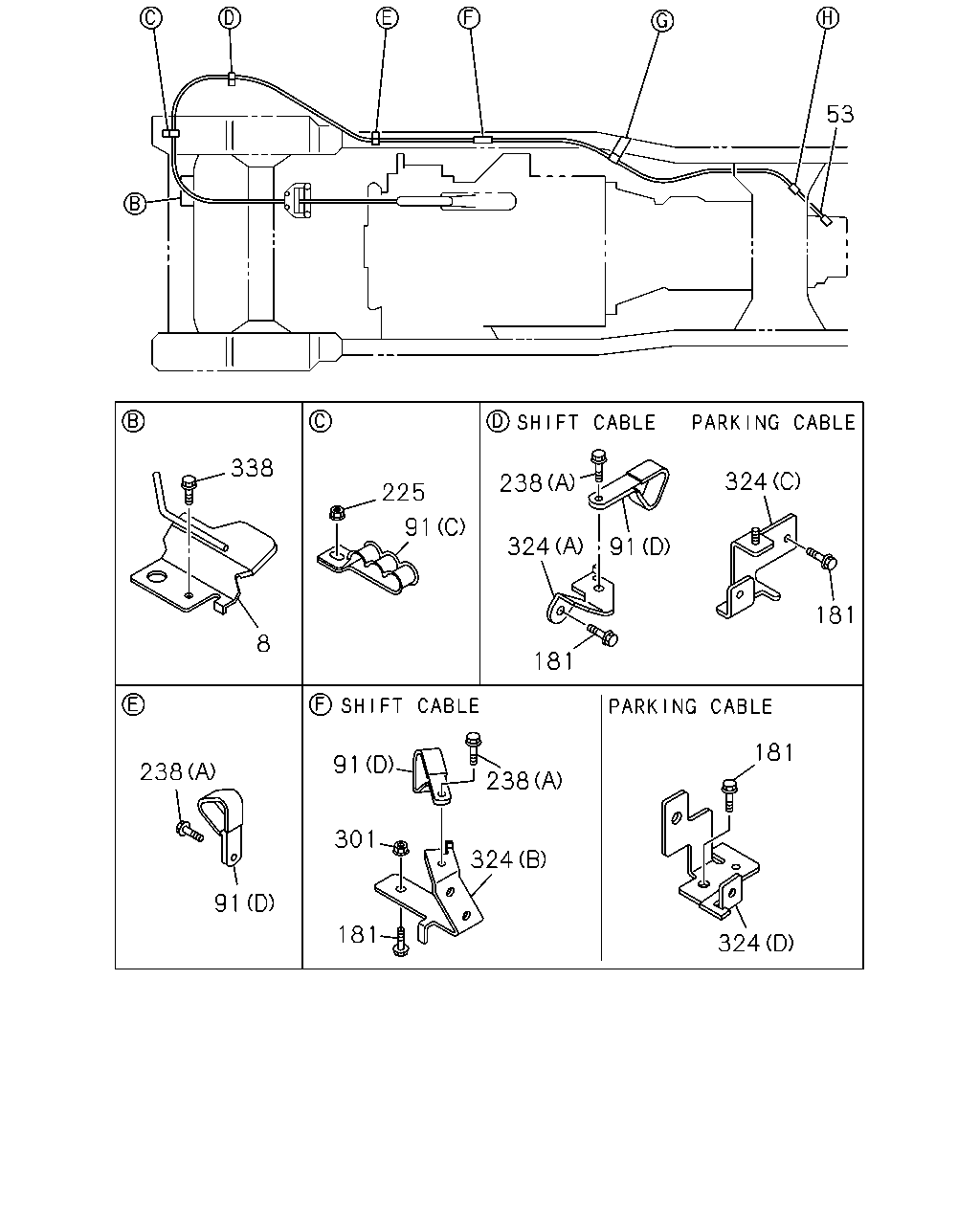

338 225 91 238 324 324 91 181 181 181 324 238 91 301 324 181 91 238 53 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	04.592 GUIDE; PARKING BRK	8-98096-374-0	01	1	1207-1209	●	●	●
8	04.592 GUIDE; PARKING BRK	8-98096-374-0	01	1	1210-	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98062-232-3	01	1	1207-		●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98041-315-3	01	1	1207-1209	●		●
53	04.779 CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ>	8-98041-315-3	01	1	1210-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98041-315-3	01	1	1210-			●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98052-066-1	01	1	1210-				●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-117-1	01	1	1210-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 04.047 (D)	8-97036-333-1	01	1	1210-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1210-		●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98023-622-0	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98023-622-0	01	1	1210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-98023-697-0	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 04.047 (A)	8-98023-697-0	01	1	1210-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-98023-697-0	01	1	1210-		●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (B)	8-97036-332-1	01	1	1210-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-332-1	01	1	1210-				●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1207-1209	●	●	●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1210-	●	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1207-1209	●	●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1210-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1210-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●		●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●		●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-1209	●	●	●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-		●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1207-1209	●	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1210-	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1210-		●	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1207-1209	●	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1210-	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1210-		●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1207-1209		●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1210-	●			●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1210-	●			●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1210-		●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-		●	●
324	04.785 BRACKET (A)	8-98034-115-0	01	1	1207-1209	●	●	●
324	04.785 BRACKET (A)	8-98034-115-0	01	1	1210-	●	●	●	●
324	04.785 BRACKET 04.047 (B)	8-98034-185-1	01	1	1207-1209	●	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> 04.047 (B)	8-98034-185-1	01	1	1210-	●
324	04.785 BRACKET 04.047 (B)	8-98034-185-1	01	1	1210-		●	●
324	04.785 BRACKET (D)	8-98087-330-1	01	1	1207-1209	●	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (D)	8-98087-330-1	01	1	1210-	●
324	04.785 BRACKET (D)	8-98087-330-1	01	1	1210-		●	●
324	04.785 BRACKET (C)	8-98099-516-0	01	1	1207-1209	●	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98099-516-0	01	1	1210-1508	●
324	04.785 BRACKET (C)	8-98099-516-0	01	1	1210-1508		●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98216-763-1	01	1	1509-	●
324	04.785 BRACKET (C)	8-98216-763-1	01	1	1509-		●	●
338	04.785 SCREW; GUIDE 16.069 M8X35 FLANGE	8-98046-876-0	01	1	1207-1209	●	●	●
338	04.785 SCREW; GUIDE 16.069 M8X35 FLANGE	8-98046-876-0	01	1	1210-	●	●	●	●

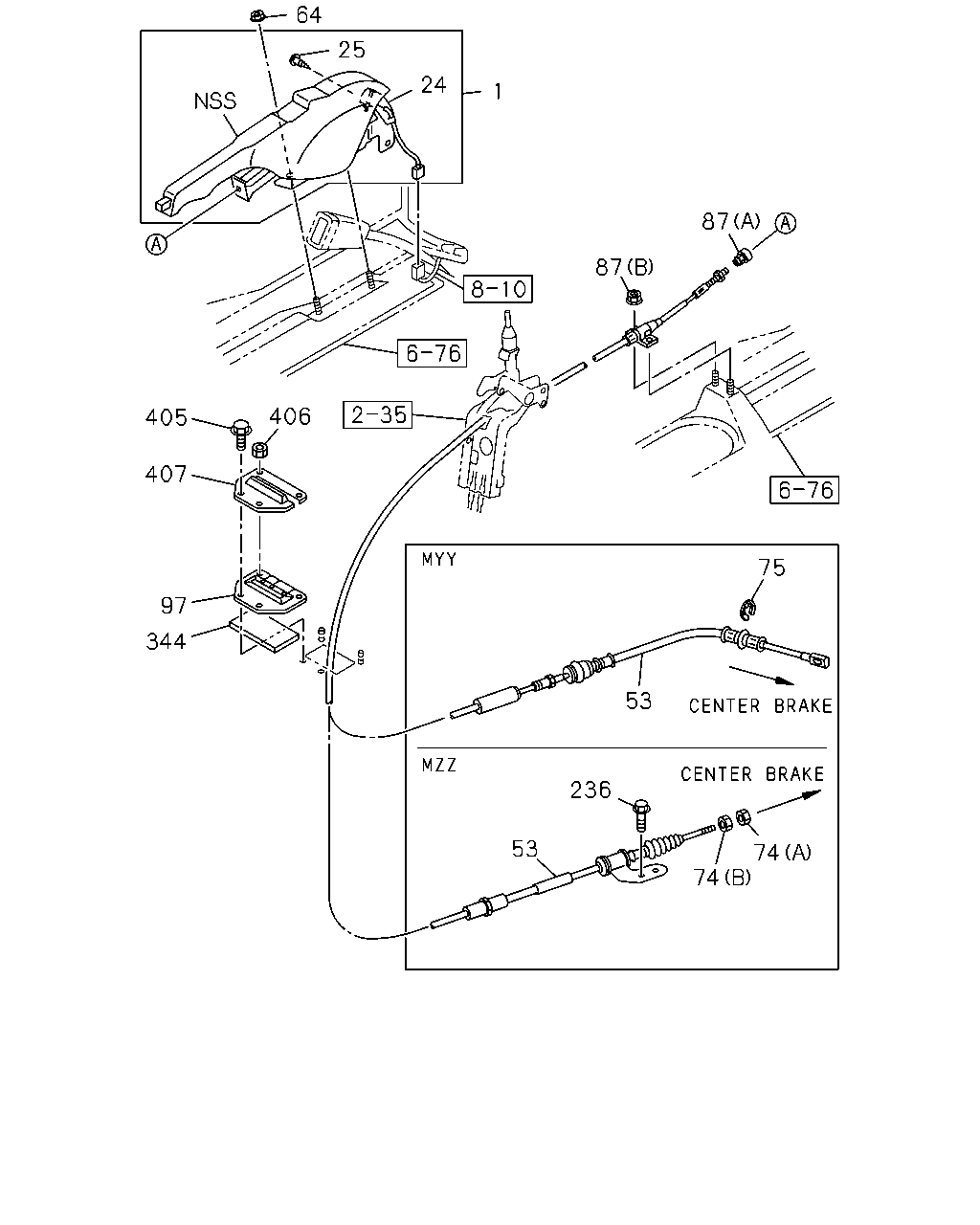

75 53 236 53 74 74 344 97 407 405 406 24 1 25 64 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.592 STEM ASM; PARKING BRK GRAY	8-97405-353-0	01	1	1207-1209	●	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97405-353-0	01	1	1210-1303	●	●	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97426-513-0	01	1	1304-	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	1207-1209	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	1210-1303	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1304-	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	1207-1209	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	1210-	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98062-232-3	01	1	1207-		●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98041-315-3	01	1	1207-1209	●		●
53	04.779 CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ>	8-98041-315-3	01	1	1210-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98041-315-3	01	1	1210-			●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98052-066-1	01	1	1210-				●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-117-1	01	1	1210-	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	1207-1209	●	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	1210-	●	●	●	●
74	04.785 NUT; CONT WIRE 02.334 (A) M8	0-91110-508-0	01	1	1207-		●
74	04.785 NUT; CONT WIRE (B) M8 FLANGE	9-46259-016-0	01	1	1207-		●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	1207-1209	●		●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	1210-	●		●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1207-1209	●	●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1210-	●	●	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	1207-1209	●	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	1210-	●	●	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97065-212-1	01	1	1207-1209	●	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97065-212-1	01	1	1210-	●	●	●	●
236	04.785 BOLT; BRKT TO FRAME 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-		●
344	04.595 GASKET; DASH LWR MANUAL TILT CAB<RWZ> 04.047	8-97096-753-0	01	1	1207-1209	●	●
344	04.595 GASKET; DASH LWR MANUAL TILT CAB<RWZ> 04.047	8-97096-753-0	01	1	1210-	●	●		●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	1207-1209	●	●	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	1210-	●	●	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	1207-1209	●	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-	●	●	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	1207-1209	●	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	1210-	●	●	●	●

181 91 237 238 235 85 225 235 237 238 238 85 235 241 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
85	04.785 CLIP; BRKT (B) ID=13 L=20	0-95235-236-0	01	1	1207-		●
85	04.785 CLIP; BRKT (A) ID=14.5 L=20	1-09701-012-0	01	1	1207-1209	●		●
85	04.785 CLIP; BRKT (A) ID=14.5 L=20	1-09701-012-0	01	1	1210-	●		●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 04.047 (D)	8-97036-333-1	01	1	1210-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1210-		●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98023-622-0	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98023-622-0	01	1	1210-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-98023-697-0	01	1	1207-1209	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 04.047 (A)	8-98023-697-0	01	1	1210-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-98023-697-0	01	1	1210-		●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (B)	8-97036-332-1	01	1	1210-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-332-1	01	1	1210-				●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1207-1209	●	●	●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1210-	●	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1207-1209	●	●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1210-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1210-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●		●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●		●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-1209	●	●	●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-		●	●
235	04.785 BRACKET; CONT CABLE TO FRAME (D)	8-98033-907-0	01	1	1207-		●
235	04.785 BRACKET; CONT CABLE TO FRAME (B)	8-98087-322-0	01	1	1207-1209	●		●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (B)	8-98087-322-0	01	1	1210-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (B)	8-98087-322-0	01	1	1210-			●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98074-995-0	01	1	1207-1209	●	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (A)	8-98074-995-0	01	1	1210-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98074-995-0	01	1	1210-		●	●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-410-3	01	1	1210-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (C)	8-98034-410-3	01	1	1210-				●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209			●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-	●	●	●	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-			●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1207-1209	●	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1210-	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1210-		●	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1207-1209	●	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1210-	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1210-		●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1207-1209		●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1210-	●			●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1210-	●			●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1210-		●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-1209	●	●	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1210-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
