3-08 — PARKING BRAKE (#94209) — 92 parça

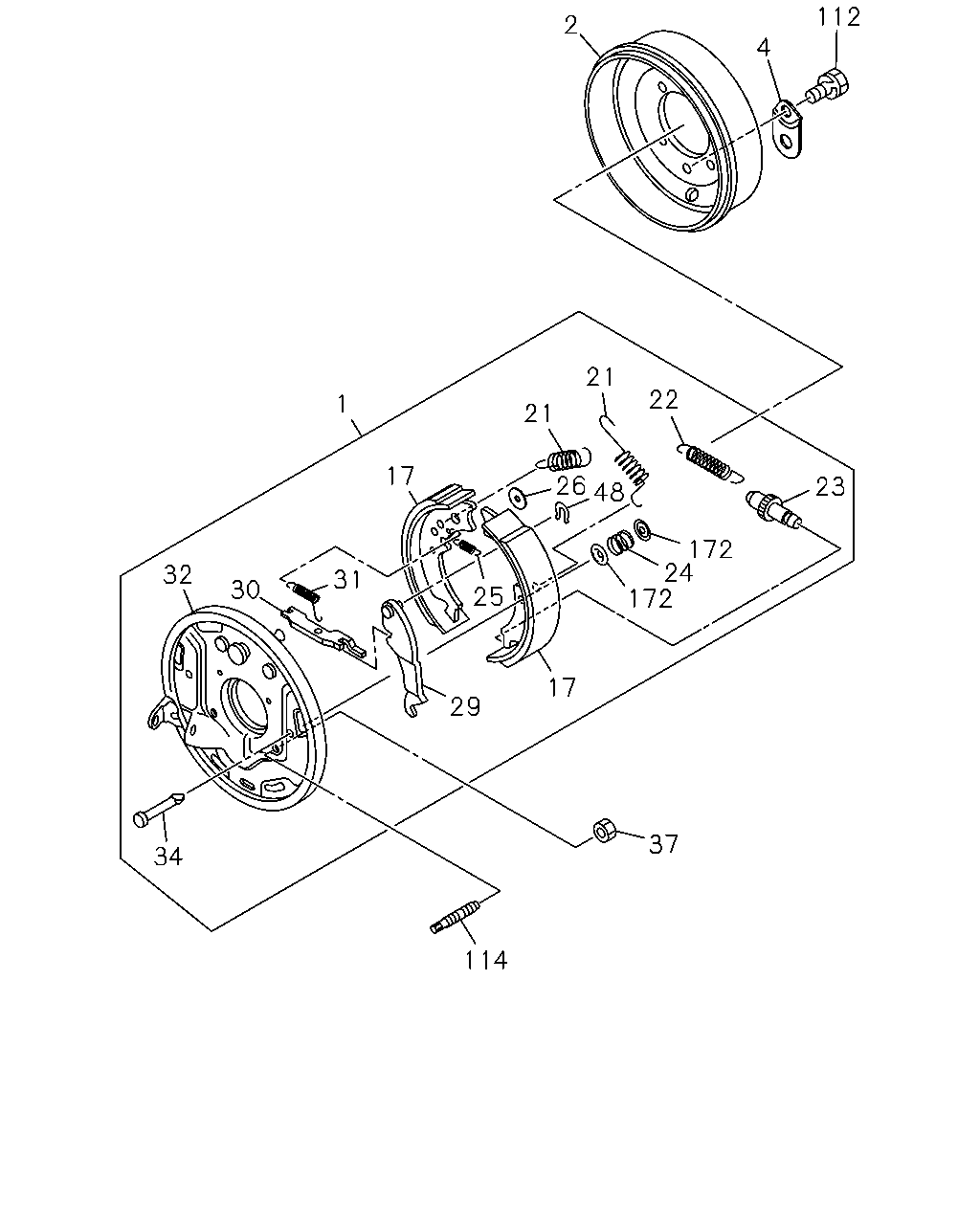

çizim 286215
112 4 2 22 21 21 23 172 24 172 17 37 29 25 26 48 17 1 31 30 32 34 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 05.610 BRAKE ASM; CENTER,PARKING 8-98029-922-0 01 1 1207-1209 ● ●
1 05.610 BRAKE ASM; CENTER,PARKING 8-98029-922-0 01 1 1210- ● ● ●
2 05.605 DRUM; PARKING BRK
4HK1-TCN ENG(RDQ) 		8-97334-107-0 01 1 1207-1506 ●
2 05.605 DRUM; PARKING BRK 8-97334-107-0 01 1 1207-1506 ●
2 05.605 DRUM; PARKING BRK
4HK1-TCN ENG(RDQ) 		8-98308-289-0 01 1 1507- ●
2 05.605 DRUM; PARKING BRK 8-98308-289-0 01 1 1507- ●
2 05.605 DRUM; PARKING BRK 1-46211-057-1 01 1 1207- ●
2 05.605 DRUM; PARKING BRK
4JJ1-TCC ENG(RDU) 		8-97033-989-1 01 1 1210- ●
2 05.605 DRUM; PARKING BRK 8-97033-989-1 01 1 1210- ●
4 05.606 COVER; ADJ HOLE 8-98029-820-0 01 1 1207-1209 ● ●
4 05.606 COVER; ADJ HOLE 8-98029-820-0 01 1 1210- ● ● ●
17 05.606 SHOE; PARKING BRK 8-97042-934-1 02 1 1207- ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1207-1209 ● ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1210- ● ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE 1-09583-280-0 01 1 1207- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1207-1209 ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1210- ● ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
05.605 		8-94107-618-0 01 1 1207-1209 ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
05.605 		8-94107-618-0 01 1 1210- ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-963-0 01 1 1207- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1207-1209 ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1210- ● ● ●
24 05.605 SPRING; BRK SHOE 8-94132-155-1 02 1 1207-1209 ● ●
24 05.605 SPRING; BRK SHOE 8-94132-155-1 02 1 1210- ● ● ●
25 05.605 SPRING; SHOE ALIGNMENT 8-94132-156-0 01 1 1207-1209 ● ●
25 05.605 SPRING; SHOE ALIGNMENT 8-94132-156-0 01 1 1210- ● ● ●
26 05.605 PLATE; SHOE GUIDE 8-98043-959-0 01 1 1207-1209 ● ●
26 05.605 PLATE; SHOE GUIDE 8-98043-959-0 01 1 1210- ● ● ●
29 04.591 LEVER; PARKING BRK 8-98043-949-0 01 1 1207-1209 ● ●
29 04.591 LEVER; PARKING BRK 8-98043-949-0 01 1 1210- ● ● ●
30 05.605 STRUT; PARKING BRK 8-98043-953-0 01 1 1207-1209 ● ●
30 05.605 STRUT; PARKING BRK 8-98043-953-0 01 1 1210- ● ● ●
31 05.605 SPRING; SHOE TO STRUT 8-94132-158-0 01 1 1207-1209 ● ●
31 05.605 SPRING; SHOE TO STRUT 8-94132-158-0 01 1 1210- ● ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 1-46213-069-0 01 1 1207- ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1207-1209 ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1210- ● ● ●
34 05.605 PIN; BRK SHOE 8-98043-955-0 02 1 1207-1209 ● ●
34 05.605 PIN; BRK SHOE 8-98043-955-0 02 1 1210- ● ● ●
37 05.610 NUT; SUPPORT PLATE
M14 FLANGE 		8-97365-444-0 04 1 1207- ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1207-1209 ● ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1210- ● ● ●
48 05.605 RETAINER; PIN,PARKING BRK 8-98043-958-0 01 1 1207-1209 ● ●
48 05.605 RETAINER; PIN,PARKING BRK 8-98043-958-0 01 1 1210- ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 1207-1209 ● ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 1210- ● ● ●
114 05.605 STUD; SUPPORT PLATE
M14X22.5 L=42.5 		8-97365-445-0 04 1 1207- ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 1207-1209 ● ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 1210- ● ● ●
172 05.605 CUP; SHOE HOLD 8-98043-956-0 04 1 1207-1209 ● ●
172 05.605 CUP; SHOE HOLD 8-98043-956-0 04 1 1210- ● ● ●

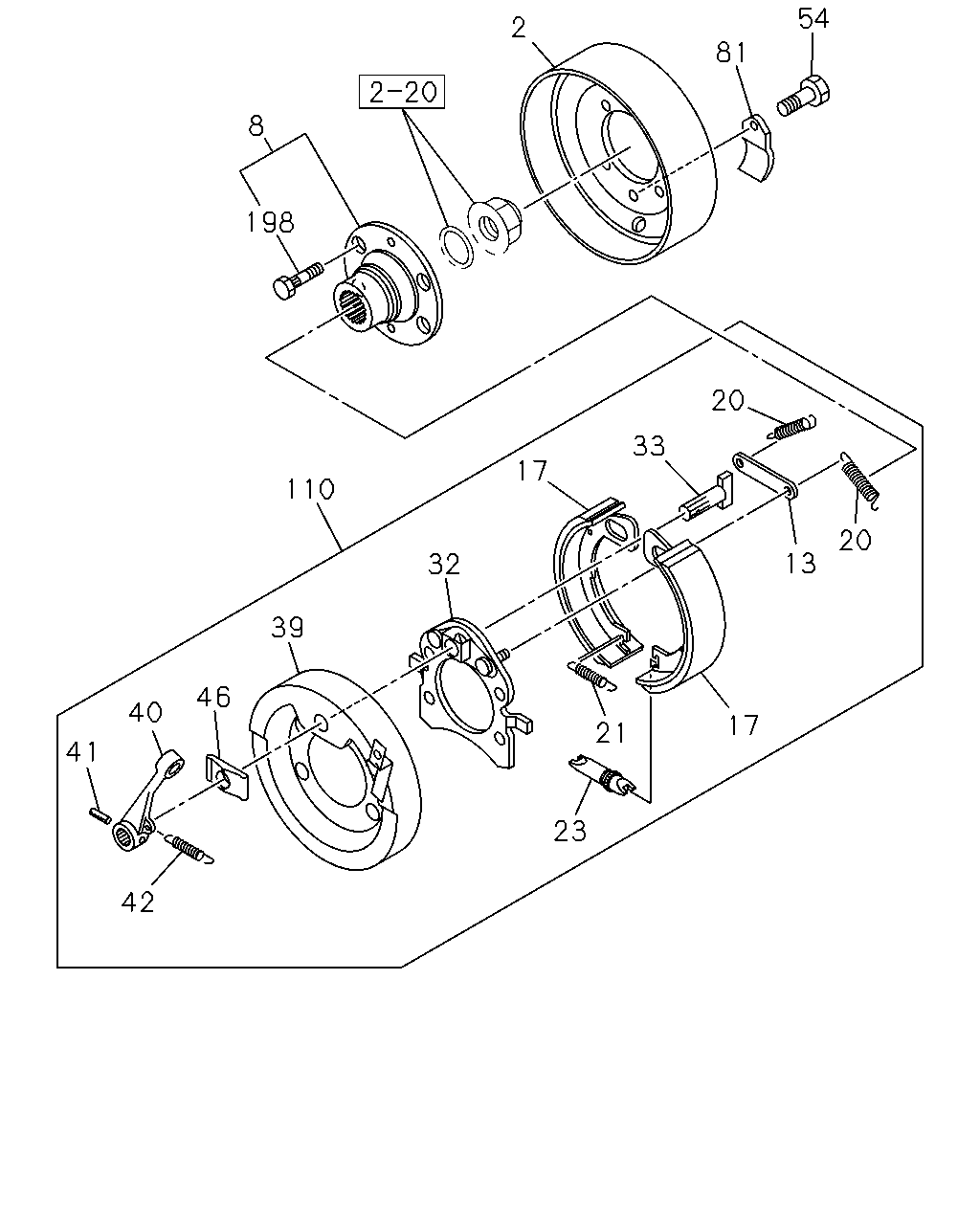

çizim 286219
54 81 2 8 198 110 17 33 20 13 17 21 23 20 32 39 46 40 41 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.605 DRUM; PARKING BRK
4HK1-TCN ENG(RDQ) 		8-97334-107-0 01 1 1207-1506 ●
2 05.605 DRUM; PARKING BRK 8-97334-107-0 01 1 1207-1506 ●
2 05.605 DRUM; PARKING BRK
4HK1-TCN ENG(RDQ) 		8-98308-289-0 01 1 1507- ●
2 05.605 DRUM; PARKING BRK 8-98308-289-0 01 1 1507- ●
2 05.605 DRUM; PARKING BRK 1-46211-057-1 01 1 1207- ●
2 05.605 DRUM; PARKING BRK
4JJ1-TCC ENG(RDU) 		8-97033-989-1 01 1 1210- ●
2 05.605 DRUM; PARKING BRK 8-97033-989-1 01 1 1210- ●
8 05.605 FLANGE; PARKING BRK 8-98044-142-0 01 1 1207- ●
13 05.615 BRACE; PARKING BRK 1-46239-003-0 01 1 1207- ●
17 05.606 SHOE; PARKING BRK 8-97042-934-1 02 1 1207- ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1207-1209 ● ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1210- ● ● ●
20 05.606 SPRING; RETURN,SECONDARY,PARKING 1-09586-002-0 02 1 1207- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE 1-09583-280-0 01 1 1207- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1207-1209 ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1210- ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-963-0 01 1 1207- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1207-1209 ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1210- ● ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 1-46213-069-0 01 1 1207- ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1207-1209 ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1210- ● ● ●
33 05.605 SHAFT; CAM,PARKING BRK 8-98043-961-0 01 1 1207- ●
39 05.610 COVER; DUST,PARKING BRK 1-46213-075-0 01 1 1207- ●
40 05.605 LEVER; CM/SHF,PARKING BRK 8-98047-550-0 01 1 1207- ●
41 05.605 PIN; KNOCK,LEVER 9-09878-594-0 01 1 1207- ●
42 05.605 SPRING; RETURN,LEVER 1-09583-041-0 01 1 1207- ●
46 05.605 WASHER; LEVER 1-09509-057-0 01 1 1207- ●
54 05.606 BOLT; COVER
03.403 M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1207- ●
81 05.606 COVER; CHECK HOLE,PARKING BRK 8-98031-861-0 02 1 1207- ●
110 05.610 BRAKE ASM; PARKING 8-98034-305-0 01 1 1207- ●
198 05.605 BOLT; KNURL
M12X39 		8-97365-446-0 04 1 1207- ●

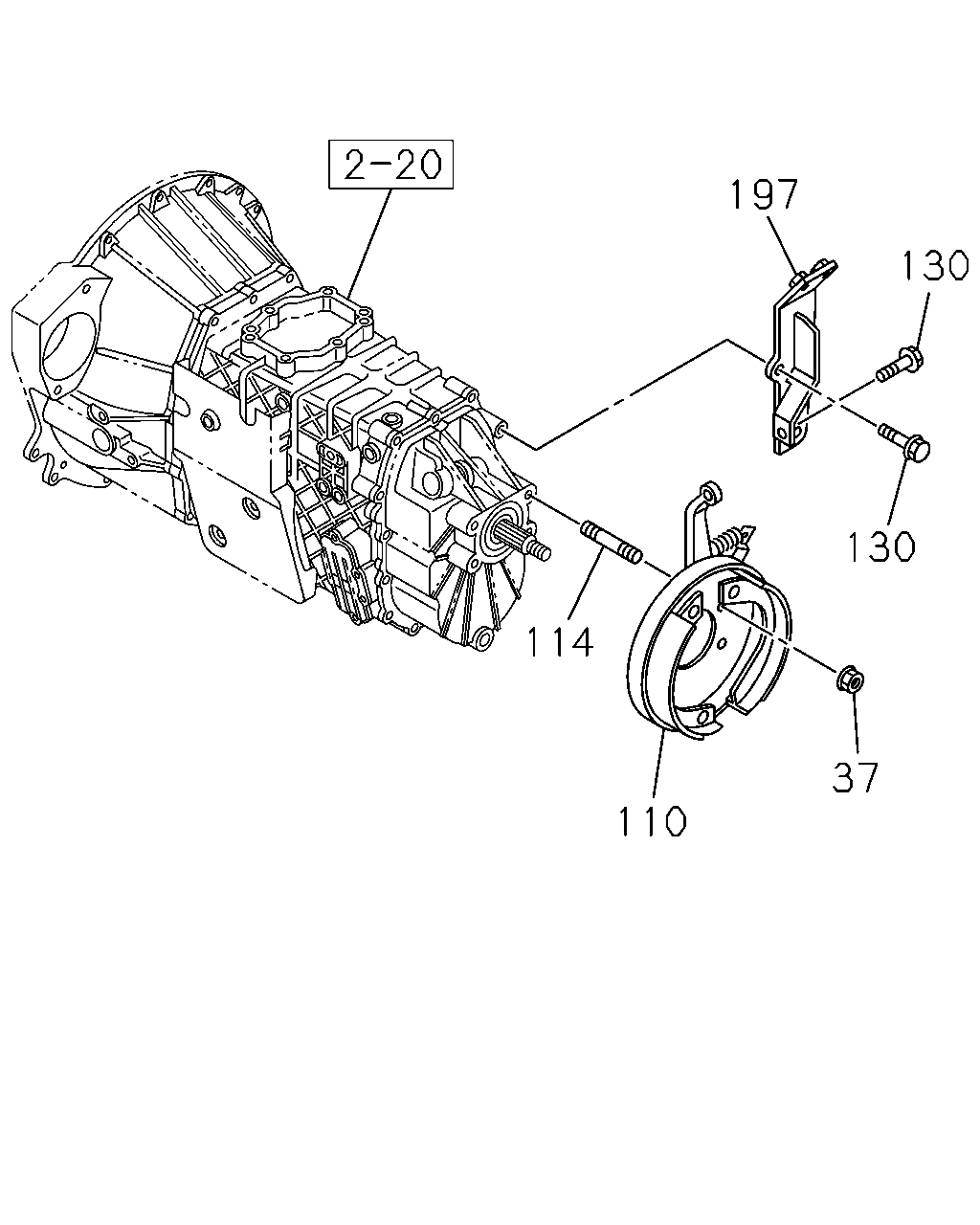

çizim 286714
130 130 37 110 114 197
BalonParca AdiParca NoAdetTipApplied Date A B C D
37 05.610 NUT; SUPPORT PLATE
M14 FLANGE 		8-97365-444-0 04 1 1207- ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1207-1209 ● ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1210- ● ● ●
110 05.610 BRAKE ASM; PARKING 8-98034-305-0 01 1 1207- ●
114 05.605 STUD; SUPPORT PLATE
M14X22.5 L=42.5 		8-97365-445-0 04 1 1207- ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 1207-1209 ● ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 1210- ● ● ●
130 05.605 BOLT; BRKT
02.042 M10X25 FLANGE 		0-28151-025-0 03 1 1207- ●
197 05.605 BRACKET; CENTER BRAKE CABLE 8-97244-812-0 01 1 1207- ●
