◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51267 - NN/NP/NQR(RHD)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#94208) — 191 parça

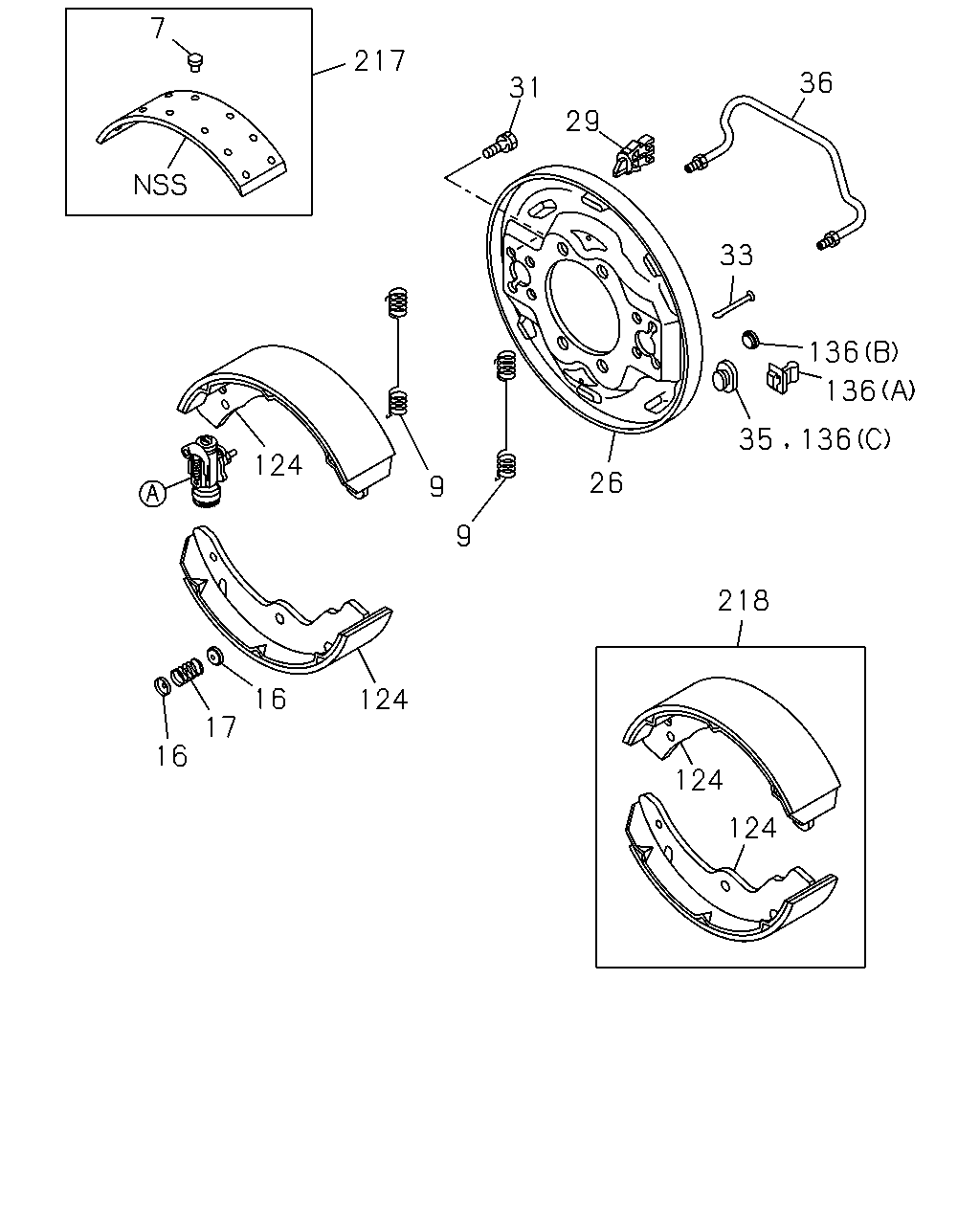

çizim 286211
218 124 124 136 35 136 136 33 36 29 31 217 7 9 9 26 124 124 16 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 64 1 1207-1209 ● ●
7 05.019 RIVET; LINING,RR BRK
HYDRO BRAKE BOOSTER(7QQ) 		1-09732-029-0 64 1 1210- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 64 1 1210- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 48 1 1207-1209 ●
7 05.019 RIVET; LINING,RR BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) 		1-09732-029-0 48 1 1210- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 48 1 1210- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 1207-1209 ● ●
9 05.026 SPRING; RETURN,BRK SHOE
HYDRO BRAKE BOOSTER(7QQ) 		8-97122-869-0 04 1 1210- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 1210- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 1207-1209 ●
9 05.026 SPRING; RETURN,BRK SHOE
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97022-087-0 04 1 1210- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 1210- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97191-707-0 04 1 1210- ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 1207- ● ● ●
16 05.043 CUP; SHOE HOLDING 8-97191-712-0 08 1 1210- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 1207- ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN 8-97191-708-0 04 1 1210- ●
26 05.001 PLATE; BACK,RR BRK 8-97134-731-0 01 1 1207- ●
26 05.001 PLATE; BACK,RR BRK 8-97134-732-0 01 1 1207- ●
26 05.001 PLATE; BACK,RR BRK 8-97207-157-0 01 1 1207-1209 ●
26 05.001 PLATE; BACK,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-97207-157-0 01 1 1210- ●
26 05.001 PLATE; BACK,RR BRK 8-97207-158-0 01 1 1207-1209 ●
26 05.001 PLATE; BACK,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-97207-158-0 01 1 1210- ●
26 05.001 PLATE; BACK,RR BRK 8-97192-080-0 01 1 1207-1209 ●
26 05.001 PLATE; BACK,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97192-080-0 01 1 1210- ●
26 05.001 PLATE; BACK,RR BRK 8-97192-080-0 01 1 1210- ●
26 05.001 PLATE; BACK,RR BRK 8-97192-081-0 01 1 1207-1209 ●
26 05.001 PLATE; BACK,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97192-081-0 01 1 1210- ●
26 05.001 PLATE; BACK,RR BRK 8-97192-081-0 01 1 1210- ●
26 05.001 PLATE; BACK,RR BRK 8-97191-696-0 01 1 1210- ●
26 05.001 PLATE; BACK,RR BRK 8-97191-697-0 01 1 1210- ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER(7QQ) 		8-97376-073-0 01 1 1210- ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER(7QQ) 		8-97376-074-0 01 1 1210- ●
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 1207- ● ● ●
29 04.685 CLIP; PIPE,BRK 8-97191-703-0 02 1 1210- ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 1207- ● ● ●
31 04.665 BOLT; RR WHEEL CYL 8-97191-714-0 16 1 1210- ●
33 05.043 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 1207-1209 ● ●
33 05.043 PIN; SHOE HOLD DOWN
HYDRO BRAKE BOOSTER(7QQ) 		8-97122-870-0 04 1 1210- ●
33 05.043 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 1210- ●
33 05.043 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 1207-1209 ●
33 05.043 PIN; SHOE HOLD DOWN
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97022-089-0 04 1 1210- ●
33 05.043 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 1210- ●
33 05.043 PIN; SHOE HOLD DOWN 8-97191-711-0 04 1 1210- ●
35 05.002 GROMMET; CHECK HOLE 8-97017-507-0 06 1 1207-1209 ●
35 05.002 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-97017-507-0 06 1 1210- ●
35 05.002 GROMMET; CHECK HOLE 8-97017-507-0 02 1 1207-1209 ● ●
35 05.002 GROMMET; CHECK HOLE
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97017-507-0 02 1 1210- ●
35 05.002 GROMMET; CHECK HOLE 8-97017-507-0 02 1 1210- ● ●
35 05.002 GROMMET; CHECK HOLE 8-97191-720-0 02 1 1210- ●
36 04.685 PIPE; OIL,RR BRK 8-97079-847-0 02 1 1207- ●
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 1207- ● ●
36 04.685 PIPE; OIL,RR BRK 8-97191-702-0 02 1 1210- ●
124 05.017 SHOE ASM; BRK,RR 8-97188-455-0 04 1 1207-1209 ● ●
124 05.017 SHOE ASM; BRK,RR
HYDRO BRAKE BOOSTER(7QQ) 		8-97188-455-0 04 1 1210- ●
124 05.017 SHOE ASM; BRK,RR 8-97188-455-0 04 1 1210- ●
124 05.017 SHOE ASM; BRK,RR 8-97201-061-0 04 1 1207-1209 ●
124 05.017 SHOE ASM; BRK,RR
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97201-061-0 04 1 1210- ●
124 05.017 SHOE ASM; BRK,RR 8-97201-061-0 04 1 1210- ●
124 05.017 SHOE ASM; BRK,RR 8-97331-932-0 04 1 1210- ●
136 05.002 GROMMET
(A) 		8-97044-742-1 04 1 1207- ●
136 05.002 GROMMET
04.670 (B) 		1-47154-008-0 04 1 1207- ● ●
136 05.002 GROMMET
(C) 		8-97017-507-0 04 1 1207-1209 ●
136 05.002 GROMMET
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97017-507-0 04 1 1210- ●
136 05.002 GROMMET
(C) 		8-97017-507-0 04 1 1210- ●
136 05.002 GROMMET
(C) 		8-97191-718-0 08 1 1210- ●
217 05.018 LINING KIT; RR BRK 5-87831-692-0 01 1 1207-1209 ● ●
217 05.018 LINING KIT; RR BRK
HYDRO BRAKE BOOSTER(7QQ) 		5-87831-692-0 01 1 1210- ●
217 05.018 LINING KIT; RR BRK 5-87831-692-0 01 1 1210- ●
217 05.018 LINING KIT; RR BRK 5-87831-774-0 01 1 1207-1209 ●
217 05.018 LINING KIT; RR BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) 		5-87831-774-0 01 1 1210- ●
217 05.018 LINING KIT; RR BRK 5-87831-774-0 01 1 1210- ●
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-119-0 01 1 1207-1209 ● ●
217 05.018 LINING KIT; RR BRK
HYDRO BRAKE BOOSTER(7QQ) BEST VALUE PARTS 		5-87610-119-0 01 1 1210- ●
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-119-0 01 1 1210- ●
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-120-0 01 1 1207-1209 ●
217 05.018 LINING KIT; RR BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) BEST VALUE PARTS 		5-87610-120-0 01 1 1210- ●
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-120-0 01 1 1210- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-693-0 01 1 1207-1209 ● ●
218 05.017 SHOE KIT; BRK,RR
HYDRO BRAKE BOOSTER(7QQ) 		5-87831-693-0 01 1 1210- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-693-0 01 1 1210- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-775-0 01 1 1207-1209 ●
218 05.017 SHOE KIT; BRK,RR
EXC. HYDRO BRAKE BOOSTER(7QQ) 		5-87831-775-0 01 1 1210- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-775-0 01 1 1210- ●
218 05.017 SHOE KIT; BRK,RR 5-87832-044-0 01 1 1210- ●

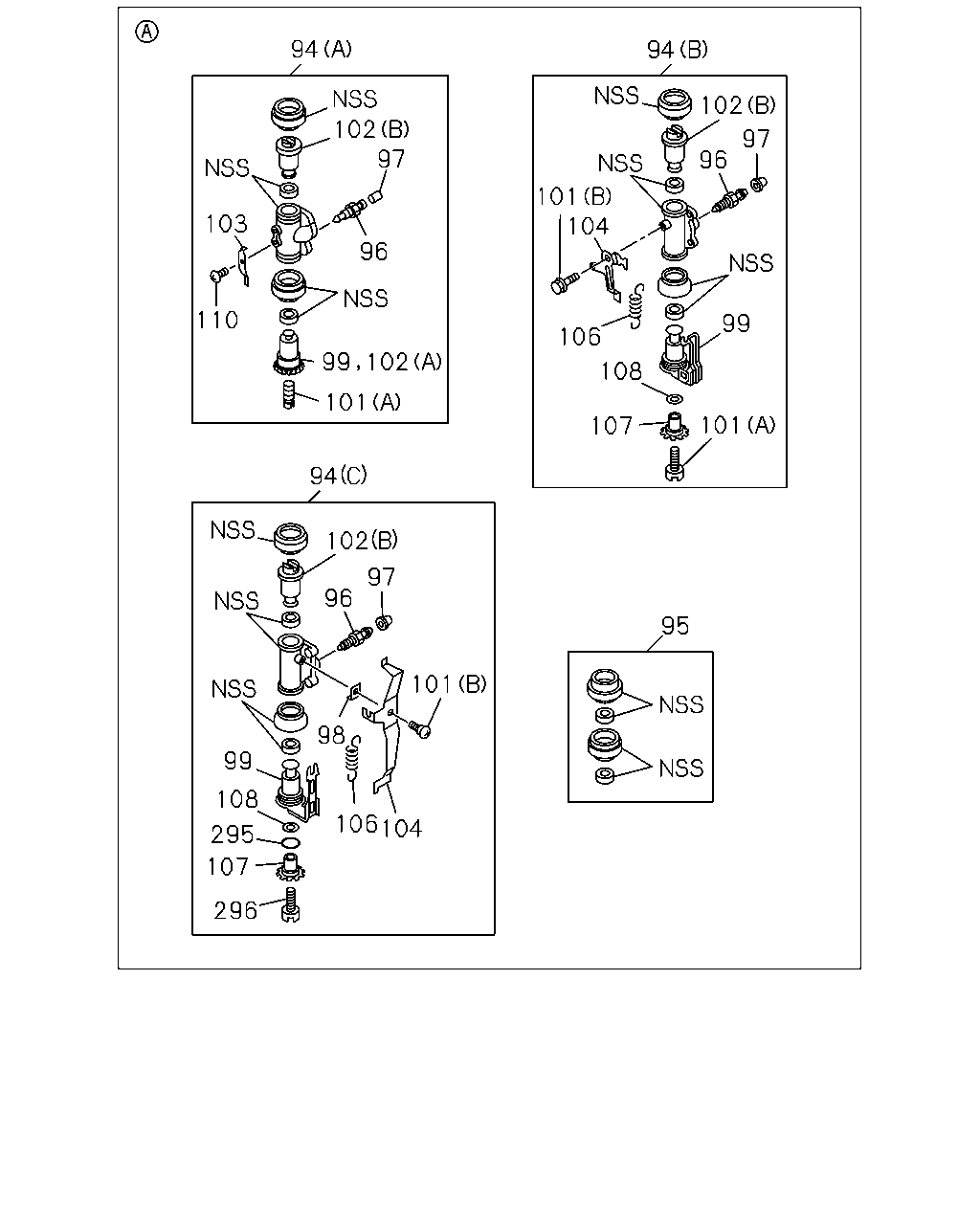

çizim 286703
94 102 96 99 101 107 108 106 104 101 97 95 101 106 104 97 96 102 99 108 295 107 296 98 101 102 99 96 97 102 110 103 94 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97353-570-0 02 1 1207- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97353-571-0 01 1 1207- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97353-572-0 01 1 1207- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97358-878-0 01 1 1207-1209 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) REAR 		8-97358-878-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97358-879-0 01 1 1207-1209 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) REAR 		8-97358-879-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97358-880-0 01 1 1207-1209 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) FRONT 		8-97358-880-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97358-881-0 01 1 1207-1209 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) FRONT 		8-97358-881-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97349-705-0 01 1 1207-1209 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR 		8-97349-705-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97349-705-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97349-706-0 01 1 1207-1209 ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR 		8-97349-706-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97349-706-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97349-707-0 01 1 1207-1209 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT 		8-97349-707-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97349-707-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97349-708-0 01 1 1207-1209 ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT 		8-97349-708-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97349-708-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) FRONT 		8-97191-497-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) REAR 		8-97191-499-0 01 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) 		8-97191-502-0 02 1 1210- ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER(7QQ) (B) 		8-97349-705-0 02 1 1210- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-080-0 02 1 1207- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-051-0 02 1 1207-1209 ●
95 04.665 CUP SET; RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		5-87832-051-0 02 1 1210- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-070-0 01 1 1207-1209 ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) 		5-87832-070-0 01 1 1210- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-070-0 01 1 1210- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-781-0 01 1 1210- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 01 1 1207- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 1207-1209 ●
96 04.666 SCREW; BLEEDER,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98050-477-0 02 1 1210- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 02 1 1207-1209 ●
96 04.666 SCREW; BLEEDER,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98050-476-0 02 1 1210- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 02 1 1210- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-97191-759-0 01 1 1210- ●
96 04.666 SCREW; BLEEDER,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER(7QQ) 		8-98050-476-0 01 1 1210- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 1207-1209 ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-479-0 02 1 1210- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 1210- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 1207-1209 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-479-0 01 1 1210- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 1210- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-97191-774-0 01 1 1210- ●
98 04.669 SPRING; RR WHEEL CYL 8-97191-768-0 04 1 1210- ●
99 04.668 PISTON; RR WHEEL CYL 8-97353-579-0 03 1 1207- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-731-0 02 1 1207-1209 ●
99 04.668 PISTON; RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-97349-731-0 02 1 1210- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-732-0 02 1 1207-1209 ●
99 04.668 PISTON; RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-97349-732-0 02 1 1210- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-729-0 01 1 1207-1209 ●
99 04.668 PISTON; RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97349-729-0 01 1 1210- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-729-0 01 1 1210- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-730-0 02 1 1207-1209 ●
99 04.668 PISTON; RR WHEEL CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97349-730-0 02 1 1210- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-730-0 02 1 1210- ●
99 04.668 PISTON; RR WHEEL CYL 8-97191-731-0 02 1 1210- ●
99 04.668 PISTON; RR WHEEL CYL 8-97191-732-0 02 1 1210- ●
99 04.668 PISTON; RR WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER(7QQ) 		8-97349-729-0 02 1 1210- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-94414-702-0 04 1 1207- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-741-0 02 1 1207- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-742-0 02 1 1207- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 1207- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97191-770-0 04 1 1210- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97353-578-0 04 1 1207- ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97353-579-0 01 1 1207- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97332-043-0 04 1 1207-1209 ●
102 04.668 PISTON; REAR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97332-043-0 04 1 1210- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97078-045-0 04 1 1207-1209 ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97078-045-0 04 1 1210- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97078-045-0 04 1 1210- ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97349-729-0 01 1 1207-1209 ●
102 04.668 PISTON; REAR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97349-729-0 01 1 1210- ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97349-729-0 01 1 1210- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97191-755-0 04 1 1210- ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 1207- ●
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 1207- ● ●
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 1207- ● ●
104 05.103 LEVER; ADJ 8-97191-739-0 02 1 1210- ●
104 05.103 LEVER; ADJ 8-97191-740-0 02 1 1210- ●
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 1207- ● ●
106 05.107 SPRING; ADJ LEVER 8-97191-743-0 02 1 1210- ●
106 05.107 SPRING; ADJ LEVER 8-97191-744-0 02 1 1210- ●
107 05.110 GEAR; ADJ,RR W/CYL
04.665 		8-97358-894-0 02 1 1207-1209 ●
107 05.110 GEAR; ADJ,RR W/CYL
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 04.665 		8-97358-894-0 02 1 1210- ●
107 05.110 GEAR; ADJ,RR W/CYL
04.665 		8-97358-895-0 02 1 1207-1209 ●
107 05.110 GEAR; ADJ,RR W/CYL
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 04.665 		8-97358-895-0 02 1 1210- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-738-0 02 1 1207-1209 ●
107 05.110 GEAR; ADJ,RR W/CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97349-738-0 02 1 1210- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-738-0 02 1 1210- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-740-0 02 1 1207-1209 ●
107 05.110 GEAR; ADJ,RR W/CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97349-740-0 02 1 1210- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-740-0 02 1 1210- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97191-747-0 02 1 1210- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97191-748-0 02 1 1210- ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97349-736-0 04 1 1207- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97191-762-0 04 1 1210- ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 1207- ●
295 05.110 SEAL; DUST 8-97191-751-0 04 1 1210- ●
296 05.125 BOLT; ADJ,RR WHEEL CYL 8-97191-764-0 02 1 1210- ●
296 05.125 BOLT; ADJ,RR WHEEL CYL 8-97191-765-0 02 1 1210- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
