◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51267 - NN/NP/NQR(RHD)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#94207) — 99 parça

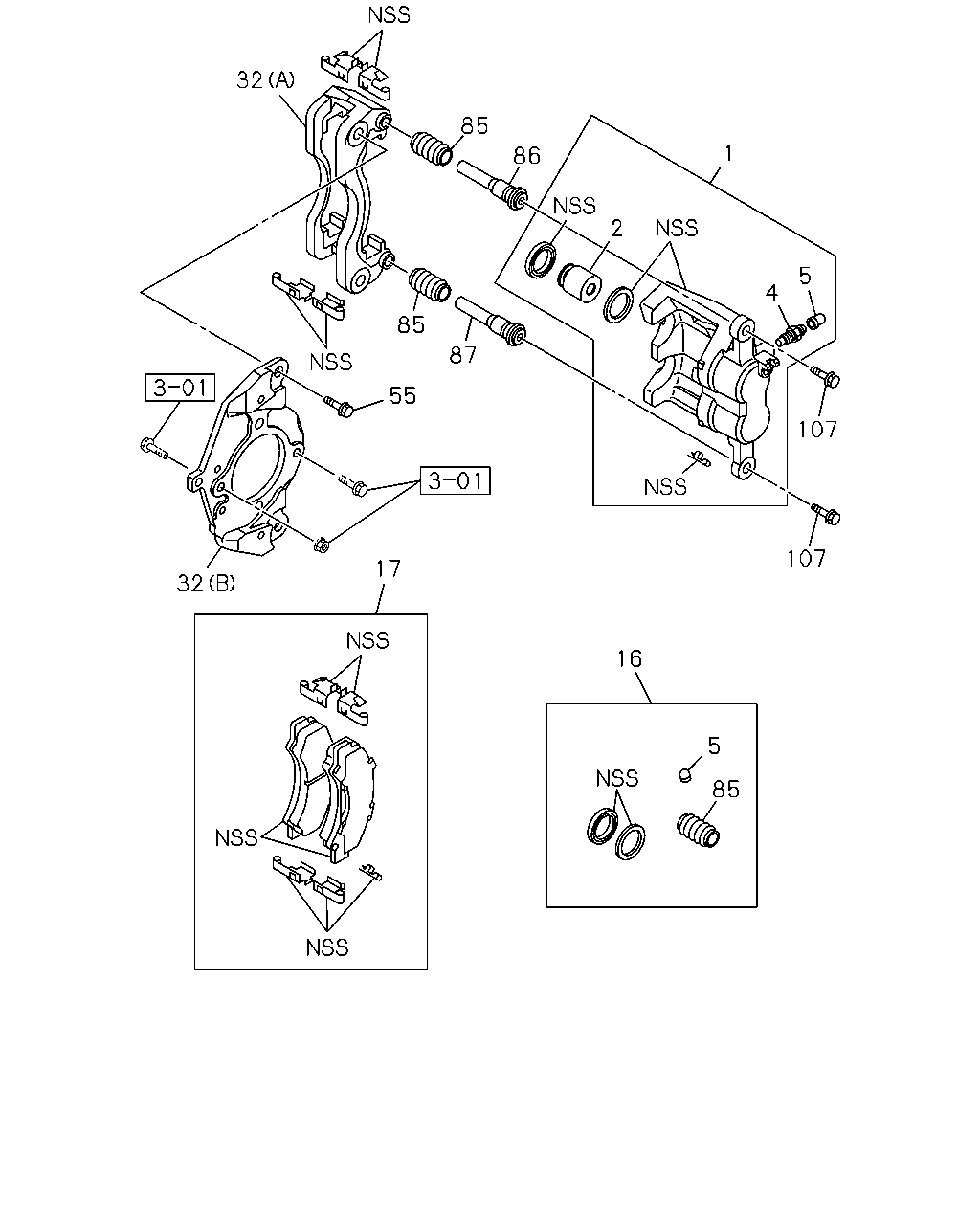

çizim 286216
107 107 5 4 1 2 86 85 32 55 85 87 17 32 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.665 CALIPER; FRT DISC BRK 8-97368-919-0 01 1 1207-1209 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97368-919-0 01 1 1210-1412 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-98303-465-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK 8-97368-920-0 01 1 1207-1209 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97368-920-0 01 1 1210-1412 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-98303-466-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 1207-1209 ●
1 04.665 CALIPER; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97365-907-0 01 1 1210-1310 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97365-907-0 01 1 1210-1310 ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 1210-1310 ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98247-730-0 01 1 1311-1412 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98247-730-0 01 1 1311-1412 ●
1 04.665 CALIPER; FRT DISC BRK 8-98247-730-0 01 1 1311-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98303-461-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98303-461-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1501- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 1207-1209 ●
1 04.665 CALIPER; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97365-908-0 01 1 1210-1310 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97365-908-0 01 1 1210-1310 ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 1210-1310 ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98247-731-0 01 1 1311-1412 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98247-731-0 01 1 1311-1412 ●
1 04.665 CALIPER; FRT DISC BRK 8-98247-731-0 01 1 1311-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98303-462-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98303-462-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1501- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-279-0 04 1 1207-1209 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97365-279-0 04 1 1210- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 1207-1209 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97365-269-0 04 1 1210- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97365-269-0 04 1 1210- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 1210- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-476-0 02 1 1311-1412 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98050-476-0 02 1 1311-1412 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1311-1412 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1501- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 1207-1209 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 1210-1310 ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		1-47615-027-0 02 1 1311-1412 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-479-0 02 1 1311-1412 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98050-479-0 02 1 1311-1412 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1311-1412 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1501- ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 1207-1209 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 1210-1310 ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		1-47619-009-0 02 1 1311-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98120-358-0 01 1 1207-1209 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) W/GREASE 		8-98120-358-0 01 1 1210-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) W/GREASE 		8-98302-532-0 01 1 1501- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98120-357-0 01 1 1207-1209 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> W/GREASE 		8-98120-357-0 01 1 1210-1310 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) W/GREASE 		8-98120-357-0 01 1 1210-1310 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98120-357-0 01 1 1210-1310 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> W/GREASE 		8-98248-904-0 01 1 1311-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) W/GREASE 		8-98248-904-0 01 1 1311-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98248-904-0 01 1 1311-1412 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> W/GREASE 		8-98302-531-0 01 1 1501- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) W/GREASE 		8-98302-531-0 01 1 1501- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1501- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97168-634-0 01 1 1207-1209 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97168-634-0 01 1 1210-1212 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-98216-926-0 01 1 1301- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 1207-1209 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97329-266-0 01 1 1210-1212 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97329-266-0 01 1 1210-1212 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 1210-1212 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98216-922-0 01 1 1301- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98216-922-0 01 1 1301- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1301- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-281-0 02 1 1207-1209 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) (A) 		8-97365-281-0 02 1 1210- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-726-0 01 1 1207-1209 ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-726-0 01 1 1210- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-726-0 01 1 1210- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-727-0 01 1 1207-1209 ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-727-0 01 1 1210- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-727-0 01 1 1210- ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 1207-1209 ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97365-271-0 02 1 1210- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97365-271-0 02 1 1210- ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 1210- ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-728-0 01 1 1210- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-728-0 01 1 1210- ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-729-0 01 1 1210- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-729-0 01 1 1210- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 1207-1209 ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 1210- ● ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 1207-1209 ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 1210- ● ● ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 1207-1209 ● ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 1210- ● ● ●
87 04.665 PIN; LOCK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98248-005-0 02 1 1311- ●
87 04.665 PIN; LOCK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98248-005-0 02 1 1311- ●
87 04.665 PIN; LOCK 8-98248-005-0 02 1 1311- ● ●
87 04.665 PIN; LOCK 8-98047-531-0 02 1 1207-1209 ● ●
87 04.665 PIN; LOCK 8-98047-531-0 02 1 1210-1310 ● ● ●
87 04.665 PIN; LOCK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-98047-531-0 02 1 1311- ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 1207-1209 ● ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 1210- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
