2-30 — GEAR SHIFTER AND QUADRANT BOX (#94201) — 153 parça

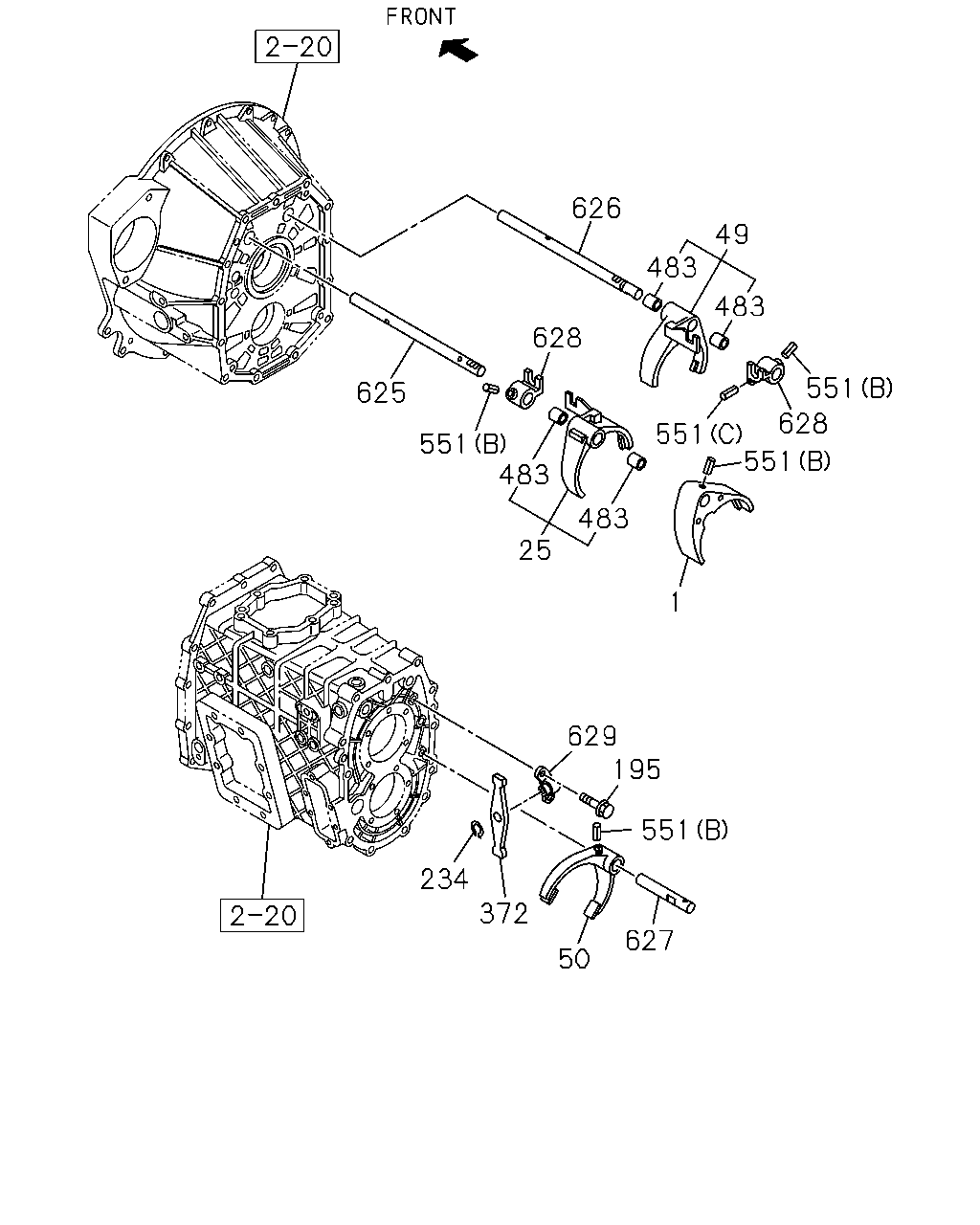

çizim 286198
626 49 483 628 483 551 628 551 551 625 551 25 1 483 483 629 195 551 234 372 50 627
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 1207- ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1207-1209 ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1210- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1207- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1207-1209 ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1210-1407 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1207- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1207- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1210- ●
50 04.302 ARM; SHIFT,6TH 8-97241-324-1 01 1 1207- ●
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 1207- ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1207-1209 ● ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1210- ● ● ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1207- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1210- ●
372 04.302 LEVER; RELAY,6TH 8-97241-342-0 01 1 1207- ●
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 1207- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1207-1209 ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1210- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1210- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1210- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1207-1209 ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1210- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1207-1209 ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1210- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1207-1209 ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1210- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1210- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1210- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-735-0 01 1 1207- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1207-1209 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1210- ● ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-98107-548-0 01 1 1207- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1207- ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1207- ● ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1207- ● ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1207- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1210- ●

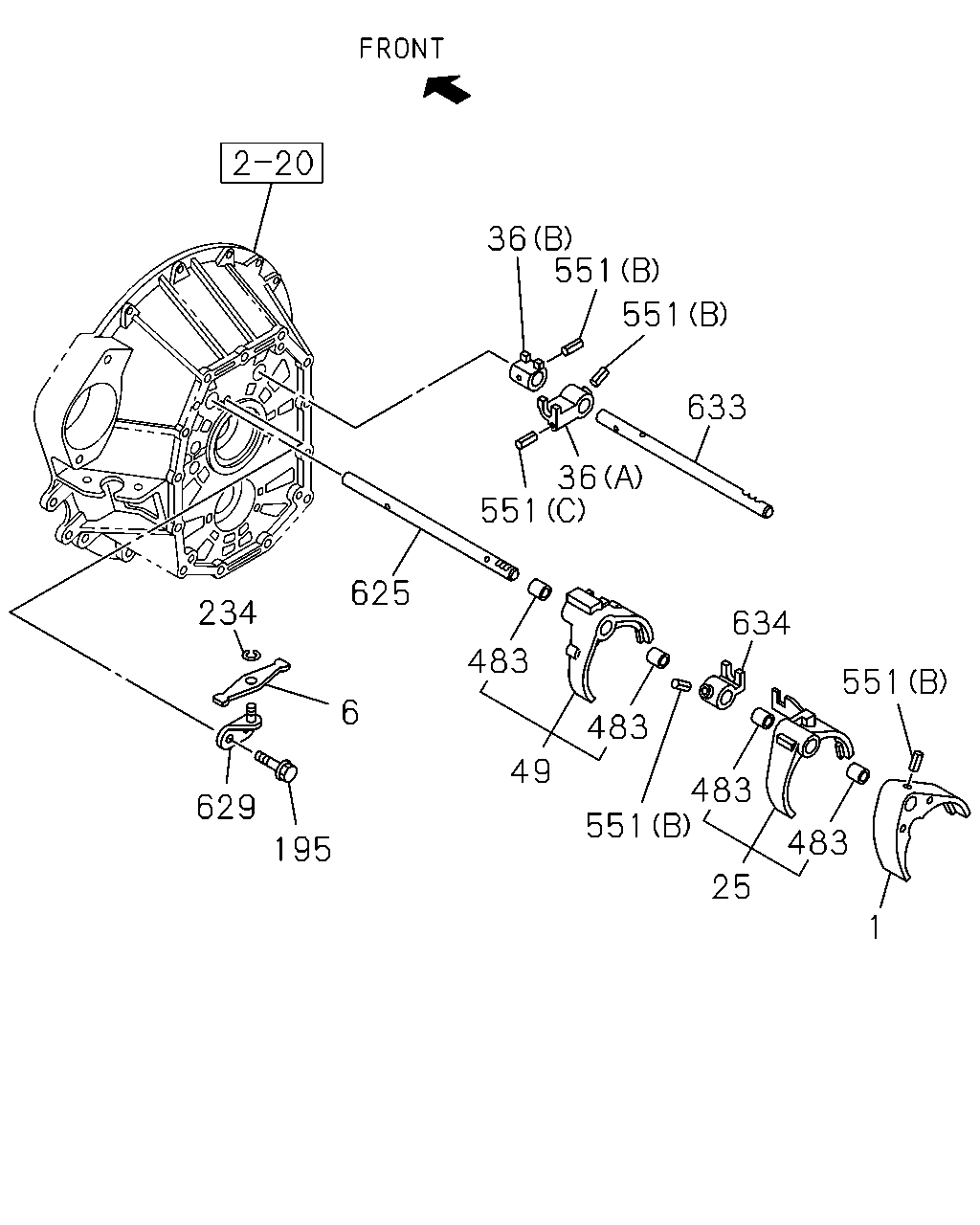

çizim 286199
36 551 551 633 36 551 625 234 6 629 195 483 483 49 551 25 1 551 634 483 483
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 1207- ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1207-1209 ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1210- ● ●
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 1210- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1207- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1207-1209 ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1210-1407 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1210- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1210- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1207- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1207- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1210- ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1207-1209 ● ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1210- ● ● ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1207- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1210- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1207-1209 ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1210- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1210- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1210- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1207-1209 ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1210- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1207-1209 ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1210- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1207-1209 ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1210- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1210- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1210- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-735-0 01 1 1207- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1207-1209 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1210- ● ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1207- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1210- ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1210- ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1210- ●

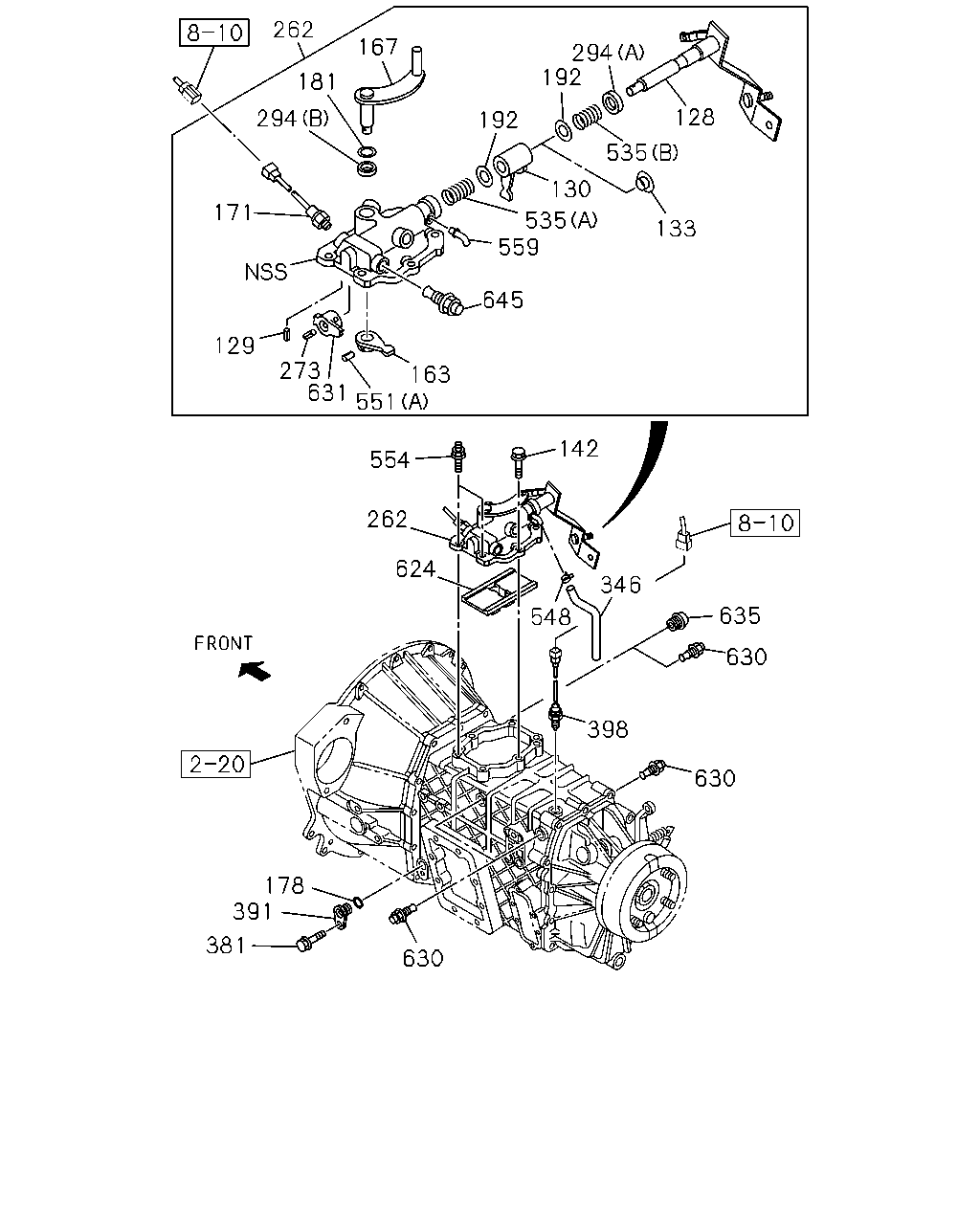

çizim 286705
262 167 181 294 171 129 631 163 551 645 559 535 130 192 192 294 128 535 133 142 635 630 398 630 346 548 624 262 554 178 391 381 630 273
BalonParca AdiParca NoAdetTipApplied Date A B C
128 04.030 LEVER; SHIFT,EXTERNAL
4HK1-TCN ENG(RDQ) 		8-98021-595-0 01 1 1207- ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-98021-595-0 01 1 1207- ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 1210- ●
128 04.030 LEVER; SHIFT,EXTERNAL
4JJ1-TCC ENG(RDU) 		8-97363-226-0 01 1 1210- ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1207-1209 ● ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1210- ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1207-1209 ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1210- ● ● ●
133 04.027 SEAT; SPR 8-97305-667-0 01 1 1210- ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1207-1209 ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1210- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1207-1209 ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1210- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCN ENG(RDQ) 		8-98039-444-0 01 1 1207- ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 1207- ●
167 04.302 LEVER; SELECT,EXTERNAL
4JJ1-TCC ENG(RDU) 		8-98039-436-0 01 1 1210- ● ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1207-1209 ● ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1210-1312 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1207-1209 ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1210- ● ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1207-1209 ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1210- ● ● ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 1207-1209 ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1210- ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 1210- ● ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ) 		8-98021-592-1 01 1 1207-1312 ●
262 04.105 BOX ASM; SHIFT CONT 8-98021-592-1 01 1 1207-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ) 		8-98240-994-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT 8-98240-994-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT 8-97362-753-2 01 1 1210-1312 ●
262 04.105 BOX ASM; SHIFT CONT 8-98241-002-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCC ENG(RDU) 		8-98021-591-1 01 1 1210-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCC ENG(RDU) 		8-98240-993-2 01 1 1401- ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1207-1209 ● ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1210- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1207-1209 ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1210- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1207-1209 ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1210- ● ● ●
346 04.545 HOSE; AIR 8-97309-855-0 01 1 1207-1209 ● ●
346 04.545 HOSE; AIR 8-97309-855-0 01 1 1210- ● ● ●
381 04.105 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1207-1209 ● ●
381 04.105 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1210- ● ● ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1207-1209 ● ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1210- ● ● ●
398 02.698 SWITCH; REV LAMP 8-98186-003-0 01 1 1207-1209 ● ●
398 02.698 SWITCH; REV LAMP 8-98186-003-0 01 1 1210-1311 ● ● ●
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1312- ● ● ●
535 04.302 SPRING; LEVER
(A) 		8-97305-659-0 01 1 1207- ● ●
535 04.302 SPRING; LEVER
(B) 		8-97305-660-0 01 1 1207- ● ●
535 04.302 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1210- ●
535 04.302 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1210- ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1207-1209 ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1210- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1207-1209 ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1210- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1207-1209 ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1210- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1207-1209 ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1210- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1210- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1210- ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1207-1209 ● ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1210- ● ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1207-1209 ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1210- ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1207-1209 ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1210- ● ● ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1207-1209 ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1210- ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1210- ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1207-1209 ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1210- ● ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1210- ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1207-1209 ● ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1210- ● ● ●
