◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#942) — 51 parça

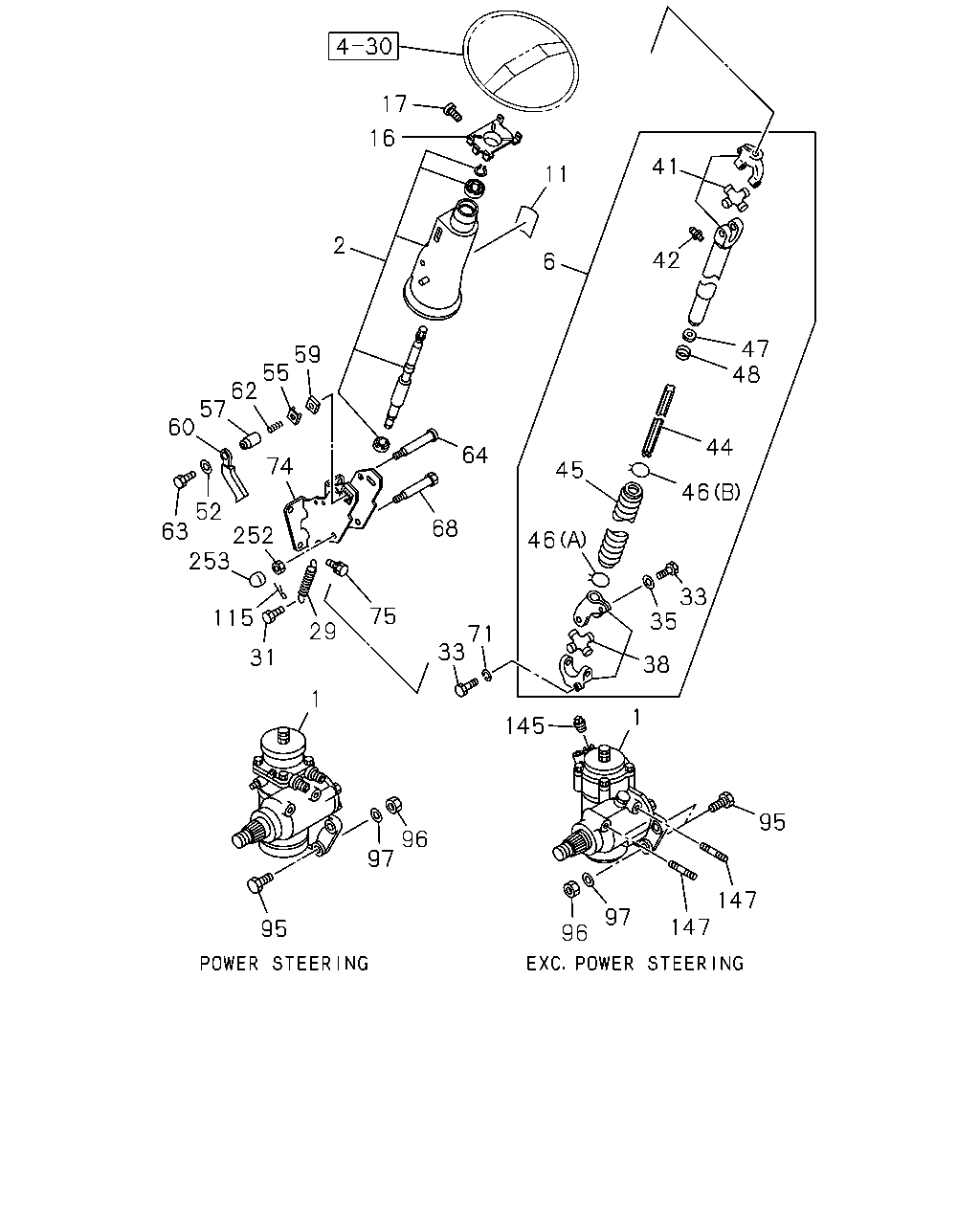

çizim 28606
17 16 41 11 2 42 6 47 48 59 55 62 57 60 44 64 74 45 46 52 63 68 252 253 46 33 35 75 115 29 71 33 31 38 1 1 145 95 96 97 147 147 97 95 96
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRONT AXLE F049(FS4) POWER STEERING(N40) 		1-44000-773-3 01 1 9202- ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRONT AXLE F049(FS4) EXC. POWER STEERING(N40) 		1-44000-721-3 01 1 9202- ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRONT AXLE F063(FS7) 		1-44000-809-2 01 1 9202- ● ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-524-0 01 1 9202-9504 ● ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-607-0 01 1 9505- ● ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-510-0 01 1 9202-9504 ● ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-606-0 01 1 9505- ● ●
6 SHAFT; STRG LWR 1-44135-257-0 01 1 9202- ● ●
11 SEAL; JOURNAL,STRG 1-44229-049-0 01 1 9202- ● ●
16 BRACKET; COMB SW
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44227-124-0 01 1 9202- ● ●
16 BRACKET; COMB SW
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44227-123-0 01 1 9202- ● ●
17 SCREW; BRKT
M5X10 W/LK WASHER 		9-03910-510-0 03 1 9202- ● ●
29 SPRING; COLUMN 1-09583-274-0 02 1 9202- ● ●
31 SCREW; HOOK 9-01045-620-0 02 1 9202-9504 ● ●
31 SCREW; HOOK
M6X20 		0-20800-620-0 02 1 9505- ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 03 1 9202- ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 02 1 9202- ● ●
38 JOURNAL; STRG SHAFT 1-44135-209-0 01 1 9202- ● ●
41 YOKE; SLEEVE,STRG 1-44135-261-0 01 1 9202- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 9202- ● ●
44 SHAFT; SPLINE,STRG 1-44135-228-0 01 1 9202- ● ●
45 BOOT; STRG SHAFT 1-44139-064-0 01 1 9202- ● ●
46 CLIP; BOOT
(A) 		1-09704-086-1 01 1 9202- ● ●
46 CLIP; BOOT
(B) 		1-09704-087-2 01 1 9202- ● ●
47 WASHER; CORK,STRG SHAFT 1-44139-050-0 01 1 9202- ● ●
48 RETAINER; FELT RING SLEEVE 1-44139-075-0 01 1 9202- ● ●
52 WASHER; PL,ADJ LEVER 1-09503-229-0 01 1 9202- ● ●
55 PLATE; GUIDE 1-44227-109-0 01 1 9202- ● ●
57 NUT; ADJ BOLT 1-44227-106-1 01 1 9202- ● ●
59 COLLAR; DIST,ADJ BOLT 1-44227-107-0 01 1 9202- ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-121-0 01 1 9202- ● ●
62 SPRING; LK,LEVER 1-09580-455-1 01 1 9202- ● ●
63 BOLT; ADJ LEVER,TILT STRG 1-44227-108-0 01 1 9202- ● ●
64 BOLT; ADJ,PROTECTOR 1-44227-104-0 01 1 9202- ● ●
68 PIN; TILT CENTER 1-44227-102-2 01 1 9202- ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9202- ● ●
74 BRACKET; SUPPORT,STRG 1-44220-026-1 01 1 9202- ● ●
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9202- ● ●
95 BOLT; STRG UNIT
FRONT AXLE F049(FS4) POWER STEERING(N40) M14X45 		9-92061-445-0 04 1 9202- ● ●
95 BOLT; STRG UNIT
FRONT AXLE F049(FS4) EXC. POWER STEERING(N40) M14X45 		9-92061-445-0 02 1 9202- ● ●
95 BOLT; STRG UNIT
FRONT AXLE F063(FS7) M14X65 		9-92061-465-0 05 1 9202- ● ●
96 NUT; STRG UNIT
FRONT AXLE F049(FS4) M14 		9-99110-514-0 04 1 9202- ● ●
96 NUT; STRG UNIT
FRONT AXLE F063(FS7) M14 		9-99110-514-0 05 1 9202- ● ●
97 WASHER; PL,STRG UNIT
FRONT AXLE F049(FS4) POWER STEERING(N40) ID=15 		9-09651-069-0 08 1 9202- ● ●
97 WASHER; PL,STRG UNIT
FRONT AXLE F049(FS4) EXC. POWER STEERING(N40) ID=15 		9-09651-069-0 06 1 9202- ● ●
97 WASHER; PL,STRG UNIT
FRONT AXLE F063(FS7) ID=15 		9-09651-069-0 10 1 9202- ● ●
115 PIN; SPLIT,TILT CENTER BOLT
OD=1.8 L=15 		9-08112-015-0 01 1 9202- ● ●
145 PLUG; AIR BREATHER
EXC. POWER STEERING(N40) 		1-09893-002-0 01 1 9202- ● ●
147 STUD; STRG UNIT
FRONT AXLE F049(FS4) EXC. POWER STEERING(N40) M14X37 L=66 		1-09300-095-1 02 1 9202- ● ●
252 NUT; TILT CENTER BOLT
M10 		9-09116-510-0 01 1 9202- ● ●
253 NUT; CAP 1-71736-199-0 01 1 9202- ● ●
