Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#94188) — 588 parça

2 44 562 43 36 1 8 25 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ)	8-98149-676-0	01	1	1207-	●	●
1	03.609 PIPE; EXH 4HK1-TCS ENG(RJS)	8-98149-676-0	01	1	1207-			●
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU)	8-98075-966-0	01	1	1210-	●			●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ)	8-97381-455-0	01	1	1207-	●	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1207-			●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU)	8-97384-590-0	01	1	1210-	●			●
8	03.704 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.613	8-98020-555-0	01	1	1207-	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.613	8-98020-555-0	01	1	1207-			●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU) 03.613	8-98026-063-0	01	1	1210-	●			●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98149-678-0	01	1	1207-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS)	8-98149-678-0	01	1	1207-			●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU)	8-98082-064-0	01	1	1210-	●			●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-	●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-			●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-		●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	08	1	1207-			●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1207-1209	●	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1210-	●	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1210-	●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1210-				●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-	●	●
38	00.002 NUT; SILENCER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-			●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1210-	●			●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1207-1209	●	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1210-	●	●	●	●
44	03.613 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1207-1209	●	●	●
44	03.613 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1210-	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 02.042 (B) M10X25 FLANGE	0-28151-025-0	02	1	1210-	●			●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ)	8-98030-175-0	01	1	1207-	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS)	8-98030-175-0	01	1	1207-			●

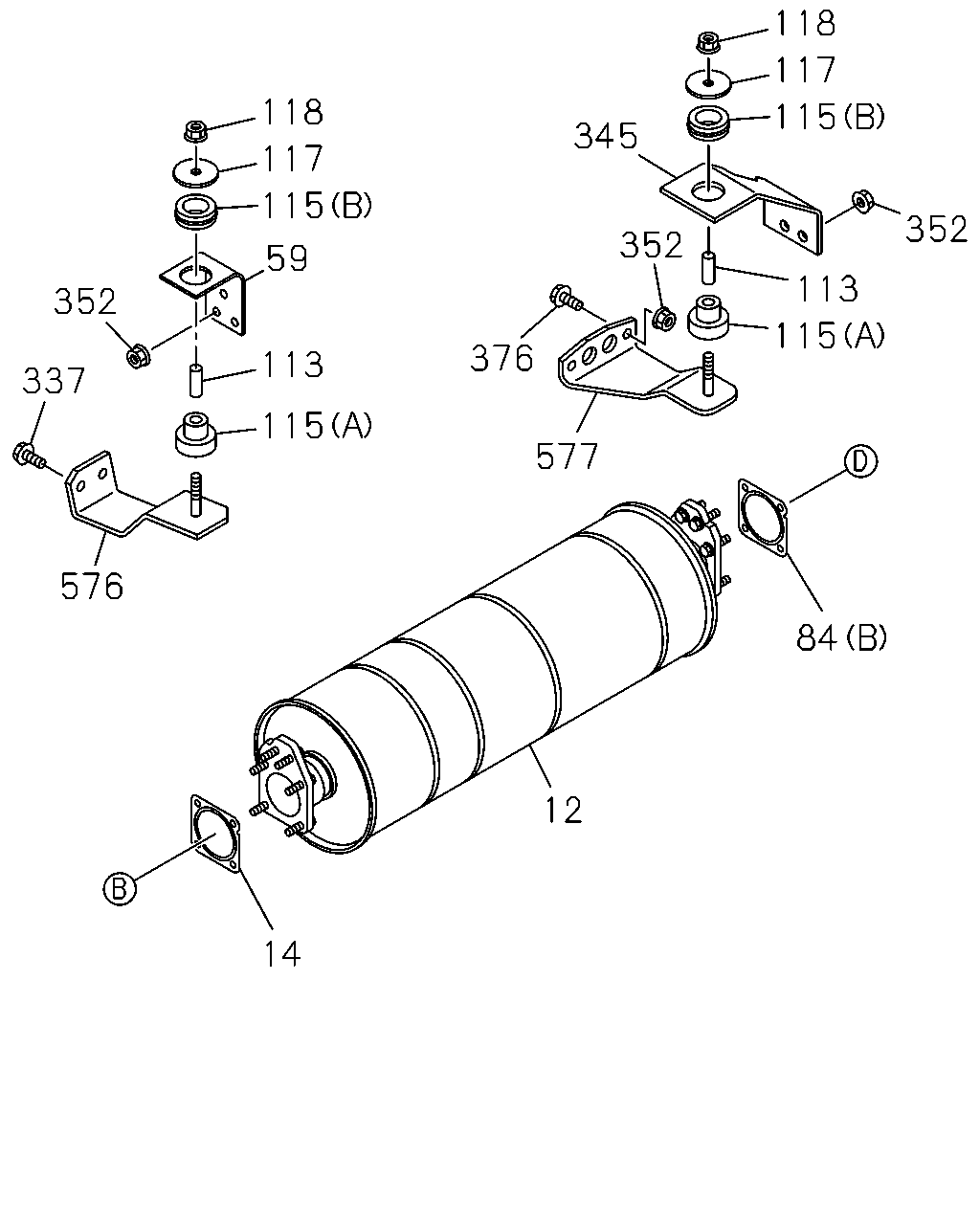

14 12 577 376 113 115 352 115 117 118 345 118 115 117 59 352 115 113 337 576

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98165-504-2	01	1	1207-	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS)	8-98165-504-2	01	1	1207-			●
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU)	8-98119-994-1	01	1	1210-	●			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) ID=85.8	1-22116-043-0	01	1	1207-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCS ENG(RJS) ID=85.8	1-22116-043-0	01	1	1207-			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 ID=64	8-97373-108-0	01	1	1210-	●			●
59	03.704 BRACKET; EXH SILENCER,FRT 4HK1-TCN ENG(RDQ)	8-98149-700-0	01	1	1207-	●	●
59	03.704 BRACKET; EXH SILENCER,FRT 4HK1-TCS ENG(RJS)	8-98149-700-0	01	1	1207-			●
59	03.704 BRACKET; EXH SILENCER,FRT 4JJ1-TCC ENG(RDU)	8-98082-021-0	01	1	1210-	●			●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1207-1209	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1210-	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1207-1209	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1210-	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1207-1209	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1210-	●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1207-1209	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1210-	●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1207-1209	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1210-	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1207-1209	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1210-	●	●	●	●
345	03.704 BRACKET; EXH SILENCER,RR 4HK1-TCN ENG(RDQ)	8-98149-709-0	01	1	1207-	●	●
345	03.704 BRACKET; EXH SILENCER,RR 4HK1-TCS ENG(RJS)	8-98149-709-0	01	1	1207-			●
345	03.704 BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU)	8-98081-909-0	01	1	1210-	●			●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-1209	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-1209	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●	●	●	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●	●	●
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-	●	●
376	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-			●
376	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1210-	●			●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ)	8-98149-705-0	01	1	1207-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCS ENG(RJS)	8-98149-705-0	01	1	1207-			●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU)	8-98082-019-0	01	1	1210-	●			●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ)	8-98149-706-0	01	1	1207-	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCS ENG(RJS)	8-98149-706-0	01	1	1207-			●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU)	8-98106-886-0	01	1	1210-	●			●

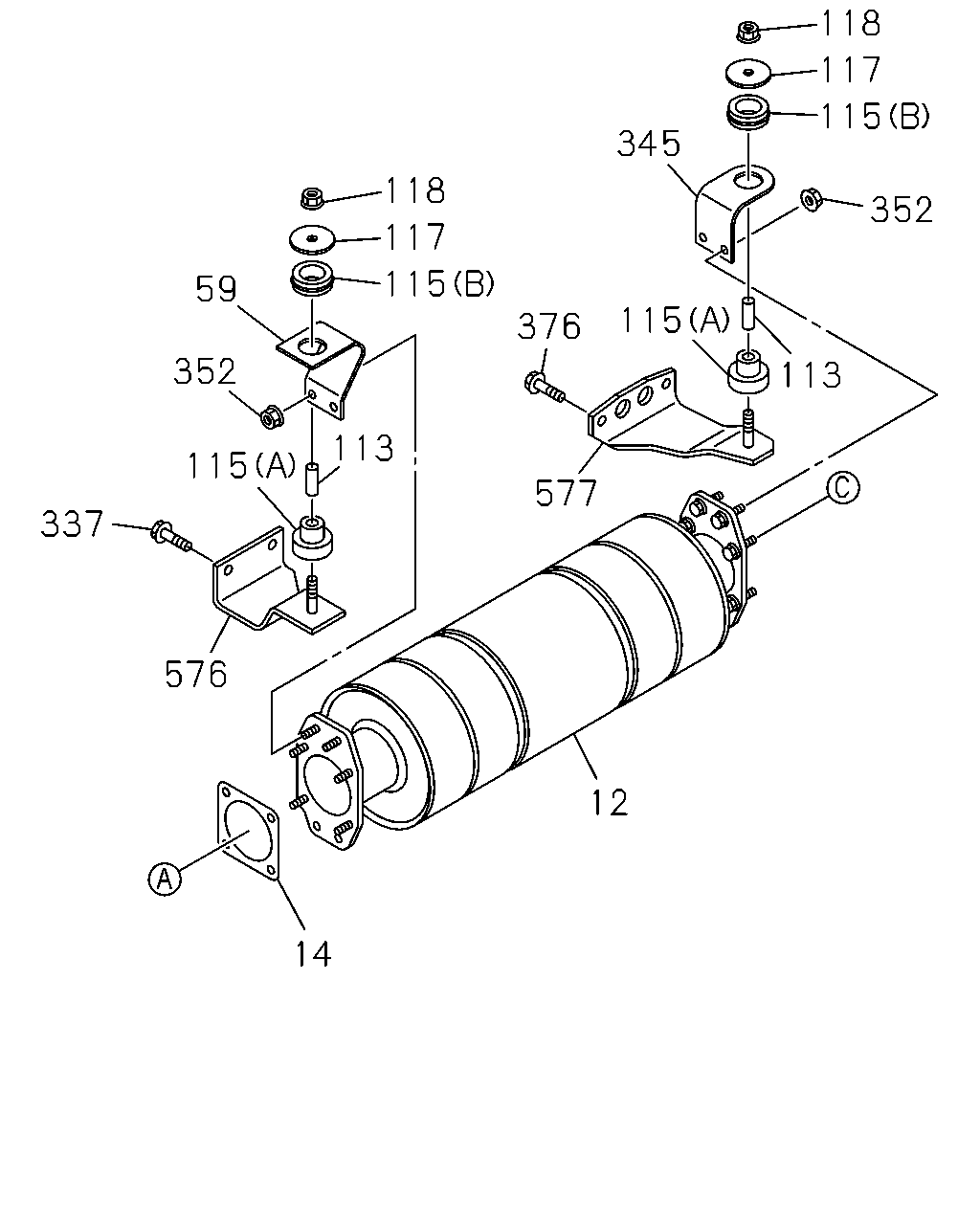

14 12 84 115 113 352 115 117 577 376 352 345 118 115 113 59 115 117 576 337 352 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98165-504-2	01	1	1207-	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS)	8-98165-504-2	01	1	1207-			●
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU)	8-98119-994-1	01	1	1210-	●			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) ID=85.8	1-22116-043-0	01	1	1207-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCS ENG(RJS) ID=85.8	1-22116-043-0	01	1	1207-			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 ID=64	8-97373-108-0	01	1	1210-	●			●
59	03.704 BRACKET; EXH SILENCER,FRT 4HK1-TCN ENG(RDQ)	8-98149-700-0	01	1	1207-	●	●
59	03.704 BRACKET; EXH SILENCER,FRT 4HK1-TCS ENG(RJS)	8-98149-700-0	01	1	1207-			●
59	03.704 BRACKET; EXH SILENCER,FRT 4JJ1-TCC ENG(RDU)	8-98082-021-0	01	1	1210-	●			●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-	●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 03.704 (A) ID=85.8	1-22116-043-0	02	1	1207-			●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (B) ID=64	8-97373-108-0	01	1	1210-	●			●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=65	8-97148-757-1	01	1	1210-	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=65	8-97148-757-1	01	1	1210-				●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1207-1209	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1210-	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1207-1209	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1210-	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1207-1209	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1210-	●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1207-1209	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1210-	●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1207-1209	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1210-	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1207-1209	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1210-	●	●	●	●
345	03.704 BRACKET; EXH SILENCER,RR 4HK1-TCN ENG(RDQ)	8-98149-709-0	01	1	1207-	●	●
345	03.704 BRACKET; EXH SILENCER,RR 4HK1-TCS ENG(RJS)	8-98149-709-0	01	1	1207-			●
345	03.704 BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU)	8-98081-909-0	01	1	1210-	●			●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-1209	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-1209	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●	●	●	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●	●	●
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-	●	●
376	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-			●
376	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1210-	●			●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ)	8-98149-705-0	01	1	1207-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCS ENG(RJS)	8-98149-705-0	01	1	1207-			●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU)	8-98082-019-0	01	1	1210-	●			●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ)	8-98149-706-0	01	1	1207-	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCS ENG(RJS)	8-98149-706-0	01	1	1207-			●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU)	8-98106-886-0	01	1	1210-	●			●

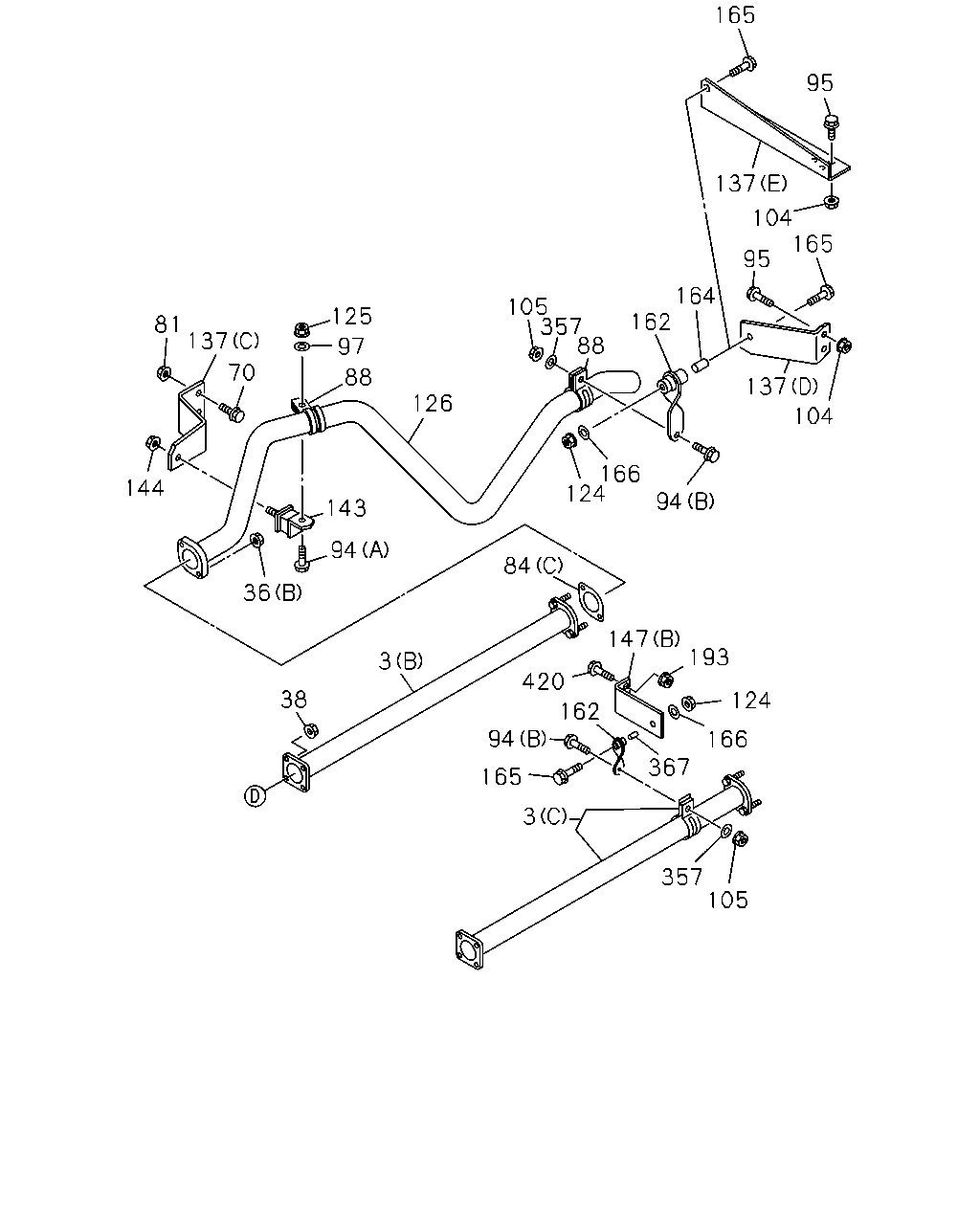

81 137 70 144 125 97 88 143 94 36 38 126 3 105 357 124 166 84 420 94 165 3 162 147 193 124 367 166 357 105 94 104 137 162 88 164 95 137 165 95 104 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) (C)	8-98330-982-0	01	1	1511-	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (A)	8-98149-680-0	01	1	1207-	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A)	8-98149-681-0	01	1	1207-	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98149-681-0	01	1	1207-			●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (A)	8-98149-681-0	01	1	1207-		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) (B)	8-98212-739-0	01	1	1210-1510	●			●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98212-739-0	01	1	1511-	●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) (B)	8-98212-739-0	01	1	1511-				●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-	●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-			●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-		●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	08	1	1207-			●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1207-1209	●	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1210-	●	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1210-	●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1210-				●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-	●	●
38	00.002 NUT; SILENCER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-			●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1210-	●			●
70	03.706 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1207-	●	●
70	03.706 BOLT; BRKT 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1207-			●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1210-	●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1210-				●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-	●	●
81	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-			●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●			●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-				●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-	●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 03.704 (A) ID=85.8	1-22116-043-0	02	1	1207-			●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (B) ID=64	8-97373-108-0	01	1	1210-	●			●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=65	8-97148-757-1	01	1	1210-	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=65	8-97148-757-1	01	1	1210-				●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-98034-766-0	01	1	1207-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-98034-766-0	01	1	1207-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCS ENG(RJS)	8-98034-766-0	01	1	1207-			●
88	03.708 CLAMP; EXH PIPE 4HK1-TCS ENG(RJS)	8-98034-766-0	01	1	1207-			●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU)	8-97373-158-0	01	1	1210-	●			●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU)	8-97373-158-0	01	1	1210-	●			●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1207-1209	●	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1207-1209	●	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1207-1209			●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1207-1209			●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510	●	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510			●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510			●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510		●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510				●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-			●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-			●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-		●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-				●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1207-1209	●	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1207-1209			●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1210-	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1210-	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1210-			●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1210-				●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1207-	●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1207-			●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1207-		●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-1209			●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1210-	●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1210-			●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1210-				●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209	●	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209			●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-	●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-			●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-				●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-	●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-			●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-		●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-1209			●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-			●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	03	1	1210-				●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1207-1209	●	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1207-1209	●	●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1207-1209			●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1207-1209			●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1210-1510	●	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1210-1510	●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1210-1510			●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1210-1510			●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1210-1510		●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1210-1510				●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1511-	●	●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 00.833 M10	0-91110-510-0	01	1	1511-	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1511-	●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1511-			●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1511-			●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1511-		●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1511-				●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510		●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510				●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-	●	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-		●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-				●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1207-1209	●	●
125	03.708 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1207-1209			●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1210-	●	●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10	0-91110-510-0	01	1	1210-	●
125	03.708 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1210-			●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1210-				●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98149-685-0	01	1	1207-	●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W)	8-98149-685-0	01	1	1207-			●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ)	8-98149-685-0	01	1	1207-		●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W)	8-98149-686-0	01	1	1207-			●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU)	8-98212-741-0	01	1	1210-				●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU)	8-98212-740-0	01	1	1210-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) 03.613 (A)	8-97096-651-0	01	1	1207-	●	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) 03.613 (A)	8-97096-651-0	01	1	1207-			●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1207-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1207-			●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (B)	8-97116-588-2	01	1	1207-		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) (B)	8-97185-801-0	01	1	1207-			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) (C)	8-98059-407-0	01	1	1210-				●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) (E)	8-98079-109-0	01	1	1210-				●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D)	8-98001-913-0	01	1	1210-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C)	8-98019-904-2	01	1	1210-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ)	8-98034-767-0	01	1	1207-1209	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS)	8-98034-767-0	01	1	1207-1209			●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ)	8-98034-767-0	01	1	1210-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98034-767-0	01	1	1210-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS)	8-98034-767-0	01	1	1210-			●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU)	8-98034-767-0	01	1	1210-				●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●
144	03.613 NUT; MTG RUBBER 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209			●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●
144	03.613 NUT; MTG RUBBER 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-			●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-				●
147	03.704 BRACKET; VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) (B)	8-98082-146-0	01	1	1511-	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) (A)	8-98149-703-1	01	1	1207-	●	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCS ENG(RJS) (A)	8-98149-703-1	01	1	1207-			●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1207-1209	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1207-1209	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1210-1510	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=115	8-98034-765-0	01	1	1210-1510	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1511-	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=115	8-98034-765-0	01	1	1511-	●		●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) L=115	8-98034-765-0	01	1	1511-	●			●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1207-1209	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1210-	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1207-1209	●	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1207-1209	●	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1210-1510	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X70 FLANGE	0-28051-070-0	01	1	1210-1510	●	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1511-	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X70 FLANGE	0-28051-070-0	01	1	1511-	●		●	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) M10X70 FLANGE	0-28051-070-0	01	1	1511-	●			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1207-1209	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1207-1209	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1207-1209			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1207-1209			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510				●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-				●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-1510	●	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-1510			●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-	●	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209	●	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209	●	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510	●	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510		●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510				●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-	●	●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-		●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-				●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	01	1	1207-1510	●	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	01	1	1207-1510			●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	01	1	1511-	●	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 03.706 L=37.5	9-22151-217-0	01	1	1511-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	01	1	1511-			●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-1510	●	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-1510			●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1511-	●	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1511-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1511-			●

2 36 1 25 329 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ)	8-98149-676-0	01	1	1207-	●	●
1	03.609 PIPE; EXH 4HK1-TCS ENG(RJS)	8-98149-676-0	01	1	1207-			●
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU)	8-98075-966-0	01	1	1210-	●			●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ)	8-97381-455-0	01	1	1207-	●	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1207-			●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU)	8-97384-590-0	01	1	1210-	●			●
8	03.704 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.613	8-98020-555-0	01	1	1207-	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.613	8-98020-555-0	01	1	1207-			●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU) 03.613	8-98026-063-0	01	1	1210-	●			●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98149-678-0	01	1	1207-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS)	8-98149-678-0	01	1	1207-			●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU)	8-98082-064-0	01	1	1210-	●			●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-	●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-			●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-		●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	08	1	1207-			●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1207-1209	●	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1210-	●	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1210-	●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1210-				●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1207-1209	●	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1210-	●	●	●	●
44	03.613 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1207-1209	●	●	●
44	03.613 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1210-	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 02.042 (B) M10X25 FLANGE	0-28151-025-0	02	1	1210-	●			●
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-			●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1210-	●			●

11 36 329 84 3 125 97 420 193 165 147 367 84 162 124 166 94 137 165 95 88 84 94 143 144 81 137 70 105 357 105 357 126 88 166 162 164 104 94 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) (C)	8-98330-982-0	01	1	1511-	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (A)	8-98149-680-0	01	1	1207-	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A)	8-98149-681-0	01	1	1207-	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98149-681-0	01	1	1207-			●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (A)	8-98149-681-0	01	1	1207-		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) (B)	8-98212-739-0	01	1	1210-1510	●			●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98212-739-0	01	1	1511-	●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) (B)	8-98212-739-0	01	1	1511-				●
11	03.609 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W)	8-98149-683-0	01	1	1207-			●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-	●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-			●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1207-		●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	08	1	1207-			●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1207-1209	●	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1210-	●	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1210-	●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1210-				●
70	03.706 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1207-	●	●
70	03.706 BOLT; BRKT 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1207-			●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1210-	●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1210-				●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-	●	●
81	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-			●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●			●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-				●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-	●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1207-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 03.704 (A) ID=85.8	1-22116-043-0	02	1	1207-			●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (B) ID=64	8-97373-108-0	01	1	1210-	●			●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=65	8-97148-757-1	01	1	1210-	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=65	8-97148-757-1	01	1	1210-				●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-98034-766-0	01	1	1207-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-98034-766-0	01	1	1207-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCS ENG(RJS)	8-98034-766-0	01	1	1207-			●
88	03.708 CLAMP; EXH PIPE 4HK1-TCS ENG(RJS)	8-98034-766-0	01	1	1207-			●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU)	8-97373-158-0	01	1	1210-	●			●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU)	8-97373-158-0	01	1	1210-	●			●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1207-1209	●	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1207-1209	●	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1207-1209			●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1207-1209			●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510	●	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510			●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510			●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510		●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1210-1510				●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-			●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-			●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-		●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1511-				●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1207-1209	●	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1207-1209			●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1210-	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1210-	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1210-			●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1210-				●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1207-	●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1207-			●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1207-		●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-1209			●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1210-	●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1210-			●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1210-				●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209	●	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209			●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-	●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-			●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-				●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-	●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-			●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-		●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-1209			●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-	●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1210-			●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	03	1	1210-				●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1207-1209	●	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1207-1209	●	●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1207-1209			●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1207-1209			●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1210-1510	●	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1210-1510	●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1210-1510			●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1210-1510			●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1210-1510		●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1210-1510				●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1511-	●	●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 00.833 M10	0-91110-510-0	01	1	1511-	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1511-	●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1511-			●
105	03.704 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1511-			●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1511-		●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1511-				●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510		●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-1510				●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-	●	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-		●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-				●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1207-1209	●	●
125	03.708 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1207-1209			●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1210-	●	●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10	0-91110-510-0	01	1	1210-	●
125	03.708 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	1210-			●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1210-				●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98149-685-0	01	1	1207-	●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W)	8-98149-685-0	01	1	1207-			●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ)	8-98149-685-0	01	1	1207-		●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W)	8-98149-686-0	01	1	1207-			●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU)	8-98212-741-0	01	1	1210-				●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU)	8-98212-740-0	01	1	1210-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) 03.613 (A)	8-97096-651-0	01	1	1207-	●	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) 03.613 (A)	8-97096-651-0	01	1	1207-			●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1207-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1207-			●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (B)	8-97116-588-2	01	1	1207-		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) (B)	8-97185-801-0	01	1	1207-			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) (C)	8-98059-407-0	01	1	1210-				●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) (E)	8-98079-109-0	01	1	1210-				●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D)	8-98001-913-0	01	1	1210-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C)	8-98019-904-2	01	1	1210-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ)	8-98034-767-0	01	1	1207-1209	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS)	8-98034-767-0	01	1	1207-1209			●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ)	8-98034-767-0	01	1	1210-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98034-767-0	01	1	1210-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS)	8-98034-767-0	01	1	1210-			●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU)	8-98034-767-0	01	1	1210-				●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●
144	03.613 NUT; MTG RUBBER 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209			●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●
144	03.613 NUT; MTG RUBBER 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-			●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-				●
147	03.704 BRACKET; VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) (B)	8-98082-146-0	01	1	1511-	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) (A)	8-98149-703-1	01	1	1207-	●	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCS ENG(RJS) (A)	8-98149-703-1	01	1	1207-			●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1207-1209	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1207-1209	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1210-1510	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=115	8-98034-765-0	01	1	1210-1510	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1511-	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=115	8-98034-765-0	01	1	1511-	●		●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) L=115	8-98034-765-0	01	1	1511-	●			●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1207-1209	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1210-	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1207-1209	●	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1207-1209	●	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1210-1510	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X70 FLANGE	0-28051-070-0	01	1	1210-1510	●	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1511-	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X70 FLANGE	0-28051-070-0	01	1	1511-	●		●	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) M10X70 FLANGE	0-28051-070-0	01	1	1511-	●			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1207-1209	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1207-1209	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1207-1209			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1207-1209			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-1510				●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1511-				●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-1510	●	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-1510			●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-	●	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-			●
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-			●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	04	1	1210-	●			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209	●	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209	●	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1207-1209			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510	●	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510		●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1210-1510				●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-	●	●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-			●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-		●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1511-				●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	01	1	1207-1510	●	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	01	1	1207-1510			●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	01	1	1511-	●	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 03.706 L=37.5	9-22151-217-0	01	1	1511-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	01	1	1511-			●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-1510	●	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-1510			●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1511-	●	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1511-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1511-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
