◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51267 - NN/NP/NQR(RHD)EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#94187) — 756 parça

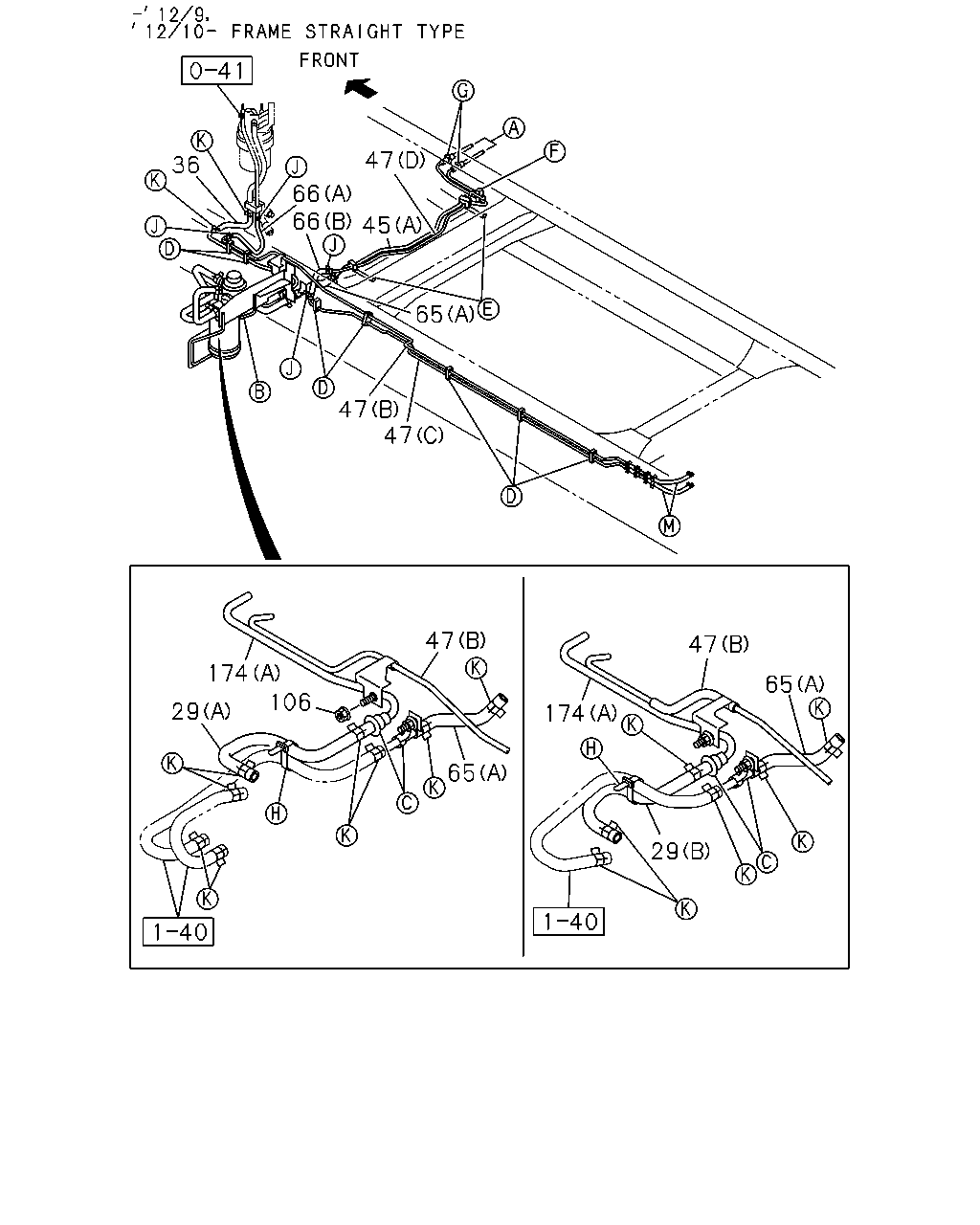

çizim 286151
47 66 36 66 45 47 174 106 65 47 174 47 65 29 47 29 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98037-758-0 01 1 1207- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W) (C) 		8-98149-363-1 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98149-363-1 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W) (C) 		8-98067-563-4 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98067-563-4 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
(C) 		8-98067-563-4 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98067-563-4 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98067-563-4 01 1 1210- ●
29 03.163 HOSE; FUEL
(C) 		8-98067-563-4 01 1 1210- ●
29 03.163 HOSE; FUEL
(A) 		8-98099-502-0 01 1 1207-1209 ● ●
29 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98099-502-0 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-502-0 01 1 1210- ●
29 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98099-502-0 01 1 1210- ●
29 03.163 HOSE; FUEL
(A) 		8-98099-502-0 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98105-710-0 01 1 1210- ●
29 03.163 HOSE; FUEL
(E) 		8-98105-710-0 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98105-757-1 01 1 1210- ●
29 03.163 HOSE; FUEL
(F) 		8-98105-757-1 01 1 1210- ●
29 03.163 HOSE; FUEL
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1210- ●
29 03.163 HOSE; FUEL
03.003 (D) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1210- ●
36 03.163 HOSE; FUEL,FILTER TO TANK 8-98034-028-1 01 1 1207-1209 ● ● ●
36 03.163 HOSE; FUEL,FILTER TO TANK
FRAME STRAIGHT TYPE<7KJ> 		8-98034-028-1 01 1 1210- ●
36 03.163 HOSE; FUEL,FILTER TO TANK 8-98034-028-1 01 1 1210- ● ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MZZ6U(RSF) (A) 		8-98057-486-1 01 1 1207- ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST) (A) 		8-98043-681-1 01 1 1207-1209 ● ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98043-681-1 01 1 1210- ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST) (A) 		8-98043-681-1 01 1 1210- ●
45 03.163 PIPE; FUEL,DELIVERY
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98070-973-0 01 1 1210- ●
45 03.163 PIPE; FUEL,DELIVERY
(B) 		8-98070-973-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
M/T MZZ6U(RSF) (D) 		8-98057-487-1 01 1 1207- ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) (D) 		8-98043-639-0 01 1 1207-1209 ● ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98043-639-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) (D) 		8-98043-639-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) (B) L=1503 		8-98158-832-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) L=1503 		8-98158-832-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) (C) 		8-98158-838-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-838-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=70 		8-98036-483-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=70 		8-98036-483-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 01 1 1210- ● ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) (B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) (C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 02 1 1207-1209 ● ● ●
47 03.163 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ> (A) L=70 		8-98036-483-0 02 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 02 1 1210- ● ●
47 03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98136-278-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(F) 		8-98136-278-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98136-279-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(E) 		8-98136-279-0 01 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
M/T MZZ6U(RSF) 03.003 (A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 1207- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
M/T MYY6S(RST) 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 1207-1209 ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
M/T MYY6S(RST) 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98072-316-0 01 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
(C) 		8-98072-316-0 01 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97389-774-0 01 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
(B) 		8-97389-774-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MZZ6U(RSF) (B) L=170 SERVICED BY L=3000 		0-01855-300-0 01 1 1207- ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1207-1209 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W) (D) 		8-98149-364-1 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98149-364-1 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W) (D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
(D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) 		8-98093-616-0 01 1 1207-1209 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98093-616-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) 		8-98093-616-0 01 1 1210- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(C) 		8-98159-135-2 02 1 1207-1209 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98159-135-2 02 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(C) 		8-98159-135-2 02 1 1210- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=220 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) (E) L=220 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=250 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) (F) L=250 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98072-317-1 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(E) 		8-98072-317-1 01 1 1210- ●
106 03.162 NUT; FUEL PIPE
M10 FLANGE 		0-91180-110-0 01 1 1207-1209 ● ● ●
106 03.162 NUT; FUEL PIPE
M10 FLANGE 		0-91180-110-0 01 1 1207-1209 ● ● ●
106 03.162 NUT; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91180-110-0 01 1 1210- ●
106 03.162 NUT; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91180-110-0 01 1 1210- ●
106 03.162 NUT; FUEL PIPE
M10 FLANGE 		0-91180-110-0 01 1 1210- ● ●
106 03.162 NUT; FUEL PIPE
M10 FLANGE 		0-91180-110-0 01 1 1210- ● ●
174 03.163 PIPE; FUEL,FEED,FRT
(B) 		8-98041-616-0 01 1 1207-1209 ● ● ●
174 03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-616-0 01 1 1210- ●
174 03.163 PIPE; FUEL,FEED,FRT
(B) 		8-98041-616-0 01 1 1210- ● ●
174 03.163 PIPE; FUEL,FEED,FRT
(A) 		8-98158-899-0 01 1 1207-1209 ● ● ●
174 03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98158-899-0 01 1 1210- ●
174 03.163 PIPE; FUEL,FEED,FRT
(A) 		8-98158-899-0 01 1 1210- ● ●
174 03.163 PIPE; FUEL,FEED,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98070-972-0 01 1 1210- ●
174 03.163 PIPE; FUEL,FEED,FRT
(C) 		8-98070-972-0 01 1 1210- ●

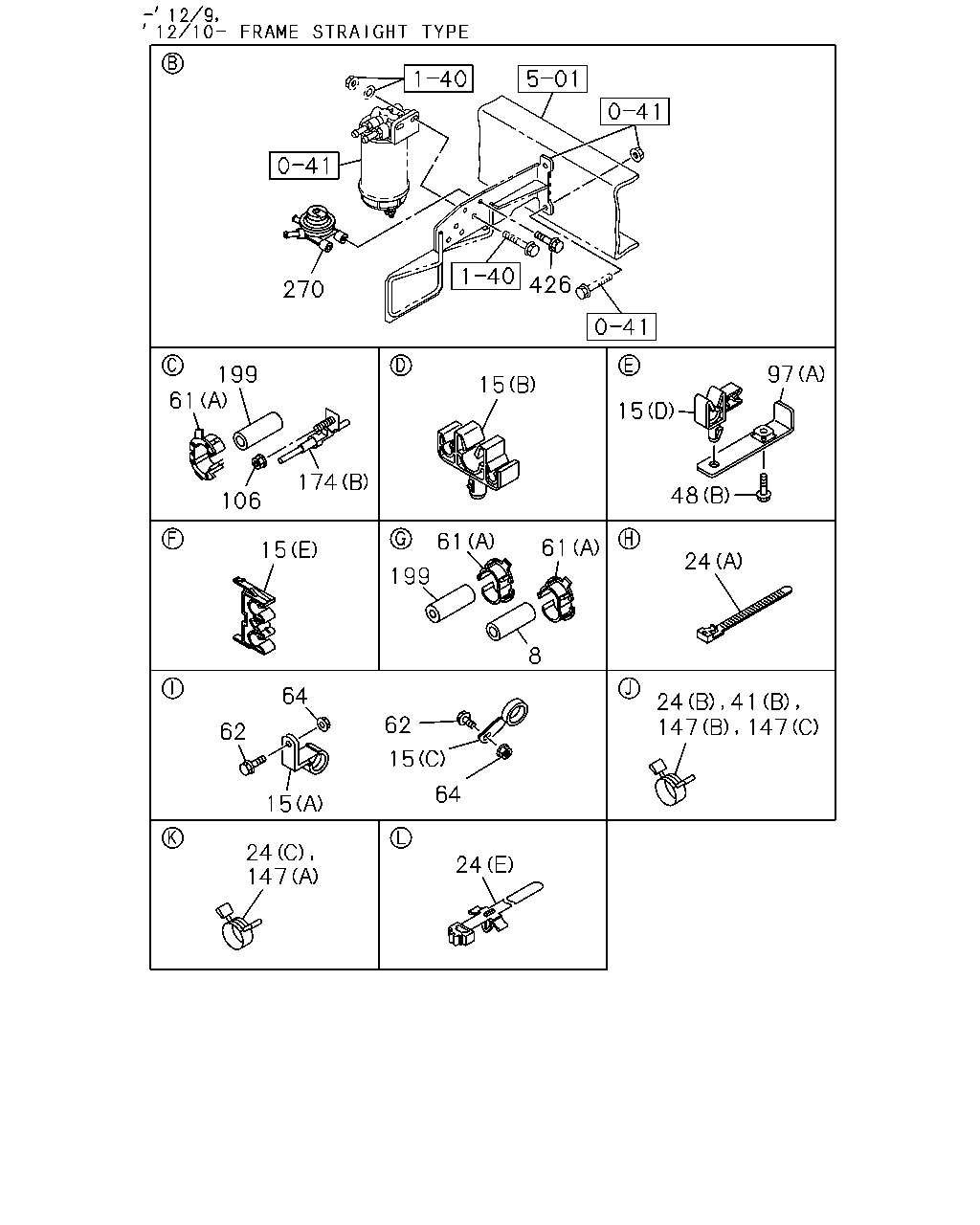

çizim 286155
270 426 199 61 106 174 15 15 97 48 24 61 61 199 15 8 64 62 15 62 15 64 24 41 147 147 24 24 147
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 03.162 RUBBER; MTG
OD=17 L=50 		8-94157-054-1 01 1 1207-1209 ● ● ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> OD=17 L=50 		8-94157-054-1 01 1 1210- ●
8 03.162 RUBBER; MTG
OD=17 L=50 		8-94157-054-1 01 1 1210- ● ●
15 03.162 CLIP; FUEL PIPE
02.559 (C) ID=28 L=60 		1-09700-585-1 01 1 1207- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W) (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 04 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 04 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
(B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1210- ●
15 03.162 CLIP; FUEL PIPE
(B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1210- ●
15 03.162 CLIP; FUEL PIPE
(D) ID=12 & 6.35 		8-97215-437-0 02 1 1207-1209 ● ● ●
15 03.162 CLIP; FUEL PIPE
(D) ID=12 & 6.35 		8-97215-437-0 02 1 1210- ● ● ● ●
15 03.162 CLIP; FUEL PIPE
04.930 (E) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 1207-1209 ● ● ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 1210- ●
15 03.162 CLIP; FUEL PIPE
04.930 (E) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 1210- ● ●
15 03.162 CLIP; FUEL PIPE
(B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 02 1 1207-1209 ● ● ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 02 1 1210- ●
15 03.162 CLIP; FUEL PIPE
(B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 02 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
03.483 (E) L=450 		1-09707-142-1 01 1 1207- ●
24 03.162 CLIP; FUEL HOSE
02.559 (E) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> 02.559 (E) L=170.3 		1-09987-182-0 01 1 1210- ●
24 03.162 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) L=170.3 		1-09987-182-0 01 1 1210- ●
24 03.162 CLIP; FUEL HOSE
02.559 (E) L=170.3 		1-09987-182-0 01 1 1210- ● ● ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 01 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 01 1 1210- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 02 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 02 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 02 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 04 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (C) ID=16 		8-98008-098-0 04 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 04 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
(D) 		8-98031-880-0 01 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98031-880-0 01 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(D) 		8-98031-880-0 01 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
01.240 (B) ID=12 		8-98150-358-0 02 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ●
24 03.162 CLIP; FUEL HOSE
01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=16 		8-98008-098-0 10 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 10 1 1210- ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
01.240 (B) ID=12 		8-98150-358-0 02 1 1207-1209 ● ● ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
01.240 (B) ID=12 		8-98150-358-0 02 1 1207-1209 ● ● ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ● ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ● ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-98150-357-0 02 1 1207-1209 ● ● ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
FRAME STRAIGHT TYPE<7KJ> (A) ID=13 		8-98150-357-0 02 1 1210- ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-98150-357-0 02 1 1210- ● ●
48 03.162 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 1207-1209 ● ●
48 03.162 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 1210- ●
48 03.162 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 1210- ●
48 03.162 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1207-1209 ● ● ●
48 03.162 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1210- ●
48 03.162 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1210- ● ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 (A) ID=17 		8-94128-319-2 01 1 1207-1209 ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17 		8-94128-319-2 01 1 1210- ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 (A) ID=17 		8-94128-319-2 01 1 1210- ● ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 (A) ID=17 		8-94128-319-2 02 1 1207-1209 ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17 		8-94128-319-2 02 1 1210- ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 (A) ID=17 		8-94128-319-2 02 1 1210- ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98038-801-0 02 1 1210- ●
61 03.162 GROMMET; PIPE TO FRAME
(B) 		8-98038-801-0 02 1 1210- ●
62 03.162 BOLT; CLIP FIX
WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207-1209 ●
62 03.162 BOLT; CLIP FIX
WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207-1209 ●
62 03.162 BOLT; CLIP FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207-1209 ●
62 03.162 BOLT; CLIP FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207-1209 ●
62 03.162 BOLT; CLIP FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207-1209 ●
62 03.162 BOLT; CLIP FIX
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
62 03.162 BOLT; CLIP FIX
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
62 03.162 BOLT; CLIP FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
62 03.162 BOLT; CLIP FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
62 03.162 BOLT; CLIP FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1210- ●
64 03.162 NUT; CLIP
WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1207-1209 ●
64 03.162 NUT; CLIP
WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1207-1209 ●
64 03.162 NUT; CLIP
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1207-1209 ●
64 03.162 NUT; CLIP
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1207-1209 ●
64 03.162 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1207-1209 ●
64 03.162 NUT; CLIP
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1210- ●
64 03.162 NUT; CLIP
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1210- ●
64 03.162 NUT; CLIP
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1210- ●
64 03.162 NUT; CLIP
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1210- ●
64 03.162 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1210- ●
97 03.162 BRACKET; CLIP
(A) 		8-98041-203-0 02 1 1207-1209 ● ● ●
97 03.162 BRACKET; CLIP
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98041-203-0 02 1 1210- ●
97 03.162 BRACKET; CLIP
(A) 		8-98041-203-0 02 1 1210- ● ●
97 03.162 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98006-480-1 01 1 1210- ●
97 03.162 BRACKET; CLIP
(C) 		8-98006-480-1 01 1 1210- ●
97 03.162 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98039-929-1 01 1 1210- ●
97 03.162 BRACKET; CLIP
(B) 		8-98039-929-1 01 1 1210- ●
106 03.162 NUT; FUEL PIPE
M10 FLANGE 		0-91180-110-0 01 1 1207-1209 ● ● ●
106 03.162 NUT; FUEL PIPE
M10 FLANGE 		0-91180-110-0 01 1 1207-1209 ● ● ●
106 03.162 NUT; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91180-110-0 01 1 1210- ●
106 03.162 NUT; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91180-110-0 01 1 1210- ●
106 03.162 NUT; FUEL PIPE
M10 FLANGE 		0-91180-110-0 01 1 1210- ● ●
106 03.162 NUT; FUEL PIPE
M10 FLANGE 		0-91180-110-0 01 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1207-1209 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 04 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 04 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 04 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(B) ID=13 		8-98150-357-0 01 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(B) ID=13 		8-98150-357-0 01 1 1210- ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
01.240 (C) ID=12 		8-98150-358-0 01 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12 		8-98150-358-0 01 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
01.240 (C) ID=12 		8-98150-358-0 01 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12 		8-98150-358-0 07 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
01.240 (C) ID=12 		8-98150-358-0 07 1 1210- ●
174 03.163 PIPE; FUEL,FEED,FRT
(B) 		8-98041-616-0 01 1 1207-1209 ● ● ●
174 03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-616-0 01 1 1210- ●
174 03.163 PIPE; FUEL,FEED,FRT
(B) 		8-98041-616-0 01 1 1210- ● ●
174 03.163 PIPE; FUEL,FEED,FRT
(A) 		8-98158-899-0 01 1 1207-1209 ● ● ●
174 03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98158-899-0 01 1 1210- ●
174 03.163 PIPE; FUEL,FEED,FRT
(A) 		8-98158-899-0 01 1 1210- ● ●
174 03.163 PIPE; FUEL,FEED,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98070-972-0 01 1 1210- ●
174 03.163 PIPE; FUEL,FEED,FRT
(C) 		8-98070-972-0 01 1 1210- ●
199 03.162 PROTECTOR; FUEL PIPE
OD=15 L=50 		8-97077-629-0 01 1 1207-1209 ● ● ●
199 03.162 PROTECTOR; FUEL PIPE
OD=15 L=50 		8-97077-629-0 01 1 1207-1209 ● ● ●
199 03.162 PROTECTOR; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> OD=15 L=50 		8-97077-629-0 01 1 1210- ●
199 03.162 PROTECTOR; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> OD=15 L=50 		8-97077-629-0 01 1 1210- ●
199 03.162 PROTECTOR; FUEL PIPE
OD=15 L=50 		8-97077-629-0 01 1 1210- ● ●
199 03.162 PROTECTOR; FUEL PIPE
OD=15 L=50 		8-97077-629-0 01 1 1210- ● ●
270 03.900 PUMP ASM; FUEL 8-98018-187-3 01 1 1207-1209 ● ● ●
270 03.900 PUMP ASM; FUEL 8-98018-187-4 01 1 1210-1408 ● ● ● ●
270 03.900 PUMP ASM; FUEL 8-97948-892-0 01 1 1409- ● ● ● ●
426 03.330 BOLT; FUEL PUMP
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1207-1209 ● ● ●
426 03.330 BOLT; FUEL PUMP
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1210- ● ● ● ●

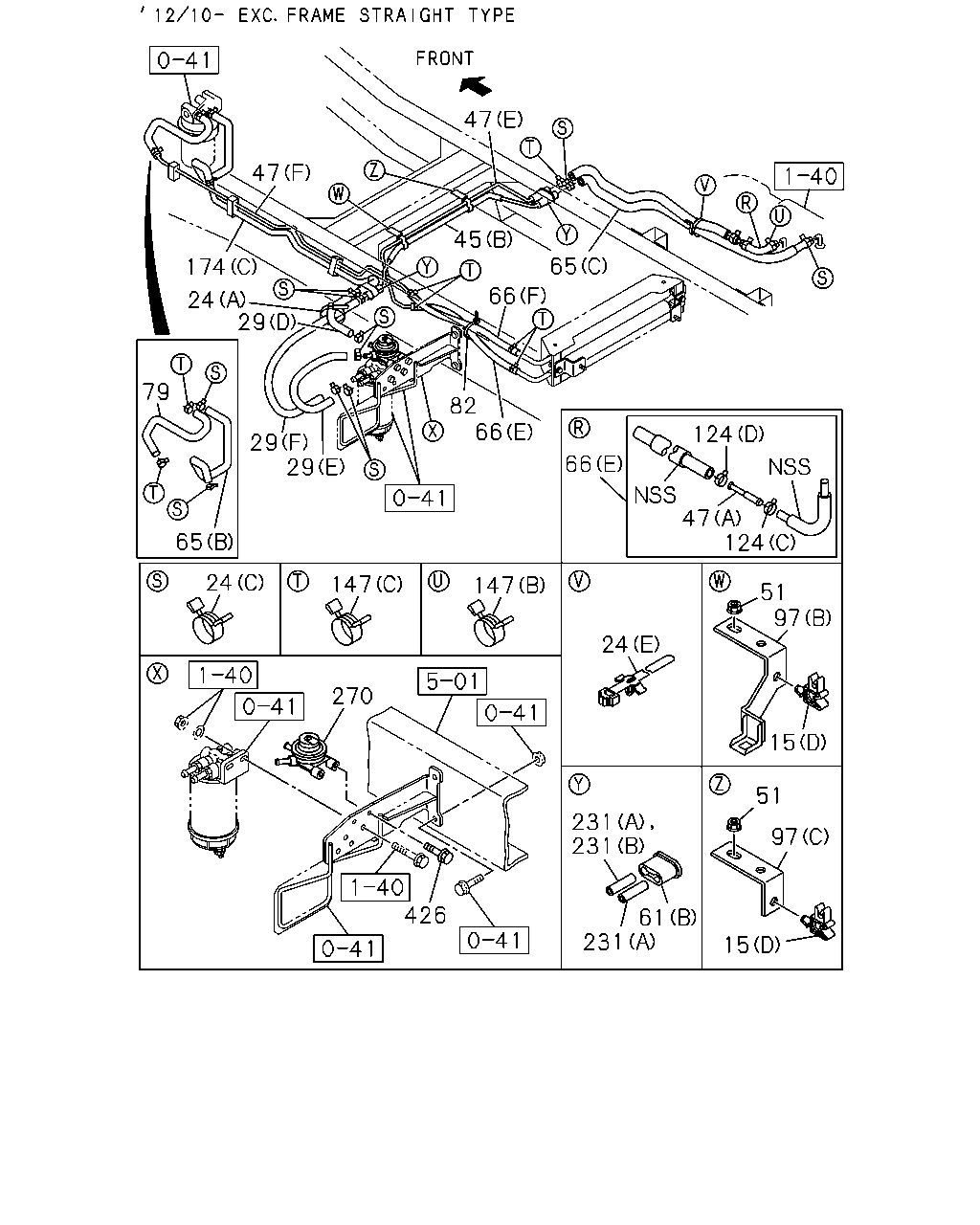

çizim 286157
147 311 147 29 124 47 66 156 48 124
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98037-758-0 01 1 1207- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W) (C) 		8-98149-363-1 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98149-363-1 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W) (C) 		8-98067-563-4 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98067-563-4 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
(C) 		8-98067-563-4 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98067-563-4 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98067-563-4 01 1 1210- ●
29 03.163 HOSE; FUEL
(C) 		8-98067-563-4 01 1 1210- ●
29 03.163 HOSE; FUEL
(A) 		8-98099-502-0 01 1 1207-1209 ● ●
29 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98099-502-0 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-502-0 01 1 1210- ●
29 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98099-502-0 01 1 1210- ●
29 03.163 HOSE; FUEL
(A) 		8-98099-502-0 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98105-710-0 01 1 1210- ●
29 03.163 HOSE; FUEL
(E) 		8-98105-710-0 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98105-757-1 01 1 1210- ●
29 03.163 HOSE; FUEL
(F) 		8-98105-757-1 01 1 1210- ●
29 03.163 HOSE; FUEL
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1210- ●
29 03.163 HOSE; FUEL
03.003 (D) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
M/T MZZ6U(RSF) (D) 		8-98057-487-1 01 1 1207- ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) (D) 		8-98043-639-0 01 1 1207-1209 ● ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98043-639-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) (D) 		8-98043-639-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) (B) L=1503 		8-98158-832-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) L=1503 		8-98158-832-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) (C) 		8-98158-838-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-838-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=70 		8-98036-483-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=70 		8-98036-483-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 01 1 1210- ● ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) (B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) (C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 02 1 1207-1209 ● ● ●
47 03.163 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ> (A) L=70 		8-98036-483-0 02 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 02 1 1210- ● ●
47 03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98136-278-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(F) 		8-98136-278-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98136-279-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(E) 		8-98136-279-0 01 1 1210- ●
48 03.162 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 1207-1209 ● ●
48 03.162 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 1210- ●
48 03.162 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 1210- ●
48 03.162 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1207-1209 ● ● ●
48 03.162 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1210- ●
48 03.162 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1210- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MZZ6U(RSF) (B) L=170 SERVICED BY L=3000 		0-01855-300-0 01 1 1207- ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1207-1209 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W) (D) 		8-98149-364-1 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98149-364-1 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W) (D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
(D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) 		8-98093-616-0 01 1 1207-1209 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98093-616-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) 		8-98093-616-0 01 1 1210- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(C) 		8-98159-135-2 02 1 1207-1209 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98159-135-2 02 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(C) 		8-98159-135-2 02 1 1210- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=220 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) (E) L=220 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=250 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) (F) L=250 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98072-317-1 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(E) 		8-98072-317-1 01 1 1210- ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=13 		8-98150-357-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=13 		8-98150-357-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
(C) ID=13 		8-98150-357-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=13 		8-98150-357-0 01 1 1210- ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=13 		8-98150-357-0 01 1 1210- ●
124 03.162 CLIP; HOSE
(C) ID=13 		8-98150-357-0 01 1 1210- ● ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
01.240 (D) ID=12 		8-98150-358-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1210- ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1210- ●
124 03.162 CLIP; HOSE
01.240 (D) ID=12 		8-98150-358-0 01 1 1210- ● ●
124 03.162 CLIP; HOSE
(A) ID=12 		8-97148-892-1 02 1 1207-1209 ● ● ●
124 03.162 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=12 		8-97148-892-1 02 1 1210- ●
124 03.162 CLIP; HOSE
(A) ID=12 		8-97148-892-1 02 1 1210- ● ●
124 03.162 CLIP; HOSE
01.153 (B) ID=11.5 		8-97375-638-0 02 1 1207-1209 ● ● ●
124 03.162 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 01.153 (B) ID=11.5 		8-97375-638-0 02 1 1210- ●
124 03.162 CLIP; HOSE
01.153 (B) ID=11.5 		8-97375-638-0 02 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1207-1209 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 04 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 04 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 04 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(B) ID=13 		8-98150-357-0 01 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(B) ID=13 		8-98150-357-0 01 1 1210- ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
01.240 (C) ID=12 		8-98150-358-0 01 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12 		8-98150-358-0 01 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
01.240 (C) ID=12 		8-98150-358-0 01 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12 		8-98150-358-0 07 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
01.240 (C) ID=12 		8-98150-358-0 07 1 1210- ●
156 03.162 BRACKET; FUEL HOSE 8-98041-250-2 01 1 1207-1209 ● ●
156 03.162 BRACKET; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-98041-250-2 01 1 1210- ●
156 03.162 BRACKET; FUEL HOSE 8-98041-250-2 01 1 1210- ●
311 03.163 JOINT; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-97353-668-0 01 1 1207-1209 ●
311 03.163 JOINT; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 		8-97353-668-0 01 1 1207-1209 ●
311 03.163 JOINT; HOSE 8-97353-668-0 01 1 1207-1209 ●
311 03.163 JOINT; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-97353-668-0 01 1 1210- ●
311 03.163 JOINT; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 		8-97353-668-0 01 1 1210- ●
311 03.163 JOINT; HOSE 8-97353-668-0 01 1 1210- ●
çizim 286159
628 313 640 629 66 124 41 47 124 41 24 41 124 47 66 41 124
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 03.162 CLIP; FUEL HOSE
03.483 (E) L=450 		1-09707-142-1 01 1 1207- ●
24 03.162 CLIP; FUEL HOSE
02.559 (E) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> 02.559 (E) L=170.3 		1-09987-182-0 01 1 1210- ●
24 03.162 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) L=170.3 		1-09987-182-0 01 1 1210- ●
24 03.162 CLIP; FUEL HOSE
02.559 (E) L=170.3 		1-09987-182-0 01 1 1210- ● ● ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 01 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 01 1 1210- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 02 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 02 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 02 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 04 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (C) ID=16 		8-98008-098-0 04 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 04 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
(D) 		8-98031-880-0 01 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98031-880-0 01 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(D) 		8-98031-880-0 01 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
01.240 (B) ID=12 		8-98150-358-0 02 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ●
24 03.162 CLIP; FUEL HOSE
01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=16 		8-98008-098-0 10 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 10 1 1210- ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
01.240 (B) ID=12 		8-98150-358-0 02 1 1207-1209 ● ● ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
01.240 (B) ID=12 		8-98150-358-0 02 1 1207-1209 ● ● ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ● ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ● ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-98150-357-0 02 1 1207-1209 ● ● ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
FRAME STRAIGHT TYPE<7KJ> (A) ID=13 		8-98150-357-0 02 1 1210- ●
41 03.162 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-98150-357-0 02 1 1210- ● ●
47 03.163 PIPE; FUEL,RETURN
M/T MZZ6U(RSF) (D) 		8-98057-487-1 01 1 1207- ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) (D) 		8-98043-639-0 01 1 1207-1209 ● ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98043-639-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) (D) 		8-98043-639-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) (B) L=1503 		8-98158-832-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) L=1503 		8-98158-832-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) (C) 		8-98158-838-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-838-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=70 		8-98036-483-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=70 		8-98036-483-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 01 1 1210- ● ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) (B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) (C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 02 1 1207-1209 ● ● ●
47 03.163 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ> (A) L=70 		8-98036-483-0 02 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 02 1 1210- ● ●
47 03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98136-278-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(F) 		8-98136-278-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98136-279-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(E) 		8-98136-279-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MZZ6U(RSF) (B) L=170 SERVICED BY L=3000 		0-01855-300-0 01 1 1207- ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1207-1209 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W) (D) 		8-98149-364-1 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98149-364-1 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W) (D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
(D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) 		8-98093-616-0 01 1 1207-1209 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98093-616-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) 		8-98093-616-0 01 1 1210- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(C) 		8-98159-135-2 02 1 1207-1209 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98159-135-2 02 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(C) 		8-98159-135-2 02 1 1210- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=220 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) (E) L=220 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=250 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) (F) L=250 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98072-317-1 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(E) 		8-98072-317-1 01 1 1210- ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=13 		8-98150-357-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=13 		8-98150-357-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
(C) ID=13 		8-98150-357-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=13 		8-98150-357-0 01 1 1210- ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=13 		8-98150-357-0 01 1 1210- ●
124 03.162 CLIP; HOSE
(C) ID=13 		8-98150-357-0 01 1 1210- ● ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
01.240 (D) ID=12 		8-98150-358-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1210- ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1210- ●
124 03.162 CLIP; HOSE
01.240 (D) ID=12 		8-98150-358-0 01 1 1210- ● ●
124 03.162 CLIP; HOSE
(A) ID=12 		8-97148-892-1 02 1 1207-1209 ● ● ●
124 03.162 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=12 		8-97148-892-1 02 1 1210- ●
124 03.162 CLIP; HOSE
(A) ID=12 		8-97148-892-1 02 1 1210- ● ●
124 03.162 CLIP; HOSE
01.153 (B) ID=11.5 		8-97375-638-0 02 1 1207-1209 ● ● ●
124 03.162 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 01.153 (B) ID=11.5 		8-97375-638-0 02 1 1210- ●
124 03.162 CLIP; HOSE
01.153 (B) ID=11.5 		8-97375-638-0 02 1 1210- ● ●
313 03.163 COOLER ASM; FUEL
(A) 		8-98152-962-1 01 1 1207-1209 ● ● ●
313 03.163 COOLER ASM; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98152-962-1 01 1 1210-1507 ●
313 03.163 COOLER ASM; FUEL
(A) 		8-98152-962-1 01 1 1210-1507 ● ●
313 03.163 COOLER ASM; FUEL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98152-962-1 01 1 1508- ●
313 03.163 COOLER ASM; FUEL
(A) 		8-98152-962-1 01 1 1508- ● ●
313 03.163 COOLER ASM; FUEL
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98175-112-0 01 1 1210-1507 ●
313 03.163 COOLER ASM; FUEL
(B) 		8-98175-112-0 01 1 1210-1507 ●
313 03.163 COOLER ASM; FUEL
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98175-112-0 01 1 1508- ●
313 03.163 COOLER ASM; FUEL
(B) 		8-98175-112-0 01 1 1508- ●
628 03.162 NUT; FUEL CLR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1207-1209 ● ● ●
628 03.162 NUT; FUEL CLR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1210- ● ● ● ●
629 03.162 BRACKET; FUEL CLR
(A) 		8-98162-060-2 01 1 1207-1209 ● ● ●
629 03.162 BRACKET; FUEL CLR
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98162-060-2 01 1 1210-1507 ●
629 03.162 BRACKET; FUEL CLR
(A) 		8-98162-060-2 01 1 1210-1507 ● ●
629 03.162 BRACKET; FUEL CLR
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98162-060-2 01 1 1508- ●
629 03.162 BRACKET; FUEL CLR
(A) 		8-98162-060-2 01 1 1508- ● ●
629 03.162 BRACKET; FUEL CLR
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98212-759-1 01 1 1210-1507 ●
629 03.162 BRACKET; FUEL CLR
(B) 		8-98212-759-1 01 1 1210-1507 ●
629 03.162 BRACKET; FUEL CLR
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98212-759-1 01 1 1508- ●
629 03.162 BRACKET; FUEL CLR
(B) 		8-98212-759-1 01 1 1508- ●
640 03.162 NUT; BRKT,FUEL CLR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1207-1209 ● ● ●
640 03.162 NUT; BRKT,FUEL CLR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1210- ● ● ● ●
çizim 286161
47 47 45 65 66 82 66 29 29 29 24 174 79 65 66 124 47 124 51 97 15 51 97 15 231 61 231 231 24 147 147 24 270 426
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 03.162 CLIP; FUEL PIPE
02.559 (C) ID=28 L=60 		1-09700-585-1 01 1 1207- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W) (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 04 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 04 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
(B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1207-1209 ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1210- ●
15 03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1210- ●
15 03.162 CLIP; FUEL PIPE
(B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 05 1 1210- ●
15 03.162 CLIP; FUEL PIPE
(D) ID=12 & 6.35 		8-97215-437-0 02 1 1207-1209 ● ● ●
15 03.162 CLIP; FUEL PIPE
(D) ID=12 & 6.35 		8-97215-437-0 02 1 1210- ● ● ● ●
15 03.162 CLIP; FUEL PIPE
04.930 (E) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 1207-1209 ● ● ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 1210- ●
15 03.162 CLIP; FUEL PIPE
04.930 (E) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 1210- ● ●
15 03.162 CLIP; FUEL PIPE
(B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 02 1 1207-1209 ● ● ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 02 1 1210- ●
15 03.162 CLIP; FUEL PIPE
(B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 02 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
03.483 (E) L=450 		1-09707-142-1 01 1 1207- ●
24 03.162 CLIP; FUEL HOSE
02.559 (E) L=170.3 		1-09987-182-0 01 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> 02.559 (E) L=170.3 		1-09987-182-0 01 1 1210- ●
24 03.162 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) L=170.3 		1-09987-182-0 01 1 1210- ●
24 03.162 CLIP; FUEL HOSE
02.559 (E) L=170.3 		1-09987-182-0 01 1 1210- ● ● ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 01 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 01 1 1210- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 02 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 02 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 02 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 04 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (C) ID=16 		8-98008-098-0 04 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 04 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
(D) 		8-98031-880-0 01 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98031-880-0 01 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(D) 		8-98031-880-0 01 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
01.240 (B) ID=12 		8-98150-358-0 02 1 1207-1209 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ●
24 03.162 CLIP; FUEL HOSE
01.240 (B) ID=12 		8-98150-358-0 02 1 1210- ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=16 		8-98008-098-0 10 1 1210- ●
24 03.162 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 10 1 1210- ●
29 03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98037-758-0 01 1 1207- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W) (C) 		8-98149-363-1 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98149-363-1 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W) (C) 		8-98067-563-4 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98067-563-4 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
(C) 		8-98067-563-4 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98067-563-4 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98067-563-4 01 1 1210- ●
29 03.163 HOSE; FUEL
(C) 		8-98067-563-4 01 1 1210- ●
29 03.163 HOSE; FUEL
(A) 		8-98099-502-0 01 1 1207-1209 ● ●
29 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98099-502-0 01 1 1207-1209 ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-502-0 01 1 1210- ●
29 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98099-502-0 01 1 1210- ●
29 03.163 HOSE; FUEL
(A) 		8-98099-502-0 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98105-710-0 01 1 1210- ●
29 03.163 HOSE; FUEL
(E) 		8-98105-710-0 01 1 1210- ●
29 03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98105-757-1 01 1 1210- ●
29 03.163 HOSE; FUEL
(F) 		8-98105-757-1 01 1 1210- ●
29 03.163 HOSE; FUEL
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1210- ●
29 03.163 HOSE; FUEL
03.003 (D) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1210- ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MZZ6U(RSF) (A) 		8-98057-486-1 01 1 1207- ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST) (A) 		8-98043-681-1 01 1 1207-1209 ● ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98043-681-1 01 1 1210- ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST) (A) 		8-98043-681-1 01 1 1210- ●
45 03.163 PIPE; FUEL,DELIVERY
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98070-973-0 01 1 1210- ●
45 03.163 PIPE; FUEL,DELIVERY
(B) 		8-98070-973-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
M/T MZZ6U(RSF) (D) 		8-98057-487-1 01 1 1207- ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) (D) 		8-98043-639-0 01 1 1207-1209 ● ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98043-639-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST) (D) 		8-98043-639-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) (B) L=1503 		8-98158-832-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) L=1503 		8-98158-832-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) (C) 		8-98158-838-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-838-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=70 		8-98036-483-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=70 		8-98036-483-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 01 1 1210- ● ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) (B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(B) L=1943 		8-98158-833-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(B) L=1943 		8-98158-833-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) (C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
(C) 		8-98158-839-1 01 1 1207-1209 ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(C) 		8-98158-839-1 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 02 1 1207-1209 ● ● ●
47 03.163 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ> (A) L=70 		8-98036-483-0 02 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(A) L=70 		8-98036-483-0 02 1 1210- ● ●
47 03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98136-278-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(F) 		8-98136-278-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98136-279-0 01 1 1210- ●
47 03.163 PIPE; FUEL,RETURN
(E) 		8-98136-279-0 01 1 1210- ●
51 03.162 NUT; CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 00.787 M10 		0-91111-510-0 02 1 1210- ●
51 03.162 NUT; CLIP,PIPE
00.787 M10 		0-91111-510-0 02 1 1210- ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 (A) ID=17 		8-94128-319-2 01 1 1207-1209 ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17 		8-94128-319-2 01 1 1210- ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 (A) ID=17 		8-94128-319-2 01 1 1210- ● ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 (A) ID=17 		8-94128-319-2 02 1 1207-1209 ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17 		8-94128-319-2 02 1 1210- ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 (A) ID=17 		8-94128-319-2 02 1 1210- ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98038-801-0 02 1 1210- ●
61 03.162 GROMMET; PIPE TO FRAME
(B) 		8-98038-801-0 02 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
M/T MZZ6U(RSF) 03.003 (A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 1207- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
M/T MYY6S(RST) 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 1207-1209 ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
M/T MYY6S(RST) 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98072-316-0 01 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
(C) 		8-98072-316-0 01 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97389-774-0 01 1 1210- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
(B) 		8-97389-774-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MZZ6U(RSF) (B) L=170 SERVICED BY L=3000 		0-01855-300-0 01 1 1207- ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1207-1209 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST) (B) L=140 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W) (D) 		8-98149-364-1 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98149-364-1 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W) (D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
(D) 		8-98067-566-2 01 1 1207-1209 ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(D) 		8-98067-566-2 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) 		8-98093-616-0 01 1 1207-1209 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98093-616-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) 		8-98093-616-0 01 1 1210- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(C) 		8-98159-135-2 02 1 1207-1209 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98159-135-2 02 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(C) 		8-98159-135-2 02 1 1210- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=220 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) (E) L=220 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=250 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU) (F) L=250 SERVICED BY L=3000 		0-01855-300-0 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98072-317-1 01 1 1210- ●
66 03.163 HOSE; FUEL,RETURN PIPE
(E) 		8-98072-317-1 01 1 1210- ●
79 03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-778-1 01 1 1210- ●
79 03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 8-97389-778-1 01 1 1210- ●
82 03.163 CLIP; FUEL HOSE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 L=140 		5-09707-031-1 01 1 1210- ●
82 03.163 CLIP; FUEL HOSE
4JJ1-TCC ENG(RDU) 03.162 L=140 		5-09707-031-1 01 1 1210- ●
97 03.162 BRACKET; CLIP
(A) 		8-98041-203-0 02 1 1207-1209 ● ● ●
97 03.162 BRACKET; CLIP
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98041-203-0 02 1 1210- ●
97 03.162 BRACKET; CLIP
(A) 		8-98041-203-0 02 1 1210- ● ●
97 03.162 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98006-480-1 01 1 1210- ●
97 03.162 BRACKET; CLIP
(C) 		8-98006-480-1 01 1 1210- ●
97 03.162 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98039-929-1 01 1 1210- ●
97 03.162 BRACKET; CLIP
(B) 		8-98039-929-1 01 1 1210- ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=13 		8-98150-357-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=13 		8-98150-357-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
(C) ID=13 		8-98150-357-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=13 		8-98150-357-0 01 1 1210- ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=13 		8-98150-357-0 01 1 1210- ●
124 03.162 CLIP; HOSE
(C) ID=13 		8-98150-357-0 01 1 1210- ● ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
01.240 (D) ID=12 		8-98150-358-0 01 1 1207-1209 ●
124 03.162 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1210- ●
124 03.162 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.240 (D) ID=12 		8-98150-358-0 01 1 1210- ●
124 03.162 CLIP; HOSE
01.240 (D) ID=12 		8-98150-358-0 01 1 1210- ● ●
124 03.162 CLIP; HOSE
(A) ID=12 		8-97148-892-1 02 1 1207-1209 ● ● ●
124 03.162 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=12 		8-97148-892-1 02 1 1210- ●
124 03.162 CLIP; HOSE
(A) ID=12 		8-97148-892-1 02 1 1210- ● ●
124 03.162 CLIP; HOSE
01.153 (B) ID=11.5 		8-97375-638-0 02 1 1207-1209 ● ● ●
124 03.162 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 01.153 (B) ID=11.5 		8-97375-638-0 02 1 1210- ●
124 03.162 CLIP; HOSE
01.153 (B) ID=11.5 		8-97375-638-0 02 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1207-1209 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1207-1209 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0) (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 04 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		8-98008-098-0 04 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 04 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(B) ID=13 		8-98150-357-0 01 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
(B) ID=13 		8-98150-357-0 01 1 1210- ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
01.240 (C) ID=12 		8-98150-358-0 01 1 1207-1209 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12 		8-98150-358-0 01 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
01.240 (C) ID=12 		8-98150-358-0 01 1 1210- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12 		8-98150-358-0 07 1 1210- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
01.240 (C) ID=12 		8-98150-358-0 07 1 1210- ●
174 03.163 PIPE; FUEL,FEED,FRT
(B) 		8-98041-616-0 01 1 1207-1209 ● ● ●
174 03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-616-0 01 1 1210- ●
174 03.163 PIPE; FUEL,FEED,FRT
(B) 		8-98041-616-0 01 1 1210- ● ●
174 03.163 PIPE; FUEL,FEED,FRT
(A) 		8-98158-899-0 01 1 1207-1209 ● ● ●
174 03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98158-899-0 01 1 1210- ●
174 03.163 PIPE; FUEL,FEED,FRT
(A) 		8-98158-899-0 01 1 1210- ● ●
174 03.163 PIPE; FUEL,FEED,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98070-972-0 01 1 1210- ●
174 03.163 PIPE; FUEL,FEED,FRT
(C) 		8-98070-972-0 01 1 1210- ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=17 L=50 		8-94157-054-1 01 1 1210- ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
(B) OD=17 L=50 		8-94157-054-1 01 1 1210- ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=16.5 L=50 		8-97214-235-0 03 1 1210- ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 03 1 1210- ●
270 03.900 PUMP ASM; FUEL 8-98018-187-3 01 1 1207-1209 ● ● ●
270 03.900 PUMP ASM; FUEL 8-98018-187-4 01 1 1210-1408 ● ● ● ●
270 03.900 PUMP ASM; FUEL 8-97948-892-0 01 1 1409- ● ● ● ●
426 03.330 BOLT; FUEL PUMP
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1207-1209 ● ● ●
426 03.330 BOLT; FUEL PUMP
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1210- ● ● ● ●
çizim 286689
313 629 628 640 640
BalonParca AdiParca NoAdetTipApplied Date A B C D
313 03.163 COOLER ASM; FUEL
(A) 		8-98152-962-1 01 1 1207-1209 ● ● ●
313 03.163 COOLER ASM; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98152-962-1 01 1 1210-1507 ●
313 03.163 COOLER ASM; FUEL
(A) 		8-98152-962-1 01 1 1210-1507 ● ●
313 03.163 COOLER ASM; FUEL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98152-962-1 01 1 1508- ●
313 03.163 COOLER ASM; FUEL
(A) 		8-98152-962-1 01 1 1508- ● ●
313 03.163 COOLER ASM; FUEL
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98175-112-0 01 1 1210-1507 ●
313 03.163 COOLER ASM; FUEL
(B) 		8-98175-112-0 01 1 1210-1507 ●
313 03.163 COOLER ASM; FUEL
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98175-112-0 01 1 1508- ●
313 03.163 COOLER ASM; FUEL
(B) 		8-98175-112-0 01 1 1508- ●
628 03.162 NUT; FUEL CLR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1207-1209 ● ● ●
628 03.162 NUT; FUEL CLR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1210- ● ● ● ●
629 03.162 BRACKET; FUEL CLR
(A) 		8-98162-060-2 01 1 1207-1209 ● ● ●
629 03.162 BRACKET; FUEL CLR
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98162-060-2 01 1 1210-1507 ●
629 03.162 BRACKET; FUEL CLR
(A) 		8-98162-060-2 01 1 1210-1507 ● ●
629 03.162 BRACKET; FUEL CLR
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98162-060-2 01 1 1508- ●
629 03.162 BRACKET; FUEL CLR
(A) 		8-98162-060-2 01 1 1508- ● ●
629 03.162 BRACKET; FUEL CLR
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98212-759-1 01 1 1210-1507 ●
629 03.162 BRACKET; FUEL CLR
(B) 		8-98212-759-1 01 1 1210-1507 ●
629 03.162 BRACKET; FUEL CLR
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98212-759-1 01 1 1508- ●
629 03.162 BRACKET; FUEL CLR
(B) 		8-98212-759-1 01 1 1508- ●
640 03.162 NUT; BRKT,FUEL CLR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1207-1209 ● ● ●
640 03.162 NUT; BRKT,FUEL CLR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
