1-40 — FUEL TANK (#94186) — 113 parça

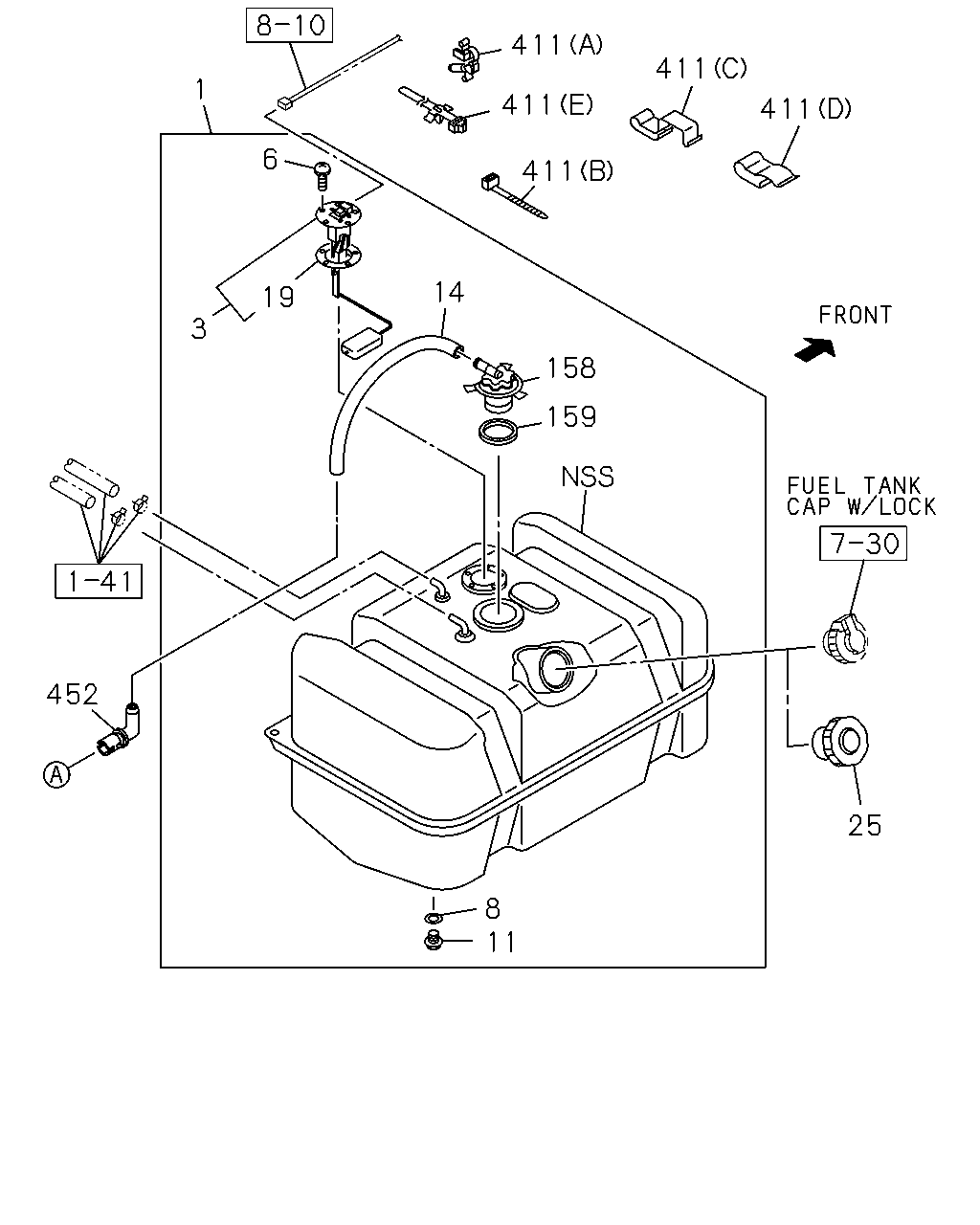

452 1 6 19 3 14 158 159 411 411 411 411 411 8 11 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1207-1209	●	●	●
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1210-	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	1207-1209	●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	1210-	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1207-1209	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1210-	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	1207-1209	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	1210-	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	1207-1209	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	1210-	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1207-1209	●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1210-	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1207-1209	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1210-	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1207-1209	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1210-	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1207-1209	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1210-	●	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1207-1209	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1210-	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=10.5	8-97371-950-0	04	1	1207-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (C) T=4.5 & 9	8-97371-947-0	01	1	1207-1209	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	8-97371-947-0	01	1	1210-1407	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	8-97371-947-0	01	1	1408-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	8-97371-947-0	01	1	1408-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (C) T=4.5 & 9	8-97371-947-0	01	1	1408-		●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	03	1	1207-1209	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	03	1	1207-1209			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	03	1	1210-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	03	1	1210-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1207-1209	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1207-1209		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1207-1209			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1210-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1210-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1210-			●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3800MM(38W) (D) T=5.5	8-97371-951-0	07	1	1207-1209	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) T=5.5	8-97371-951-0	07	1	1207-1209		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	07	1	1210-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) T=5.5	8-97371-951-0	07	1	1210-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	1207-1209	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	1210-	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=170.3	1-09987-182-0	01	1	1210-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) L=170.3	1-09987-182-0	01	1	1210-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1210-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	1210-				●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1207-1209	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1210-	●	●	●	●

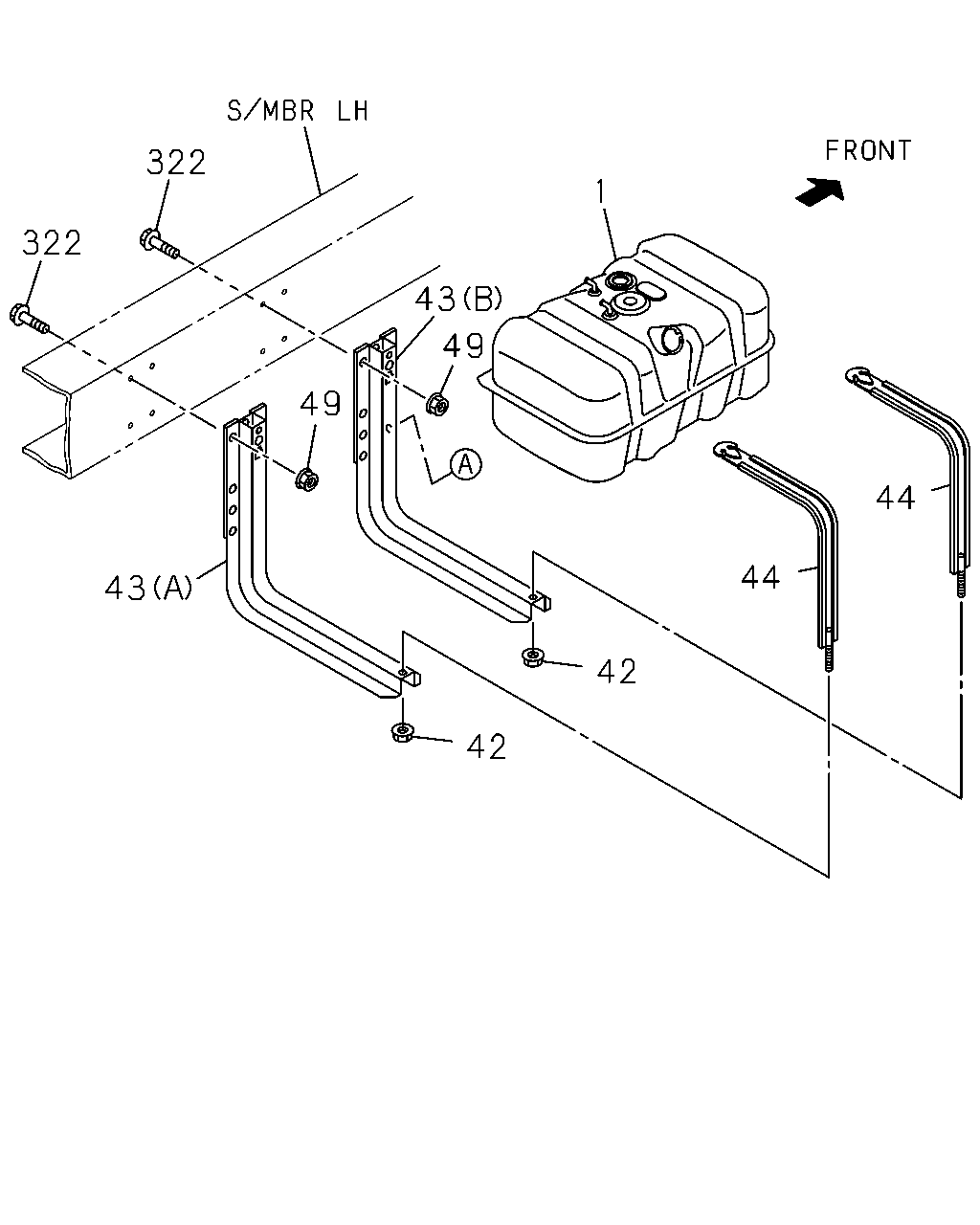

322 322 43 42 42 44 49 49 43 1 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1207-1209	●	●	●
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1210-	●	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1207-1209	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1210-	●	●	●	●
43	03.015 BRACKET; FUEL TANK (A) FRONT	8-97384-060-5	01	1	1207-1209	●	●	●
43	03.015 BRACKET; FUEL TANK (A) FRONT	8-97384-060-5	01	1	1210-	●	●	●	●
43	03.015 BRACKET; FUEL TANK (B) REAR	8-97384-062-6	01	1	1207-1209	●	●	●
43	03.015 BRACKET; FUEL TANK (B) REAR	8-97384-062-6	01	1	1210-	●	●	●	●
44	03.023 BAND; FUEL TANK L=795	8-97384-080-2	02	1	1207-1209	●	●	●
44	03.023 BAND; FUEL TANK L=795	8-97384-080-2	02	1	1210-	●	●	●	●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1207-1209	●
49	03.023 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1207-1209		●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1207-1209			●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1210-1510	●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1210-1510	●
49	03.023 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1210-1510		●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1210-1510			●	●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1511-	●
49	03.023 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1511-		●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1511-			●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1207-1209	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1207-1209		●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1207-1209			●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1210-1510	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1210-1510	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1210-1510		●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1210-1510			●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1511-	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1511-		●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1511-			●	●

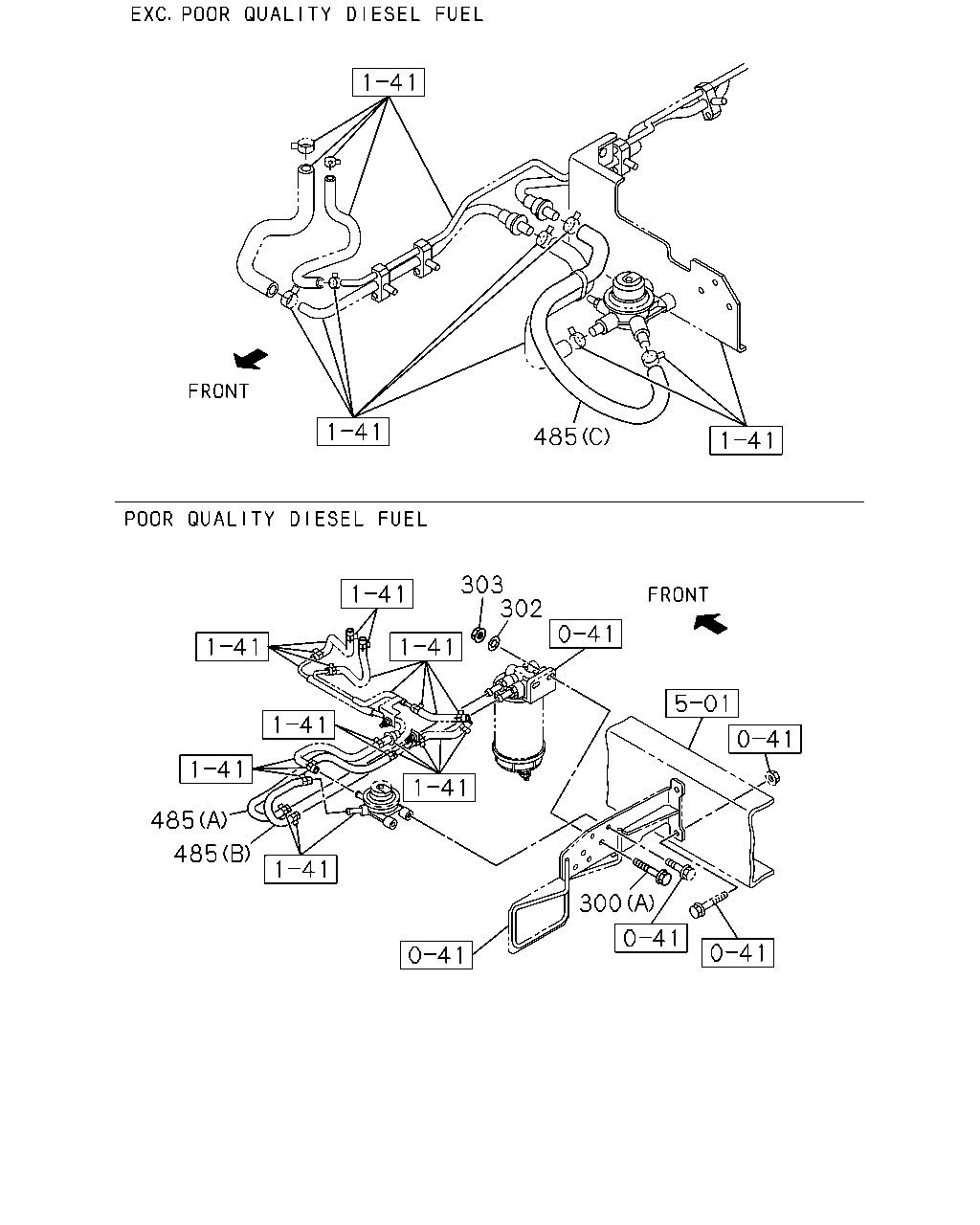

485 303 302 485 485 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
300	03.162 BOLT; BRKT TO BODY 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1207-1209	●		●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1207-1209		●
300	03.162 BOLT; BRKT TO BODY 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1210-	●		●	●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1210-		●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1210-	●			●
302	03.162 WASHER; PL,SEDIMENTER 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1207-1209	●		●
302	03.162 WASHER; PL,SEDIMENTER POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1207-1209		●
302	03.162 WASHER; PL,SEDIMENTER 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1210-	●		●	●
302	03.162 WASHER; PL,SEDIMENTER POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1210-		●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	1207-1209	●		●
303	03.162 NUT; SEDIMENTER BRKT POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1207-1209		●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	1210-	●		●	●
303	03.162 NUT; SEDIMENTER BRKT POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1210-		●
485	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98041-728-0	01	1	1207-		●
485	03.163 HOSE; FUEL (A)	8-98099-503-0	01	1	1207-1209	●		●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98099-503-0	01	1	1207-1209		●
485	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-503-0	01	1	1210-	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98099-503-0	01	1	1210-		●
485	03.163 HOSE; FUEL (A)	8-98099-503-0	01	1	1210-			●
485	03.163 HOSE; FUEL (B)	8-98105-710-0	01	1	1207-1209	●		●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98105-710-0	01	1	1207-1209		●
485	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98105-710-0	01	1	1210-	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98105-710-0	01	1	1210-		●
485	03.163 HOSE; FUEL (B)	8-98105-710-0	01	1	1210-			●

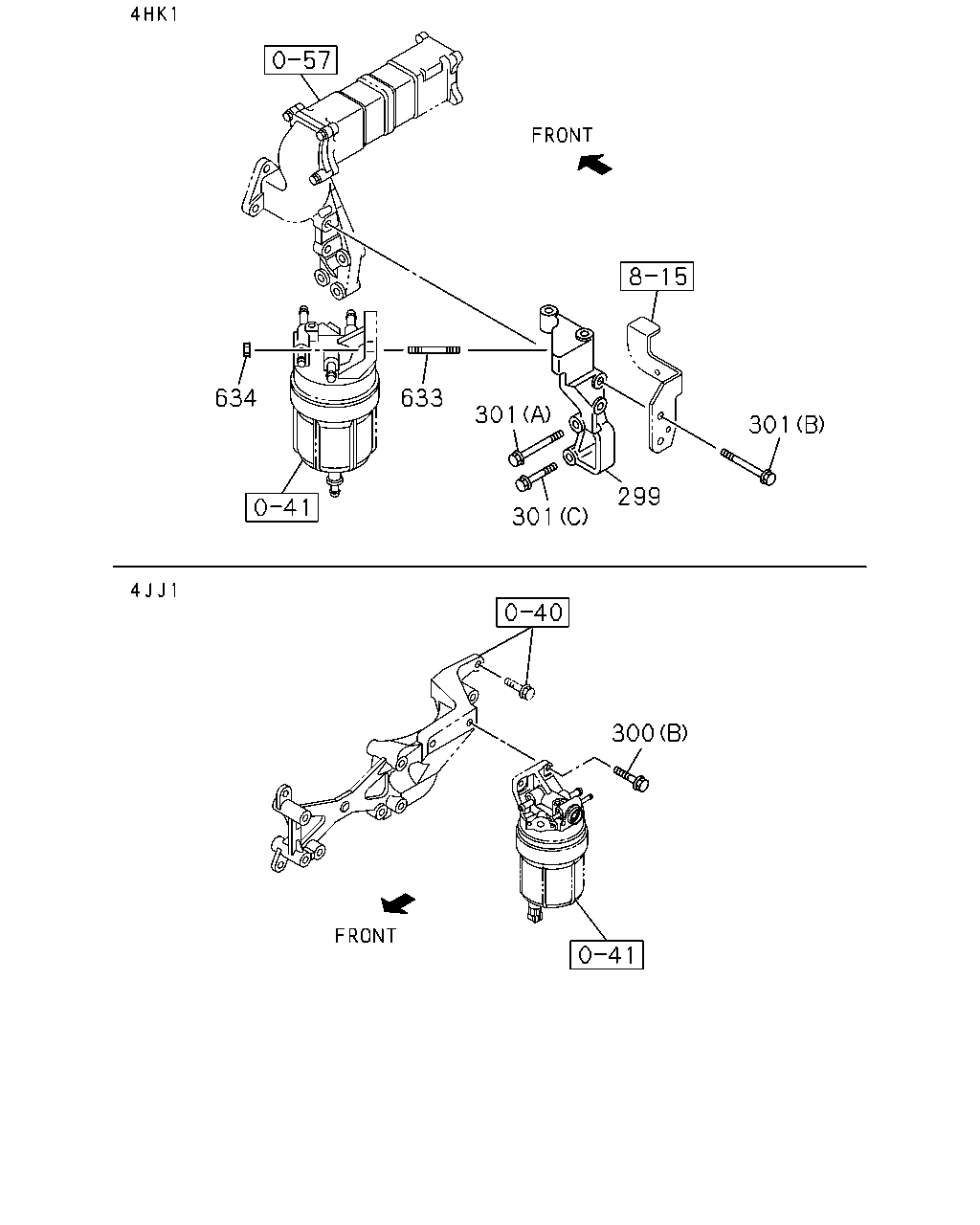

633 634 301 301 299 301 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
299	03.162 BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98023-175-3	01	1	1207-	●	●	●
300	03.162 BOLT; BRKT TO BODY 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1207-1209	●		●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1207-1209		●
300	03.162 BOLT; BRKT TO BODY 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1210-	●		●	●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1210-		●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1210-	●			●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.510 (A) M12X100 FLANGE	0-28151-200-0	01	1	1207-	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	1207-	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.181 (C) M12X80	0-28151-280-0	01	1	1207-	●	●	●
633	03.162 STUD; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.275 M8X25 L=37	0-41010-825-0	02	1	1207-	●	●	●
634	03.162 NUT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-	●	●	●
