Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#94184) — 384 parça

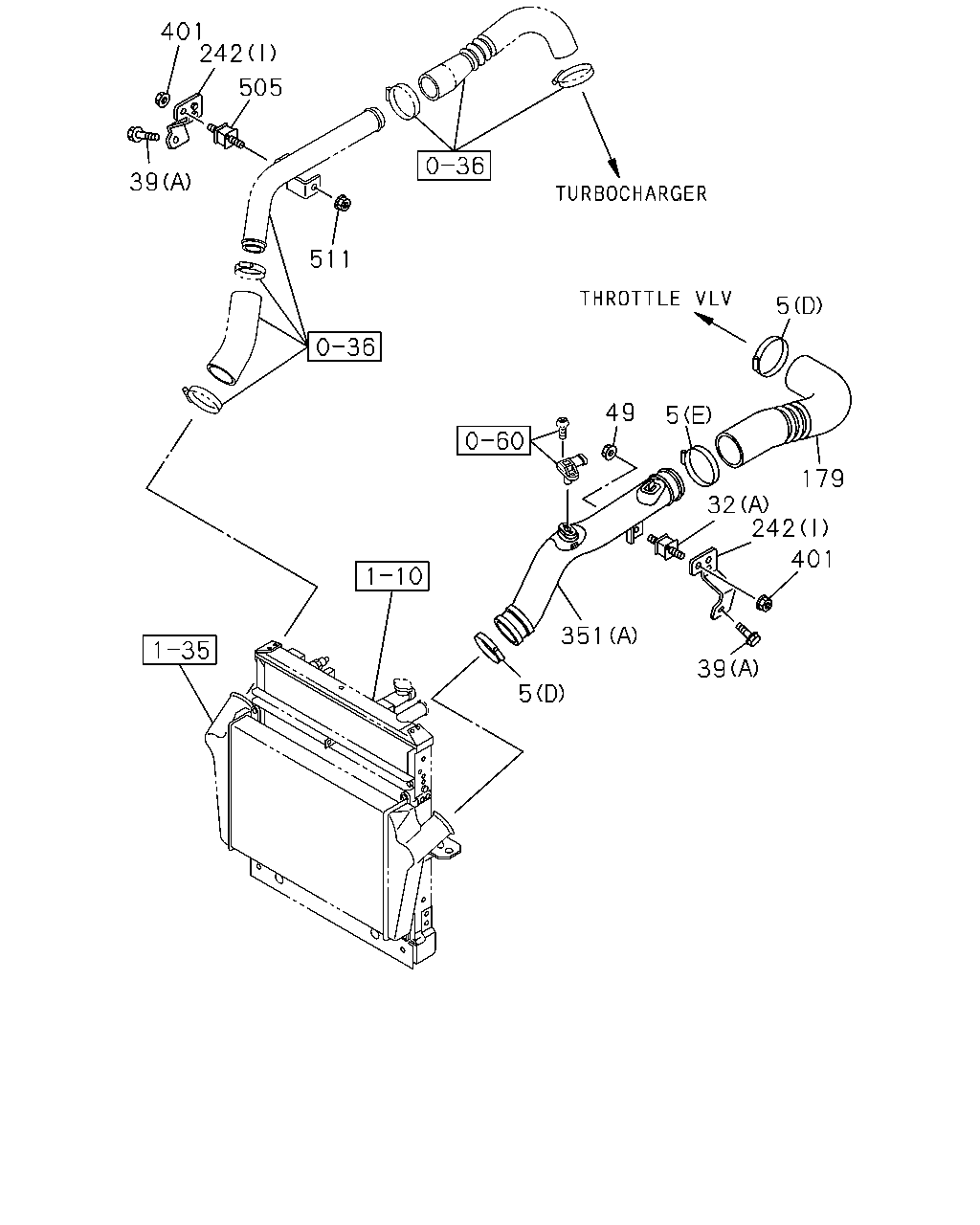

5 351 39 401 242 32 179 5 49 5 511 39 401 242 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (D) ID=77-99	1-09707-141-0	02	1	1207-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (D) ID=77-99	1-09707-141-0	02	1	1207-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (D) ID=77-99	1-09707-141-0	01	1	1207-1406		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (E) ID=70-90	8-98122-372-0	02	1	1207-		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (B) ID=112	9-09915-074-1	01	1	1207-		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (G) ID=58-79	1-09707-136-0	01	1	1210-	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=60-65	8-98096-418-0	01	1	1210-	●			●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ) (A)	8-97081-886-0	01	1	1207-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCS ENG(RJS) (A)	8-97081-886-0	01	1	1207-			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 01.277 (B) OD=32	8-94395-766-0	01	1	1210-	●			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 03.265 (C) OD=23	8-97105-689-6	01	1	1210-	●			●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1207-1209	●	●	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1210-	●	●	●	●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1210-	●			●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●
179	03.417 HOSE; AIR INT 4HK1-TCN ENG(RDQ)	8-98117-928-2	01	1	1207-	●	●
179	03.417 HOSE; AIR INT 4HK1-TCS ENG(RJS)	8-98117-928-2	01	1	1207-			●
179	03.417 HOSE; AIR INT 4JJ1-TCC ENG(RDU)	8-98050-920-2	01	1	1210-	●			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1207-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98032-142-1	01	1	1207-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1207-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98032-143-1	01	1	1207-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98049-012-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (F)	8-98055-243-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (G)	8-98055-246-2	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (H)	8-98055-247-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (A)	8-98004-416-0	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (A)	8-98004-416-0	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A)	8-98004-416-0	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (A)	8-98004-416-0	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (A)	8-98004-416-0	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (C)	8-98036-646-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (C)	8-98036-646-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (C)	8-98036-646-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (C)	8-98036-646-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (C)	8-98036-646-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (D)	8-98036-647-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (D)	8-98036-647-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D)	8-98036-647-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (D)	8-98036-647-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (D)	8-98036-647-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (E)	8-98036-649-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (E)	8-98036-649-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (E)	8-98036-649-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (E)	8-98036-649-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (E)	8-98036-649-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98205-759-0	01	1	1210-1504	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98245-899-0	01	1	1505-	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98205-760-0	01	1	1210-	●			●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (A)	8-98105-722-1	01	1	1207-	●	●
351	03.407 DUCT; AIR 4HK1-TCS ENG(RJS) (A)	8-98105-722-1	01	1	1207-			●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98021-487-2	01	1	1207-1402		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98272-699-0	01	1	1403-1406		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98281-177-0	01	1	1407-		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (C)	8-98070-862-1	01	1	1207-		●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (D)	8-98051-032-1	01	1	1210-	●			●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1207-1209	●	●	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1210-	●	●	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●

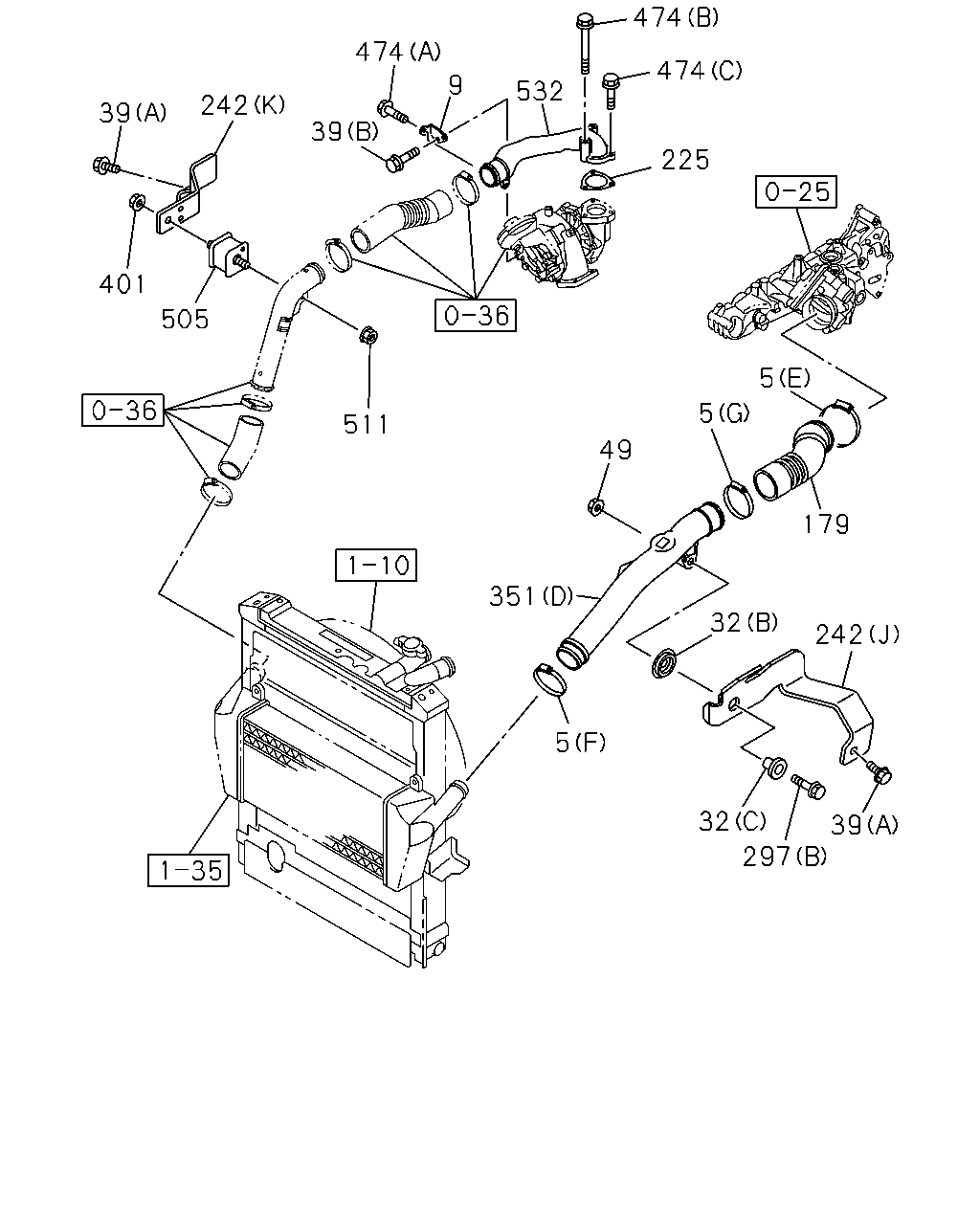

5 351 49 5 5 179 242 32 32 297 39 511 505 401 39 242 39 474 9 532 474 474 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (D) ID=77-99	1-09707-141-0	02	1	1207-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (D) ID=77-99	1-09707-141-0	02	1	1207-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (D) ID=77-99	1-09707-141-0	01	1	1207-1406		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (E) ID=70-90	8-98122-372-0	02	1	1207-		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (B) ID=112	9-09915-074-1	01	1	1207-		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (G) ID=58-79	1-09707-136-0	01	1	1210-	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=60-65	8-98096-418-0	01	1	1210-	●			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCC ENG(RDU)	8-98009-086-0	01	1	1210-	●			●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ) (A)	8-97081-886-0	01	1	1207-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCS ENG(RJS) (A)	8-97081-886-0	01	1	1207-			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 01.277 (B) OD=32	8-94395-766-0	01	1	1210-	●			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 03.265 (C) OD=23	8-97105-689-6	01	1	1210-	●			●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1207-1209	●	●	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1210-	●	●	●	●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1210-	●			●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●
179	03.417 HOSE; AIR INT 4HK1-TCN ENG(RDQ)	8-98117-928-2	01	1	1207-	●	●
179	03.417 HOSE; AIR INT 4HK1-TCS ENG(RJS)	8-98117-928-2	01	1	1207-			●
179	03.417 HOSE; AIR INT 4JJ1-TCC ENG(RDU)	8-98050-920-2	01	1	1210-	●			●
225	03.417 GASKET; AIR PIPE 4JJ1-TCC ENG(RDU) 03.270 ID=47	8-97202-328-1	01	1	1210-	●			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1207-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98032-142-1	01	1	1207-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1207-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98032-143-1	01	1	1207-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98049-012-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (F)	8-98055-243-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (G)	8-98055-246-2	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (H)	8-98055-247-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (A)	8-98004-416-0	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (A)	8-98004-416-0	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A)	8-98004-416-0	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (A)	8-98004-416-0	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (A)	8-98004-416-0	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (C)	8-98036-646-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (C)	8-98036-646-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (C)	8-98036-646-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (C)	8-98036-646-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (C)	8-98036-646-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (D)	8-98036-647-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (D)	8-98036-647-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D)	8-98036-647-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (D)	8-98036-647-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (D)	8-98036-647-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (E)	8-98036-649-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (E)	8-98036-649-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (E)	8-98036-649-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (E)	8-98036-649-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (E)	8-98036-649-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98205-759-0	01	1	1210-1504	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98245-899-0	01	1	1505-	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98205-760-0	01	1	1210-	●			●
297	03.417 BOLT; DUCT 4HK1-TCN ENG(RDQ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1207-		●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1210-	●			●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (A)	8-98105-722-1	01	1	1207-	●	●
351	03.407 DUCT; AIR 4HK1-TCS ENG(RJS) (A)	8-98105-722-1	01	1	1207-			●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98021-487-2	01	1	1207-1402		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98272-699-0	01	1	1403-1406		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98281-177-0	01	1	1407-		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (C)	8-98070-862-1	01	1	1207-		●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (D)	8-98051-032-1	01	1	1210-	●			●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) (B) M6X70 FLANGE	0-28050-670-0	02	1	1210-	●			●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1210-	●			●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1210-	●			●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1207-1209	●	●	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1210-	●	●	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-1209	●	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1210-	●	●	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCC ENG(RDU)	8-97385-203-1	01	1	1210-1303	●			●
532	03.417 PIPE; INTAKE 4JJ1-TCC ENG(RDU)	8-98237-771-1	01	1	1304-	●			●

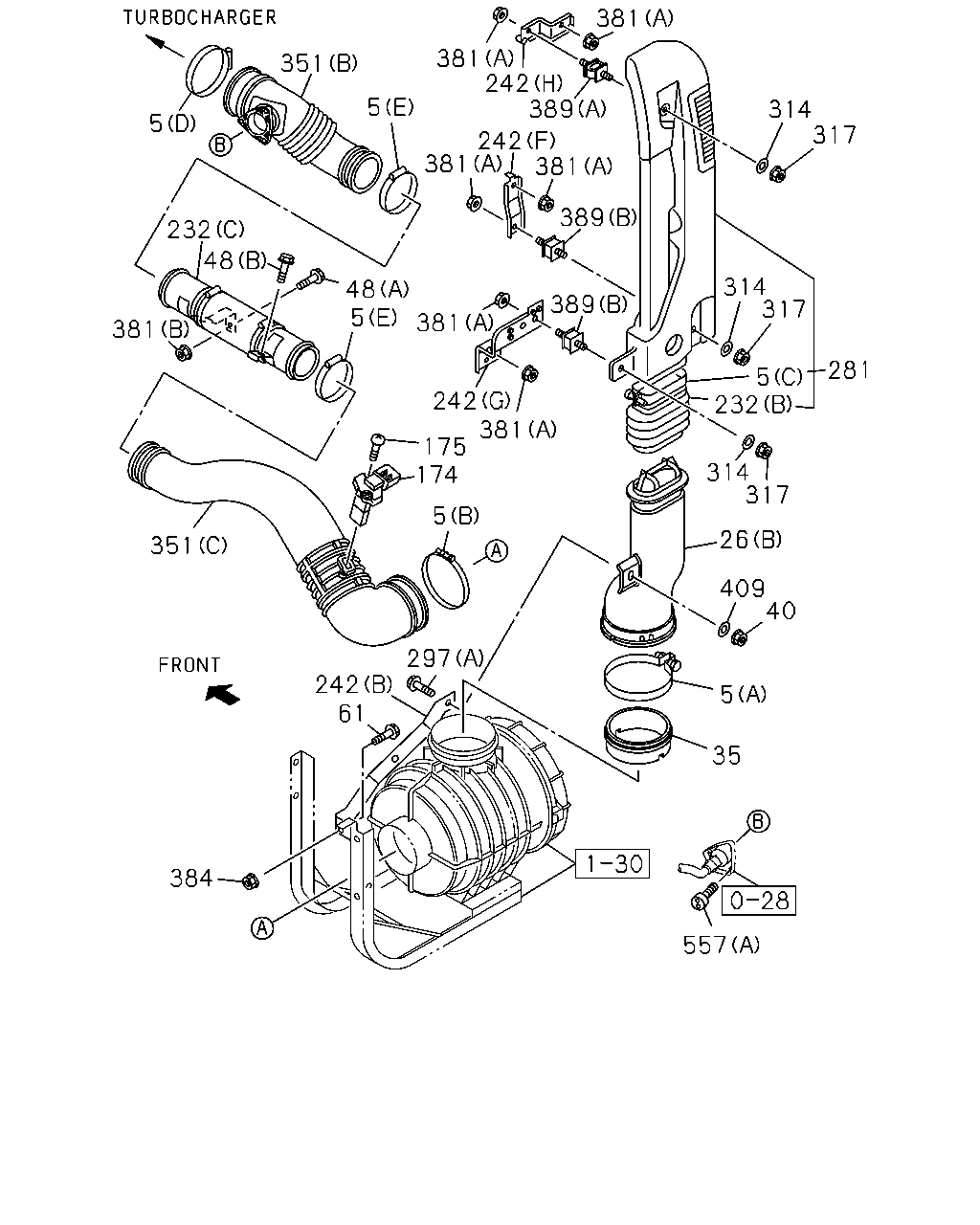

384 557 35 5 40 409 26 317 314 232 281 5 317 314 317 314 61 242 297 5 174 175 381 242 381 5 48 389 389 381 242 381 389 242 381 381 351 5 5 232 48 381 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (D) ID=77-99	1-09707-141-0	02	1	1207-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (D) ID=77-99	1-09707-141-0	02	1	1207-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (D) ID=77-99	1-09707-141-0	01	1	1207-1406		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (E) ID=70-90	8-98122-372-0	02	1	1207-		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (B) ID=112	9-09915-074-1	01	1	1207-		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (G) ID=58-79	1-09707-136-0	01	1	1210-	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=60-65	8-98096-418-0	01	1	1210-	●			●
26	03.417 DUCT; AIR INT 4HK1-TCN ENG(RDQ) (B)	8-98025-627-0	01	1	1207-		●
26	03.417 DUCT; AIR INT 4HK1-TCN ENG(RDQ) (A)	8-98025-626-0	01	1	1207-1209	●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (A)	8-98025-626-0	01	1	1207-1209			●
26	03.417 DUCT; AIR INT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A)	8-98025-626-0	01	1	1210-	●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (A)	8-98025-626-0	01	1	1210-			●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (A)	8-98025-626-0	01	1	1210-				●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1207-1209	●	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1210-	●	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-	●	●	●	●
48	03.417 BOLT; AIR DUCT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1207-		●
48	03.417 BOLT; AIR DUCT 4HK1-TCN ENG(RDQ) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1207-		●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1207-		●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1207-1209	●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1207-1209			●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1210-	●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1210-			●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1210-				●
174	03.682 SENSOR; AIR FLOW CONT 4HK1-TCN ENG(RDQ)	8-97601-967-0	01	1	1207-	●	●
174	03.682 SENSOR; AIR FLOW CONT 4HK1-TCS ENG(RJS)	8-97601-967-0	01	1	1207-			●
174	03.682 SENSOR; AIR FLOW CONT 4JJ1-TCC ENG(RDU)	8-98113-202-1	01	1	1210-	●			●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1207-1209	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1210-	●	●	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) (A)	8-98059-989-2	01	1	1207-1402	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98059-989-2	01	1	1207-1402			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) (A)	8-98272-698-0	01	1	1403-1406	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98272-698-0	01	1	1403-1406			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) (E)	8-98281-176-0	01	1	1407-	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (E)	8-98281-176-0	01	1	1407-			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) (C)	8-98094-582-2	01	1	1207-		●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1207-1209	●	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1210-1309	●	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (D)	8-98048-137-0	01	1	1210-	●			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1207-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98032-142-1	01	1	1207-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1207-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98032-143-1	01	1	1207-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98049-012-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (F)	8-98055-243-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (G)	8-98055-246-2	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (H)	8-98055-247-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (A)	8-98004-416-0	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (A)	8-98004-416-0	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A)	8-98004-416-0	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (A)	8-98004-416-0	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (A)	8-98004-416-0	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (C)	8-98036-646-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (C)	8-98036-646-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (C)	8-98036-646-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (C)	8-98036-646-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (C)	8-98036-646-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (D)	8-98036-647-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (D)	8-98036-647-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D)	8-98036-647-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (D)	8-98036-647-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (D)	8-98036-647-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (E)	8-98036-649-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (E)	8-98036-649-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (E)	8-98036-649-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (E)	8-98036-649-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (E)	8-98036-649-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98205-759-0	01	1	1210-1504	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98245-899-0	01	1	1505-	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98205-760-0	01	1	1210-	●			●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ)	8-98080-929-2	01	1	1207-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCS ENG(RJS)	8-98080-929-2	01	1	1207-			●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ)	8-98061-757-2	01	1	1207-		●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU)	8-98000-230-5	01	1	1210-	●			●
297	03.417 BOLT; DUCT 4HK1-TCN ENG(RDQ) 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1207-		●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1210-	●			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1207-1209	●	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1210-	●	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1207-1209	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1210-	●	●	●	●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (A)	8-98105-722-1	01	1	1207-	●	●
351	03.407 DUCT; AIR 4HK1-TCS ENG(RJS) (A)	8-98105-722-1	01	1	1207-			●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98021-487-2	01	1	1207-1402		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98272-699-0	01	1	1403-1406		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98281-177-0	01	1	1407-		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (C)	8-98070-862-1	01	1	1207-		●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (D)	8-98051-032-1	01	1	1210-	●			●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1207-		●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1207-1209	●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1207-1209			●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1210-	●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1210-			●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1210-				●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1207-1209	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1207-1209		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1210-	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1210-		●
384	03.417 NUT; AIR INT DUCT BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1207-1209	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1210-	●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1207-1209	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1210-	●	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1207-1209	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-	●	●	●	●
557	03.403 BOLT; HOSE CLIP 4HK1-TCN ENG(RDQ) 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	1207-	●	●
557	03.403 BOLT; HOSE CLIP 4HK1-TCS ENG(RJS) 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	1207-			●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1210-	●			●

381 314 317 314 317 281 5 232 314 409 317 40 26 5 35 242 61 389 242 381 381 389 64 381 242 389 242 381 232 530 557 248 228 287 175 174 232 287 174 175 557 287 232 287 248 379

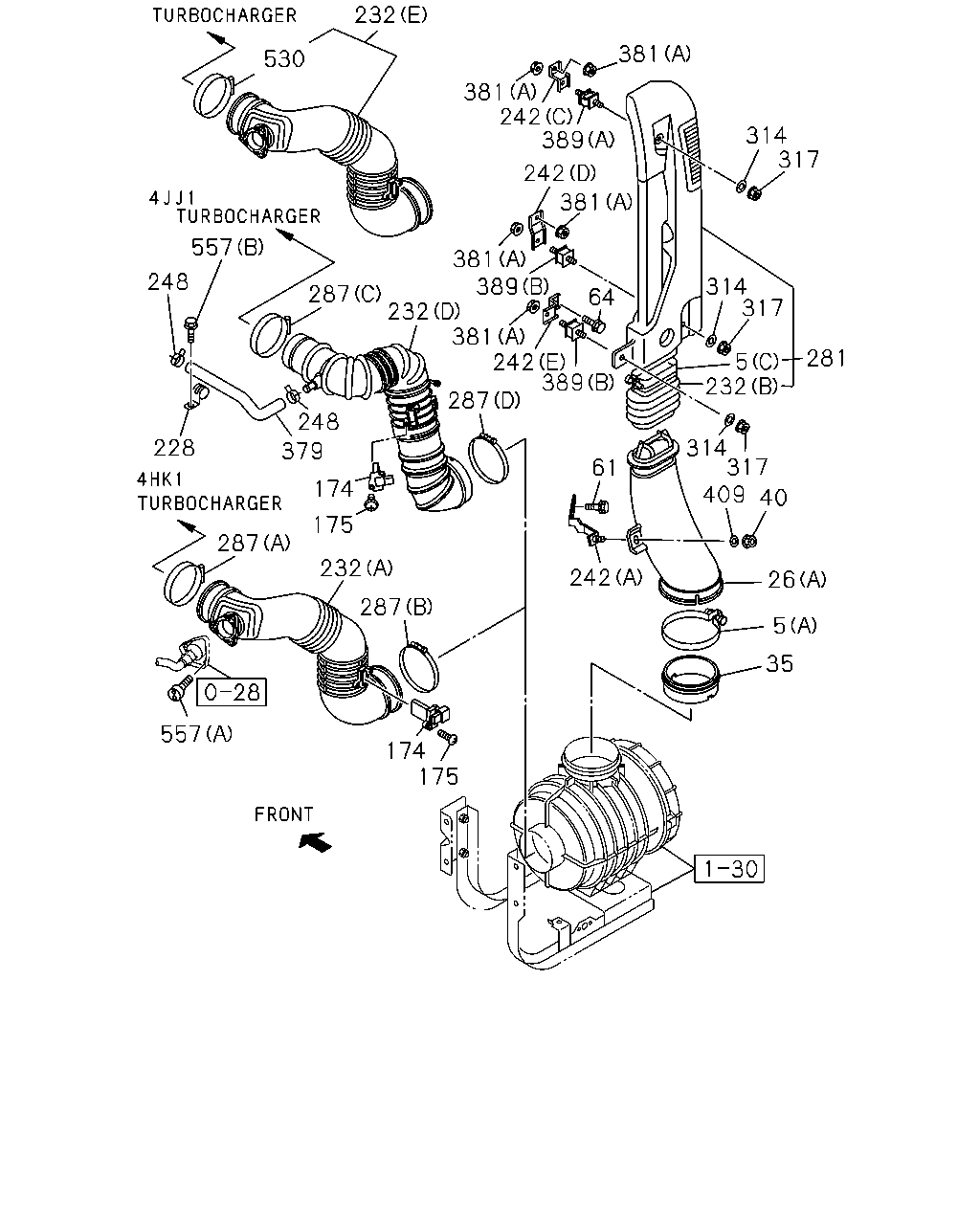

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (D) ID=77-99	1-09707-141-0	02	1	1207-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (D) ID=77-99	1-09707-141-0	02	1	1207-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (D) ID=77-99	1-09707-141-0	01	1	1207-1406		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (E) ID=70-90	8-98122-372-0	02	1	1207-		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (B) ID=112	9-09915-074-1	01	1	1207-		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1207-1209	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1210-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (G) ID=58-79	1-09707-136-0	01	1	1210-	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=60-65	8-98096-418-0	01	1	1210-	●			●
26	03.417 DUCT; AIR INT 4HK1-TCN ENG(RDQ) (B)	8-98025-627-0	01	1	1207-		●
26	03.417 DUCT; AIR INT 4HK1-TCN ENG(RDQ) (A)	8-98025-626-0	01	1	1207-1209	●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (A)	8-98025-626-0	01	1	1207-1209			●
26	03.417 DUCT; AIR INT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A)	8-98025-626-0	01	1	1210-	●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (A)	8-98025-626-0	01	1	1210-			●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (A)	8-98025-626-0	01	1	1210-				●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1207-1209	●	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1210-	●	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-1209	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-	●	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1207-		●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1207-1209	●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1207-1209			●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1210-	●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1210-			●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1210-				●
64	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M8X16	0-52000-816-0	01	1	1207-1209	●
64	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) M8X16	0-52000-816-0	01	1	1207-1209			●
64	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) M8X16	0-52000-816-0	01	1	1210-	●
64	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) M8X16	0-52000-816-0	01	1	1210-			●
64	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) M8X16	0-52000-816-0	01	1	1210-				●
174	03.682 SENSOR; AIR FLOW CONT 4HK1-TCN ENG(RDQ)	8-97601-967-0	01	1	1207-	●	●
174	03.682 SENSOR; AIR FLOW CONT 4HK1-TCS ENG(RJS)	8-97601-967-0	01	1	1207-			●
174	03.682 SENSOR; AIR FLOW CONT 4JJ1-TCC ENG(RDU)	8-98113-202-1	01	1	1210-	●			●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1207-1209	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1210-	●	●	●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1210-	●			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) (A)	8-98059-989-2	01	1	1207-1402	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98059-989-2	01	1	1207-1402			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) (A)	8-98272-698-0	01	1	1403-1406	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98272-698-0	01	1	1403-1406			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) (E)	8-98281-176-0	01	1	1407-	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (E)	8-98281-176-0	01	1	1407-			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) (C)	8-98094-582-2	01	1	1207-		●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1207-1209	●	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1210-1309	●	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (D)	8-98048-137-0	01	1	1210-	●			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1207-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98032-142-1	01	1	1207-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1207-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98032-143-1	01	1	1207-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98049-012-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (F)	8-98055-243-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (G)	8-98055-246-2	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (H)	8-98055-247-1	01	1	1207-		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (A)	8-98004-416-0	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (A)	8-98004-416-0	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A)	8-98004-416-0	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (A)	8-98004-416-0	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (A)	8-98004-416-0	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (C)	8-98036-646-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (C)	8-98036-646-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (C)	8-98036-646-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (C)	8-98036-646-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (C)	8-98036-646-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (D)	8-98036-647-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (D)	8-98036-647-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D)	8-98036-647-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (D)	8-98036-647-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (D)	8-98036-647-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (E)	8-98036-649-2	01	1	1207-1209	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (E)	8-98036-649-2	01	1	1207-1209			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (E)	8-98036-649-2	01	1	1210-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (E)	8-98036-649-2	01	1	1210-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (E)	8-98036-649-2	01	1	1210-				●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98205-759-0	01	1	1210-1504	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98245-899-0	01	1	1505-	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98205-760-0	01	1	1210-	●			●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 ID=21.7	8-97203-074-0	02	1	1210-	●			●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ)	8-98080-929-2	01	1	1207-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCS ENG(RJS)	8-98080-929-2	01	1	1207-			●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ)	8-98061-757-2	01	1	1207-		●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU)	8-98000-230-5	01	1	1210-	●			●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) 03.407 (A) ID=77-99	1-09707-141-0	01	1	1207-1406	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) 03.407 (A) ID=77-99	1-09707-141-0	01	1	1207-1406			●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) 03.407 (B) ID=112	9-09915-074-1	01	1	1207-	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) 03.407 (B) ID=112	9-09915-074-1	01	1	1207-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 03.407 (C) ID=70-90	8-98122-372-0	01	1	1210-	●			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 03.407 (D) ID=117	9-09915-075-1	01	1	1210-	●			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1207-1209	●	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1210-	●	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1207-1209	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1210-	●	●	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU)	8-98156-950-0	01	1	1210-	●			●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1207-		●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1207-1209	●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1207-1209			●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1210-	●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1210-			●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1210-				●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1207-1209	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1207-1209		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1210-	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1210-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1207-1209	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1210-	●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1207-1209	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1210-	●	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1207-1209	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1210-	●	●	●	●
530	03.407 CLAMP; AIR DUCT ID=77-99	1-09707-141-0	01	1	1407-	●	●	●
557	03.403 BOLT; HOSE CLIP 4HK1-TCN ENG(RDQ) 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	1207-	●	●
557	03.403 BOLT; HOSE CLIP 4HK1-TCS ENG(RJS) 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	1207-			●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1210-	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
