1 |

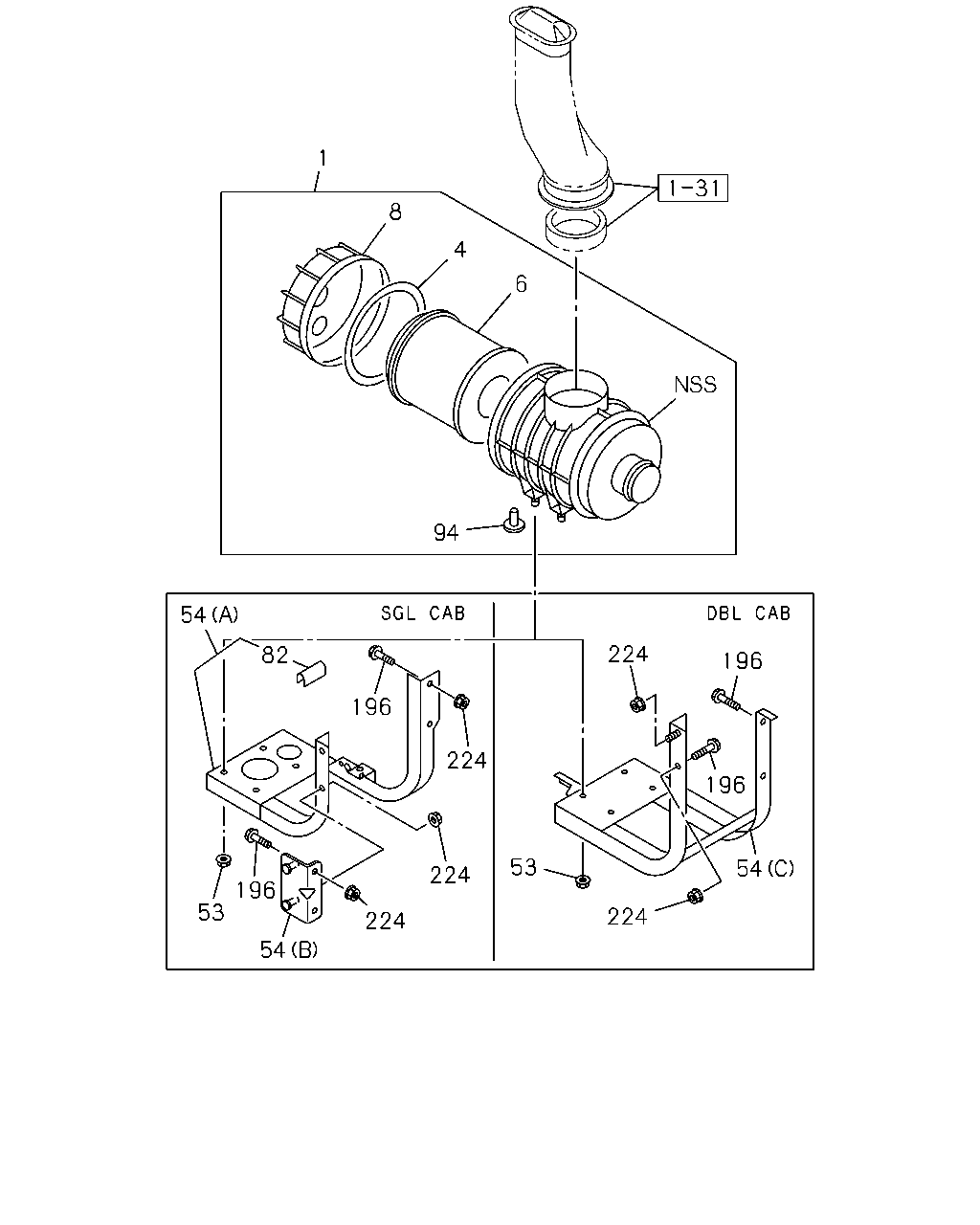

03.402 CLEANER ASM; AIR
|
8-98050-415-2 |
01 |
1 |
1207-1209 |
● |
● |
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
|
8-98050-415-2 |
01 |
1 |
1210- |
● |
● |
● |
● |
| |
4 |
03.403 GASKET; COVER TO BODY
|
8-97352-113-0 |
01 |
1 |
1207-1209 |
● |
● |
● |
|
| |
4 |
03.403 GASKET; COVER TO BODY
|
8-97352-113-0 |
01 |
1 |
1210- |
● |
● |
● |
● |
| |
6 |
03.410 FILTER; ACL
|
8-97062-294-0 |
01 |
1 |
1207-1209 |
● |
● |
● |
|
| |
6 |
03.410 FILTER; ACL
|
8-97062-294-0 |
01 |
1 |
1210- |
● |
● |
● |
● |
| |
6 |
03.410 FILTER; ACL
BEST VALUE PARTS
|
5-87610-020-0 |
01 |
1 |
1207-1209 |
● |
● |
● |
|
| |
6 |
03.410 FILTER; ACL
BEST VALUE PARTS
|
5-87610-020-0 |
01 |
1 |
1210- |
● |
● |
● |
● |
| |
8 |
03.410 COVER ASM; ACL
|
8-98050-434-1 |
01 |
1 |
1207-1209 |
● |
● |
● |
|
| |
8 |
03.410 COVER ASM; ACL
|
8-98050-434-1 |
01 |
1 |
1210- |
● |
● |
● |
● |
| |
53 |
03.403 NUT; ACL
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1207-1209 |
● |
● |
● |
|
| |
53 |
03.403 NUT; ACL
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1210- |
● |
● |
● |
● |
| |
54 |
03.405 BRACKET; ACL
4HK1-TCN ENG(RDQ)
(C)
|
8-98023-879-3 |
01 |
1 |
1207- |
|
|
● |
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCN ENG(RDQ)
(B)
|
8-98032-125-1 |
01 |
1 |
1207-1209 |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCS ENG(RJS)
(B)
|
8-98032-125-1 |
01 |
1 |
1207-1209 |
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCN ENG(RDQ)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98032-125-1 |
01 |
1 |
1210- |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCS ENG(RJS)
(B)
|
8-98032-125-1 |
01 |
1 |
1210- |
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCN ENG(RDQ)
(A)
|
8-98047-140-3 |
01 |
1 |
1207-1209 |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCS ENG(RJS)
(A)
|
8-98047-140-3 |
01 |
1 |
1207-1209 |
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCN ENG(RDQ)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98047-140-3 |
01 |
1 |
1210- |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCS ENG(RJS)
(A)
|
8-98047-140-3 |
01 |
1 |
1210- |
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4JJ1-TCC ENG(RDU)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98026-092-3 |
01 |
1 |
1210- |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JJ1-TCC ENG(RDU)
(A)
|
8-98026-092-3 |
01 |
1 |
1210- |
|
|
|
● |
| |
54 |
03.405 BRACKET; ACL
4JJ1-TCC ENG(RDU)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98070-835-3 |
01 |
1 |
1210- |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JJ1-TCC ENG(RDU)
(B)
|
8-98070-835-3 |
01 |
1 |
1210- |
|
|
|
● |
| |
82 |
03.403 PROTECTOR
4JJ1-TCC ENG(RDU)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.671
|
8-97327-172-0 |
01 |
1 |
1210- |
● |
|
|
|
| |
82 |
03.403 PROTECTOR
4JJ1-TCC ENG(RDU)
03.671
|
8-97327-172-0 |
01 |
1 |
1210- |
|
|
|
● |
| |
94 |
03.415 VALVE; VACUATOR
|
8-97093-694-0 |
01 |
1 |
1207-1209 |
● |
● |
● |
|
| |
94 |
03.415 VALVE; VACUATOR
|
8-97093-694-0 |
01 |
1 |
1210- |
● |
● |
● |
● |
| |
196 |
03.417 BOLT; BRKT,ACL
4HK1-TCN ENG(RDQ)
02.277
M10X35 FLANGE
|
0-28651-035-0 |
03 |
1 |
1207- |
|
|
● |
|
| |
196 |
03.417 BOLT; BRKT,ACL
4HK1-TCN ENG(RDQ)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1207-1209 |
● |
|
|
|
| |
196 |
03.417 BOLT; BRKT,ACL
4HK1-TCS ENG(RJS)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1207-1209 |
|
● |
|
|
| |
196 |
03.417 BOLT; BRKT,ACL
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1210- |
● |
|
|
|
| |
196 |
03.417 BOLT; BRKT,ACL
4HK1-TCS ENG(RJS)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1210- |
|
● |
|
|
| |
196 |
03.417 BOLT; BRKT,ACL
4JJ1-TCC ENG(RDU)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1210- |
|
|
|
● |
| |
196 |
03.417 BOLT; BRKT,ACL
4HK1-TCN ENG(RDQ)
02.277
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1207-1209 |
● |
|
|
|
| |
196 |
03.417 BOLT; BRKT,ACL
4HK1-TCS ENG(RJS)
02.277
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1207-1209 |
|
● |
|
|
| |
196 |
03.417 BOLT; BRKT,ACL
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU)
02.277
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1210- |
● |
|
|
|
| |
196 |
03.417 BOLT; BRKT,ACL
4HK1-TCS ENG(RJS)
02.277
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1210- |
|
● |
|
|
| |
196 |
03.417 BOLT; BRKT,ACL
4JJ1-TCC ENG(RDU)
02.277
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1210- |
|
|
|
● |
| |
224 |
03.407 NUT; BRKT
4HK1-TCN ENG(RDQ)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1207- |
|
|
● |
|
| |
224 |
03.407 NUT; BRKT
4HK1-TCN ENG(RDQ)
03.162
M10 FLANGE
|
0-91180-110-0 |
05 |
1 |
1207-1209 |
● |
|
|
|
| |
224 |
03.407 NUT; BRKT
4HK1-TCS ENG(RJS)
03.162
M10 FLANGE
|
0-91180-110-0 |
05 |
1 |
1207-1209 |
|
● |
|
|
| |
224 |
03.407 NUT; BRKT
4HK1-TCN ENG(RDQ)
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
05 |
1 |
1210- |
● |
|
|
|
| |
224 |
03.407 NUT; BRKT
4HK1-TCS ENG(RJS)
03.162
M10 FLANGE
|
0-91180-110-0 |
05 |
1 |
1210- |
|
● |
|
|
| |
224 |
03.407 NUT; BRKT
4JJ1-TCC ENG(RDU)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
06 |
1 |
1210- |
● |
|
|
|
| |
224 |
03.407 NUT; BRKT
4JJ1-TCC ENG(RDU)
03.162
M10 FLANGE
|
0-91180-110-0 |
06 |
1 |
1210- |
|
|
|
● |
