1-11 — RADIATOR HOSE AND SUB TANK (#94182) — 80 parça

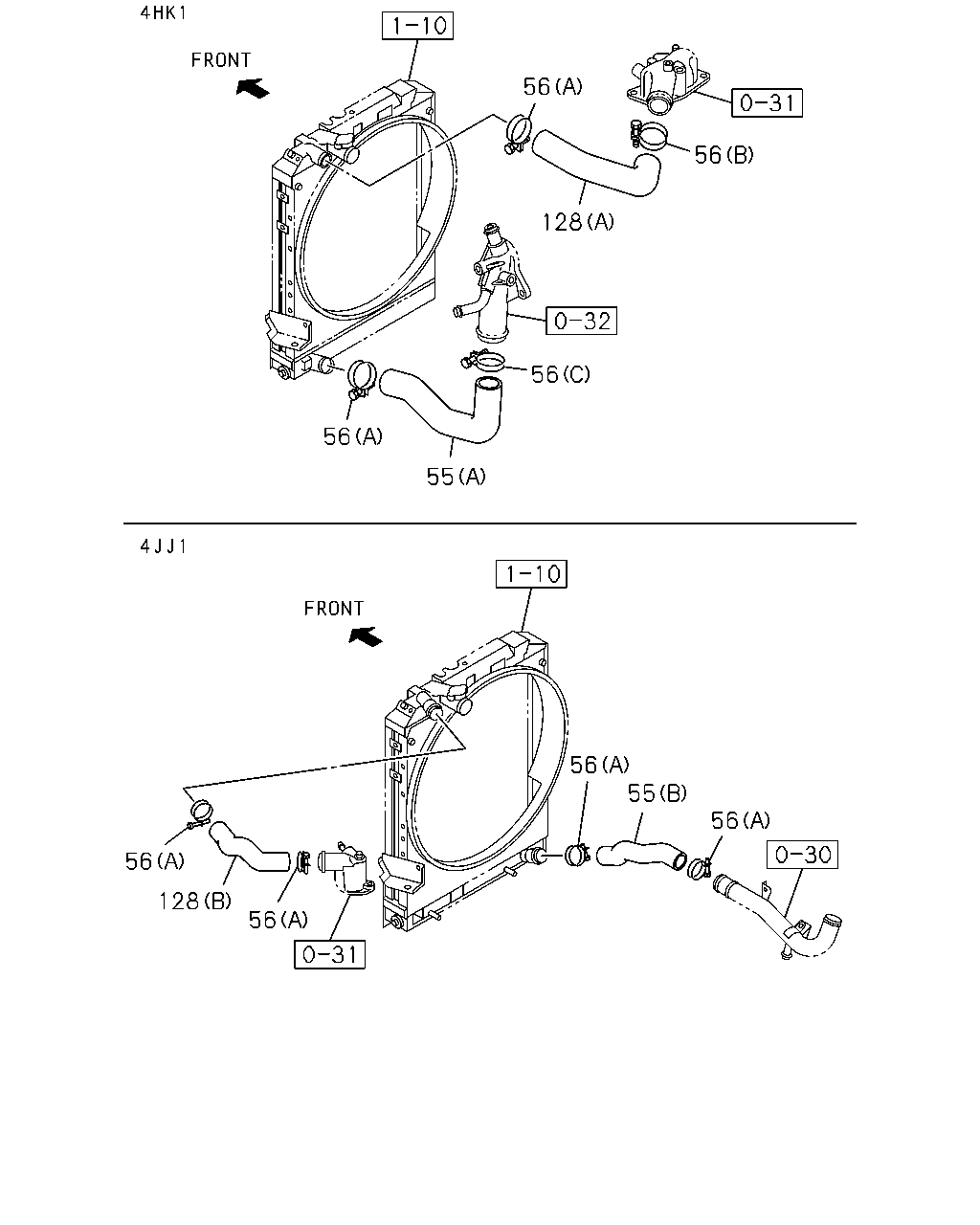

56 128 56 56 55 56 56 56 128 56 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
55	01.173 HOSE; WATER,RAD OUTLET 4HK1-TCN ENG(RDQ) (A)	8-98006-453-0	01	1	1207-	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HK1-TCS ENG(RJS) (A)	8-98006-453-0	01	1	1207-			●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1-TCC ENG(RDU) (B)	8-97383-814-1	01	1	1210-	●			●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCN ENG(RDQ) 00.413 (B) ID=52	1-09704-057-0	01	1	1207-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCS ENG(RJS) 00.413 (B) ID=52	1-09704-057-0	01	1	1207-			●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCN ENG(RDQ) (C) ID=62	8-98133-957-0	01	1	1207-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCS ENG(RJS) (C) ID=62	8-98133-957-0	01	1	1207-			●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1207-1209	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1210-	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	02	1	1210-	●			●
128	01.159 HOSE; WATER,RAD INL 4HK1-TCN ENG(RDQ) (A)	8-98006-452-0	01	1	1207-	●	●
128	01.159 HOSE; WATER,RAD INL 4HK1-TCS ENG(RJS) (A)	8-98006-452-0	01	1	1207-			●
128	01.159 HOSE; WATER,RAD INL 4JJ1-TCC ENG(RDU) (B)	8-97383-812-1	01	1	1210-	●			●

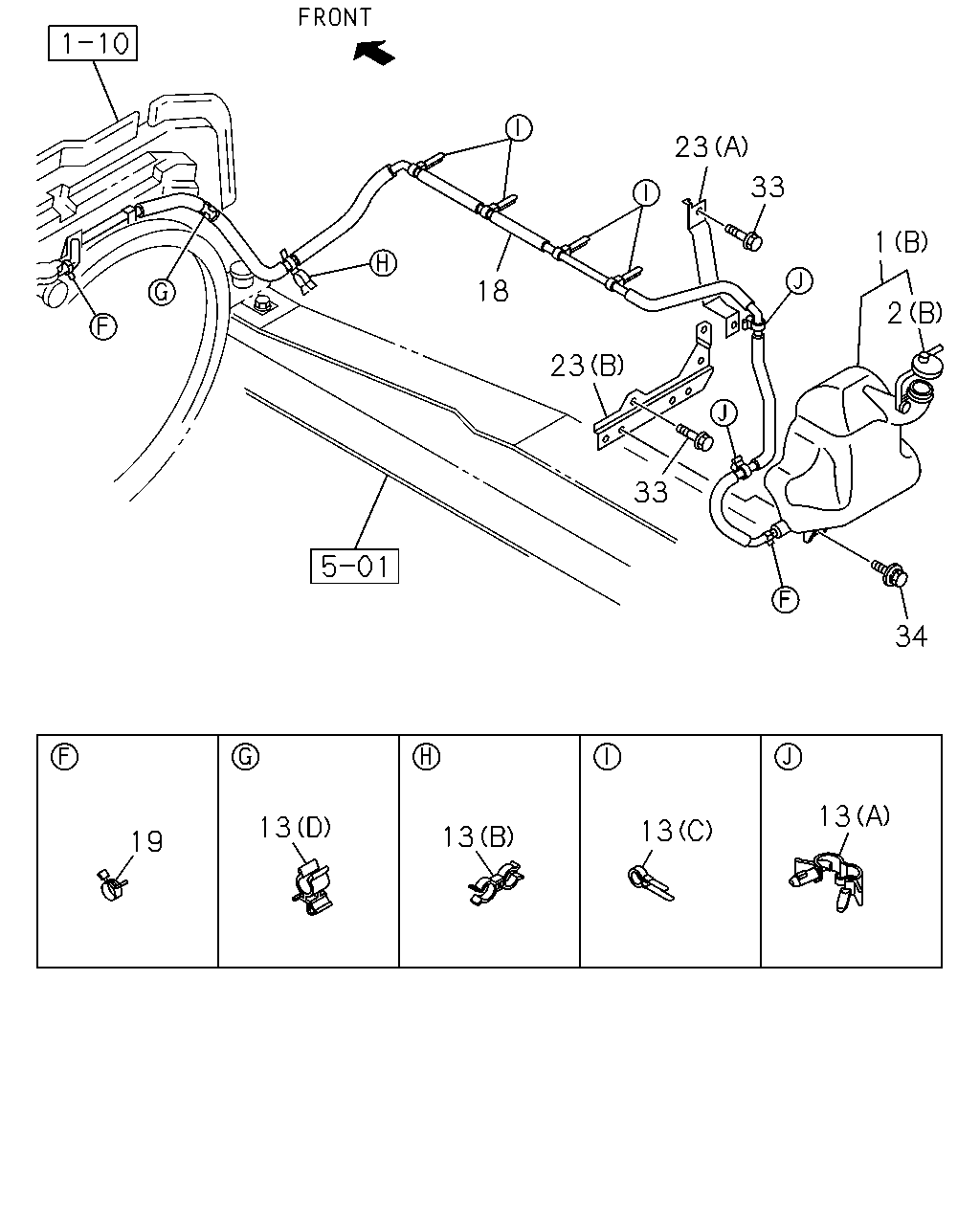

19 13 13 13 13 34 33 23 18 33 23 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1207-		●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1207-1209	●		●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1210-	●		●	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1207-		●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1207-1209	●		●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1210-	●		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (C) ID=14 L=47	5-09700-319-0	04	1	1207-1507	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCS ENG(RJS) (C) ID=14 L=47	5-09700-319-0	04	1	1207-1507			●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (C) ID=14 L=47	5-09700-319-0	04	1	1508-	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCS ENG(RJS) (C) ID=14 L=47	5-09700-319-0	04	1	1508-			●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	04	1	1508-		●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	02	1	1207-1507		●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	02	1	1508-		●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1207-1209	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCS ENG(RJS) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1207-1209			●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1210-1507	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCS ENG(RJS) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1210-1507			●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1210-1507				●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-	●		●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1207-1209	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1210-	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1207-1209	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1210-	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	03	1	1210-	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1690	8-98006-525-0	01	1	1207-	●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCS ENG(RJS) L=1690	8-98006-525-0	01	1	1207-			●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1840	8-98006-528-0	01	1	1207-		●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU)	8-98207-289-0	01	1	1210-	●			●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1207-1209	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1210-	●	●	●	●
23	01.219 BRACKET; RESERVE TANK (A)	8-98001-252-0	01	1	1207-		●
23	01.219 BRACKET; RESERVE TANK (B)	8-98010-502-1	01	1	1207-		●
33	01.277 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1207-		●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1207-1209	●	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1210-	●	●	●	●

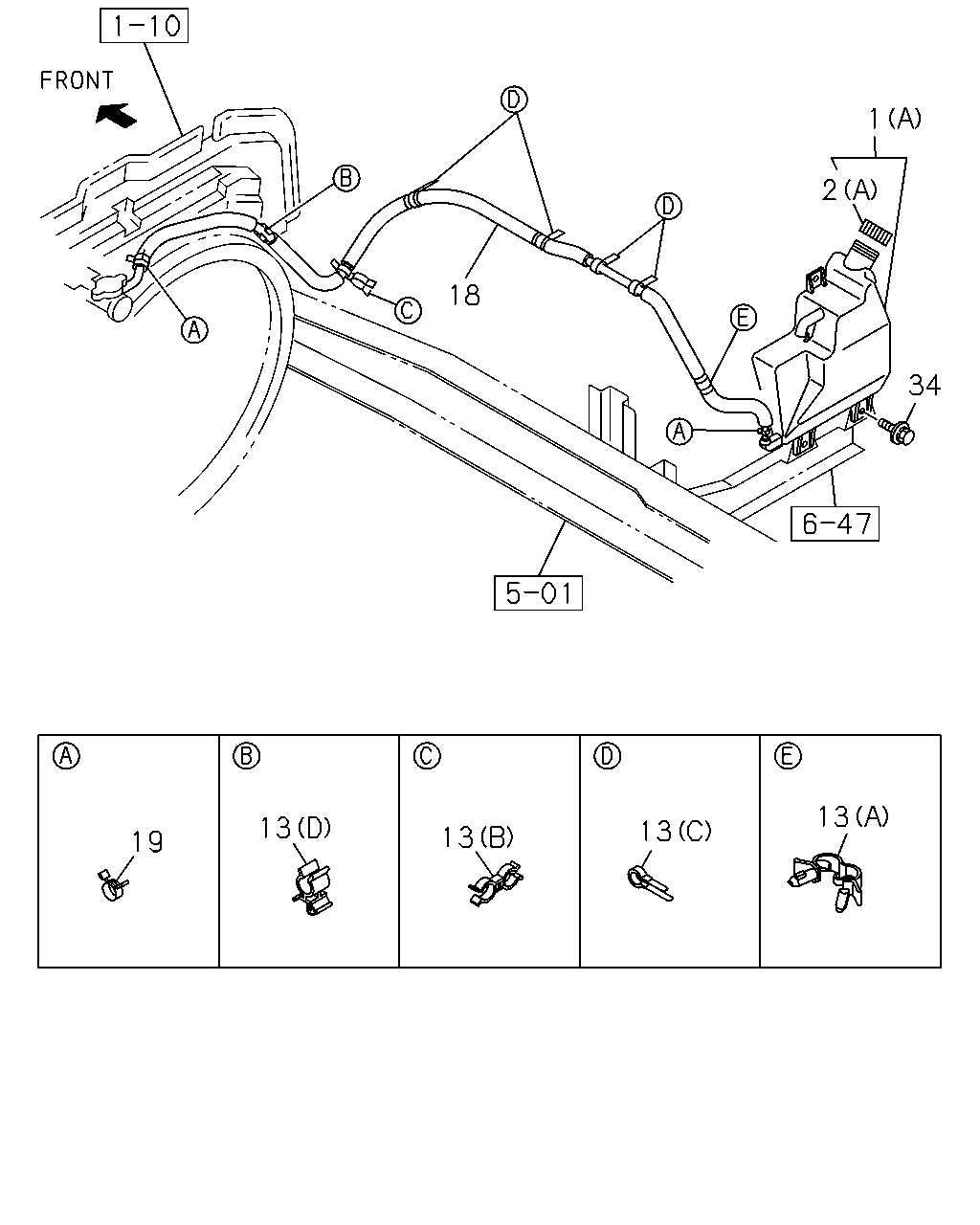

19 13 13 13 13 34 2 1 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1207-		●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1207-1209	●		●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1210-	●		●	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1207-		●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1207-1209	●		●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1210-	●		●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (C) ID=14 L=47	5-09700-319-0	04	1	1207-1507	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCS ENG(RJS) (C) ID=14 L=47	5-09700-319-0	04	1	1207-1507			●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (C) ID=14 L=47	5-09700-319-0	04	1	1508-	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCS ENG(RJS) (C) ID=14 L=47	5-09700-319-0	04	1	1508-			●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	04	1	1508-		●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	02	1	1207-1507		●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	02	1	1508-		●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1207-1209	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCS ENG(RJS) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1207-1209			●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1210-1507	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCS ENG(RJS) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1210-1507			●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1210-1507				●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-	●		●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1207-1209	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1210-	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1207-1209	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1210-	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	03	1	1210-	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1690	8-98006-525-0	01	1	1207-	●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCS ENG(RJS) L=1690	8-98006-525-0	01	1	1207-			●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1840	8-98006-528-0	01	1	1207-		●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU)	8-98207-289-0	01	1	1210-	●			●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1207-1209	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1210-	●	●	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1207-1209	●	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1210-	●	●	●	●
