1-01 — ACCELERATOR PEDAL AND CONTROL (#94180) — 38 parça

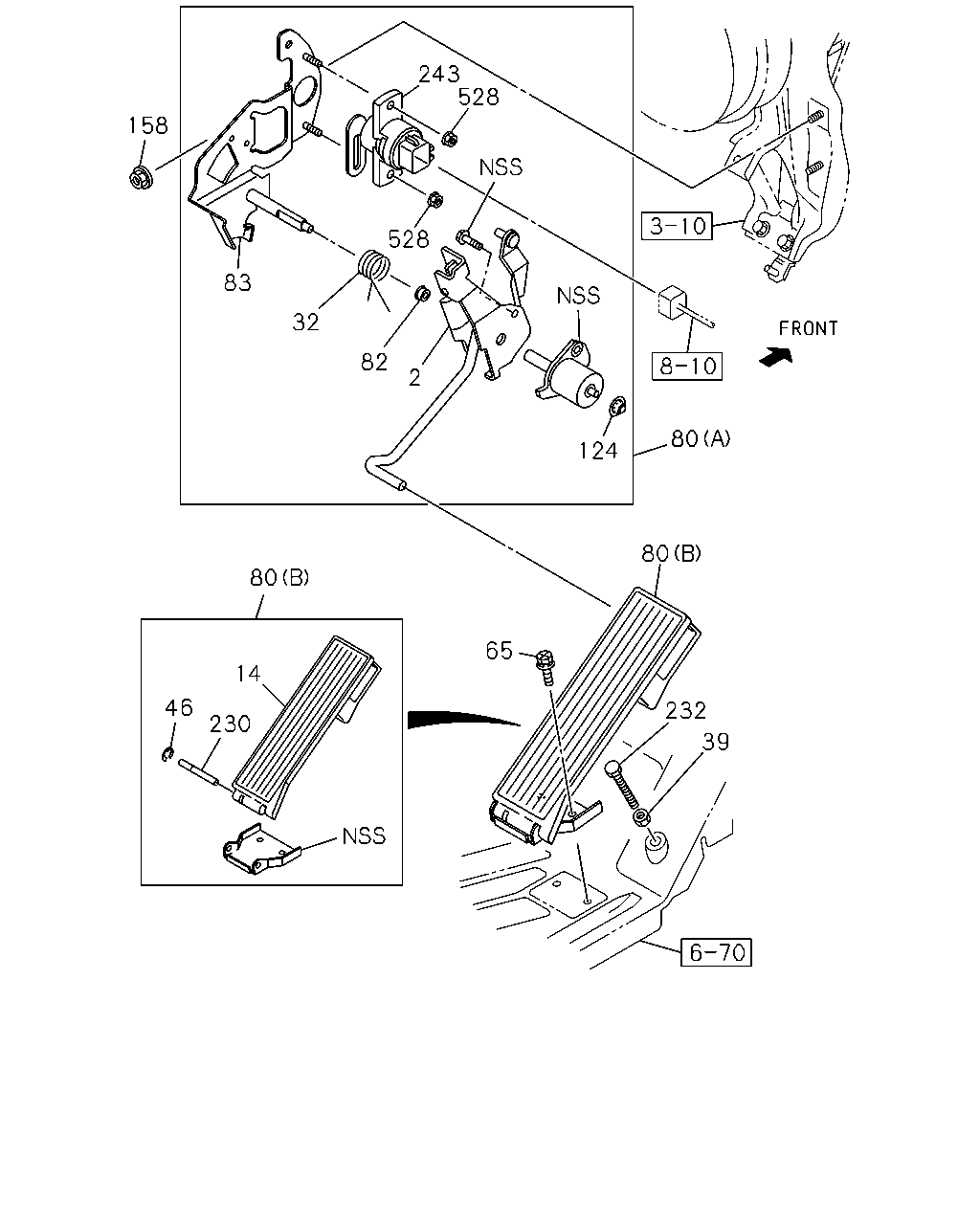

çizim 286127
39 232 65 80 14 46 230 80 80 124 2 82 32 83 528 528 243 158
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 03.454 LEVER; ENG CONT 8-98002-158-2 01 1 1207-1209 ● ● ●
2 03.454 LEVER; ENG CONT 8-98002-158-2 01 1 1210- ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 1207-1209 ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 1210- ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 1207-1209 ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 1210- ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.334 M8 		0-91110-508-0 01 1 1207-1209 ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.334 M8 		0-91110-508-0 01 1 1210- ● ● ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 1207-1209 ● ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 1210- ● ● ● ●
65 03.483 BOLT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 1207-1209 ● ● ●
65 03.483 BOLT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 1210- ● ● ● ●
80 03.452 LINK ASM; ENG CONT
(A) 		8-97387-358-3 01 1 1207-1209 ● ● ●
80 03.452 LINK ASM; ENG CONT
(A) 		8-97387-358-3 01 1 1210- ● ● ● ●
80 03.452 LINK ASM; ENG CONT
(B) 		8-97853-061-2 01 1 1207-1209 ● ● ●
80 03.452 LINK ASM; ENG CONT
(B) 		8-97853-061-2 01 1 1210- ● ● ● ●
82 03.463 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 1207-1209 ● ● ●
82 03.463 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 1210- ● ● ● ●
83 03.452 BRACKET; CONT LINK 8-98023-885-2 01 1 1207-1209 ● ● ●
83 03.452 BRACKET; CONT LINK 8-98023-885-2 01 1 1210- ● ● ● ●
124 03.463 NUT; LEVER
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 1207-1209 ● ● ●
124 03.463 NUT; LEVER
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 1210- ● ● ● ●
158 03.452 NUT; BRKT
08.857 M8 FLANGE 		8-94279-060-0 02 1 1207-1209 ● ● ●
158 03.452 NUT; BRKT
08.857 M8 FLANGE 		8-94279-060-0 02 1 1210- ● ● ● ●
230 03.452 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 1207-1209 ● ● ●
230 03.452 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 1210- ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M8X45 		8-97378-461-0 01 1 1207-1209 ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M8X45 		8-97378-461-0 01 1 1210- ● ● ● ●
243 03.425 SENSOR; ACCEL 8-98131-263-0 01 1 1207-1209 ● ● ●
243 03.425 SENSOR; ACCEL 8-98131-263-0 01 1 1210- ● ● ● ●
528 03.463 NUT; ACCEL SENSOR
12.183 M5 		8-94169-022-0 02 1 1207-1209 ● ● ●
528 03.463 NUT; ACCEL SENSOR
12.183 M5 		8-94169-022-0 02 1 1210- ● ● ● ●

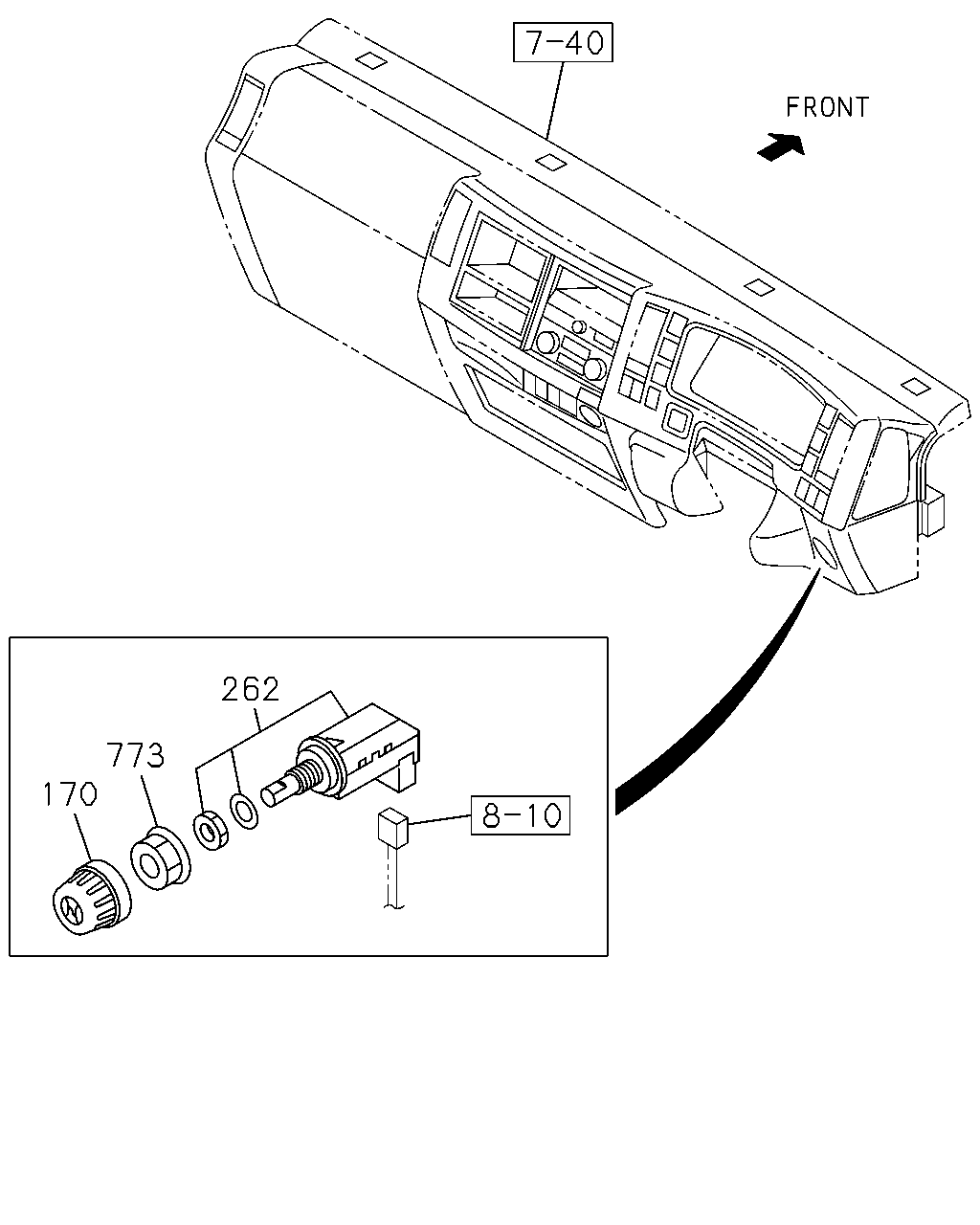

çizim 286129
262 773 170
BalonParca AdiParca NoAdetTipApplied Date A B C D
170 03.480 KNOB 8-98013-420-0 01 1 1207-1209 ● ● ●
170 03.480 KNOB 8-98013-420-0 01 1 1210- ● ● ● ●
262 03.452 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 1207-1209 ● ● ●
262 03.452 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 1210- ● ● ● ●
773 03.452 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 1207-1209 ● ● ●
773 03.452 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 1210- ● ● ● ●
