Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#9418) — 325 parça

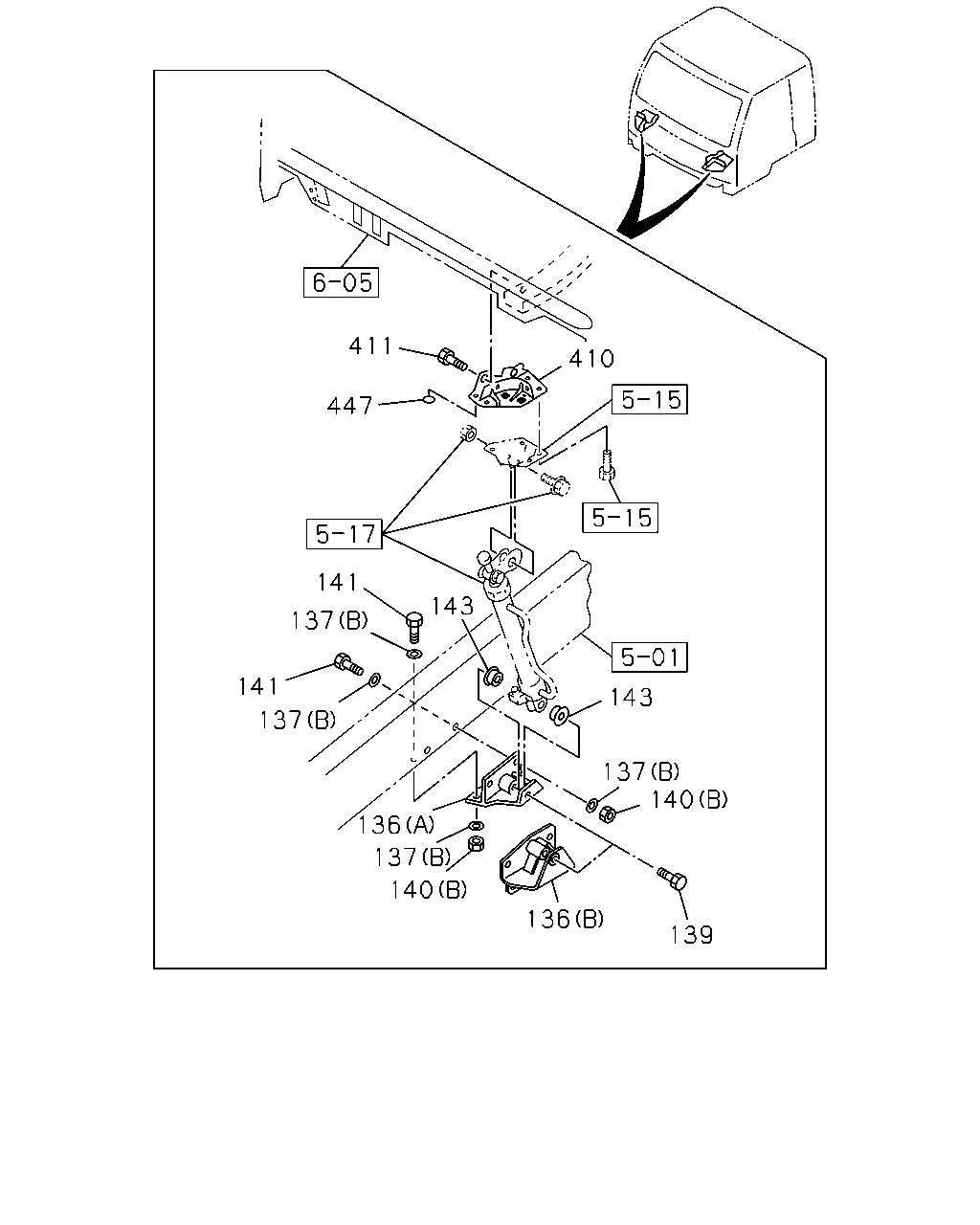

411 410 447 141 143 137 141 143 137 137 140 136 137 140 136 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
136	BRACKET; OIL CYL (A)	1-53459-568-3	01	1	0005-0210	●
136	BRACKET; OIL CYL (B)	1-53457-099-0	01	1	0211-	●
136	BRACKET; OIL CYL (A)	1-53459-569-3	01	1	0005-0210	●
136	BRACKET; OIL CYL (B)	1-53457-100-0	01	1	0211-	●
137	WASHER; PL,BRKT (A) ID=12.5 OD=26	9-09160-612-0	04	1	0005-0605	●
137	WASHER; PL,BRKT (A) ID=12.5 OD=26	0-91610-612-0	04	1	0606-	●
137	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	16	1	0005-1201	●
137	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	16	1	1202-	●
139	PIN; OIL CYL,LWR	1-53459-490-3	02	1	0005-	●
140	NUT; BRKT (A) M12	9-99110-512-0	04	1	0005-0512	●
140	NUT; BRKT (A) M12	0-91110-512-0	04	1	0601-	●
140	NUT; BRKT (B) M14	9-99110-514-0	08	1	0005-0512	●
140	NUT; BRKT (B) M14	0-91110-514-0	08	1	0601-	●
140	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	02	1	0211-0602	●
140	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	02	1	0603-	●
141	BOLT; BRKT M14X40	9-92061-440-0	08	1	0005-0512	●
141	BOLT; BRKT M14X40	0-20951-440-0	08	1	0601-	●
143	SPACER; OIL CYL,LWR	1-53459-491-2	04	1	0005-	●
410	REINFORCEMENT; CAB TILT	1-62580-238-2	01	1	0005-	●
410	REINFORCEMENT; CAB TILT	1-62580-241-2	01	1	0005-	●
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	08	1	0005-0904	●
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0905-	●
447	SEAL OD=25 BLACK	1-76798-019-0	02	1	0005-	●

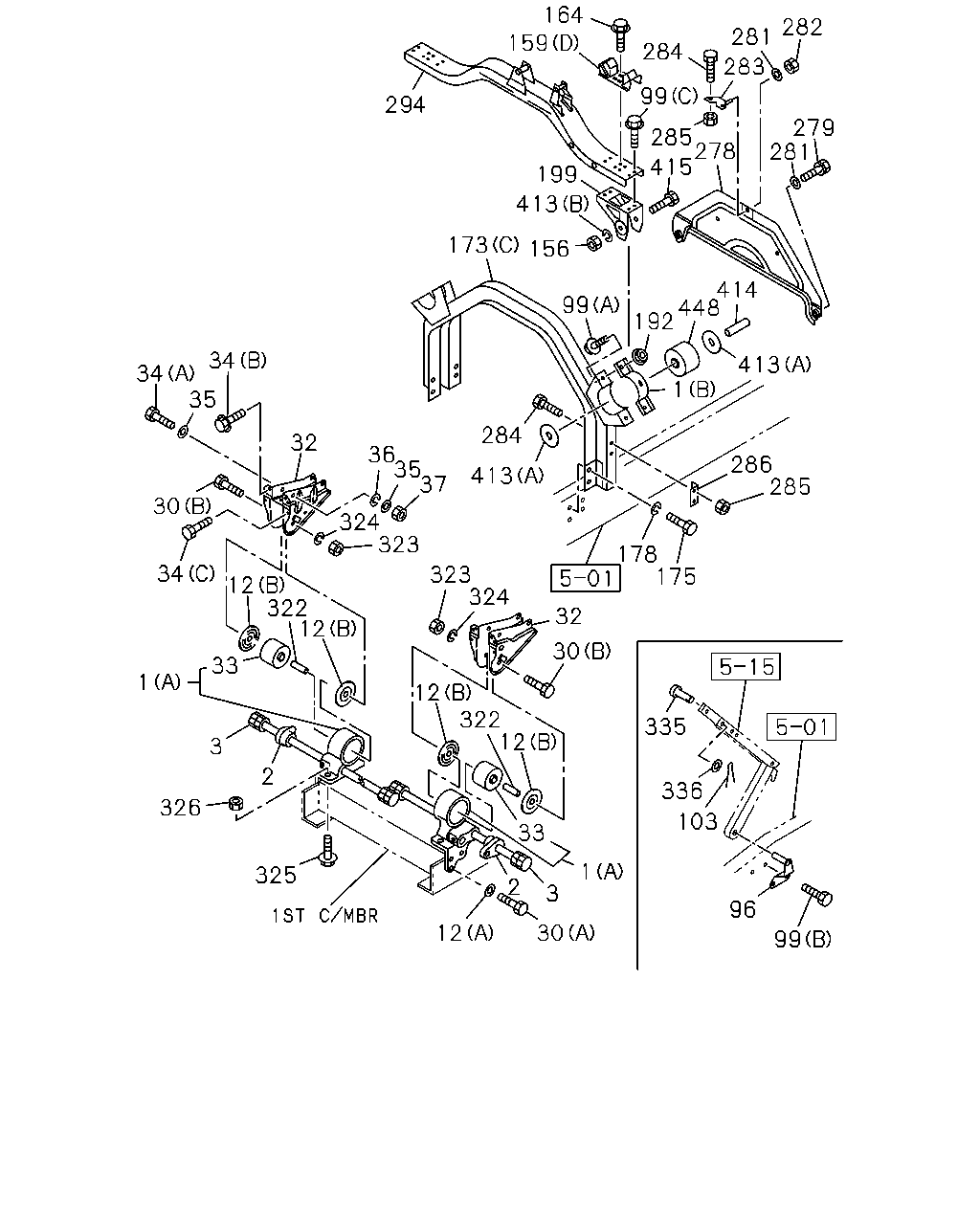

164 159 282 281 284 283 99 294 279 281 285 278 415 199 413 173 156 414 448 192 99 34 413 34 35 1 284 32 36 35 37 286 285 413 30 324 323 178 175 34 323 324 12 322 12 32 33 30 1 12 322 12 335 3 2 336 326 103 33 1 325 2 3 96 12 30 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0005-0411		●	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0412-		●	●	●
1	BRACKET; CAB MTG (A)	1-53453-205-0	01	1	0005-0210		●	●
1	BRACKET; CAB MTG (A)	1-53453-327-1	01	1	0211-0411		●	●
1	BRACKET; CAB MTG (A)	1-53453-327-1	01	1	0412-		●	●	●
1	BRACKET; CAB MTG (A)	1-53453-204-0	01	1	0005-0210		●	●
1	BRACKET; CAB MTG (A)	1-53453-326-1	01	1	0211-0411		●	●
1	BRACKET; CAB MTG (A)	1-53453-326-1	01	1	0412-		●	●	●
1	BRACKET; CAB MTG (B)	1-53454-841-0	02	1	0005-0210	●
1	BRACKET; CAB MTG (B)	1-53454-903-0	02	1	0211-	●
1	BRACKET; CAB MTG (A)	1-53453-277-0	01	1	0005-0210	●
1	BRACKET; CAB MTG (A)	1-53453-337-1	01	1	0211-	●
1	BRACKET; CAB MTG (A)	1-53453-276-0	01	1	0005-0210	●
1	BRACKET; CAB MTG (A)	1-53453-336-1	01	1	0211-	●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	0005-0411		●	●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	0412-		●	●	●
3	TORSION BAR	1-09585-130-0	01	1	0005-0411		●	●
3	TORSION BAR	1-09585-130-0	01	1	0412-		●	●	●
3	TORSION BAR	1-09585-129-0	01	1	0005-0411		●	●
3	TORSION BAR	1-09585-129-0	01	1	0412-		●	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	0005-0411	●	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	0412-1201	●	●	●	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0005-0210		●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0211-0306	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-0411	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0412-	●	●	●	●
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	0005-0210	●
12	WASHER; LK,BRKT (C) ID=12.2	9-09150-612-0	08	1	0005-0603	●
12	WASHER; LK,BRKT (C) ID=12.2	0-91510-612-0	08	1	0604-	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	0005-0411	●	●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	0412-	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	0005-0411	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	0412-0512	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0005-0210		●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0211-0411	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0412-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0005-0210		●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0211-0411	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0412-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-233-4	01	1	0005-0210	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-291-1	01	1	0005-0210	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-836-3	02	1	0005-0411		●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-836-3	02	1	0412-		●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-636-1	02	1	0005-0210	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-681-0	02	1	0211-	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	0005-0411	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	0412-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0411	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0412-0904	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	0005-0411	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	0412-	●	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0005-0411	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0412-	●	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	0005-0411	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	0412-	●	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	0005-0411	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	0412-	●	●	●	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	0005-0411		●	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	0412-		●	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0005-0411		●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0412-0512		●	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-		●	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0005-0411		●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0412-0512		●	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612		●	●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-		●	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	0005-0411		●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	0412-0512		●	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-		●	●	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28081-225-0	02	1	0005-0210	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28081-225-0	04	1	0211-0512	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	04	1	0601-	●
99	BOLT; BRKT (A) M12X35	9-92061-235-0	08	1	0005-0512	●
99	BOLT; BRKT (A) M12X35	0-20951-235-0	08	1	0601-	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	0005-0411		●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	0412-		●	●	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	0005-0411		●	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	0412-0512		●	●	●
156	NUT; CAB MTG RR M16	0-91110-516-0	02	1	0601-		●	●	●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0005-0411		●	●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0412-		●	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	0005-	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	0005-	●
159	RUBBER; CUSHION,CAB MTG (C)	9-54347-160-1	02	1	0005-	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	0005-0411		●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	0412-0512		●	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●	●
173	MEMBER; CAB MTG RR (C)	1-53454-848-1	01	1	0005-0210		●	●
173	MEMBER; CAB MTG RR (C)	1-53454-860-4	01	1	0211-0411		●	●
173	MEMBER; CAB MTG RR (C)	1-53454-860-4	01	1	0412-		●	●	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0005-0210	●
173	MEMBER; CAB MTG RR (D)	1-53454-881-1	01	1	0211-0211	●
173	MEMBER; CAB MTG RR (D)	1-53454-920-0	01	1	0212-	●
173	MEMBER; CAB MTG RR (A)	1-53454-670-0	01	1	0005-0210	●
173	MEMBER; CAB MTG RR (A)	1-53454-904-0	01	1	0211-	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	0005-0411	●	●	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	0412-0512	●	●	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●	●	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	0005-0411	●	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	0412-0603	●	●	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	0005-0411		●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	0412-0602		●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0603-		●	●	●
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	0005-0411		●	●
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	0412-1103		●	●	●
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	1104-1403		●	●	●
199	BRACKET; CAB RR MTG	8-98269-637-0	02	1	1404-		●	●	●
278	COVER ENGINE REAR PTO(SV1)	1-53191-891-2	01	1	0005-0006		●
278	COVER ENGINE REAR PTO(SV1)	1-53193-823-0	01	1	0007-0210		●
278	COVER EXC. ENGINE REAR PTO(SV1),A/T<X9D>	1-53192-931-1	01	1	0005-0210		●
278	COVER	1-53192-931-1	01	1	0005-0210	●		●
279	BOLT EXC. A/T<X9D> M8X25 FLANGE	0-28680-825-0	02	1	0005-0210		●
279	BOLT M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●		●
281	WASHER; PL,BACK COVER EXC. A/T<X9D> ID=8.4 OD=26	9-09164-808-0	03	1	0005-0210		●
281	WASHER; PL,BACK COVER ID=8.4 OD=26	9-09164-808-0	03	1	0005-0210	●		●
282	NUT; BACK COVER EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	01	1	0005-0210		●
282	NUT; BACK COVER M8 FLANGE	0-91150-108-0	01	1	0005-0210	●		●
283	BRACKET; UPR EXC. A/T<X9D>	1-53459-630-2	01	1	0005-0210		●
283	BRACKET; UPR	1-53459-630-2	01	1	0005-0210	●		●
284	BOLT; BRKT UPR EXC. A/T<X9D> M8X20 FLANGE	0-28680-820-0	06	1	0005-0210		●
284	BOLT; BRKT UPR M8X20 FLANGE	0-28680-820-0	06	1	0005-0210	●		●
285	NUT; BRKT UPR EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	06	1	0005-0210		●
285	NUT; BRKT UPR M8 FLANGE	0-91150-108-0	06	1	0005-0210	●		●
286	BRACKET; LOW EXC. A/T<X9D>	1-53459-631-3	01	1	0005-0210		●
286	BRACKET; LOW	1-53459-631-3	01	1	0005-0210	●		●
286	BRACKET; LOW EXC. A/T<X9D>	1-53459-632-3	01	1	0005-0210		●
286	BRACKET; LOW	1-53459-632-3	01	1	0005-0210	●		●
294	MEMBER; FLOATING	1-53454-530-1	01	1	0005-0411		●	●
294	MEMBER; FLOATING	1-53454-530-1	01	1	0412-		●	●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0005-0210		●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0211-0411	●	●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0412-	●	●	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	0005-0411	●	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	0412-0512	●	●	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	0005-0411	●	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	0412-0603	●	●	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	0005-0411	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	0412-0512	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	0005-0411	●	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	0412-0512	●	●	●	●
326	NUT; GUIDE NUT M12	0-91110-512-0	02	1	0601-	●	●	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	0005-0411		●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	0412-		●	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	0005-0411		●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	0412-		●	●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	0005-0306		●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0307-0411		●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0412-		●	●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	0005-0411		●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	0412-0603		●	●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	0-91510-816-0	02	1	0604-		●	●	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	0005-0411		●	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	0412-		●	●	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	0005-0411		●	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	0412-		●	●	●
448	BUSHING; CAB MTG	1-53459-836-3	02	1	0005-0411		●	●
448	BUSHING; CAB MTG	1-53459-836-3	02	1	0412-		●	●	●

284 159 283 168 282 281 278 279 281 285 159 173 284 170 173 159 168 99 170 1 286 178 158 175 140 34 285 34 35 168 173 140 32 137 36 35 37 1 30 324 323 12 99 99 34 323 324 12 322 12 32 30 33 1 12 322 12 326 33 1 30 325 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0005-0411		●	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0412-		●	●	●
1	BRACKET; CAB MTG (A)	1-53453-205-0	01	1	0005-0210		●	●
1	BRACKET; CAB MTG (A)	1-53453-327-1	01	1	0211-0411		●	●
1	BRACKET; CAB MTG (A)	1-53453-327-1	01	1	0412-		●	●	●
1	BRACKET; CAB MTG (A)	1-53453-204-0	01	1	0005-0210		●	●
1	BRACKET; CAB MTG (A)	1-53453-326-1	01	1	0211-0411		●	●
1	BRACKET; CAB MTG (A)	1-53453-326-1	01	1	0412-		●	●	●
1	BRACKET; CAB MTG (B)	1-53454-841-0	02	1	0005-0210	●
1	BRACKET; CAB MTG (B)	1-53454-903-0	02	1	0211-	●
1	BRACKET; CAB MTG (A)	1-53453-277-0	01	1	0005-0210	●
1	BRACKET; CAB MTG (A)	1-53453-337-1	01	1	0211-	●
1	BRACKET; CAB MTG (A)	1-53453-276-0	01	1	0005-0210	●
1	BRACKET; CAB MTG (A)	1-53453-336-1	01	1	0211-	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	0005-0411	●	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	0412-1201	●	●	●	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0005-0210		●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0211-0306	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-0411	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0412-	●	●	●	●
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	0005-0210	●
12	WASHER; LK,BRKT (C) ID=12.2	9-09150-612-0	08	1	0005-0603	●
12	WASHER; LK,BRKT (C) ID=12.2	0-91510-612-0	08	1	0604-	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	0005-0411	●	●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	0412-	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	0005-0411	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	0412-0512	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0005-0210		●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0211-0411	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0412-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0005-0210		●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0211-0411	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0412-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-233-4	01	1	0005-0210	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-291-1	01	1	0005-0210	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-836-3	02	1	0005-0411		●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-836-3	02	1	0412-		●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-636-1	02	1	0005-0210	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-681-0	02	1	0211-	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	0005-0411	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	0412-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0411	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0412-0904	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	0005-0411	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	0412-	●	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0005-0411	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0412-	●	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	0005-0411	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	0412-	●	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	0005-0411	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	0412-	●	●	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0005-0411		●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0412-0512		●	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-		●	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0005-0411		●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0412-0512		●	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612		●	●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-		●	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	0005-0411		●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	0412-0512		●	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-		●	●	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28081-225-0	02	1	0005-0210	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28081-225-0	04	1	0211-0512	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	04	1	0601-	●
99	BOLT; BRKT (A) M12X35	9-92061-235-0	08	1	0005-0512	●
99	BOLT; BRKT (A) M12X35	0-20951-235-0	08	1	0601-	●
137	WASHER; PL,BRKT (A) ID=12.5 OD=26	9-09160-612-0	04	1	0005-0605	●
137	WASHER; PL,BRKT (A) ID=12.5 OD=26	0-91610-612-0	04	1	0606-	●
137	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	16	1	0005-1201	●
137	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	16	1	1202-	●
140	NUT; BRKT (A) M12	9-99110-512-0	04	1	0005-0512	●
140	NUT; BRKT (A) M12	0-91110-512-0	04	1	0601-	●
140	NUT; BRKT (B) M14	9-99110-514-0	08	1	0005-0512	●
140	NUT; BRKT (B) M14	0-91110-514-0	08	1	0601-	●
140	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	02	1	0211-0602	●
140	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	02	1	0603-	●
158	BRACKET; CUSHION RUBBER	1-53457-115-0	02	1	0211-	●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0005-0411		●	●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0412-		●	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	0005-	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	0005-	●
159	RUBBER; CUSHION,CAB MTG (C)	9-54347-160-1	02	1	0005-	●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-212-0	06	1	0005-0602	●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91180-212-0	06	1	0603-	●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	0005-	●
170	SHIM; CUSHION RUBBER (B) T=1.6	9-54347-136-1	AR	1	0005-	●
173	MEMBER; CAB MTG RR (C)	1-53454-848-1	01	1	0005-0210		●	●
173	MEMBER; CAB MTG RR (C)	1-53454-860-4	01	1	0211-0411		●	●
173	MEMBER; CAB MTG RR (C)	1-53454-860-4	01	1	0412-		●	●	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0005-0210	●
173	MEMBER; CAB MTG RR (D)	1-53454-881-1	01	1	0211-0211	●
173	MEMBER; CAB MTG RR (D)	1-53454-920-0	01	1	0212-	●
173	MEMBER; CAB MTG RR (A)	1-53454-670-0	01	1	0005-0210	●
173	MEMBER; CAB MTG RR (A)	1-53454-904-0	01	1	0211-	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	0005-0411	●	●	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	0412-0512	●	●	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●	●	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	0005-0411	●	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	0412-0603	●	●	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●	●	●
278	COVER ENGINE REAR PTO(SV1)	1-53191-891-2	01	1	0005-0006		●
278	COVER ENGINE REAR PTO(SV1)	1-53193-823-0	01	1	0007-0210		●
278	COVER EXC. ENGINE REAR PTO(SV1),A/T<X9D>	1-53192-931-1	01	1	0005-0210		●
278	COVER	1-53192-931-1	01	1	0005-0210	●		●
279	BOLT EXC. A/T<X9D> M8X25 FLANGE	0-28680-825-0	02	1	0005-0210		●
279	BOLT M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●		●
281	WASHER; PL,BACK COVER EXC. A/T<X9D> ID=8.4 OD=26	9-09164-808-0	03	1	0005-0210		●
281	WASHER; PL,BACK COVER ID=8.4 OD=26	9-09164-808-0	03	1	0005-0210	●		●
282	NUT; BACK COVER EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	01	1	0005-0210		●
282	NUT; BACK COVER M8 FLANGE	0-91150-108-0	01	1	0005-0210	●		●
283	BRACKET; UPR EXC. A/T<X9D>	1-53459-630-2	01	1	0005-0210		●
283	BRACKET; UPR	1-53459-630-2	01	1	0005-0210	●		●
284	BOLT; BRKT UPR EXC. A/T<X9D> M8X20 FLANGE	0-28680-820-0	06	1	0005-0210		●
284	BOLT; BRKT UPR M8X20 FLANGE	0-28680-820-0	06	1	0005-0210	●		●
285	NUT; BRKT UPR EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	06	1	0005-0210		●
285	NUT; BRKT UPR M8 FLANGE	0-91150-108-0	06	1	0005-0210	●		●
286	BRACKET; LOW EXC. A/T<X9D>	1-53459-631-3	01	1	0005-0210		●
286	BRACKET; LOW	1-53459-631-3	01	1	0005-0210	●		●
286	BRACKET; LOW EXC. A/T<X9D>	1-53459-632-3	01	1	0005-0210		●
286	BRACKET; LOW	1-53459-632-3	01	1	0005-0210	●		●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0005-0210		●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0211-0411	●	●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0412-	●	●	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	0005-0411	●	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	0412-0512	●	●	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	0005-0411	●	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	0412-0603	●	●	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	0005-0411	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	0412-0512	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	0005-0411	●	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	0412-0512	●	●	●	●
326	NUT; GUIDE NUT M12	0-91110-512-0	02	1	0601-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
