◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51267 - NN/NP/NQR(RHD)EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#94175) — 87 parça

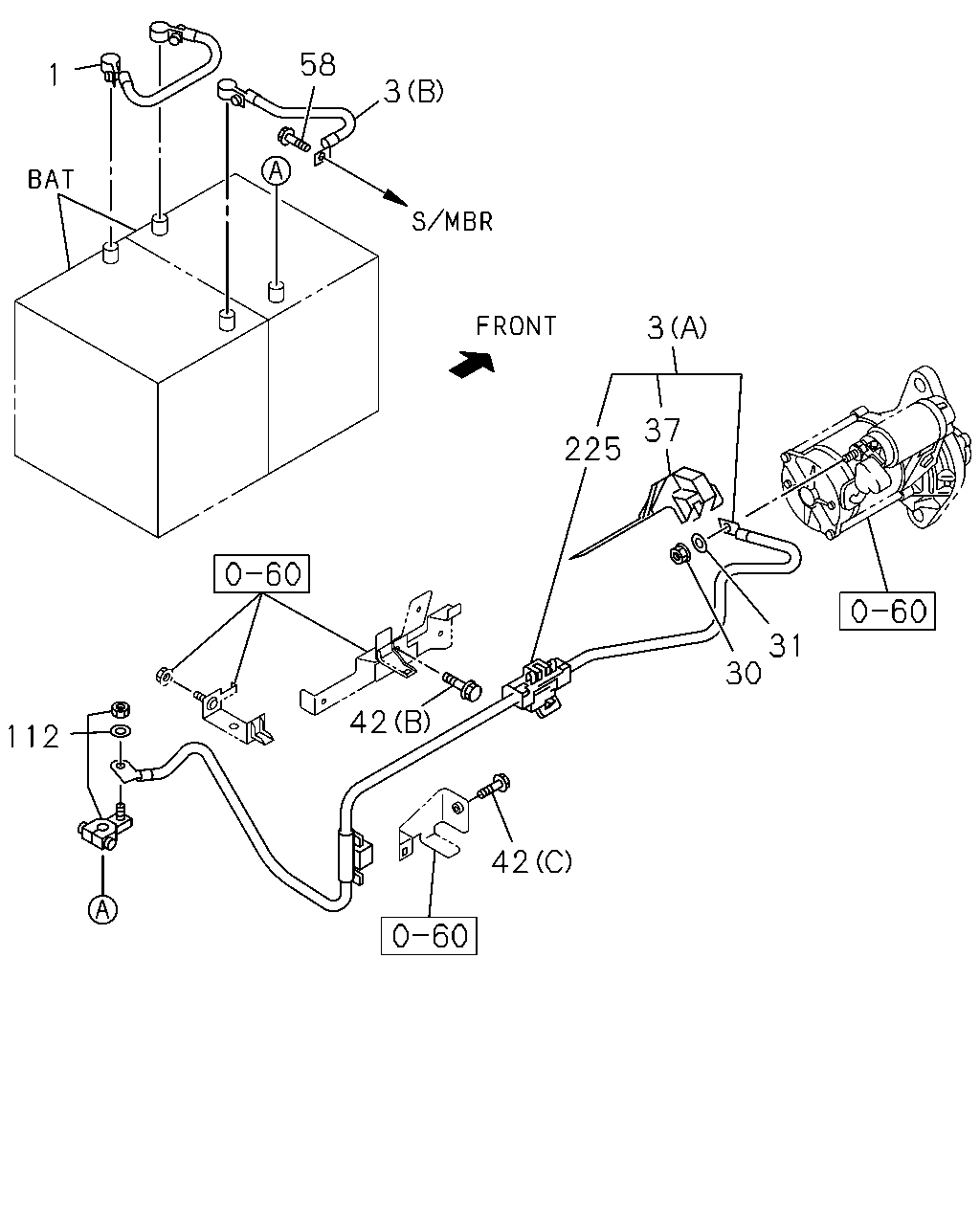

çizim 286121
1 58 3 3 37 225 31 30 42 42 112
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1207-1209 ● ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1210- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NPR5SN) NQR SGL CAB(NPR5SS) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1207- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) BATTERY 115E41L<8MA> (C) 		8-98077-140-2 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) BATTERY 115E41L<8MA> (C) 		8-98294-725-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-723-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98108-588-1 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98294-733-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) BATTERY 115E41L<8MA> (D) L=450 		8-98072-275-1 01 1 1207- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) L=250 		8-98056-338-1 01 1 1207- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1207-1209 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1207-1209 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 1210-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-719-0 01 1 1410- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1207-1209 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1210- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1207-1209 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1210- ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1207-1209 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1210- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1207- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1207- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1207- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1207-1209 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1210- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1207-1209 ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1210- ● ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1207-1209 ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1210- ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1207-1209 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1210-1409 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ●

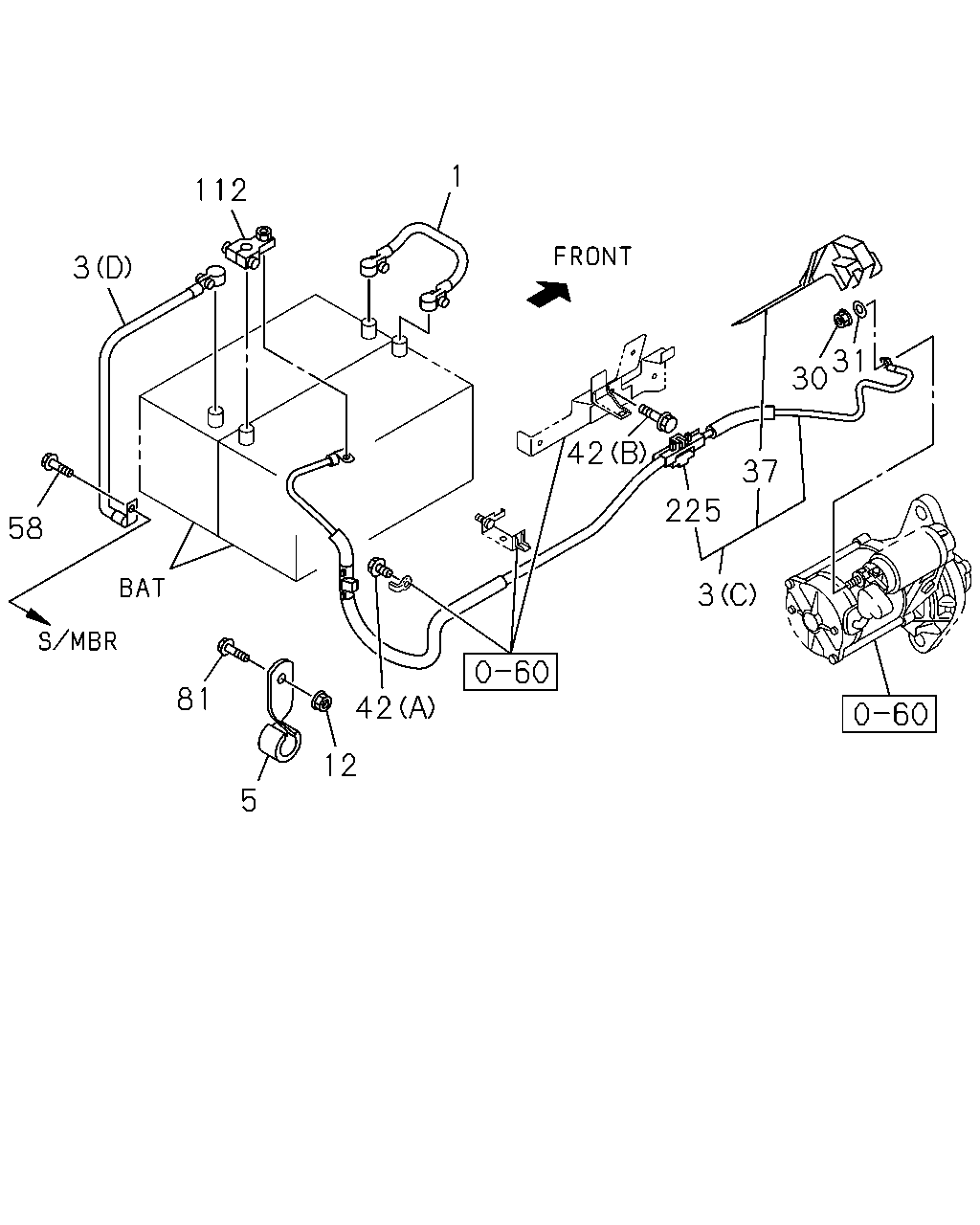

çizim 286123
1 112 3 58 31 30 37 225 3 42 42 12 5 81
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1207-1209 ● ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1210- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NPR5SN) NQR SGL CAB(NPR5SS) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1207- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) BATTERY 115E41L<8MA> (C) 		8-98077-140-2 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) BATTERY 115E41L<8MA> (C) 		8-98294-725-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-723-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98108-588-1 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98294-733-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 1207-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) BATTERY 115E41L<8MA> (D) L=450 		8-98072-275-1 01 1 1207- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) L=250 		8-98056-338-1 01 1 1207- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1207-1209 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1207-1209 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 1210-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-719-0 01 1 1410- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1207- ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1207- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1207-1209 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1210- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1207-1209 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1210- ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1207-1209 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1210- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1207- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1207- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1207- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1207-1209 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1210- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1207-1209 ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1210- ● ● ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1207- ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1207-1209 ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1210- ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1207-1209 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1210-1409 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ●
