5-01 — FRAME AND OTHER PARTS (#9417) — 182 parça

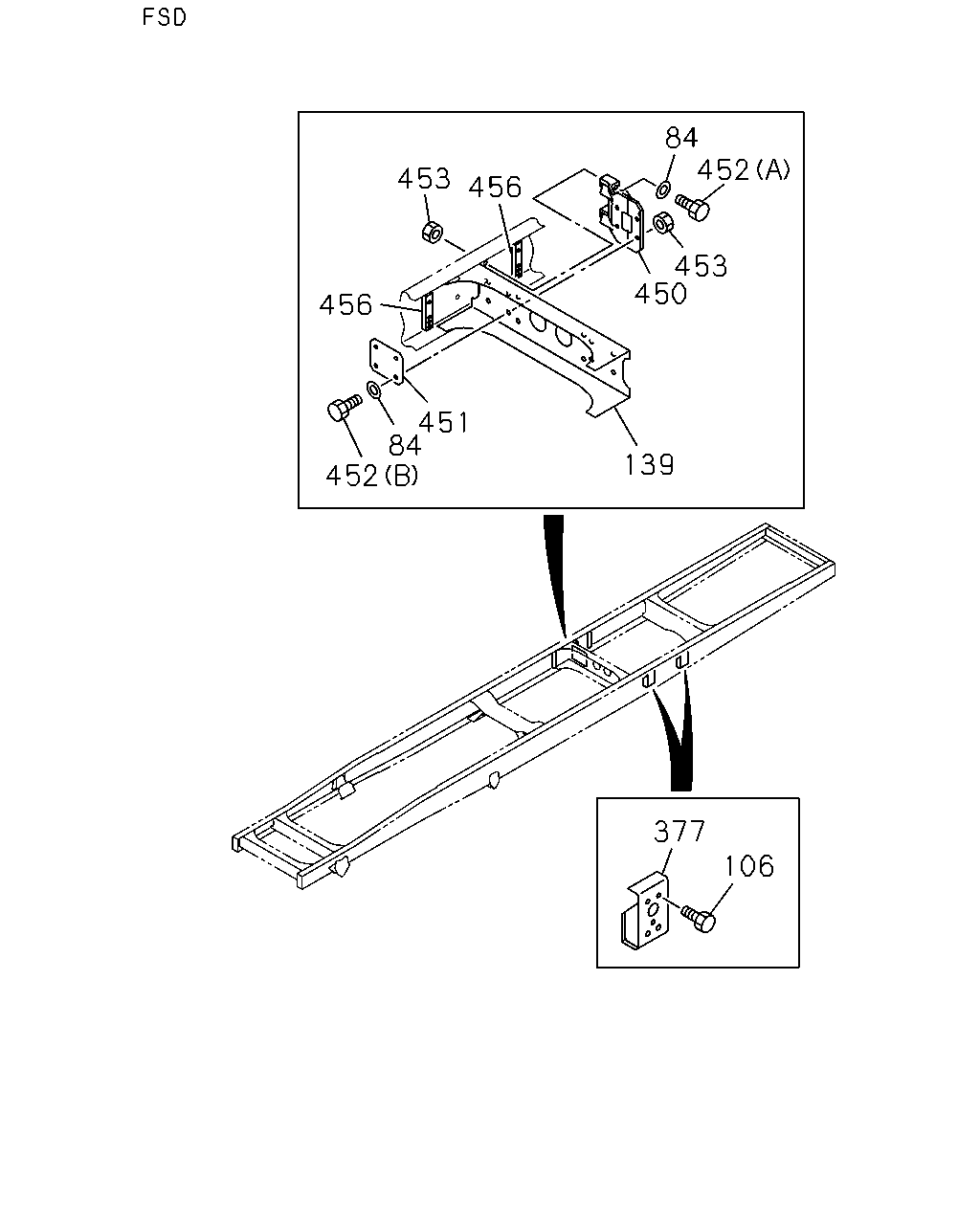

84 452 453 456 453 450 456 451 84 452 139 377 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
84	WASHER; PL,BRKT FRD STD CAB(FRD***) ID=16.2	1-09503-223-0	12	1	0412-	●
106	BOLT; BRKT FRD STD CAB(FRD***) M14X35	0-28691-435-0	12	1	0412-0512	●
106	BOLT; BRKT FRD STD CAB(FRD***) M14X35 FLANGE	0-28661-435-0	12	1	0601-	●
106	BOLT; BRKT M14X40	0-20801-440-0	22	1	0005-0210	●	●	●	●
106	BOLT; BRKT M14X40	0-20801-440-0	22	1	0211-0411	●	●	●		●
106	BOLT; BRKT M14X40	0-20801-440-0	22	1	0412-0512		●	●		●
106	BOLT; BRKT FRR STD CAB(FRR***) M14X40	0-20801-440-0	22	1	0412-0512	●
106	BOLT; BRKT M14X40	0-20851-440-0	22	1	0601-		●	●		●
106	BOLT; BRKT FRR STD CAB(FRR***) M14X40	0-20851-440-0	22	1	0601-	●
139	MEMBER; CROSS,6TH FRD STD CAB(FRD***)	1-53181-893-4	01	1	0412-	●
139	MEMBER; CROSS,6TH	1-53181-521-3	01	1	0005-			●
139	MEMBER; CROSS,6TH	1-53181-465-9	01	1	0005-0210	●			●
139	MEMBER; CROSS,6TH	1-53181-465-9	01	1	0211-0411	●
139	MEMBER; CROSS,6TH FRR STD CAB(FRRM) FSR(FS****)	1-53181-465-9	01	1	0412-	●
139	MEMBER; CROSS,6TH	1-53181-926-2	01	1	0211-					●
377	BRACKET; TOP PLATE FRD STD CAB(FRD***)	1-52171-213-1	04	1	0412-	●
450	BRACKET; V ROD FRD STD CAB(FRD***)	1-53353-121-0	02	1	0412-	●
451	GUSSET; V ROD FRD STD CAB(FRD***)	1-53167-577-1	02	1	0412-	●
452	BOLT; V ROD FRD STD CAB(FRD***) (A) M16X120	1-09000-677-0	04	1	0412-	●
452	BOLT; V ROD FRD STD CAB(FRD***) (B) M16X50	1-09000-679-0	08	1	0412-	●
453	NUT; V ROD FRD STD CAB(FRD***) M16 FLANGE	1-09440-066-0	12	1	0412-	●
456	PATCH; STOPPER FRD STD CAB(FRD***)	1-53119-205-0	04	1	0412-	●

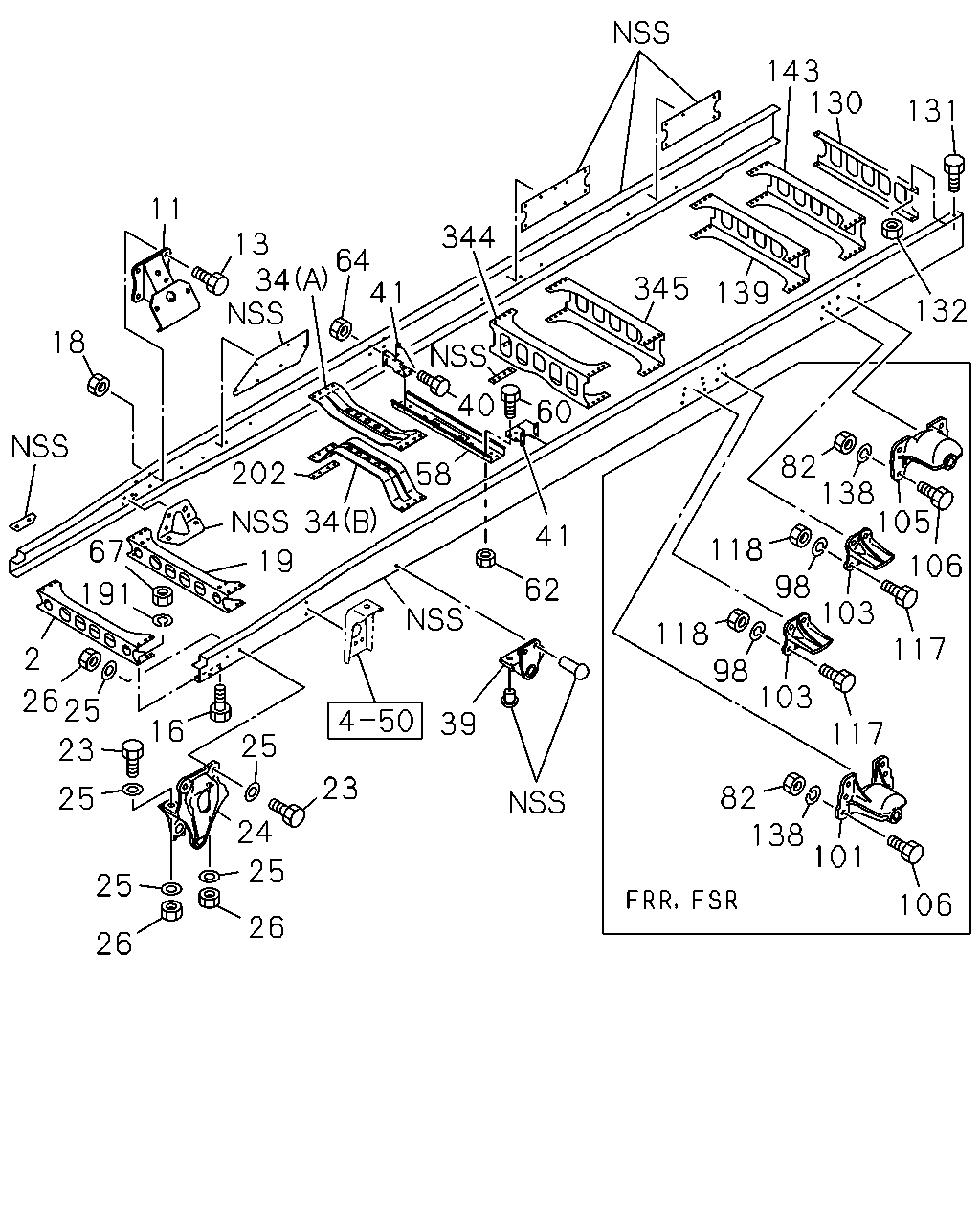

143 130 131 11 344 13 34 64 41 345 139 132 18 40 60 58 82 138 105 202 67 34 41 118 98 103 19 106 62 191 118 98 103 117 2 26 25 39 25 16 117 23 23 82 138 101 25 24 25 25 106 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	0005-0210	●	●	●	●
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	0211-0407	●	●	●		●
2	MEMBER; CROSS,1ST	1-53181-892-4	01	1	0408-	●	●	●		●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	0005-0210		●	●	●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	0211-	●	●	●		●
11	BRACKET; ENG MTG	1-53211-197-0	02	1	0005-0210	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	0005-0210		●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	0211-0512	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0601-	●	●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28691-240-0	08	1	0005-0210	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28691-240-0	08	1	0211-0512					●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28661-240-0	08	1	0601-					●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	9-92061-430-0	02	1	0211-0512	●	●	●		●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20951-430-0	02	1	0601-	●	●	●		●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91150-212-0	08	1	0005-0210	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91150-212-0	08	1	0211-0602	●	●	●		●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0603-	●	●	●		●
19	MEMBER; CROSS,2ND	1-53181-715-9	01	1	0005-0210		●	●	●
19	MEMBER; CROSS,2ND	1-53181-852-8	01	1	0211-	●	●	●
19	MEMBER; CROSS,2ND	1-53181-661-8	01	1	0005-0210	●
19	MEMBER; CROSS,2ND	1-53181-661-9	01	1	0211-0511					●
19	MEMBER; CROSS,2ND	8-97611-712-0	01	1	0512-					●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	08	1	0005-0210		●	●	●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	08	1	0211-	●	●	●
23	BOLT; BRKT,SPR M14X50	9-91066-450-0	08	1	0005-0210	●
23	BOLT; BRKT,SPR M14X50	9-91066-450-0	08	1	0211-0512					●
23	BOLT; BRKT,SPR M14X50	0-10956-450-0	08	1	0601-					●
23	BOLT; BRKT,SPR M16X60	9-91066-660-0	04	1	0005-0210	●
23	BOLT; BRKT,SPR M16X60	9-91066-660-0	04	1	0211-0512					●
23	BOLT; BRKT,SPR M16X60	0-10956-660-0	04	1	0601-					●
24	BRACKET; FRT SPR,FRT	1-53351-233-0	01	1	0612-		●
24	BRACKET; FRT SPR,FRT	1-53351-234-0	01	1	0612-		●
24	BRACKET; FRT SPR,FRT	1-53351-234-0	01	1	0005-0210		●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-228-0	01	1	0211-0611	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-228-0	01	1	0612-	●		●
24	BRACKET; FRT SPR,FRT	1-53351-233-0	01	1	0005-0210		●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-227-0	01	1	0211-0611	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-227-0	01	1	0612-	●		●
24	BRACKET; FRT SPR,FRT	1-53351-115-5	02	1	0005-0210	●
24	BRACKET; FRT SPR,FRT	1-53351-115-6	02	1	0211-					●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	0005-0210	●	●	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	0211-1201	●	●	●		●
25	WASHER; PL,BRKT ID=15	8-98010-627-1	16	1	1202-	●	●	●		●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	0005-0210	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	0211-					●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	0005-0210	●	●	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	08	1	0211-0512	●	●	●		●
26	NUT; BRKT,SPR M14	0-91110-514-0	08	1	0601-	●	●	●		●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	0005-0210	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	0211-0512					●
26	NUT; BRKT,SPR M16	0-91110-516-0	04	1	0601-					●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	0005-0210	●	●	●	●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	0211-	●	●	●		●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	0005-0210	●	●	●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	0211-		●	●
34	MEMBER; CROSS,3RD (B)	1-53175-360-1	01	1	0005-0210				●
34	MEMBER; CROSS,3RD (B)	1-53175-360-1	01	1	0211-	●				●
39	BRACKET; FRT SPR,RR	1-53352-154-1	02	1	0005-0210		●	●	●
39	BRACKET; FRT SPR,RR	1-53352-154-2	02	1	0211-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-052-1	02	1	0005-0210	●
39	BRACKET; FRT SPR,RR	1-53352-052-1	02	1	0211-					●
40	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28681-030-0	08	1	0005-0512		●
40	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	0601-		●
41	BRACKET; CENTER BRG,FRAME SIDE	1-37515-086-0	02	1	0005-		●
58	MEMBER; CENTER BRG	1-37529-082-0	01	1	0005-0611		●
58	MEMBER; CENTER BRG	1-37529-097-0	01	1	0612-		●
60	BOLT; MBR M10X25 FLANGE	0-28681-025-0	08	1	0005-0512		●
60	BOLT; MBR M10X25 FLANGE	0-28651-025-0	08	1	0601-		●
62	NUT; MBR M10 FLANGE	0-91150-110-0	08	1	0005-0602		●
62	NUT; MBR M10 FLANGE	0-91180-110-0	08	1	0603-		●
64	NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	08	1	0005-0602		●
64	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	08	1	0603-		●
67	NUT; C/MBR M14	9-99110-514-0	02	1	0211-0512	●	●	●		●
67	NUT; C/MBR M14	0-91110-514-0	02	1	0601-	●	●	●		●
82	NUT; BRKT M14	9-99110-414-0	22	1	0005-0210	●	●	●	●
82	NUT; BRKT M14	9-99110-414-0	22	1	0211-0411	●	●	●		●
82	NUT; BRKT M14	9-99110-414-0	22	1	0412-0512		●	●		●
82	NUT; BRKT FRR STD CAB(FRR***) M14	9-99110-414-0	22	1	0412-0512	●
82	NUT; BRKT M14	0-91110-514-0	22	1	0601-		●	●		●
82	NUT; BRKT FRR STD CAB(FRR***) M14	0-91110-514-0	22	1	0601-	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	0005-0210	●	●	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	0211-0411	●	●	●		●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	0412-0603		●	●		●
98	WASHER; LK,STOPPER FRR STD CAB(FRR***) ID=14.2	9-09150-614-0	16	1	0412-0603	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0604-		●	●		●
98	WASHER; LK,STOPPER FRR STD CAB(FRR***) ID=14.2	0-91510-614-0	16	1	0604-	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	0005-0210	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	0211-0411	●	●	●		●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	0412-		●	●		●
101	BRACKET; RR SPR,FRT FRR STD CAB(FRR***)	1-53353-090-4	02	1	0412-	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	0005-0210	●	●	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	0211-0411	●	●	●		●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	0412-		●	●		●
103	STOPPER; SUB SPR FRR STD CAB(FRR***)	1-53356-059-1	04	1	0412-	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	0005-0210	●	●	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	0211-0411	●	●	●		●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	0412-		●	●		●
105	BRACKET; RR SPR,RR FRR STD CAB(FRR***)	1-53354-074-0	02	1	0412-	●
106	BOLT; BRKT FRD STD CAB(FRD***) M14X35	0-28691-435-0	12	1	0412-0512	●
106	BOLT; BRKT FRD STD CAB(FRD***) M14X35 FLANGE	0-28661-435-0	12	1	0601-	●
106	BOLT; BRKT M14X40	0-20801-440-0	22	1	0005-0210	●	●	●	●
106	BOLT; BRKT M14X40	0-20801-440-0	22	1	0211-0411	●	●	●		●
106	BOLT; BRKT M14X40	0-20801-440-0	22	1	0412-0512		●	●		●
106	BOLT; BRKT FRR STD CAB(FRR***) M14X40	0-20801-440-0	22	1	0412-0512	●
106	BOLT; BRKT M14X40	0-20851-440-0	22	1	0601-		●	●		●
106	BOLT; BRKT FRR STD CAB(FRR***) M14X40	0-20851-440-0	22	1	0601-	●
117	BOLT; STOPPER M14X40	0-20801-440-0	16	1	0303-0512			●
117	BOLT; STOPPER M14X40	0-20851-440-0	16	1	0601-			●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	0005-0210	●	●	●	●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	0211-0302	●	●	●		●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	0303-0411	●	●			●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	0412-		●			●
117	BOLT; STOPPER FRR STD CAB(FRRM) FSR(FS****) M14X45	0-20801-445-0	16	1	0412-	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	0005-0210	●	●	●	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	0211-0411	●	●	●		●
118	NUT; STOPPER M14	9-99110-414-0	16	1	0412-0512		●	●		●
118	NUT; STOPPER FRR STD CAB(FRR***) M14	9-99110-414-0	16	1	0412-0512	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-		●	●		●
118	NUT; STOPPER FRR STD CAB(FRR***) M14	0-91110-514-0	16	1	0601-	●
130	MEMBER; CROSS,END	1-53181-469-2	01	1	0005-		●	●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	0005-0210	●			●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	0211-	●				●
131	BOLT; END C/MBR M10X25 FLANGE	0-28681-025-0	04	1	0005-0210		●	●	●
131	BOLT; END C/MBR M10X25 FLANGE	0-28681-025-0	04	1	0211-0512	●	●	●
131	BOLT; END C/MBR M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●	●
131	BOLT; END C/MBR M10X30 FLANGE	0-28681-030-0	04	1	0005-0210	●
131	BOLT; END C/MBR M10X30 FLANGE	0-28681-030-0	04	1	0211-0512					●
131	BOLT; END C/MBR M10X30 FLANGE	0-28651-030-0	04	1	0601-					●
132	NUT; END C/MBR M10 FLANGE	0-91150-110-0	04	1	0005-0210	●	●	●	●
132	NUT; END C/MBR M10 FLANGE	0-91150-110-0	04	1	0211-0602	●	●	●		●
132	NUT; END C/MBR M10 FLANGE	0-91180-110-0	04	1	0603-	●	●	●		●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	0005-0210	●	●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	0211-0411	●	●	●		●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	0412-0603		●	●		●
138	WASHER; LK,BRKT FRR STD CAB(FRR***) ID=14.2	9-09150-614-0	22	1	0412-0603	●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	22	1	0604-		●	●		●
138	WASHER; LK,BRKT FRR STD CAB(FRR***) ID=14.2	0-91510-614-0	22	1	0604-	●
139	MEMBER; CROSS,6TH FRD STD CAB(FRD***)	1-53181-893-4	01	1	0412-	●
139	MEMBER; CROSS,6TH	1-53181-521-3	01	1	0005-			●
139	MEMBER; CROSS,6TH	1-53181-465-9	01	1	0005-0210	●			●
139	MEMBER; CROSS,6TH	1-53181-465-9	01	1	0211-0411	●
139	MEMBER; CROSS,6TH FRR STD CAB(FRRM) FSR(FS****)	1-53181-465-9	01	1	0412-	●
139	MEMBER; CROSS,6TH	1-53181-926-2	01	1	0211-					●
143	MEMBER; CROSS,7TH	1-53181-465-9	01	1	0005-0411	●
143	MEMBER; CROSS,7TH FRR STD CAB(FRRM) FSR(FS****)	1-53181-465-9	01	1	0412-	●
143	MEMBER; CROSS,7TH	1-53181-926-1	01	1	0211-0411					●
143	MEMBER; CROSS,7TH FRD STD CAB(FRD***)	1-53181-926-2	01	1	0412-	●
143	MEMBER; CROSS,7TH	1-53181-926-2	01	1	0412-					●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0211-1201	●	●	●		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1202-	●	●	●		●
202	SPACER; 3RD C/MBR	1-53178-015-0	02	1	0005-0210				●
202	SPACER; 3RD C/MBR	1-53178-015-0	02	1	0211-	●				●
344	MEMBER; CROSS,4TH	1-53181-520-8	01	1	0005-		●
344	MEMBER; CROSS,4TH	1-53181-463-1	01	1	0005-0210	●		●	●
344	MEMBER; CROSS,4TH	1-53181-463-3	01	1	0211-			●
344	MEMBER; CROSS,4TH	1-53181-604-3	01	1	0211-	●				●
345	MEMBER; CROSS,5TH	1-53181-521-3	01	1	0005-		●
345	MEMBER; CROSS,5TH	1-53181-520-8	01	1	0005-			●
345	MEMBER; CROSS,5TH	1-53181-465-9	01	1	0005-0210	●			●
345	MEMBER; CROSS,5TH	1-53181-604-3	01	1	0211-	●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
