Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

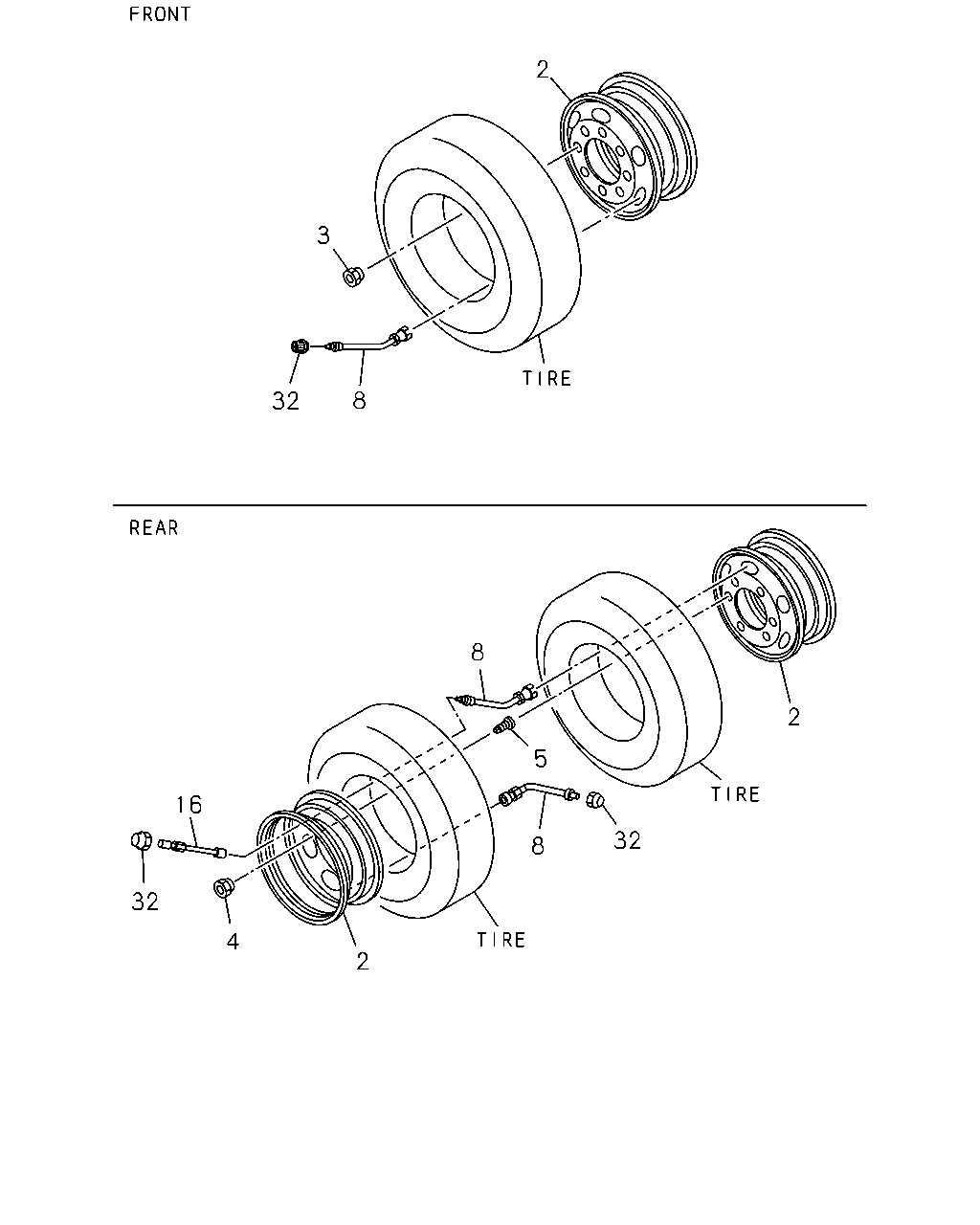

4-80 — ROAD WHEEL (#9416) — 51 parça

2 3 8 32 8 2 5 16 32 8 32 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	WHEEL; DISC	1-42350-629-0	07	1	0005-0204	●
2	WHEEL; DISC	1-42350-629-0	07	1	0205-0411	●	●
2	WHEEL; DISC	1-42350-629-0	07	1	0412-0505	●	●	●
2	WHEEL; DISC	1-42350-725-0	07	1	0506-0611	●	●	●
2	WHEEL; DISC DISC WHEEL 6STUD 17.5X6.00 135-9(SBG) DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42350-725-0	07	1	0612-0702	●
2	WHEEL; DISC	1-42350-725-0	07	1	0612-0702		●	●
2	WHEEL; DISC DISC WHEEL 6STUD 17.5X6.00 135-9(SBG) DISC WHEEL SPECIAL PAINTED WHITE<W20>	1-42350-771-0	07	1	0703-	●
2	WHEEL; DISC	1-42350-771-0	07	1	0703-		●	●
2	WHEEL; DISC	1-42350-628-0	07	1	0005-0204		●
2	WHEEL; DISC	1-42350-408-0	07	1	0005-0411				●
2	WHEEL; DISC	1-42350-408-0	07	1	0412-				●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	06	1	0005-0411	●	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	06	1	0412-	●	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	06	1	0005-0411	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	06	1	0412-	●	●	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	0005-				●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0005-				●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	06	1	0005-0411	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	06	1	0412-0610	●	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0611-	●	●	●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	06	1	0005-0411	●	●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	06	1	0412-0610	●	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0611-	●	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	0005-0610				●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0611-				●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	0005-0610				●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0611-				●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	06	1	0005-0411	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	06	1	0412-0610	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0611-	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	06	1	0005-0411	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	06	1	0412-0610	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0611-	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	0005-0610				●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-				●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	0005-0610				●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-				●
8	VALVE; TIRE	1-42370-019-3	07	1	0005-0411	●	●
8	VALVE; TIRE	1-42370-019-3	07	1	0412-	●	●	●
8	VALVE; TIRE	1-42370-020-3	07	1	0005-				●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	1-42370-015-2	02	1	0005-0210	●	●		●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	1-42370-015-2	02	1	0211-0411				●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	1-42370-015-2	02	1	0412-1003				●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	8-98167-051-0	02	1	1004-				●
32	CAP; VALVE	1-42374-001-0	05	1	0211-0410				●
32	CAP; VALVE	1-42374-001-0	05	1	0005-0210	●	●		●
32	CAP; VALVE	1-42374-001-0	07	1	0211-0410	●	●
32	CAP; VALVE	1-42374-001-0	07	1	0411-0411	●	●		●
32	CAP; VALVE	1-42374-001-0	07	1	0412-0611	●	●	●	●
32	CAP; VALVE DISC WHEEL 6STUD 17.5X6.00 135-9(SBG)	1-42374-001-0	07	1	0612-	●
32	CAP; VALVE	1-42374-001-0	07	1	0612-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
