4-71 — AIR SUSPENSION PIPING (#9415) — 29 parça

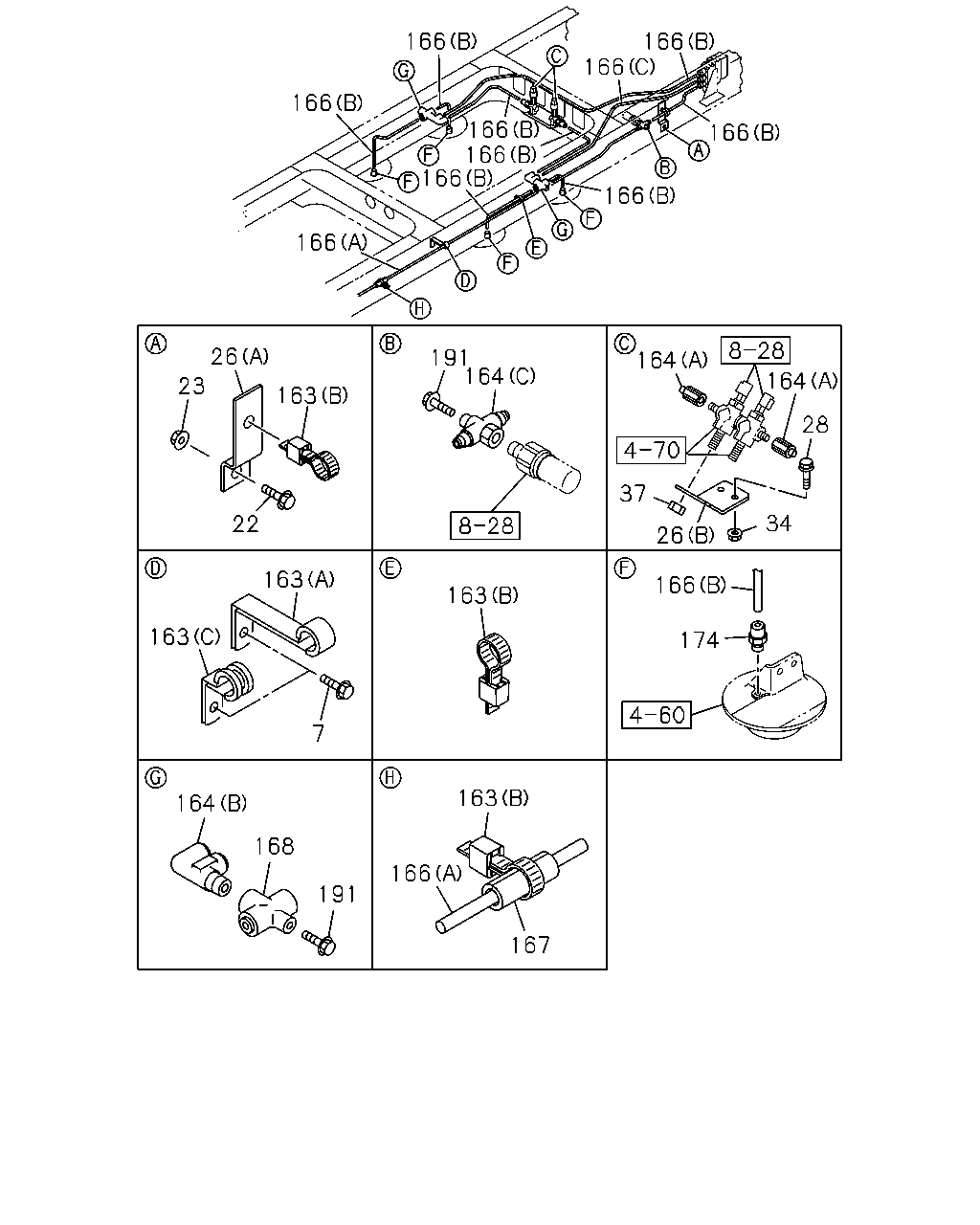

çizim 99803
166 166 166 166 166 166 166 166 166 166 164 26 191 164 164 23 163 28 37 34 22 26 163 166 163 163 174 7 163 164 168 166 191 167
BalonParca AdiParca NoAdetTipApplied Date
7 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0412-0512
7 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
22 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0412-0512
22 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
23 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0412-0602
23 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
26 BRACKET; CLIP
(A) 		1-47471-163-0 03 1 0412-
26 BRACKET; CLIP
(B) 		1-47479-878-0 01 1 0412-
28 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512
28 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
37 NUT; UNION
M12 		9-99111-412-0 02 1 0412-0512
37 NUT; UNION
M12 		0-91111-512-0 02 1 0601-
163 CLIP; BAND
(A) ID=17 		1-09700-840-0 01 1 0412-
163 CLIP; BAND
(B) L=350 		1-09707-183-0 22 1 0412-
163 CLIP; BAND
(C) ID=16 L=28 		9-09525-556-0 01 1 0412-0606
163 CLIP; BAND
(C) ID=16 L=28 		0-95235-556-0 01 1 0607-
164 CONNECTOR
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0412-
164 CONNECTOR
(B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 02 1 0412-
164 CONNECTOR
(C) 		1-09661-270-0 01 1 0412-
166 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0412-
166 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 08 1 0412-
166 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 01 1 0412-
167 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0412-
168 UNION; 3WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 02 1 0412-
174 UNION; AIR SPRING
DIN8 & R3/8 STRAIGHT 		1-09660-964-0 04 1 0412-
191 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 03 1 0412-0512
191 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 03 1 0601-
