Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶
8-80 — WINDSHIELD WIPER AND WASHER
(#94145) — 36 parça
◀

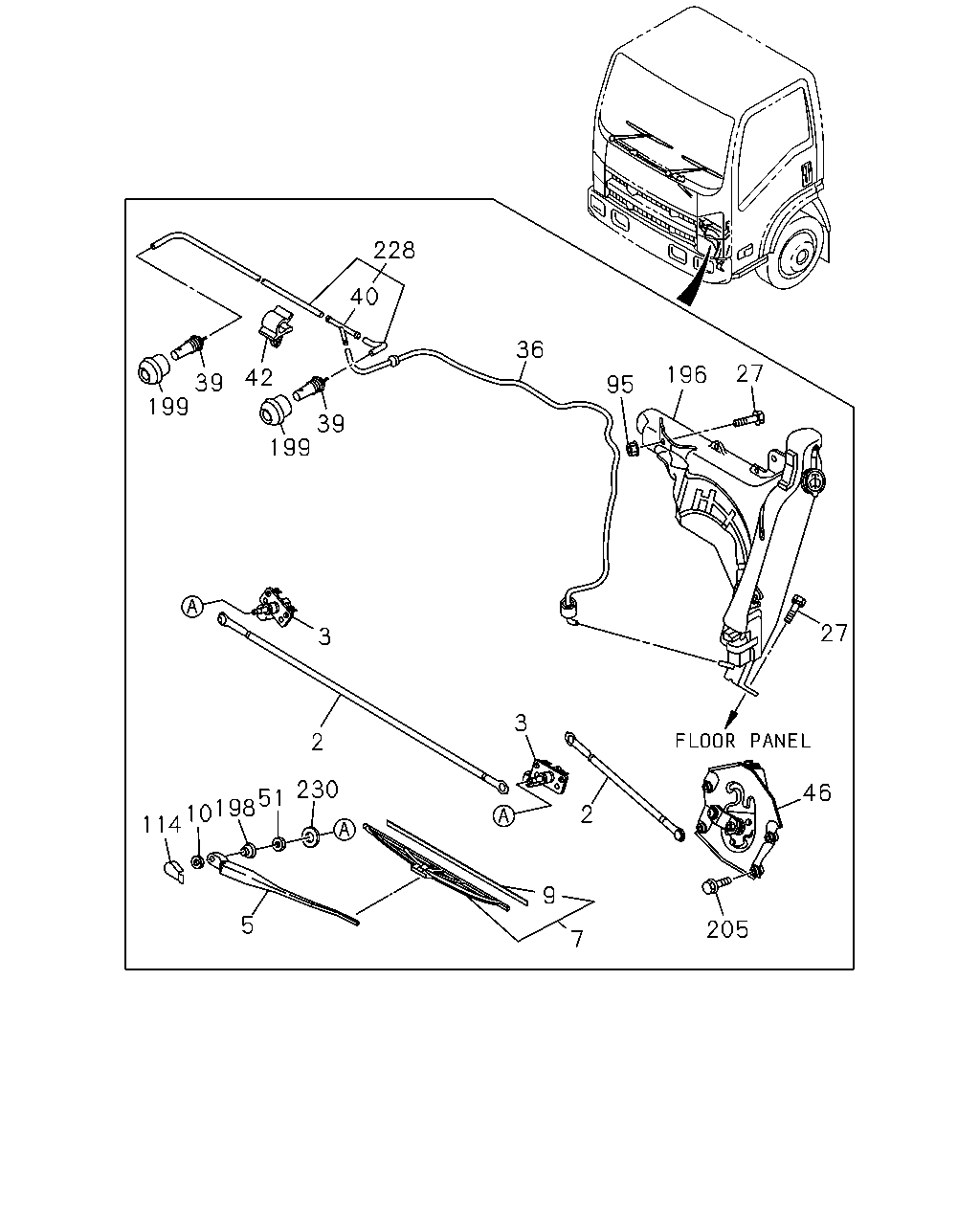

[880A] WIPER AND WASHER TANK (24 parça)

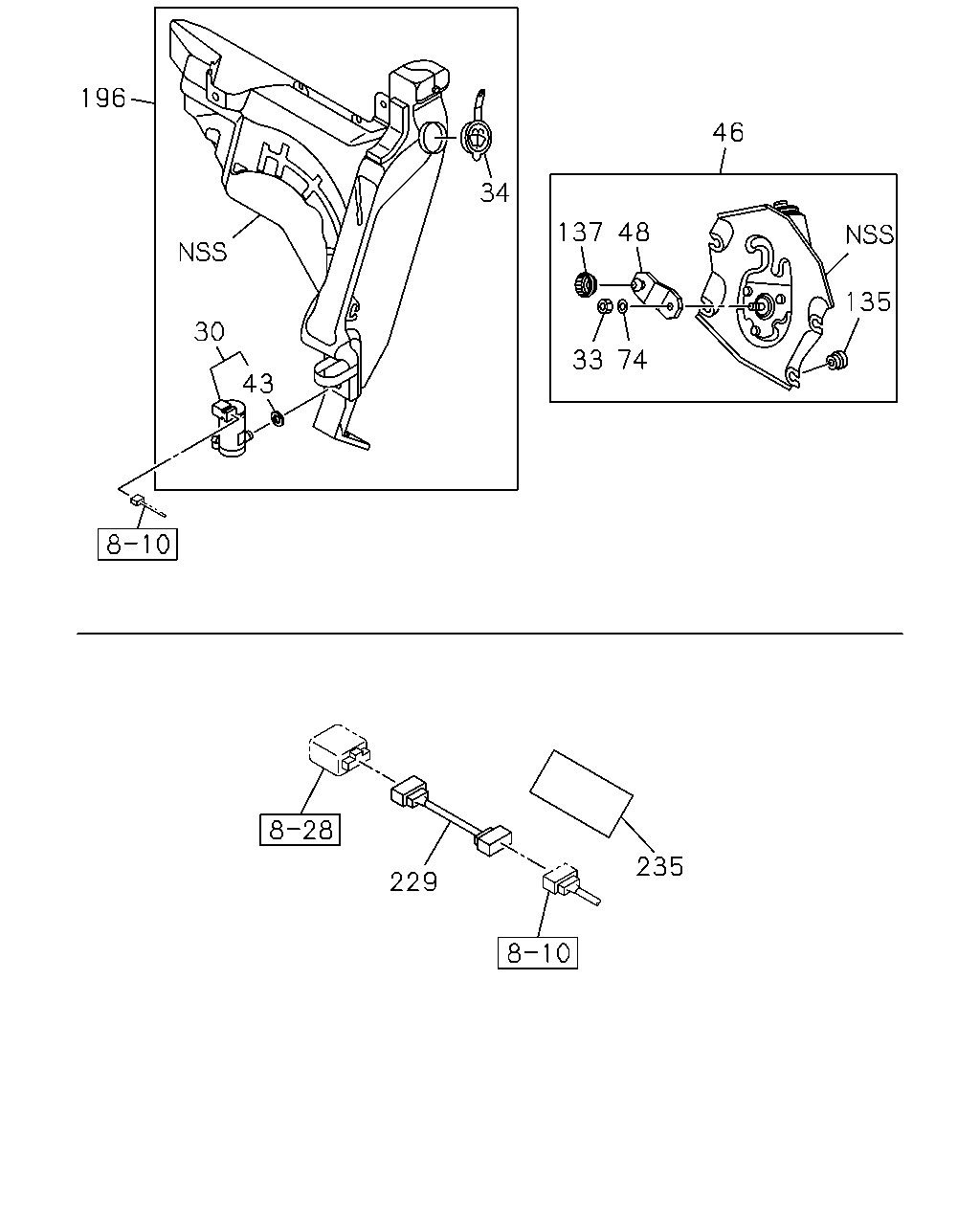

[880A] COMPONENT;MOTOR AND TANK (12 parça)
▶
228
40
42
39
199
199
39
36
95
196
27
27
46
205
2
7
9
3
2
230
51
198
10
114
3
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.063 LINK; FRT WIPER
L=400 W/CAP STAMP M
8-98053-767-0
01
1
1207-
2
16.063 LINK; FRT WIPER
L=590 W/CAP
8-98053-770-0
01
1
1207-
3
16.063 PIVOT ASM; FRT WIPER
8-98053-763-0
01
1
1207-
3
16.063 PIVOT ASM; FRT WIPER
8-98053-764-0
01
1
1207-
5
16.063 ARM; WIPER
8-98053-784-0
01
1
1207-
5
16.063 ARM; WIPER
8-98053-785-0
01
1
1207-
7
16.062 BLADE; WIPER
8-98053-790-0
02
1
1207-
9
16.062 RUBBER; FRT WIPER BLADE
L=475
8-98053-793-0
02
1
1207-
10
16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8
0-91110-508-0
02
1
1207-
27
16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
02
1
1207-
36
16.065 HOSE; WASHER
L=1070
8-98029-171-2
01
1
1207-
39
16.065 NOZZLE; WINDSHIELD WASHER
8-98029-139-1
02
1
1207-
40
16.065 JOINT; WASHER HOSE
3WAY
5-83363-033-0
01
1
1207-
42
16.065 CLIP; WASHER HOSE
8-94144-956-0
01
1
1207-
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
8-98029-123-3
01
1
1207-
51
16.063 NUT; WIPER MOTOR LINK
M24
8-98029-167-0
02
1
1207-
95
16.065 NUT; WASHER TANK
01.062 M8 FLANGE
0-91180-108-0
01
1
1207-
114
16.063 COVER; FRT WIPER ARM
BLACK
8-94282-851-0
02
1
1207-
196
16.065 TANK; WASHER
8-98029-135-3
01
1
1207-
198
16.063 COVER; PIVOT,WIPER
8-98029-164-0
02
1
1207-
199
16.063 COVER; NOZZLE,WIPER
8-98079-030-0
02
1
1207-
205
16.064 BOLT; WIPER MOTOR
16.090 M6X25 W/LK&PL WASHER
8-98018-440-0
04
1
1207-
228
16.065 HOSE ASM; WASHER
8-98029-169-1
01
1
1207-
230
16.064 COLLAR; WIPER LINK
8-98029-097-0
02
1
1207-
196
34
30
43
46
48
137
74
33
135
235
229
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
16.065 MOTOR ASM; FRT WASHER TANK
8-97855-139-0
01
1
1207-
33
16.064 NUT; MOTOR TO ARM
M8
8-97855-157-0
01
1
1207-
34
16.065 CAP; WASHER TANK
8-97855-140-0
01
1
1207-
43
16.065 RUBBER; GASKET,TANK
10.154
8-94352-050-0
01
1
1207-
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
8-98029-123-3
01
1
1207-
48
16.063 ARM; WIPER MOTOR
8-98052-215-0
01
1
1207-
74
16.063 WASHER; ARM TO MOTOR
ID=8
8-97855-158-0
01
1
1207-
135
16.250 RUBBER; CUSHION,WIPER MOTOR
8-98052-214-0
04
1
1207-
137
16.063 SEAL; JOINT,WIPER MOTOR
8-98052-218-0
01
1
1207-
196
16.065 TANK; WASHER
8-98029-135-3
01
1
1207-
229
02.480 HARNESS; WASHER TANK
INTERMITTENT WIPER<C13>
8-98236-608-0
01
1
1302-1308
235
16.062 INSULATOR; HARNESS
INTERMITTENT WIPER<C13>
8-98236-321-0
01
1
1302-1308
