Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶

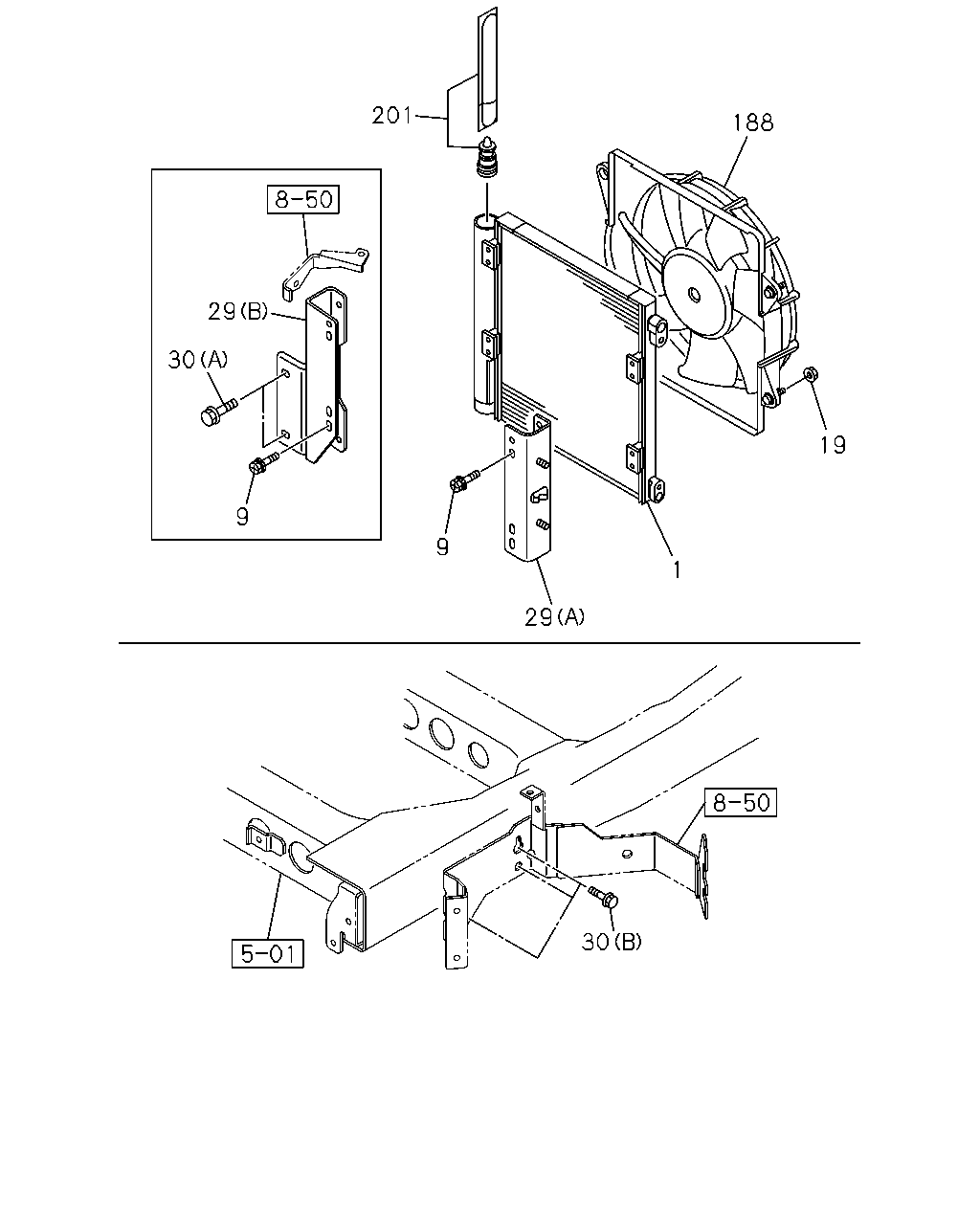

8-75 — CONDENSER
(#94144) — 10 parça
30
29
1
9
19
188
201
29
30
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98133-042-1
01
1
1207-
9
09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14
8-98041-899-0
08
1
1207-
19
09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6
1-83539-354-0
04
1
1207-
29
09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98133-044-0
01
1
1207-
29
09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98164-999-0
01
1
1207-
30
09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
1207-
30
09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.029 (B) M10X30 FLANGE
0-28651-030-0
03
1
1207-
188
09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60)
8-98133-043-0
01
1
1207-
201
09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
1-83535-097-0
01
1
1207-1409
201
09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
8-98282-482-0
01
1
1410-
