Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

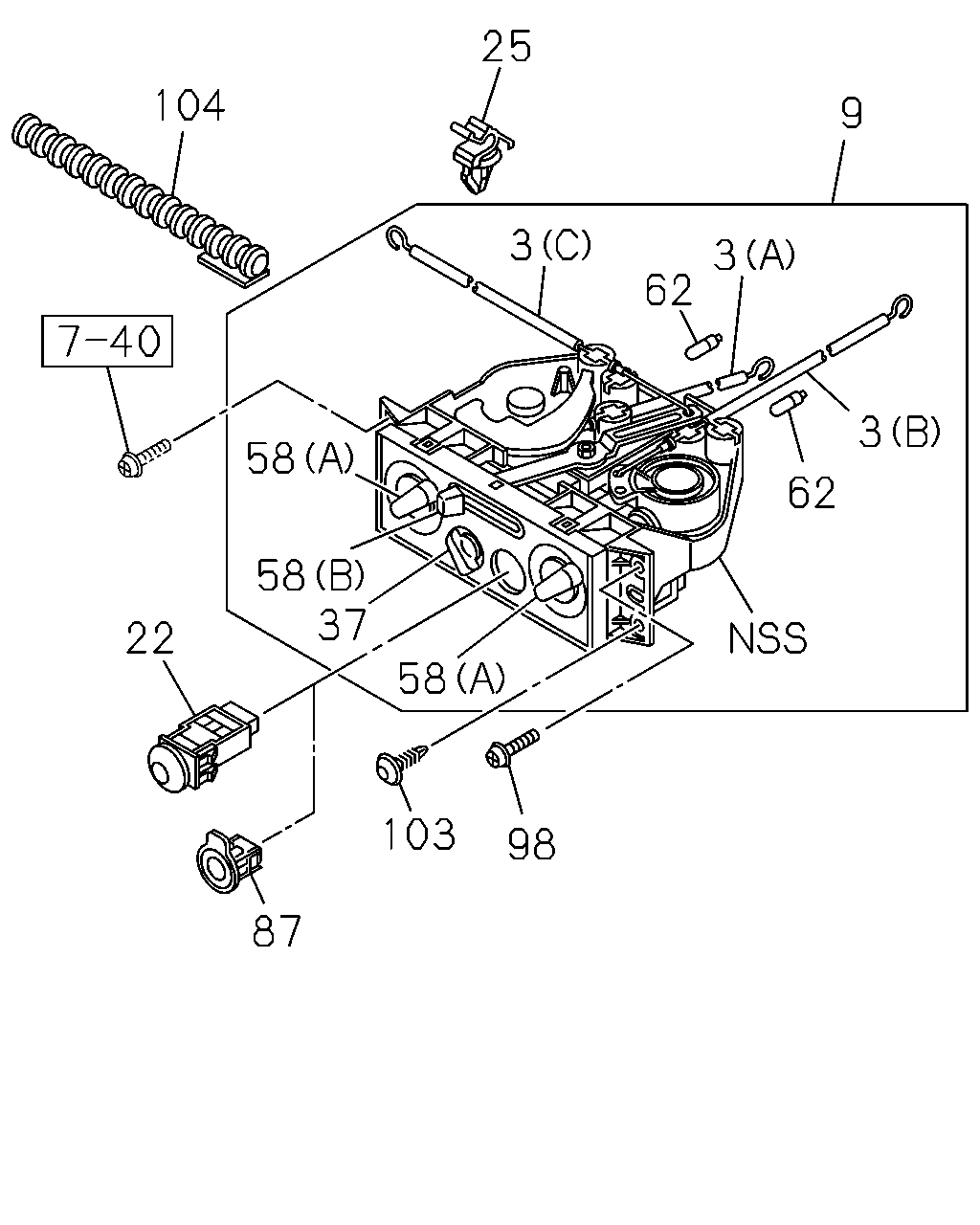

8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#94141) — 15 parça
22
87
103
98
58
37
58
58
104
25
3
9
3
62
3
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE
8-98039-250-0
01
1
1207-
3
09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX
8-98039-251-0
01
1
1207-
3
09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH
8-98039-253-2
01
1
1207-
9
08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98037-363-2
01
1
1207-
22
08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60)
8-98021-982-0
01
1
1207-
25
08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8
8-94128-483-0
01
1
1207-
37
08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98037-368-0
01
1
1207-
58
09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)
8-98037-369-0
02
1
1207-
58
09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)
8-98037-370-0
01
1
1207-
62
08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W
8-98037-371-0
02
1
1207-
87
08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41)
8-98006-089-0
01
1
1207-
98
08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.100 M5X20 HEXALOBULAR SOCKET
8-98177-743-0
01
1
1207-1212
98
08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
01
1
1301-
103
08.854 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY
8-97098-326-0
01
1
1207-
104
08.852 GUIDE; CABLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98048-216-0
01
1
1207-
