8-28 — CHASSIS ELECTRICAL (#94135) — 18 parça

531 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
531	02.769 RELAY; MAIN 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1207-1402
531	02.769 RELAY; MAIN 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-
666	02.173 RELAY; STARTER 24V 10A PANASONIC	8-98167-173-0	01	1	1207-

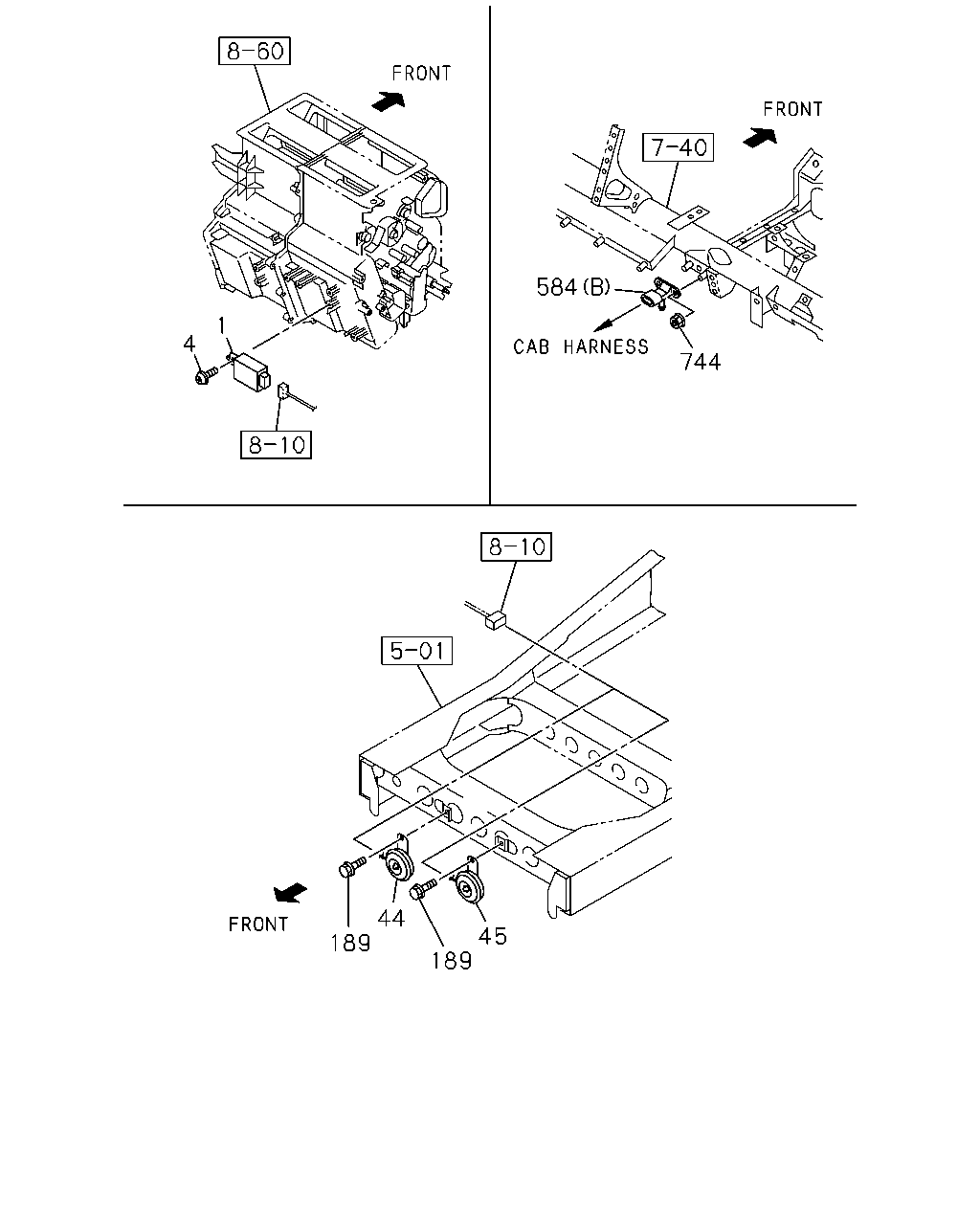

1 4 189 189 44 45 744 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	1207-
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1207-1212
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98022-022-0	01	1	1207-
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	1207-
189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1207-
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1207-
584	02.440 SENSOR; PRESSURE (A)	8-97387-682-0	01	1	1207-
584	02.440 SENSOR; PRESSURE 03.331 (B)	8-98020-514-0	01	1	1207-
744	09.277 NUT; SENSOR 01.062 M6 FLANGE	0-91180-106-0	02	1	1207-

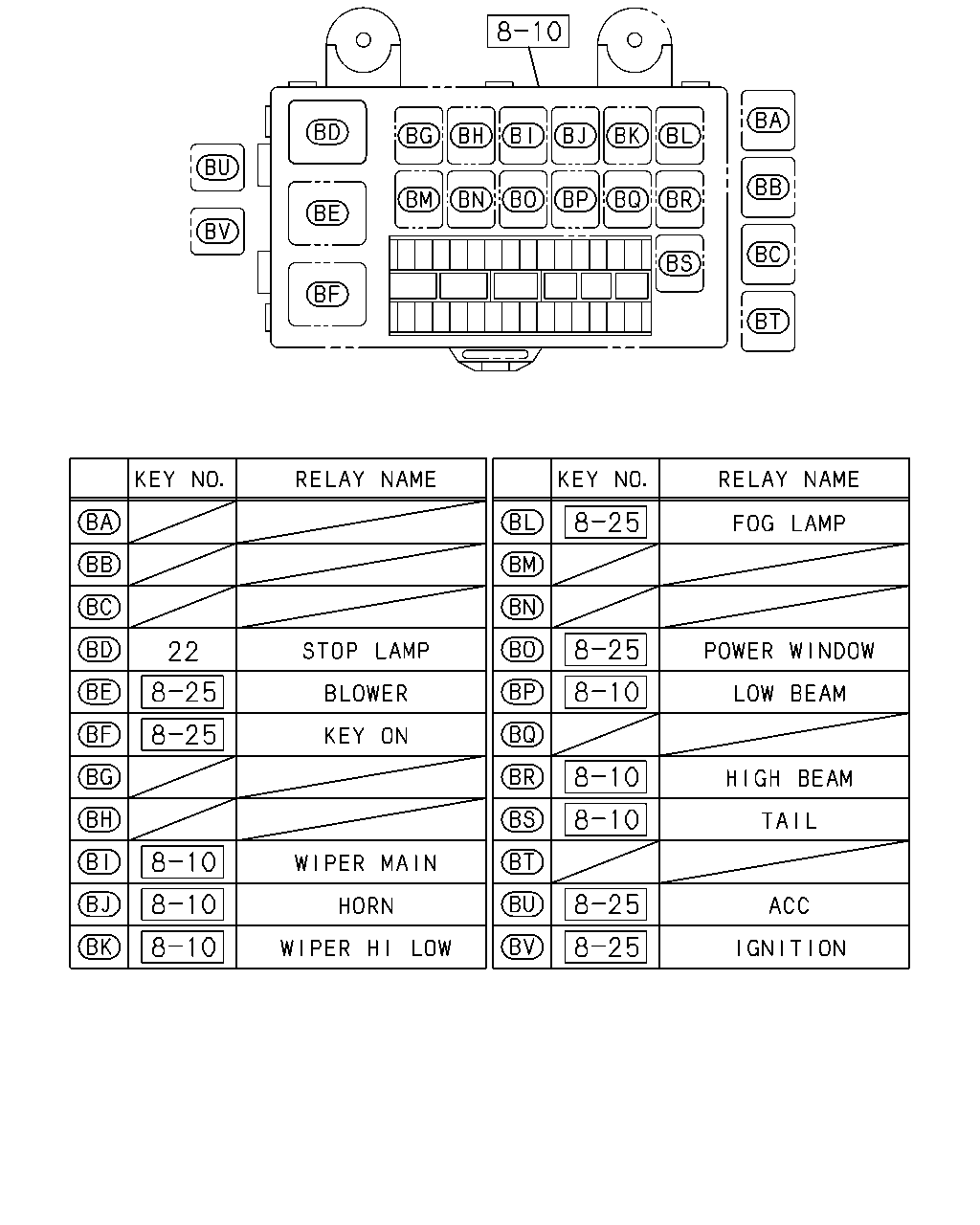

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-

584

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	584	02.440 SENSOR; PRESSURE (A)	8-97387-682-0	01	1	1207-
	584	02.440 SENSOR; PRESSURE 03.331 (B)	8-98020-514-0	01	1	1207-

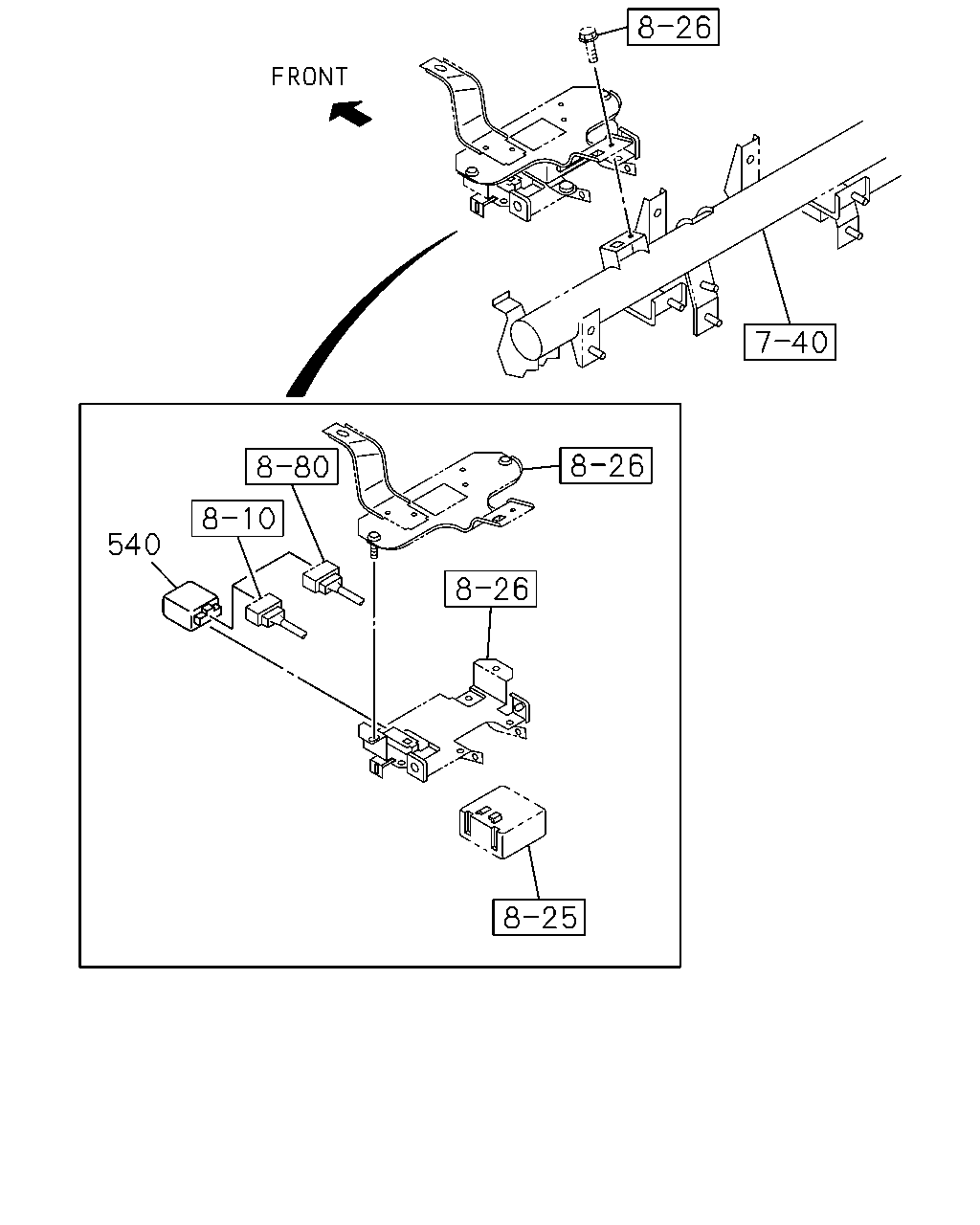

540

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1207-1308
	540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-
