8-15 — FIXING PARTS; WIRING HARNESS (#94130) — 105 parça

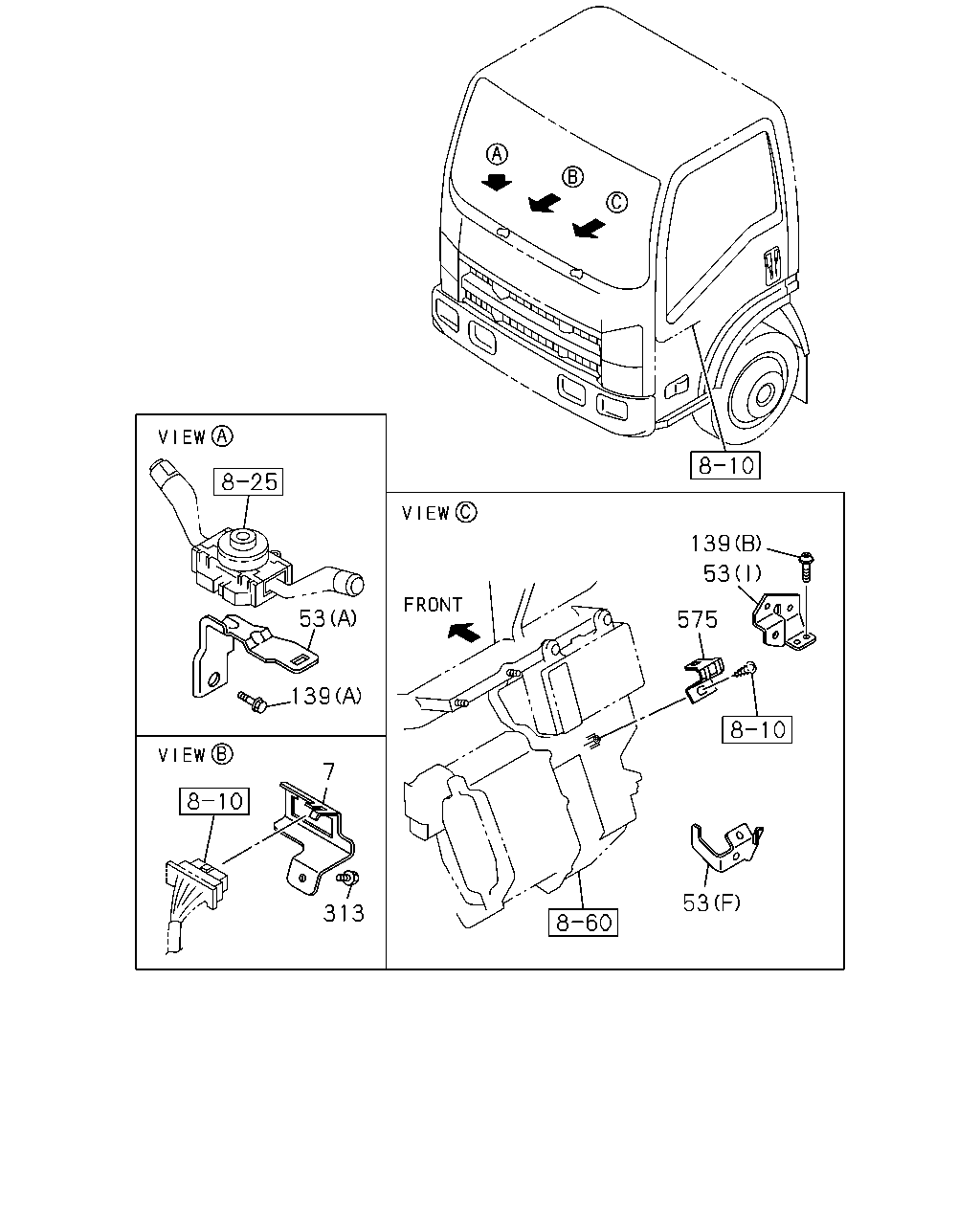

139 53 575 53 139 53 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR	8-98043-070-1	01	1	1207-
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1207-
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1207-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1207-
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1207-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1207-
53	02.483 BRACKET; HARNESS (F)	8-98074-502-0	01	1	1207-
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1207-
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (H)	8-98107-111-1	01	1	1207-
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G)	8-98171-457-0	01	1	1207-
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I)	8-98084-590-0	01	1	1207-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1207-
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1207-1212
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1207-
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1207-

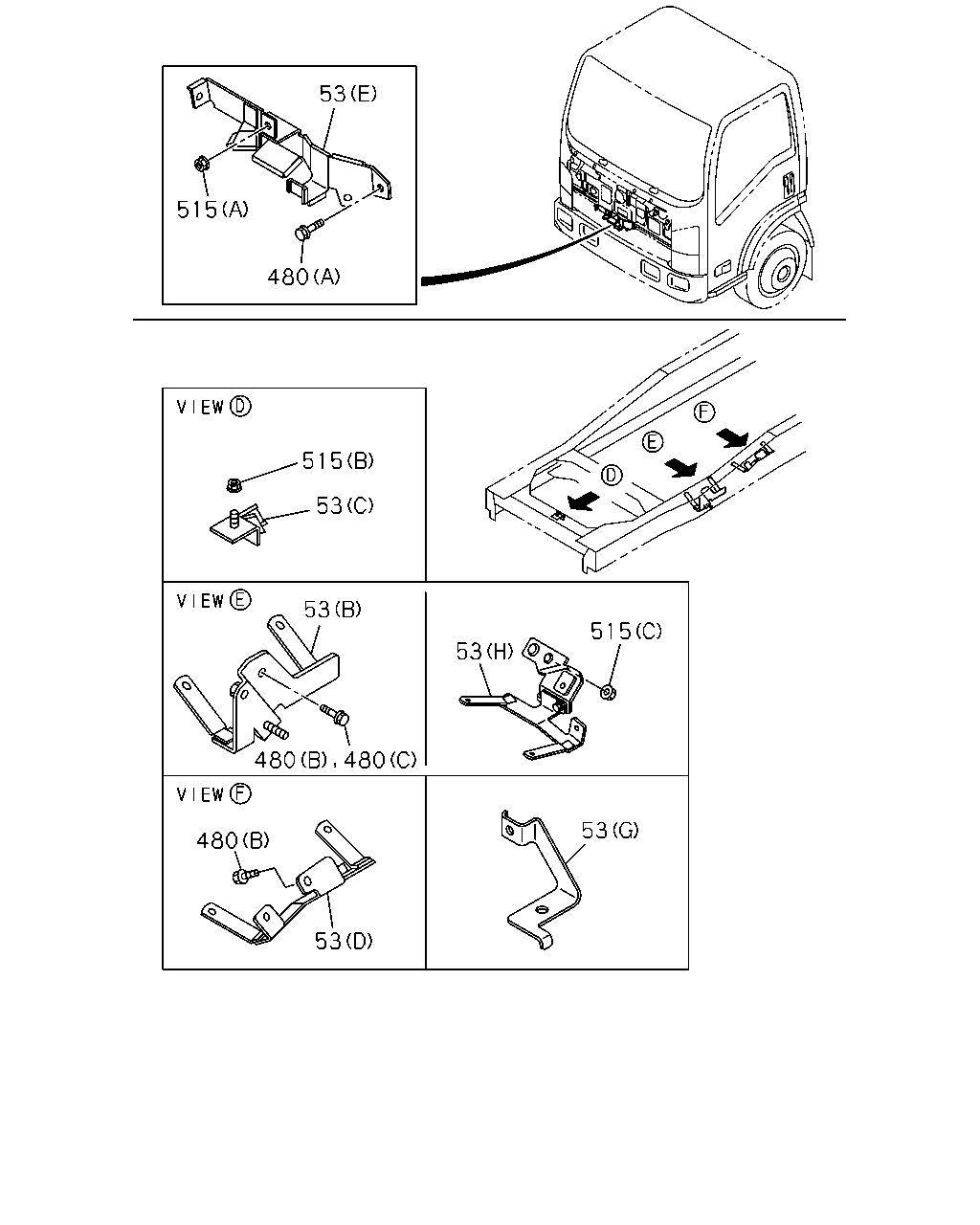

515 480 53 515 53 53 53 515 53 480 53 480 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1207-
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1207-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1207-
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1207-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1207-
53	02.483 BRACKET; HARNESS (F)	8-98074-502-0	01	1	1207-
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1207-
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (H)	8-98107-111-1	01	1	1207-
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G)	8-98171-457-0	01	1	1207-
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I)	8-98084-590-0	01	1	1207-
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1207-
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1207-
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.029 (C) M10X25 FLANGE	0-28651-025-0	01	1	1207-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1207-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1207-
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1207-
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1207-

313 480 481 38 516 139 480 529 38 480 460 386 377 386 377 516 139 515 552 219 294 515 524 552 24 515 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	1207-1409
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
38	02.559 BOLT; CLIP,HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1207-
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1207-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1207-
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1207-1212
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1207-
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1207-
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1207-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1207-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1207-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1207-
460	02.559 BOLT; HARNESS PROTECTOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1207-
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1207-
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1207-
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.029 (C) M10X25 FLANGE	0-28651-025-0	01	1	1207-
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1207-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1207-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1207-
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1207-
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1207-
516	02.559 BOLT; HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1207-
516	02.559 BOLT; HARNESS 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1207-
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1207-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1207-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1207-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1207-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1207-

488 22 22 22 22 22 48 22 22 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	01	1	1207-
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1207-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1207-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1207-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1207-
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1207-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 04.866 (H) ID=25 L=50	1-09701-019-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1207-
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1207-1311
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1207-1311
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1312-
48	02.559 CLIP; FRAME HARNESS 01.240 ID=14 L=47	5-09700-319-0	09	1	1207-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1207-

16 16 504 16 16 16 22 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	01	1	1207-
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1207-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1207-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1207-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1207-
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1207-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 04.866 (H) ID=25 L=50	1-09701-019-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1207-
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1207-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1207-1311
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1207-1311
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1312-
504	02.559 PROTECTOR; HARNESS	8-98208-886-0	01	1	1207-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	1207-1309

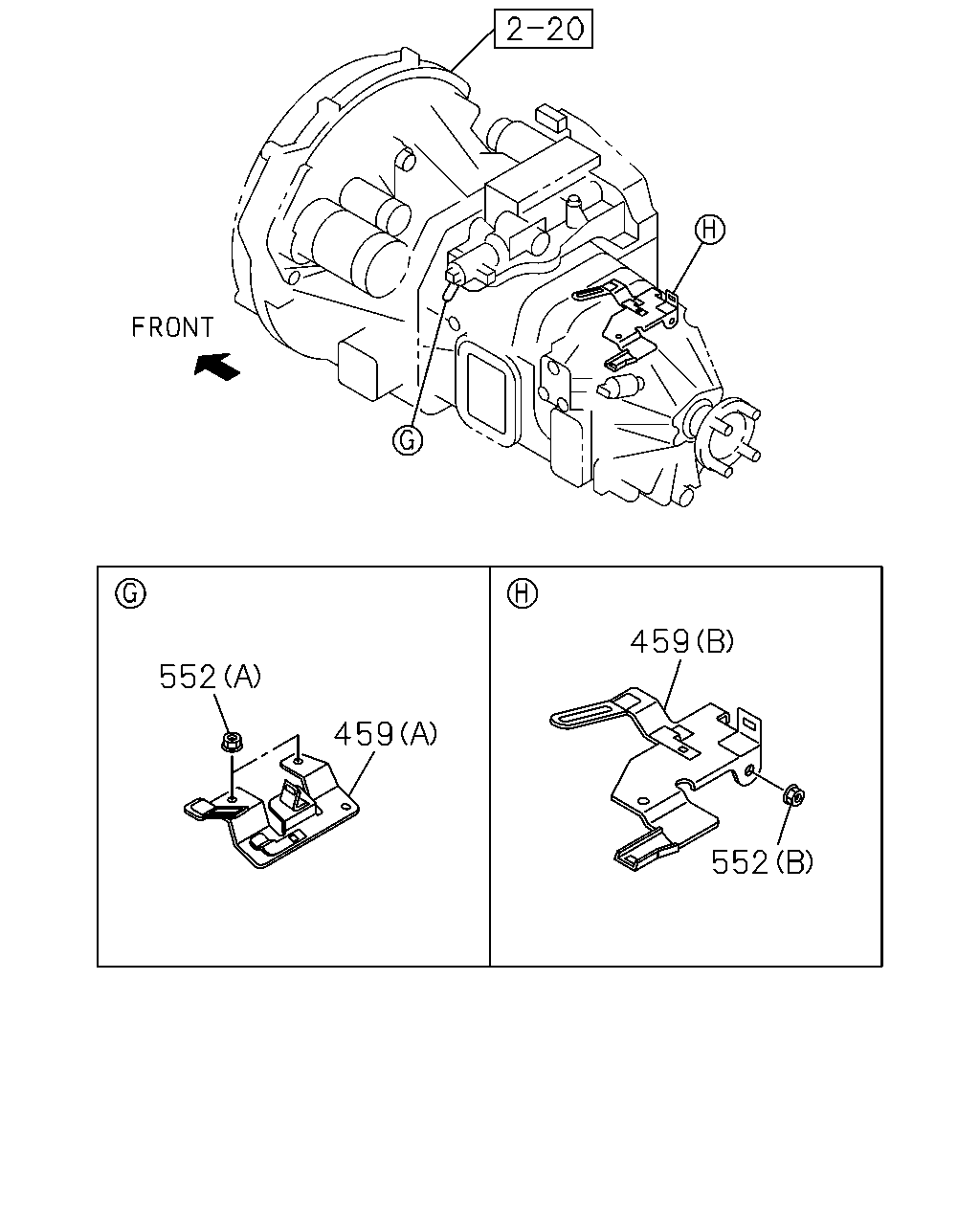

459 552 459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1207-
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98196-974-0	01	1	1207-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1207-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1207-
